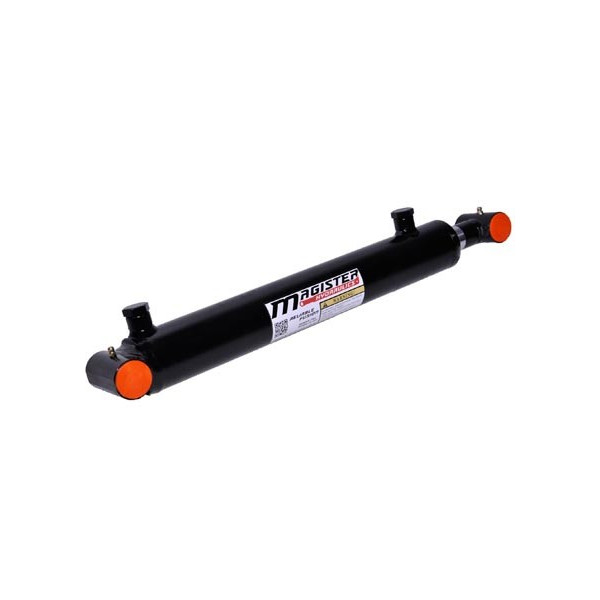

Cross Tube Hydraulic Cylinders

Cross tube hydraulic cylinders are widely used in mobile and other technological industries. Magister welded double-acting cross tube hydraulic cylinders offer a heavy-duty design capable of withstanding operating pressure up to 3500 PSI. High tensile honed cold drawn tube for durability. High tensile ground and polished hard chrome plated rod. Welded steel end mounts for added stability and strength. Read more...

Top quality five component compact seals for added performance Rod seals are composed of high quality U-cup polyurethane with an inner O-ring, POM-C wear rings, and a polyurethane wiper. Excellent for mobile applications such as forklifts, backhoes, front end loaders, tractors, excavators, and custom applications. Utilized in various industries such as agriculture, earthmoving, oil and gas, transportation, manufacturing, and forestry.

Due to their construction, these tubes can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The cross tube cylinders serve as an excellent replacement part for front-end loaders, mainly for John Deere, Kubota, Massey Ferguson, Mahindra, and others.

Cross Tube Hydraulic Cylinders in Stock

Bore Diameters: 1.5”-6”
Rod Diameters: 1″- 3”
Stroke Size: 4”- 60” with increments of 2”
Port Size: SAE 6, SAE 8, SAE 12
Pin: 0.75”
Oil Volume: 0.12 – 7.83
OD: 1.88″- 6.625”
Column Lead: 3,100- 83,100

Custom Cross Tube Hydraulic Cylinders

Magister Hydraulics is a leading manufacturer of custom cross tube hydraulic cylinders. We offer a wide range of options to meet the specific needs of our customers, including tubing, rod plating, seals, mounting ends, pressure ratings, color options, packaging, and labeling. We have a minimum order quantity of 50 SKUs for custom cylinders.

Benefits:

European Quality
2-year warranty
Free US Shipping
Volume discount for bulk orders.
Premium products
ISO 9001:2015 standards

Selecting a Cross Tube Hydraulic Cylinder

When considering the purchase of a cross tube hydraulic cylinder, it is important to evaluate key specifications such as –

Bore Diameter
Rod Diameter
Pin Hole Diameter
Single or Double Acting
Materials and Coatings
Application

By reviewing these factors, you can confidently select a hydraulic cylinder that is compatible with your equipment and performance requirements.

If you need any assistance in finding the right product, please call or email us at (973)344-5313 [email protected]

Showing 1–40 of 121 results

Cross Tube Hydraulic Cylinders

Type

Brand

Bore

Stroke

Retracted

Action

Extended

Rod Dia. (⌀)

Outer Dia. (⌀)

Pin Dia. (⌀)

Column Load

Oil Volume

Port Size

Rod End

Pressure

Design
