2.5" bore x 14" stroke cross tube hydraulic cylinder

Name: 2.5" bore x 14" stroke cross tube hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCT 2.5x14
Price: 221.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$221.00

Pay in 4 interest-free payments of $55.25

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCT 2.5x14

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Prince-Magnum part number	Eagle part number
WCT 2.5x14	288325	212692	WWXT2514-S	PC2514XL	HBU2514-ORB

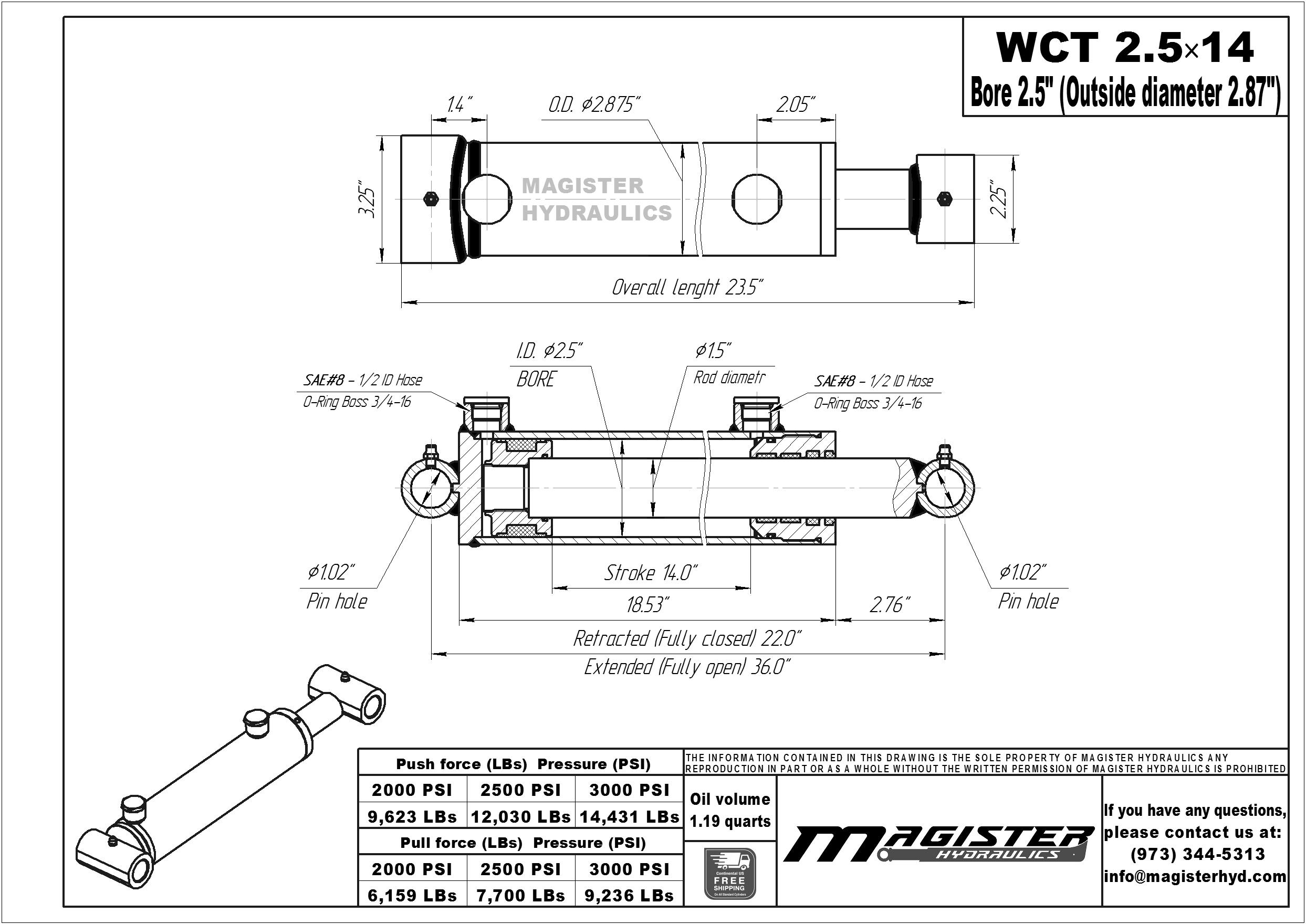

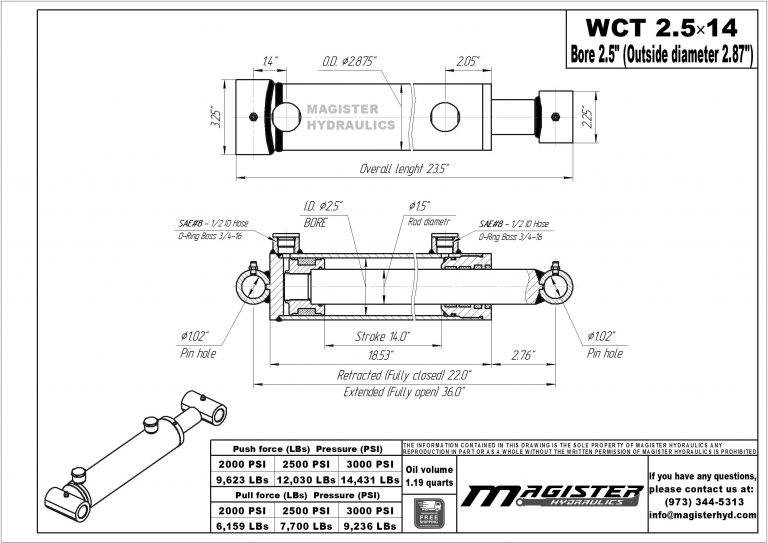

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	2.5 in
Outer Dia. (⌀) :	2.875 in
Stroke :	14 in
Rod Dia. (⌀) :	1.5 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

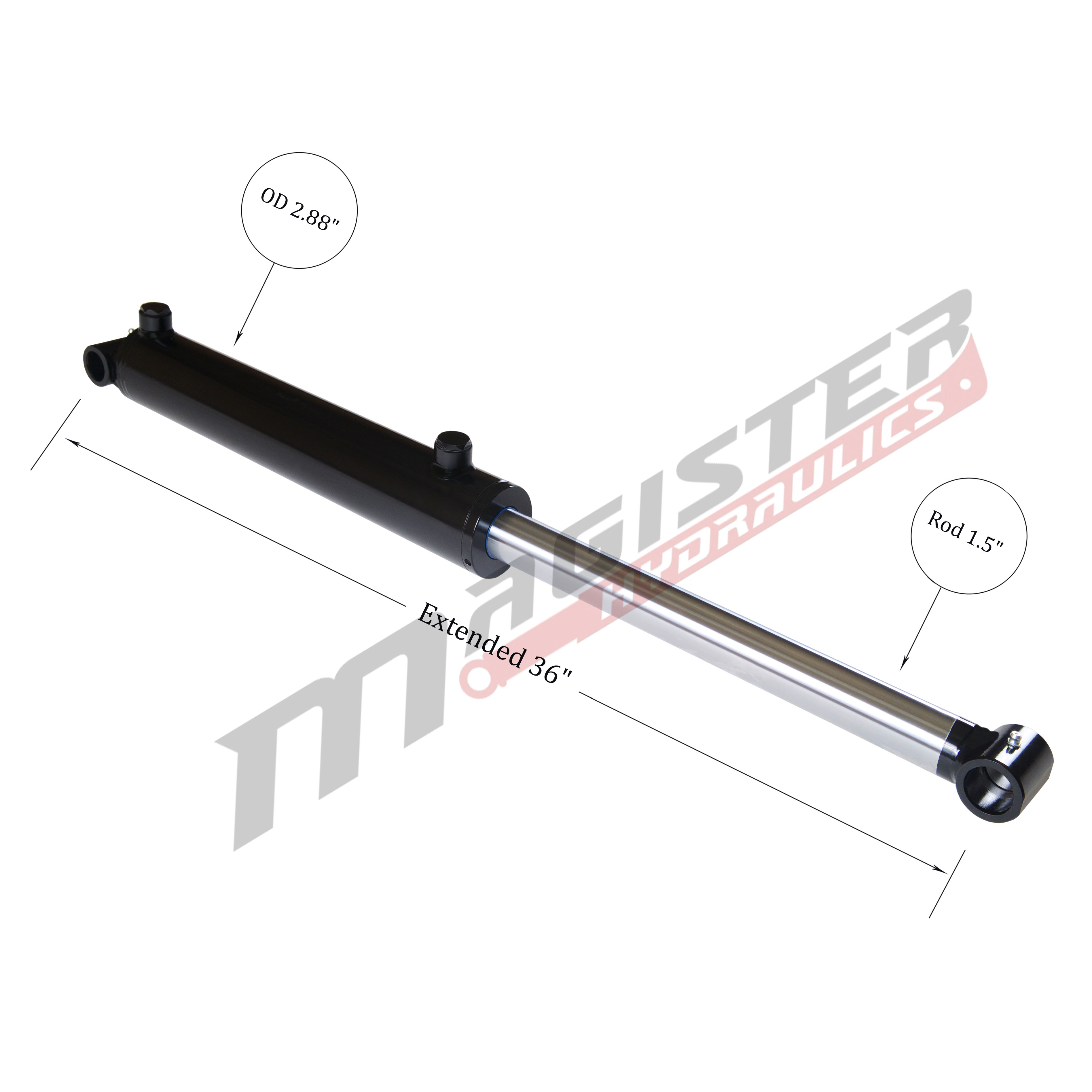

Extended :	36 in

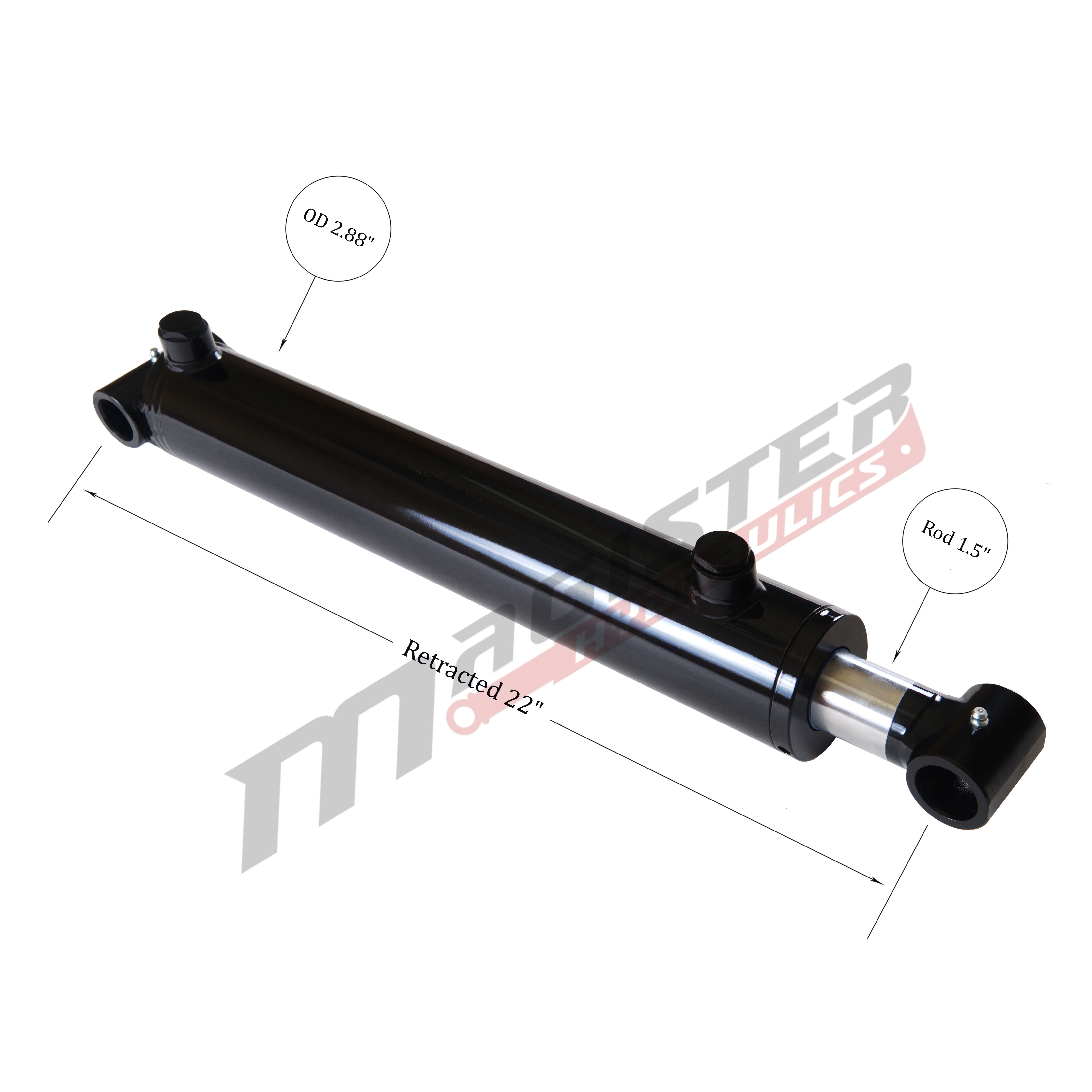

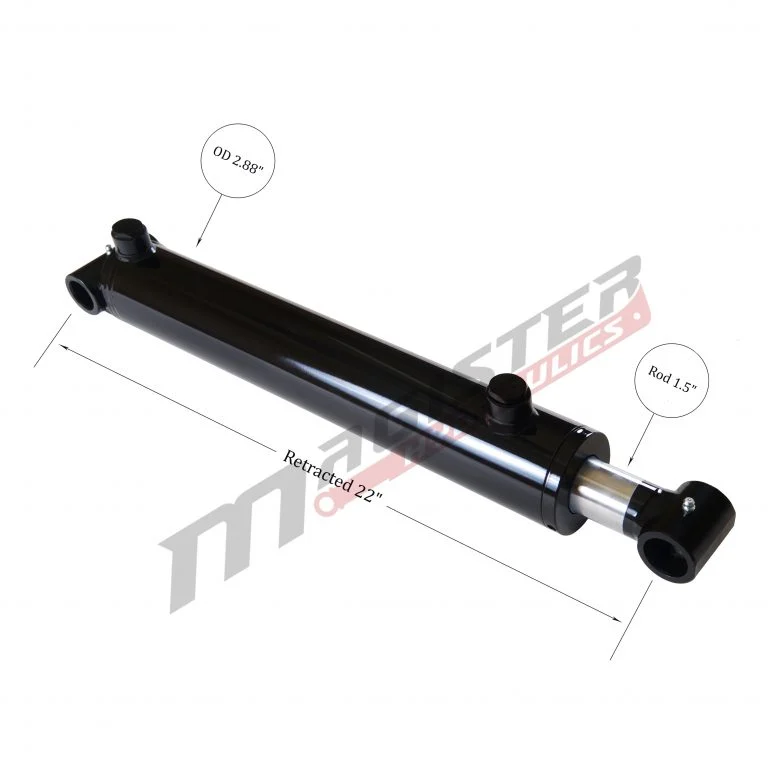

Retracted :	22 in
Overall length :	23.5 in
Pressure :	3500 PSI
Column Load :	14,700 LBs
Oil Volume :	1.19 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Cross Tube
Action :	Double Acting
Weight :	24 LBs
GTIN :	850597006714

SKU: WCT 2.5x14 Categories: 2.5" Bore Cross Tube, Cross Tube Hydraulic Cylinders, Hydraulic Cylinders

Volume discounts

1+ PRICE EA

$221.00

4+ PRICE EA -5%

$209.95

8+ PRICE EA -10%

$198.90

In stock

115 in stock

Description

2.5″ bore x 14″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
