2.5" bore x 16" stroke cross tube hydraulic cylinder
$229.00
Pay in 4 interest-free payments of $57.25SKU: WCT 2.5x16

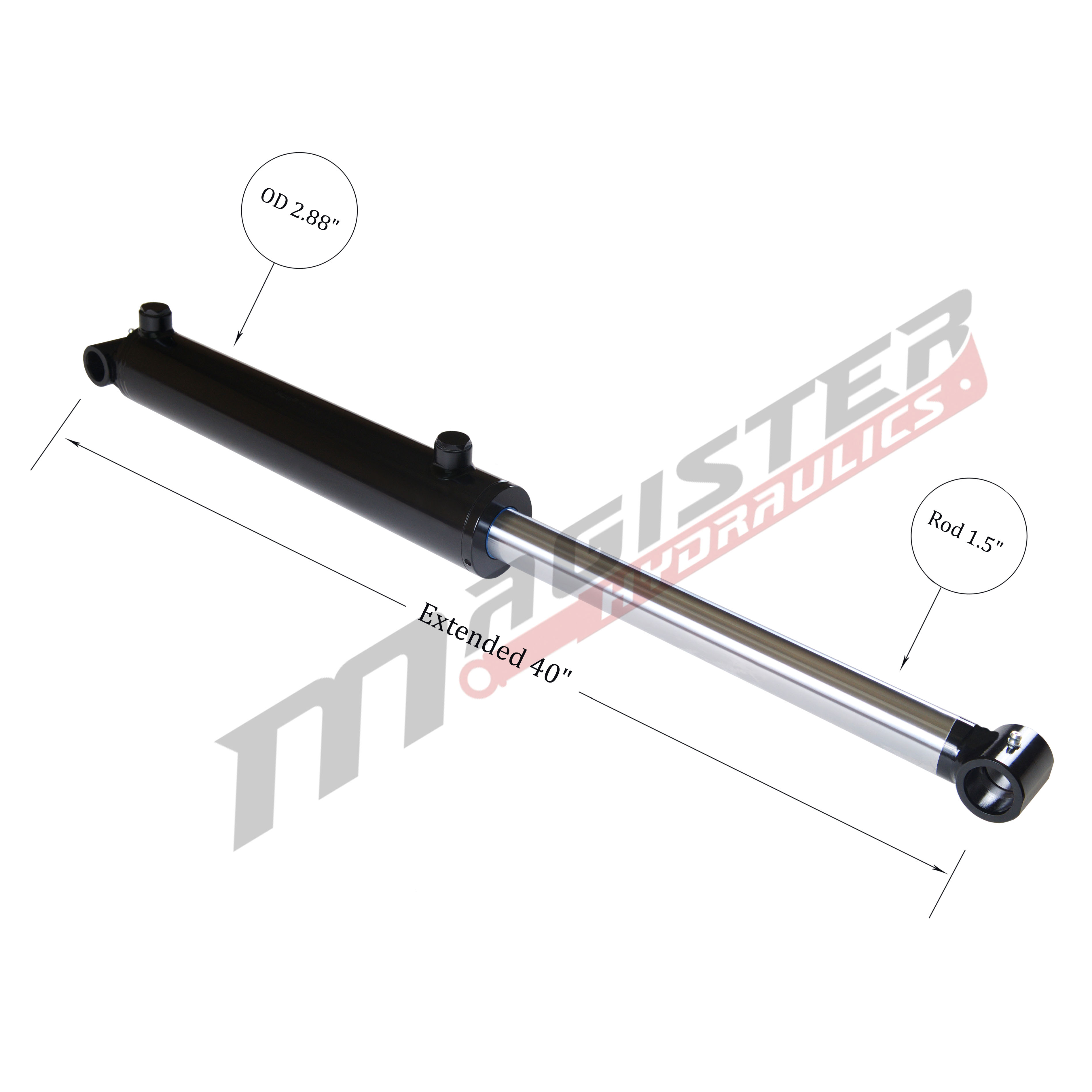

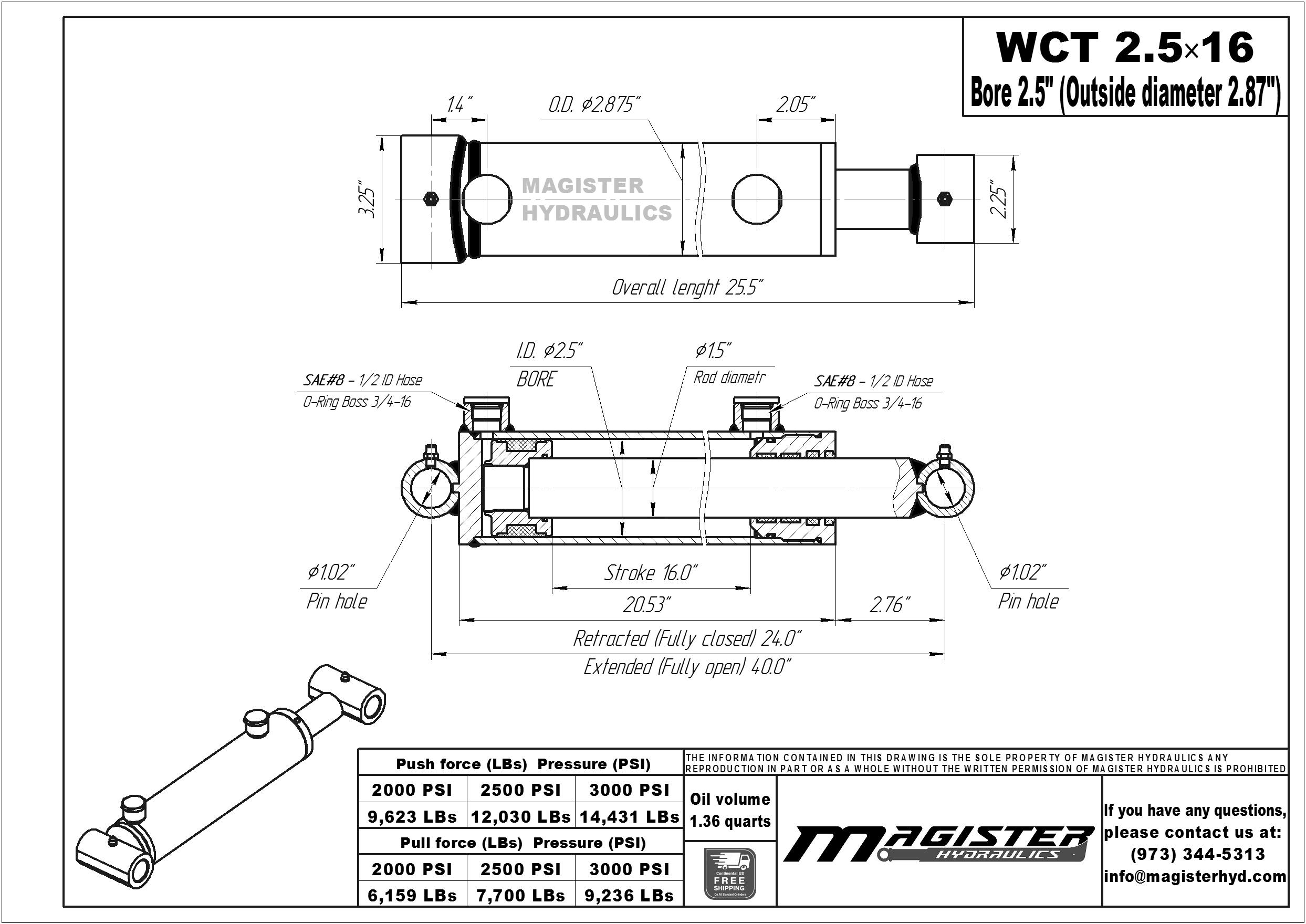

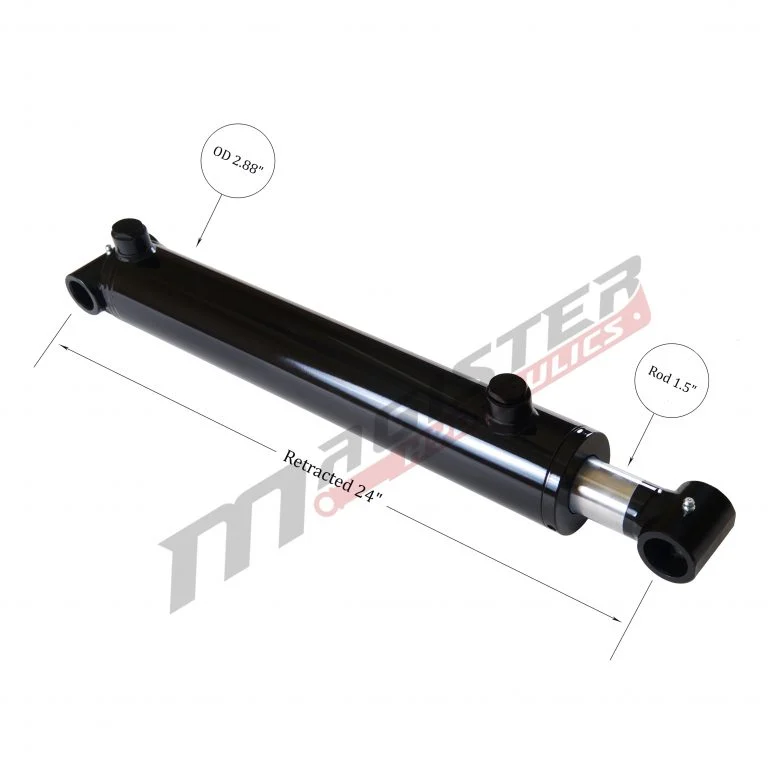

| Bore : | 2.5 in | Outer Dia. (⌀) : | 2.875 in | Stroke : | 16 in | Rod Dia. (⌀) : | 1.5 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 40 in | Retracted : | 24 in | Overall length : | 25.5 in | Pressure : | 3500 PSI | Column Load : | 14,700 LBs | Oil Volume : | 1.36 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Cross Tube | Action : | Weight : | 25 LBs |
|---|---|
| GTIN : | 850597006097 |
Volume discounts
4+ PRICE EA -5%
$217.55
8+ PRICE EA -10%
$206.10
In stock
96 in stock
Description
- 2.5″ bore x 16″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
Johnny A
Excellent service and great price
John R.
Just wanted to say thank you for the quick service you guys provided me with today!
Amazon Customer
Just what I needed and delivered quickly
Danny Little
Had to make modifications to both ends, but it worked okay.
mr satisfied
I ordered 2 of these and they work great. They are exactly as described and arrived quickly after ordering.
Roger L Pohl
Used to replace simular size hydrolilc on my new holland back hoe. Worked well.
M.W.
Purchased as a replacement for my Ford loader. The dealer wanted ten times the price. It took welding an end on to replace the original, but it fit good and has held it’s own without leaking or any problem for over a year now.
Roger L Pohl
Used to replace simular size hydrolilc on my new holland back hoe. Worked well.
M. Ayarza
Purchased as a replacement for my Ford loader. The dealer wanted ten times the price. It took welding an end on to replace the original, but it fit good and has held it’s own without leaking or any problem for over a year now.
cSutton
Worked well to replace the boom cylinder on a Terramite T5c. Had to get some SAE8 X 1/4” adapters to fit the existing hoses. The bottom mount was a bit tight, just ran a flap disc on each side a bit. Then it dropped right into place. Appears that it would also work for the stick and bucket cylinders even though the bore is a bit bigger than the original bucket cylinder. Need the next size up for the front bucket. (See the chart on the listing)
lary3610
Everything as described Good seller Would buy again
