2.5" bore x 42" stroke cross tube hydraulic cylinder

$320.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2.5x42
Bore :
2.5 inch
OD :
2.875"
Stroke :
42 inch
Rod :
1.5"
Port Size :
SAE 8
Pin :
1"

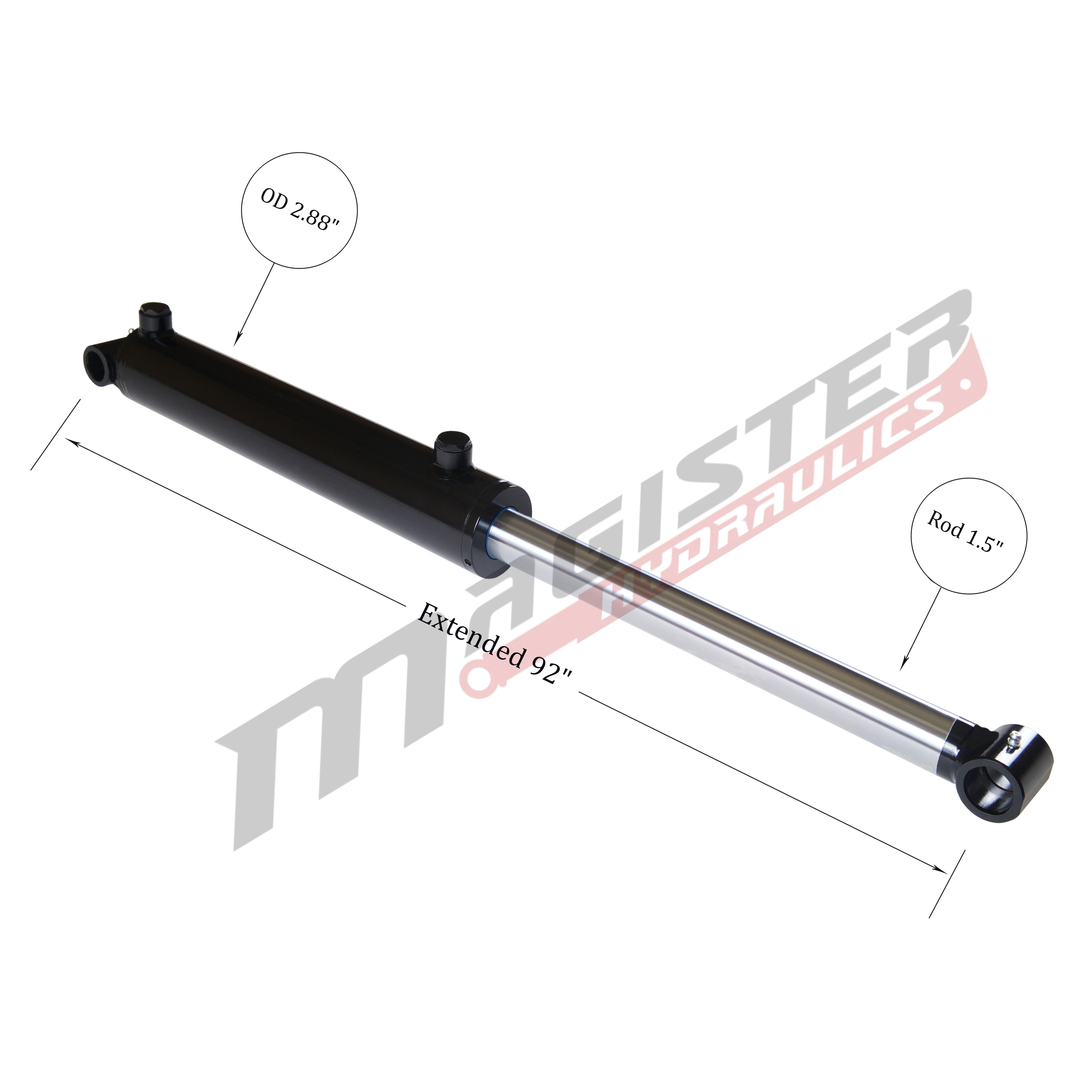

Extended :
92"

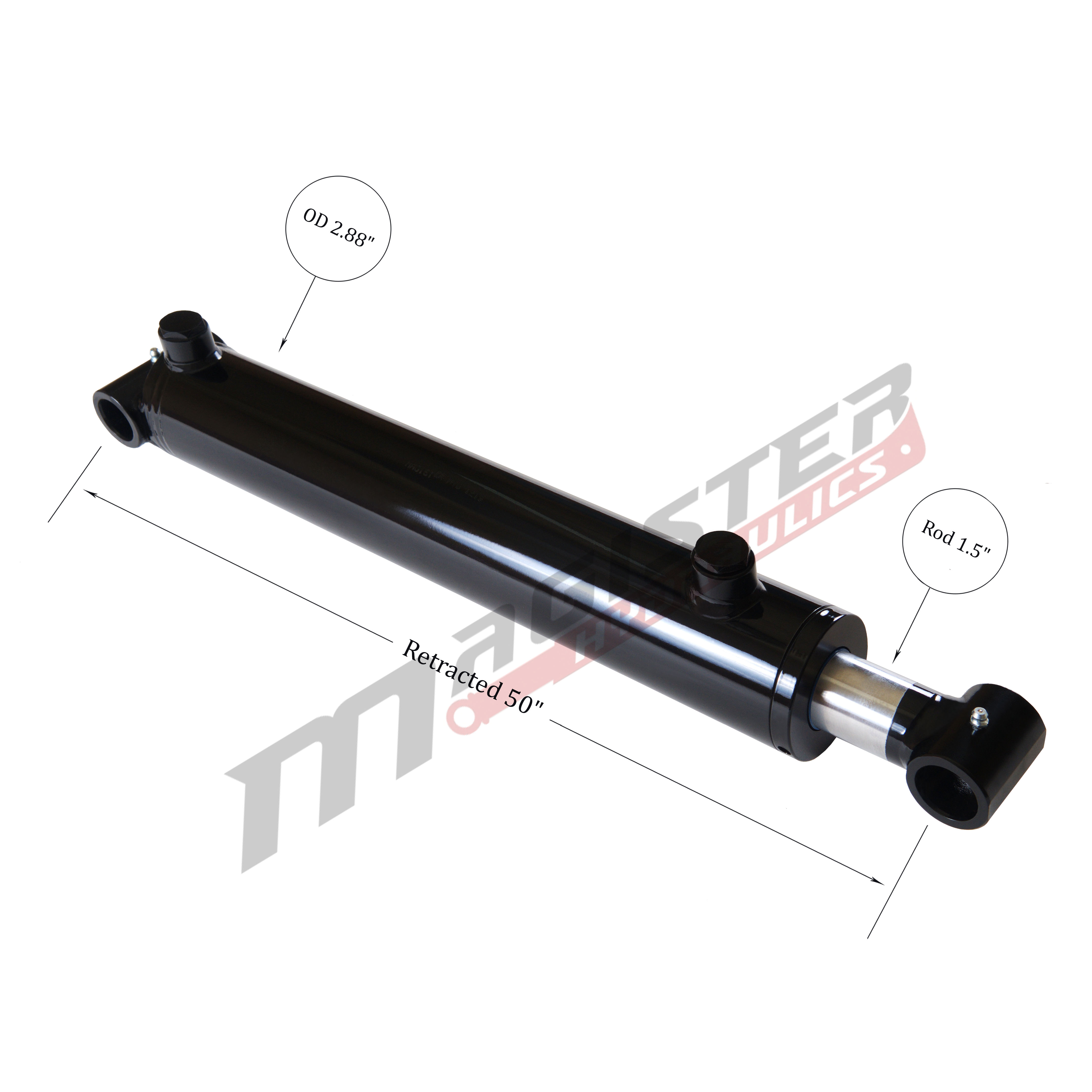

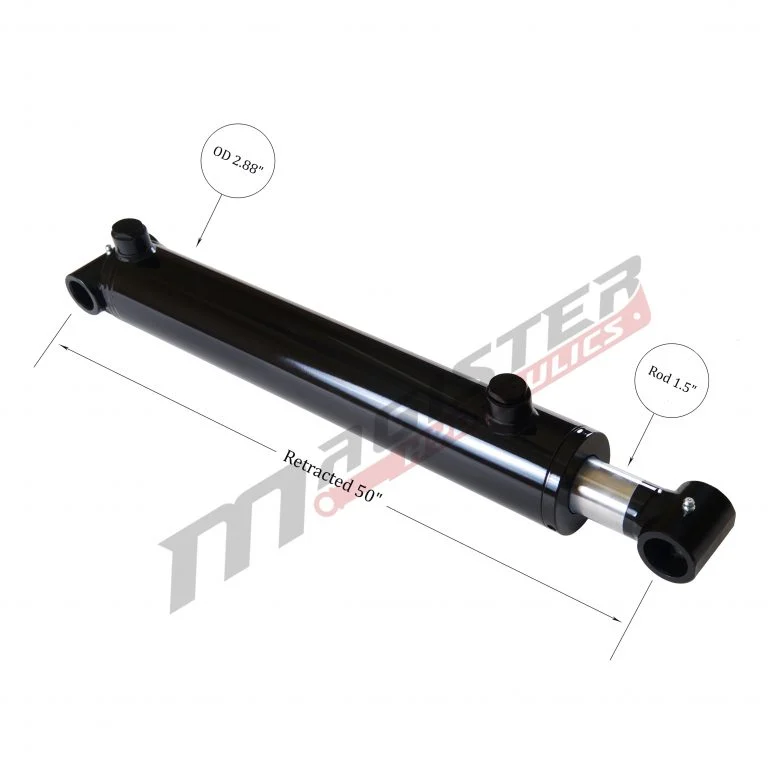

Retracted :
50"
Overall length :
51.5"
Pressure :
3500 PSI
Column Load (LBs) :
6,200
Oil Volume (quarts) :
3.57
Brand :
Magister Hydraulics
GTIN :
854335007957
1+ PRICE EA
$320.00
4+ PRICE EA -5%
$304.00
10+ PRICE EA -10%
$288.00
In stock

1 in stock

DESCRIPTION

  • 2.5″ bore x 42″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
