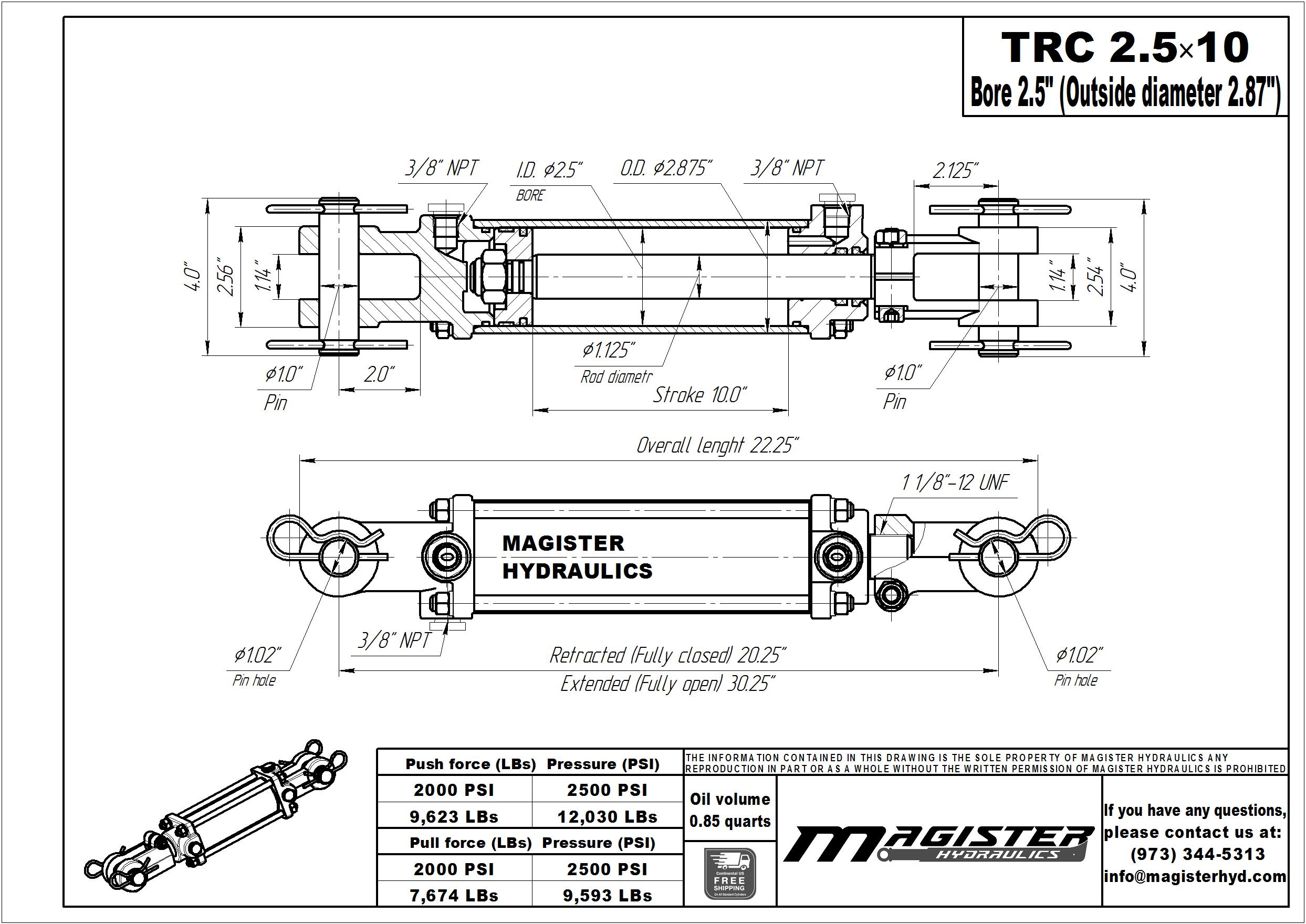

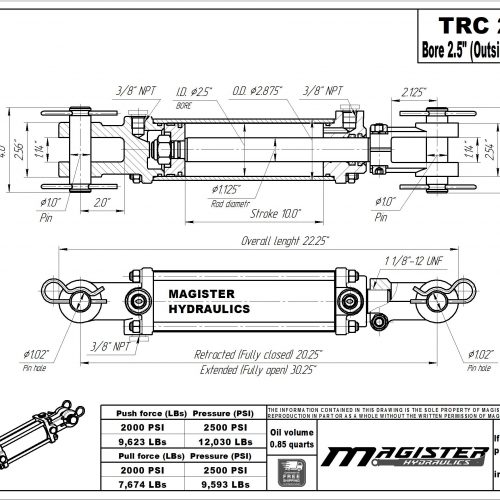

2.5" bore x 10" stroke tie rod hydraulic cylinder


Pay in 4 interest-free payments of $39.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: TRC 2.5x10
Bore : 2.5 in
Outer Dia. (⌀) : 2.87 in
Stroke : 10 in
Rod Dia. (⌀) : 1.125 in
Port Size : 3/8" NPT
Pin Dia. (⌀) : 1 in
Extended : 30.25 in
Retracted : 20.25 in
Overall length : 22.25 in
Pressure : 2500 PSI
Column Load : 12,270 LBs
Oil Volume : 0.85 QTs
Brand : Magister Hydraulics
Design : Tie Rod
Rod Type : Chrome Plated
Rod End : Clevis
Action : Double Acting
Weight : 23 LBs
GTIN : 854335007537
SKU: TRC 2.5x10 Categories: ,

Volume discounts

4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

49 in stock


  • 2.5″ bore x 10″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Tie-rod double acting hydraulic cylinder
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.
