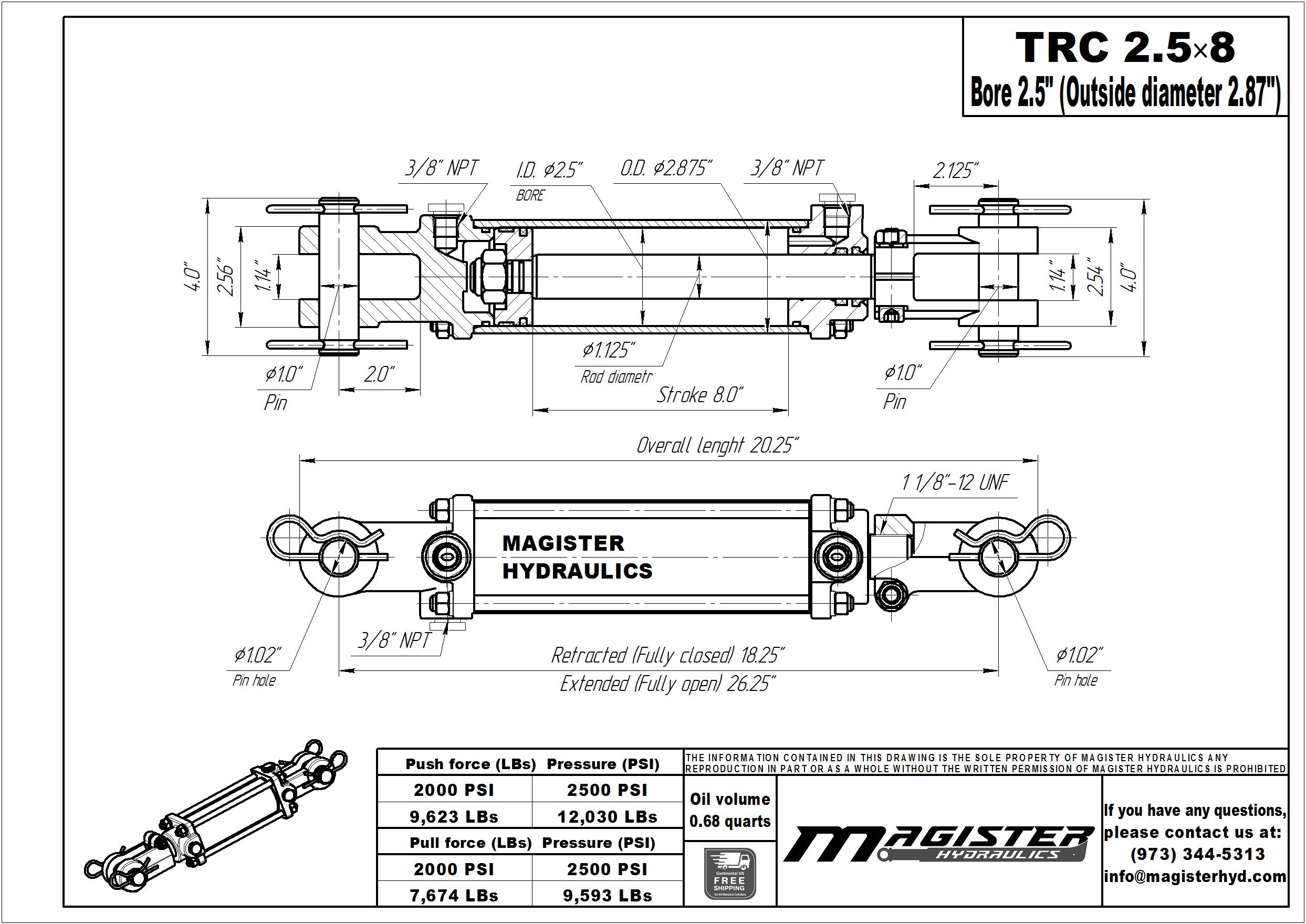

2.5" bore x 8" stroke tie rod hydraulic cylinder

$150.00

Pay in 4 interest-free payments of $37.50
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: TRC 2.5x8
Bore : 2.5 in
Outer Dia. (⌀) : 2.87 in
Stroke : 8 in
Rod Dia. (⌀) : 1.125 in
Port Size : 3/8" NPT
Pin Dia. (⌀) : 1 in

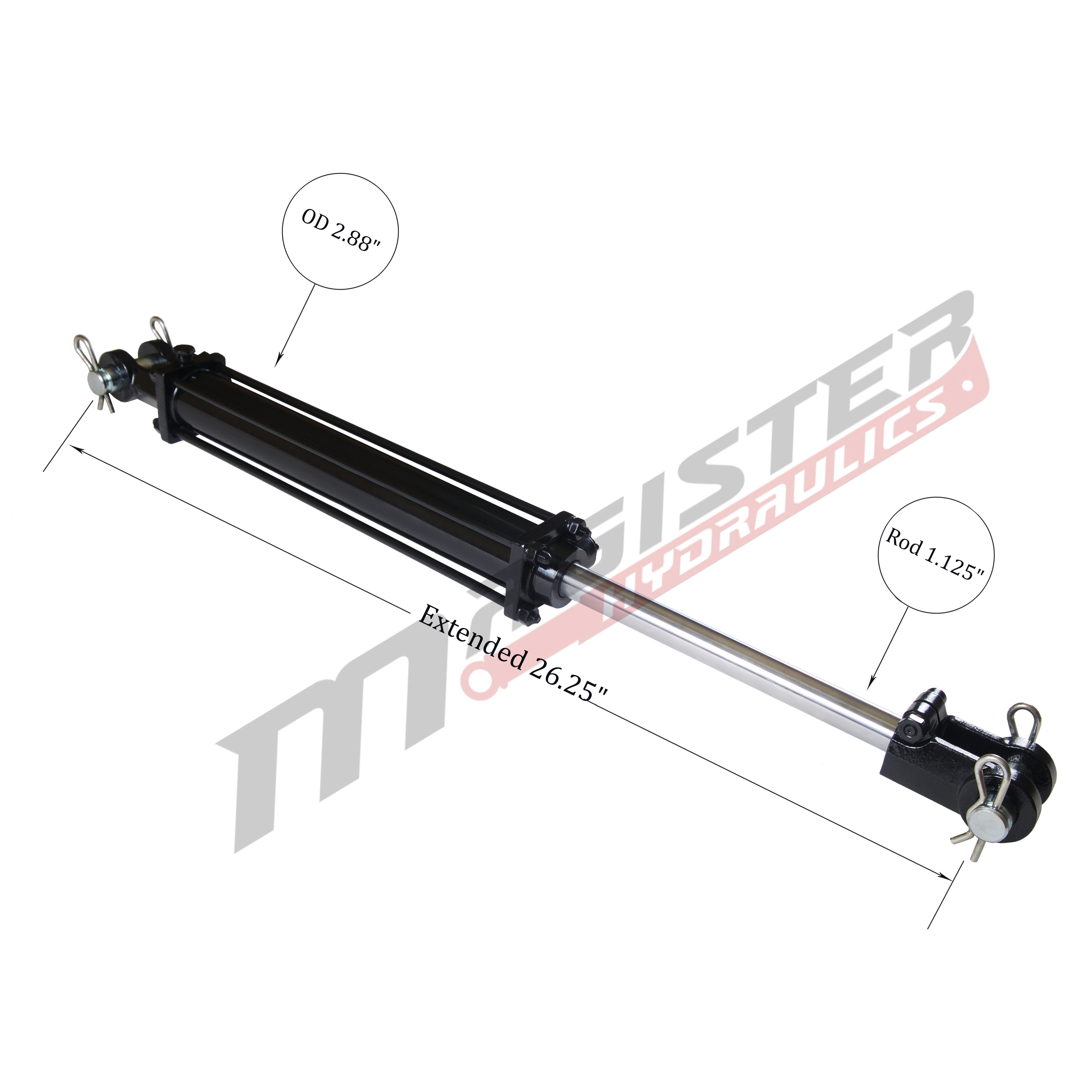

Extended : 26.25 in

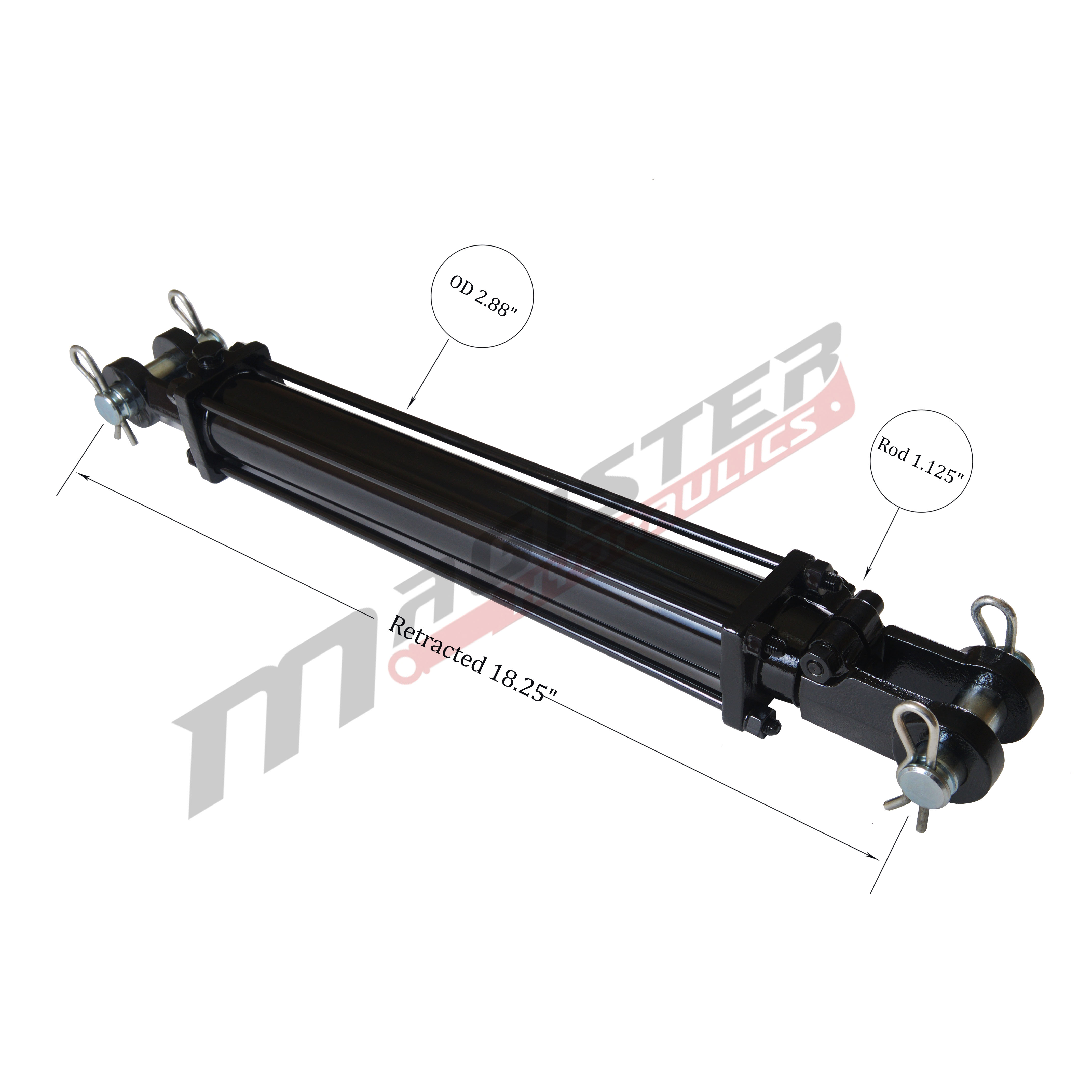

Retracted : 18.25 in
Overall length : 20.25 in
Pressure : 2500 PSI
Column Load : 12,270 LBs
Oil Volume : 0.68 QTs
Brand : Magister Hydraulics
Design : Tie Rod
Rod Type : Chrome Plated
Rod End : Clevis
Action :
  • Double Acting
  • Weight : 21 LBs
    GTIN : 854335007520
    SKU: TRC 2.5x8 Categories: ,

    Volume discounts

    4+ PRICE EA -5%
    $142.50
    8+ PRICE EA -10%
    $135.00
    In stock

    54 in stock

    Description

    • 2.5″ bore x 8″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
    • Applications: Tie-rod double acting hydraulic cylinder
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
