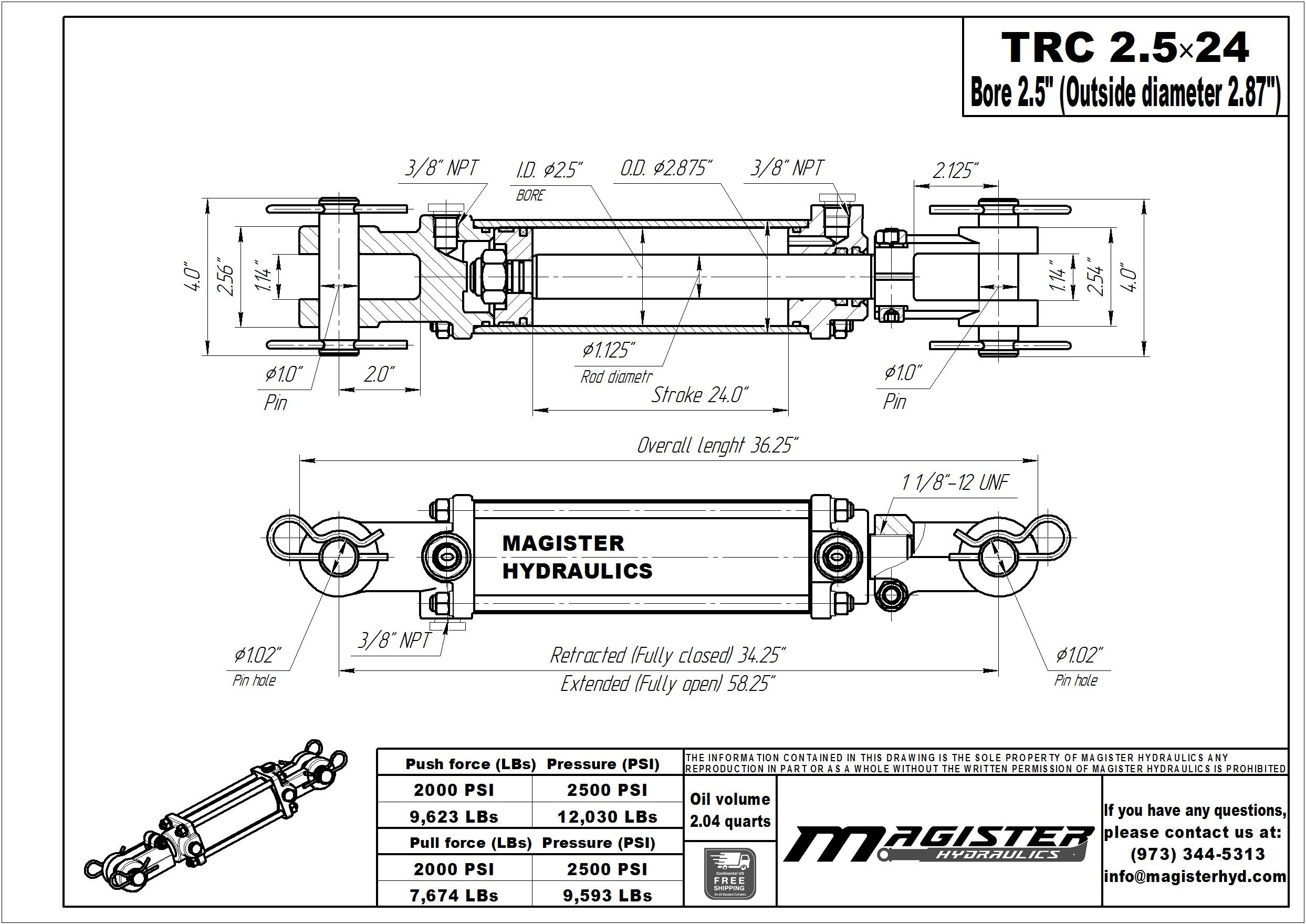

2.5" bore x 24" stroke tie rod hydraulic cylinder
$209.00
Pay in 4 interest-free payments of $52.25SKU: TRC 2.5x24

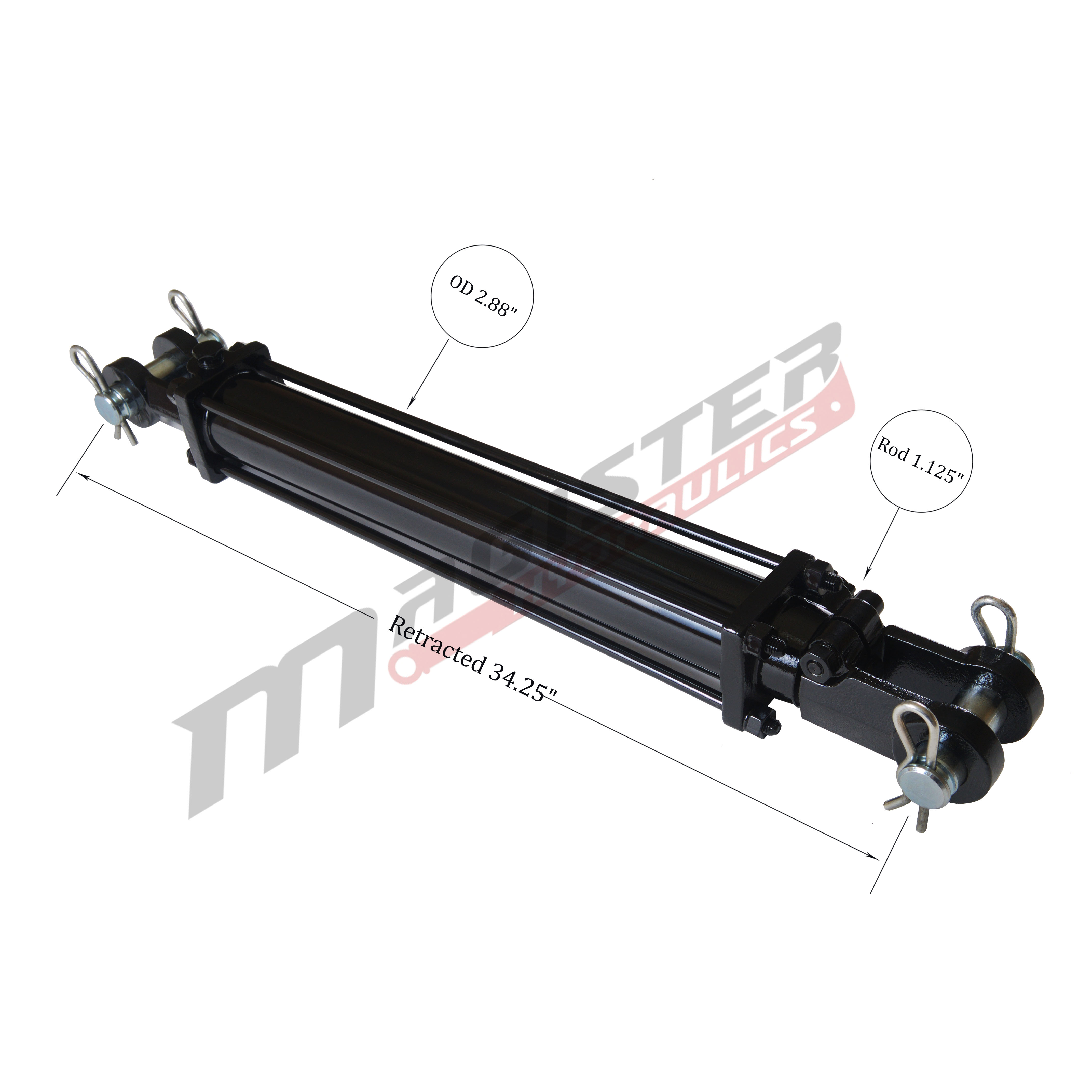

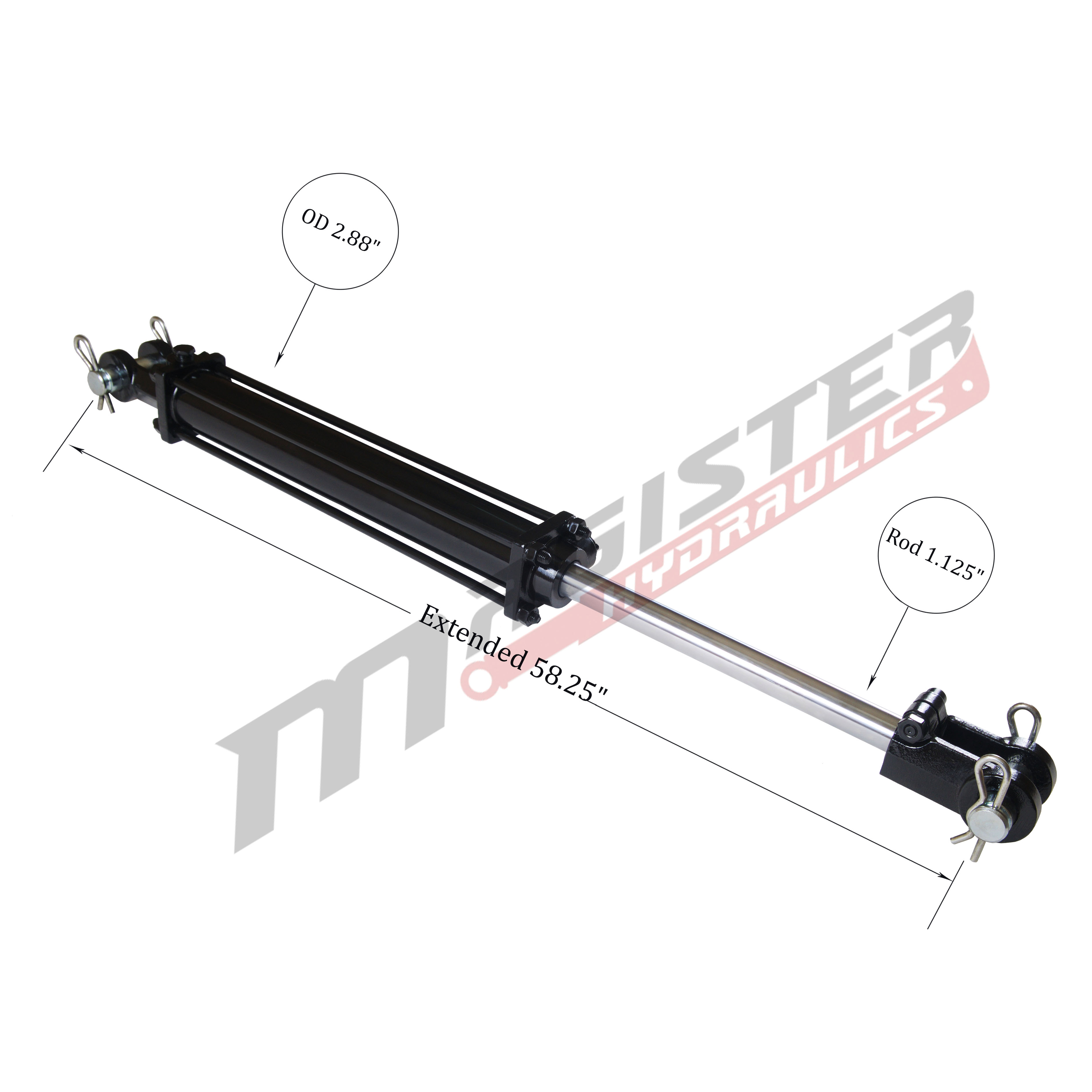

| Bore : | 2.5 in | Outer Dia. (⌀) : | 2.87 in | Stroke : | 24 in | Rod Dia. (⌀) : | 1.125 in | Port Size : | 3/8" NPT | Pin Dia. (⌀) : | 1 in | Extended : | 58.25 in | Retracted : | 34.25 in | Overall length : | 36.25 in | Pressure : | 2500 PSI | Column Load : | 5,500 LBs | Oil Volume : | 2.04 QTs | Brand : | Magister Hydraulics | Design : | Tie Rod | Rod Type : | Chrome Plated | Rod End : | Clevis | Action : | Weight : | 35 LBs |
|---|---|
| GTIN : | 854335007599 |
Volume discounts
4+ PRICE EA -5%
$198.55
8+ PRICE EA -10%
$188.10
In stock
65 in stock
Description

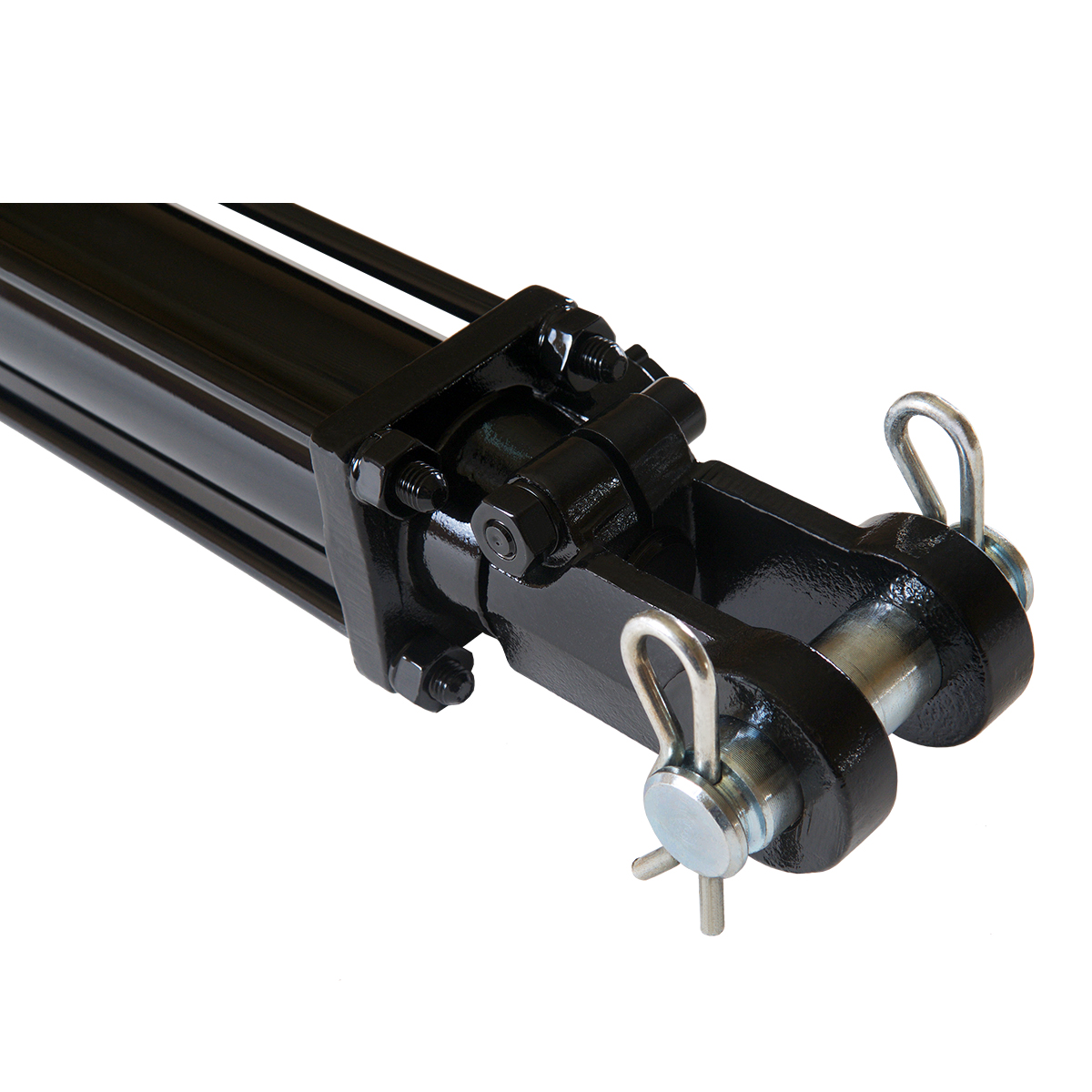

- 2.5″ bore x 24″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
- Applications: Tie-rod double acting hydraulic cylinder
- Color: Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
