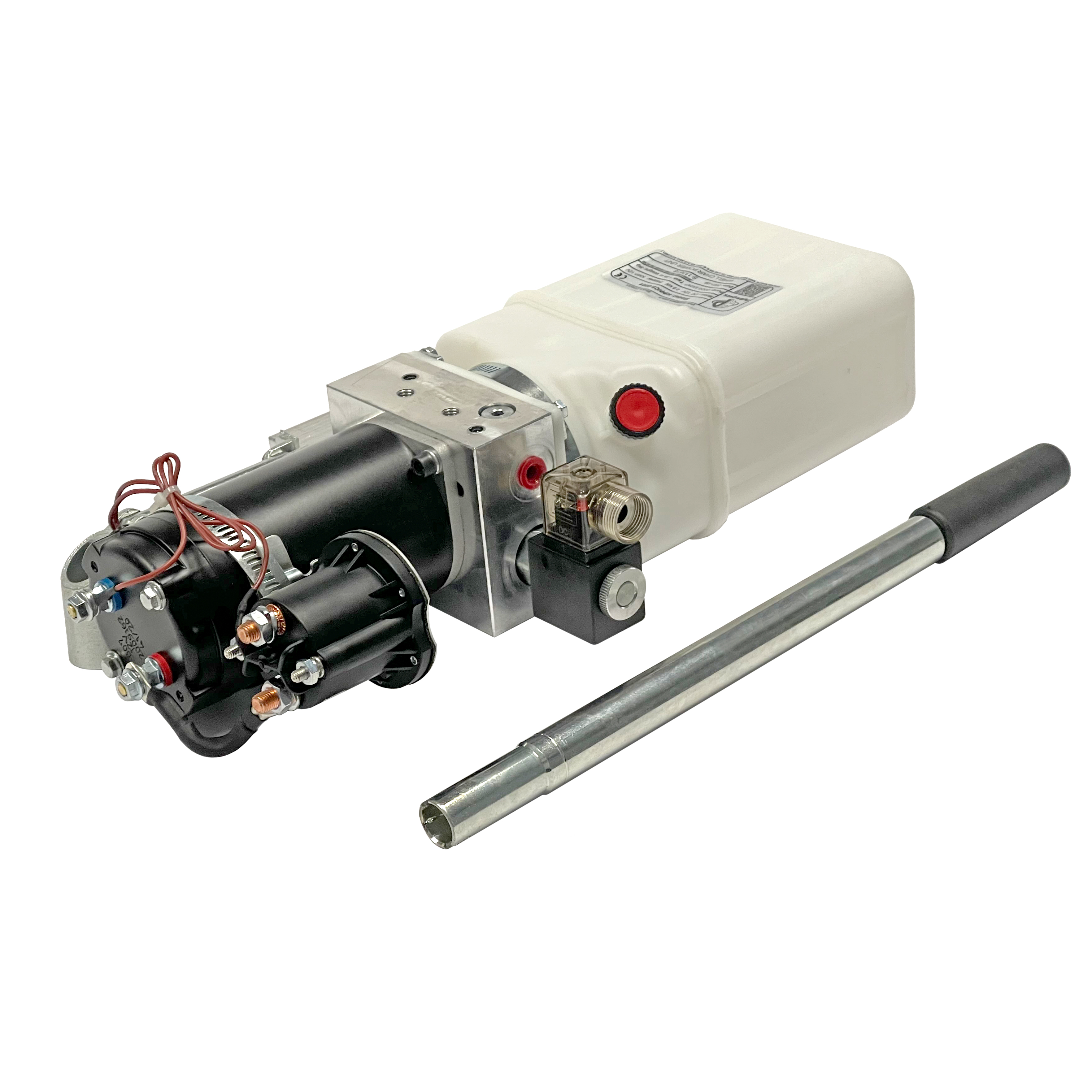

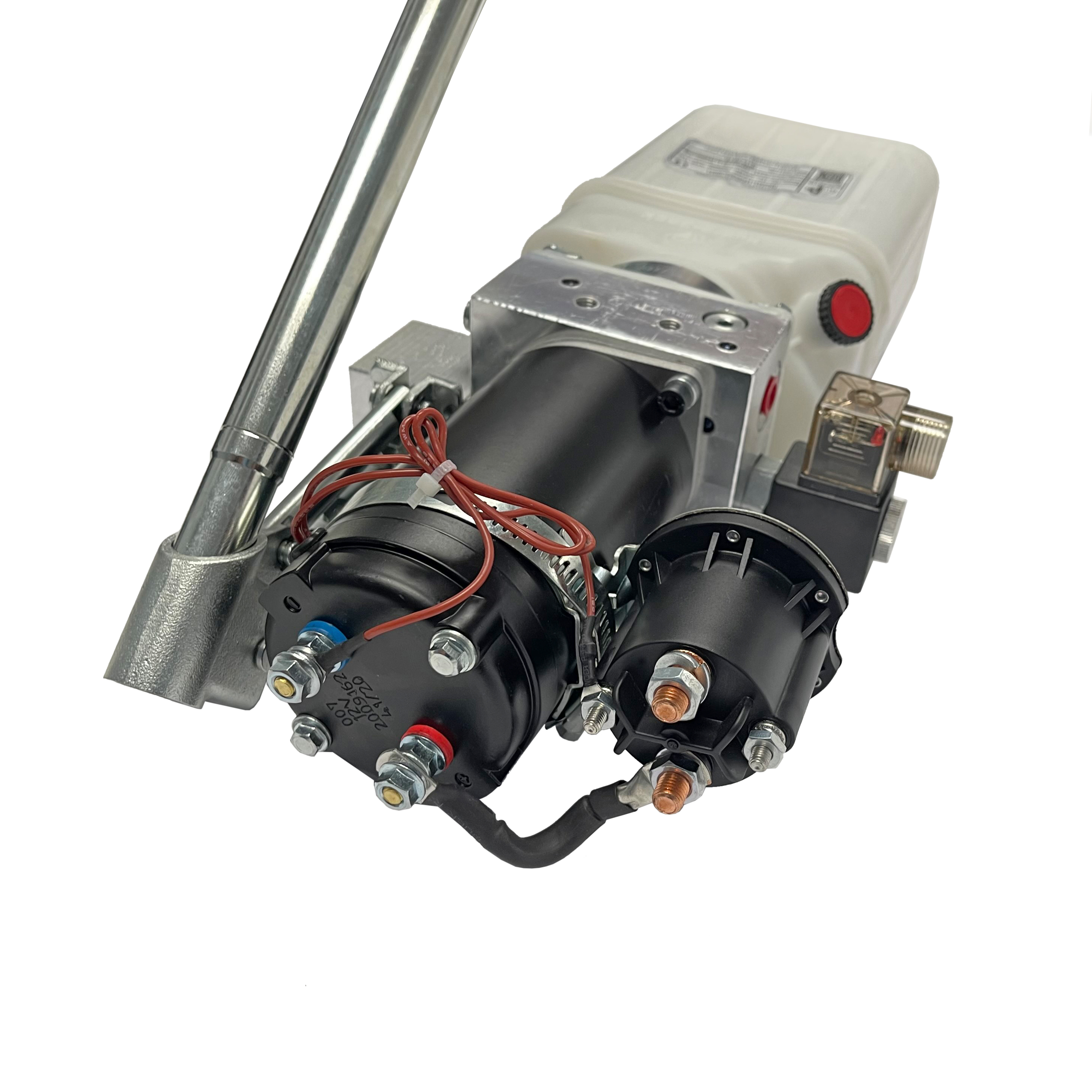

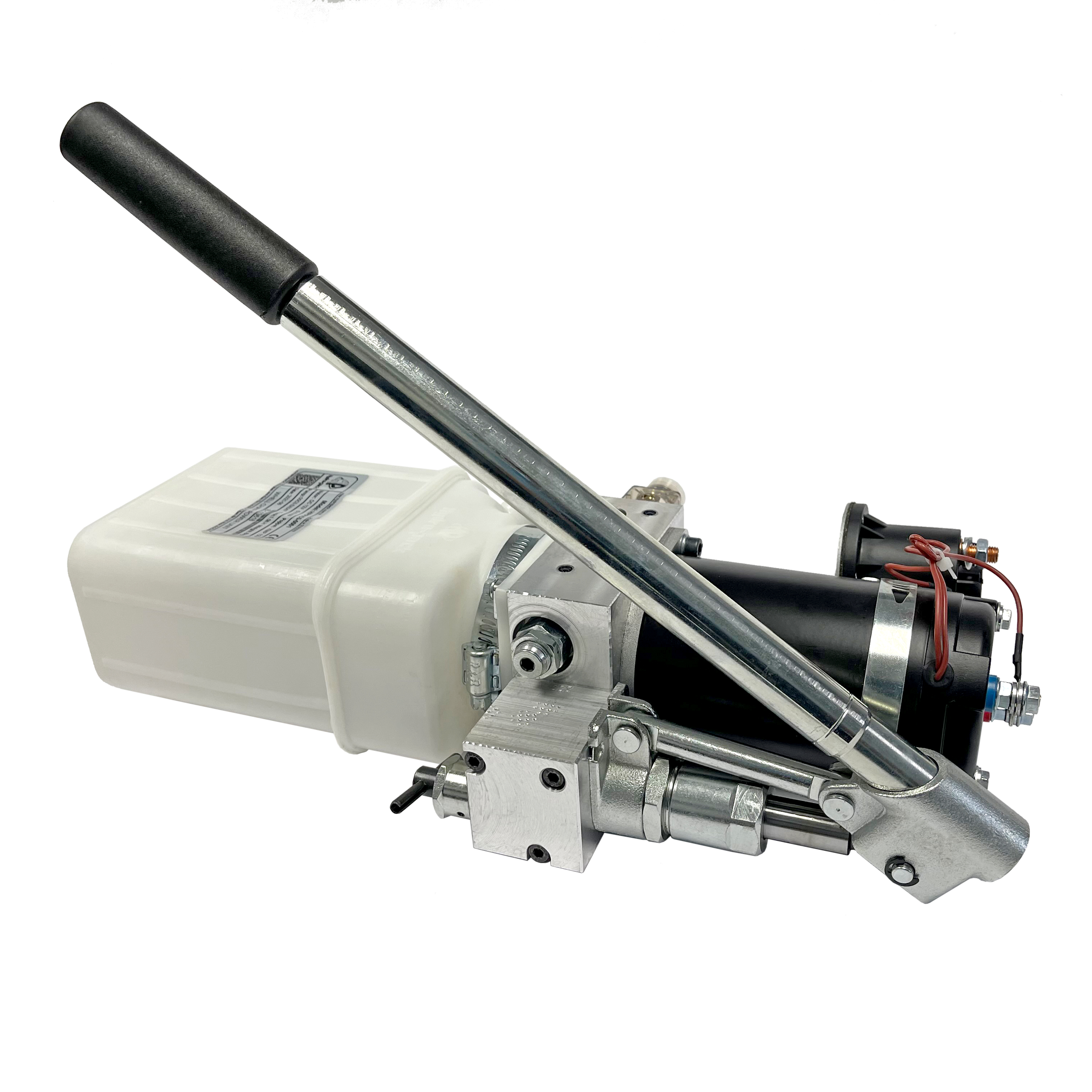

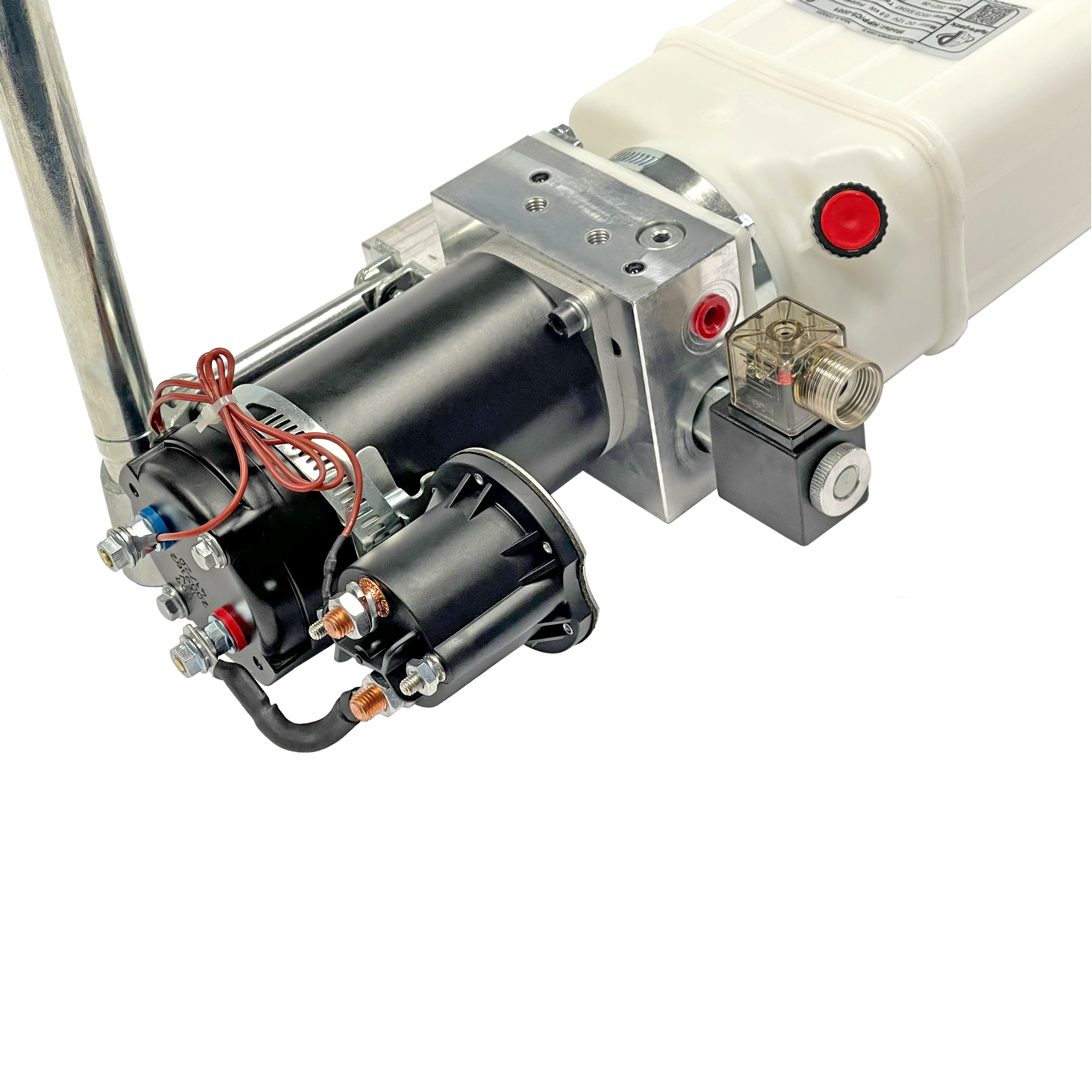

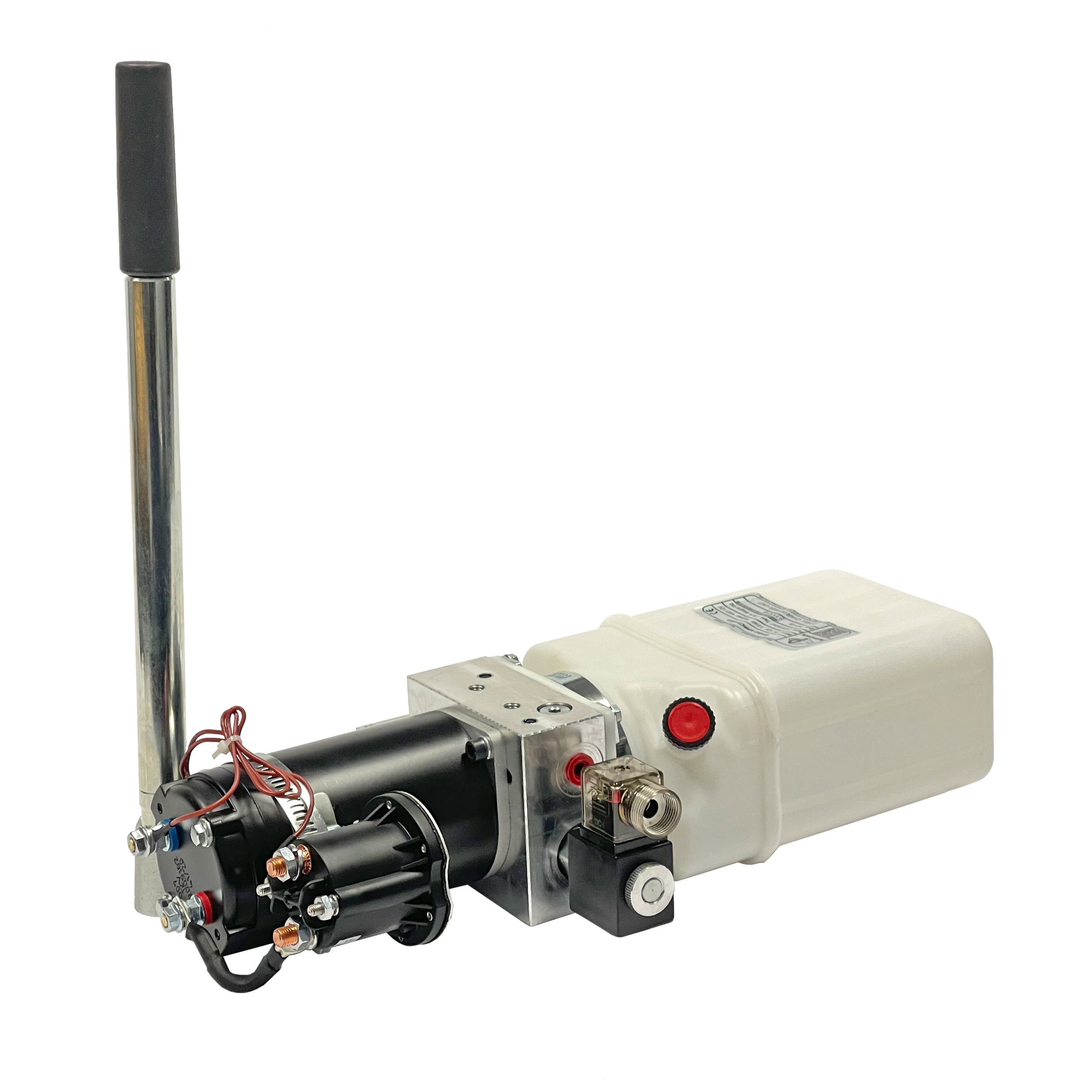

Hydraulic Power Unit for Wheelchair Lift 12V DC single acting 1.5 qts
$399.00
| Action : | Single Acting | Pressure : | 3190 PSI | Flow : | 0.45 GPM | Relief Valve : | 2900 PSI | MAX RPM : | 3500 | Voltage : | 12 V | Pump Displacement : | 0.03 ci/rev | Current : | Direct | Capacity : | 1.58 QTs | Motor Power : | 0.8 kW | Tank Material : | Plastic | Mounting : | Horizontal | Port Size : | SAE 8 | Weight : | 17 LBs | Brand : | Hydro-Pack | Remote Control : | NOT Included |
|---|---|
| GTIN : | 850033934304 |
Volume discounts
7 in stock
Description
This compact hydraulic power unit is engineered specifically for wheelchair lifts and personal mobility systems requiring power up and gravity down operation. Designed for reliability and smooth performance, it features a 1.5-quart plastic reservoir that is lightweight, durable, and resistant to corrosion.
Powered by a 0.8 kW 12V DC motor, the unit delivers a consistent 0.45 GPM at 2500 PSI through a precision gear pump with 0.03 ci/rev displacement. The adjustable 3190 PSI pressure relief valve ensures safe and accurate lifting performance tailored to your system.
This model comes in a horizontal assembly, making it easy to integrate into compact wheelchair lift housings, vans, buses, and mobility vehicle platforms. Remote: Not included.
Benefits
- Smooth and safe lifting optimized for wheelchair platforms
- Compact design ideal for limited-space mobility applications
- Energy-efficient 0.8 kW motor for consistent operation from a 12V battery
- Corrosion-resistant plastic reservoir reduces weight and improves longevity
- Adjustable relief valve for precise lift control
- Plug-and-play horizontal assembly simplifies installation
Common Applications
- Wheelchair lifts (van-mounted, bus-mounted, mobility platforms)
- Portable and vehicle-integrated lift platforms
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Made in Europe.
