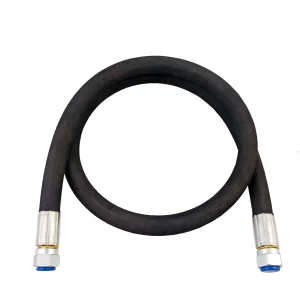

1/4-Inch Hydraulic Hose Assemblies with Female JIC Swivel Ends

1/4-Inch JIC Hose Assemblies in Stock

• Hose inside diameter: 1/4 in
• Fitting type: Female JIC swivel
• Lengths: 18 in to 72 in
• ProFlex hose working pressure: 5,800 PSI
• Minimum hose bend radius: 1.9 in
• Hose temperature range: -40°F to +212°F (-40°C to +100°C)

Hose construction and standards: Gates PRO Series ProFlex has a black, oil-resistant synthetic-rubber tube, integrated two-wire high-tensile steel reinforcement, and a black abrasion-resistant synthetic-rubber cover. It meets or exceeds the performance requirements of SAE 100R2, EN 857 2SC, and EN 853 2SN. It satisfies SAE 100R16 and SAE 100R17 dimensional and performance-cycle requirements for this hose size.

Custom Options

Magister Hydraulics builds custom hose assemblies to customer requirements. Custom assemblies require a minimum order quantity of 50 SKUs per order.

Benefits

• One-year warranty
• Free shipping in the United States
• Bulk-order discounts
• Made in Europe

Selecting a 1/4-Inch JIC Hose Assembly

Check the required working pressure, temperature range, hose length, inside diameter, fittings, couplings, and minimum bend radius for your application.

For help, call (973) 344-5313 or email [email protected].
