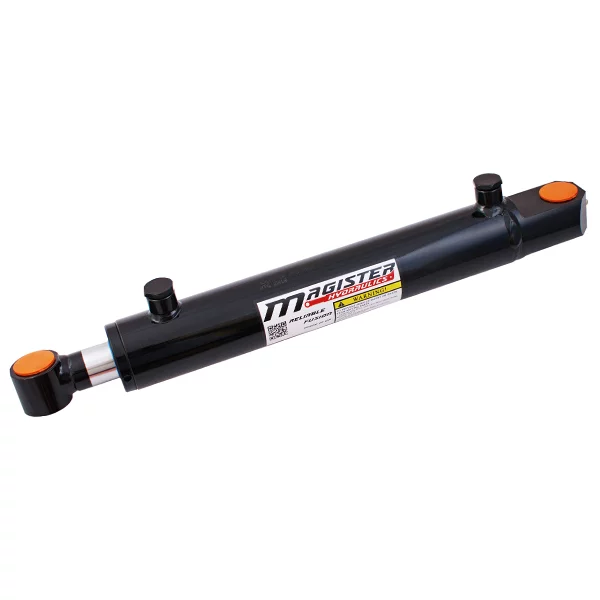

Tang Hydraulic Cylinders

This unique design is a Magister Hydraulics exclusive. The hydraulic cylinder is used to transform the hydraulic fluid energy into mechanical – output energy of the component. A hydraulic cylinder is a positive displacement motor of reciprocating motion. Hydraulic cylinders are widely used in the mobile and other technological industries. It’s narrow mounting ends of 1.5” make it capable of being used with a large variety of equipment. Capable of withstanding operating pressure up to 3500 PSI. High tensile honed cold drawn tube for durability. High tensile ground & polished hard chrome plated rod. Welded steel end mounts for added stability and strength. Top quality five component compact seals for added performance. Rod seals composed of high quality U-cup polyurethane with inner O-ring, POM-C wear rings and polyurethane wiper. Bore size available in 1.5, 2 and 2.5 inch bore up to 24 inch stroke.  2 year limited warranty. Free shipping within the continental US. Steep discounts available on volume purchases. Custom options available up to 7” bore and 60” stroke.

  • On sale!
    1.5 bore x 6 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 6″ stroke tang hydraulic cylinder

    $95.00
  • On sale!
    1.5 bore x 8 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 8″ stroke tang hydraulic cylinder

    $102.00
  • On sale!
    1.5 bore x 10 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 10″ stroke tang hydraulic cylinder

    $106.00
  • On sale!
    1.5 bore x 12 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 12″ stroke tang hydraulic cylinder

    $110.00
  • On sale!
    1.5 bore x 14 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 14″ stroke tang hydraulic cylinder

    $116.00
  • On sale!
    1.5 bore x 16 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 16″ stroke tang hydraulic cylinder

    $121.00
  • On sale!
    1.5 bore x 18 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 18″ stroke tang hydraulic cylinder

    $126.00
  • On sale!
    1.5 bore x 20 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 20″ stroke tang hydraulic cylinder

    $132.00
  • On sale!
    1.5 bore x 22 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 22″ stroke tang hydraulic cylinder

    $135.00
  • On sale!
    1.5 bore x 24 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    1.5″ bore x 24″ stroke tang hydraulic cylinder

    $137.00
  • On sale!
    2 bore x 6 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    2″ bore x 6″ stroke tang hydraulic cylinder

    $118.00
  • On sale!
    2 bore x 8 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    2″ bore x 8″ stroke tang hydraulic cylinder

    $122.00
  • On sale!
    2 bore x 10 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    2″ bore x 10″ stroke tang hydraulic cylinder

    $127.00
  • On sale!
    2 bore x 12 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    2″ bore x 12″ stroke tang hydraulic cylinder

    $133.00
  • On sale!
    2 bore x 14 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    2″ bore x 14″ stroke tang hydraulic cylinder

    $139.00
  • On sale!
    2 bore x 16 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics🛒 👁

    2″ bore x 16″ stroke tang hydraulic cylinder

    $141.00

This unique design is a Magister Hydraulics exclusive. The hydraulic cylinder is used to transform the hydraulic fluid energy into mechanical – output energy of the component. A hydraulic cylinder is a positive displacement motor of reciprocating motion. Hydraulic cylinders are widely used in the mobile and other technological industries. It’s narrow mounting ends of 1.5” make it capable of being used with a large variety of equipment. Capable of withstanding operating pressure up to 3500 PSI. High tensile honed cold drawn tube for durability. High tensile ground & polished hard chrome plated rod. Welded steel end mounts for added stability and strength. Top quality five component compact seals for added performance. Rod seals composed of high quality U-cup polyurethane with inner O-ring, POM-C wear rings and polyurethane wiper. Bore size available in 1.5, 2 and 2.5 inch bore up to 24 inch stroke.  2 year limited warranty. Free shipping within the continental US. Steep discounts available on volume purchases. Custom options available up to 7” bore and 60” stroke.
