2.5 bore x 20 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics
Sale!

2.5" bore x 20" stroke tang hydraulic cylinder

$227.70

Pay in 4 interest-free payments of $56.93
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WTG 2.5x20

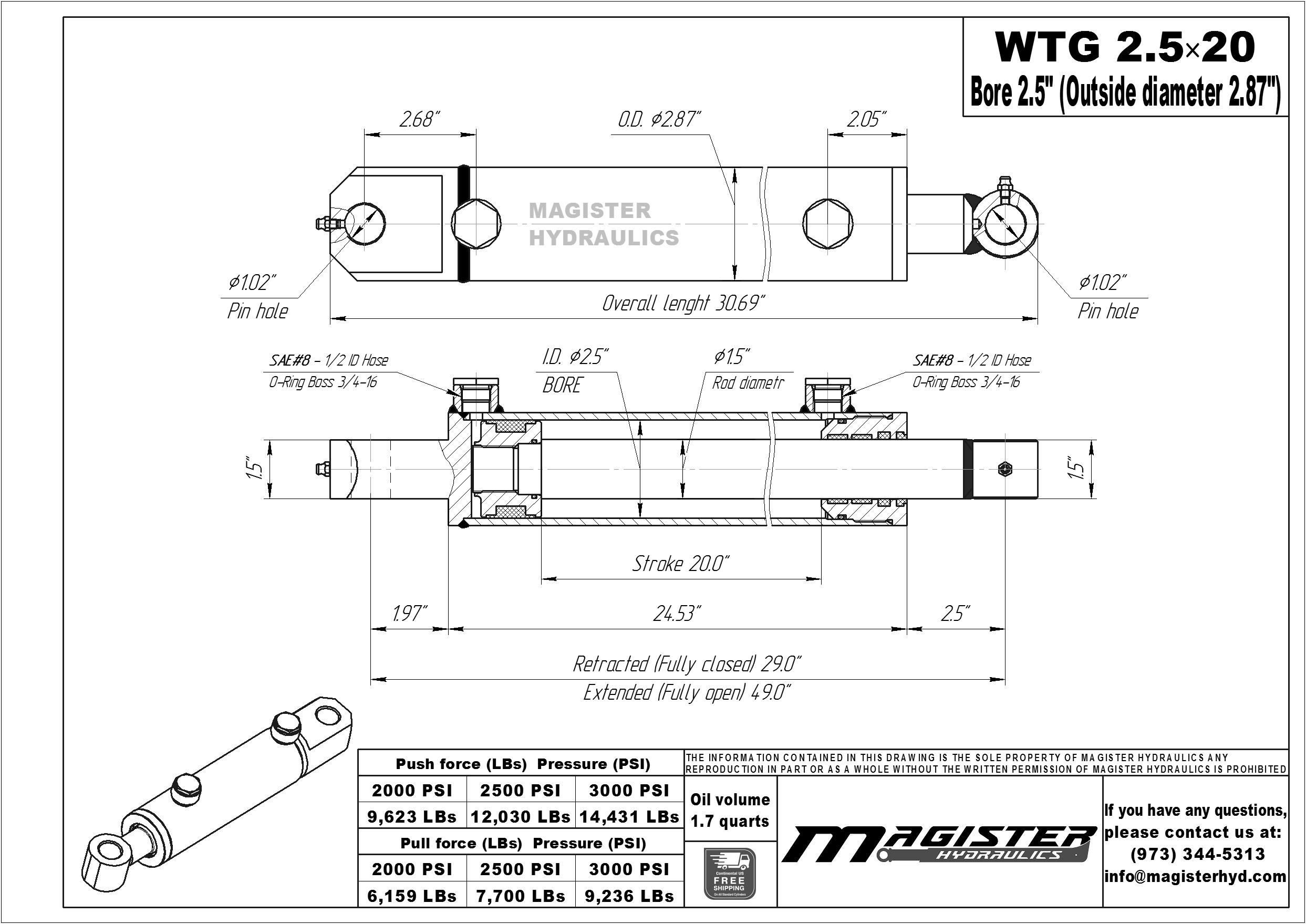

Bore : 2.5"
OD : 2.87"
Stroke : 20"
Rod : 1.5"
Port Size : SAE 8
Pin : 1"

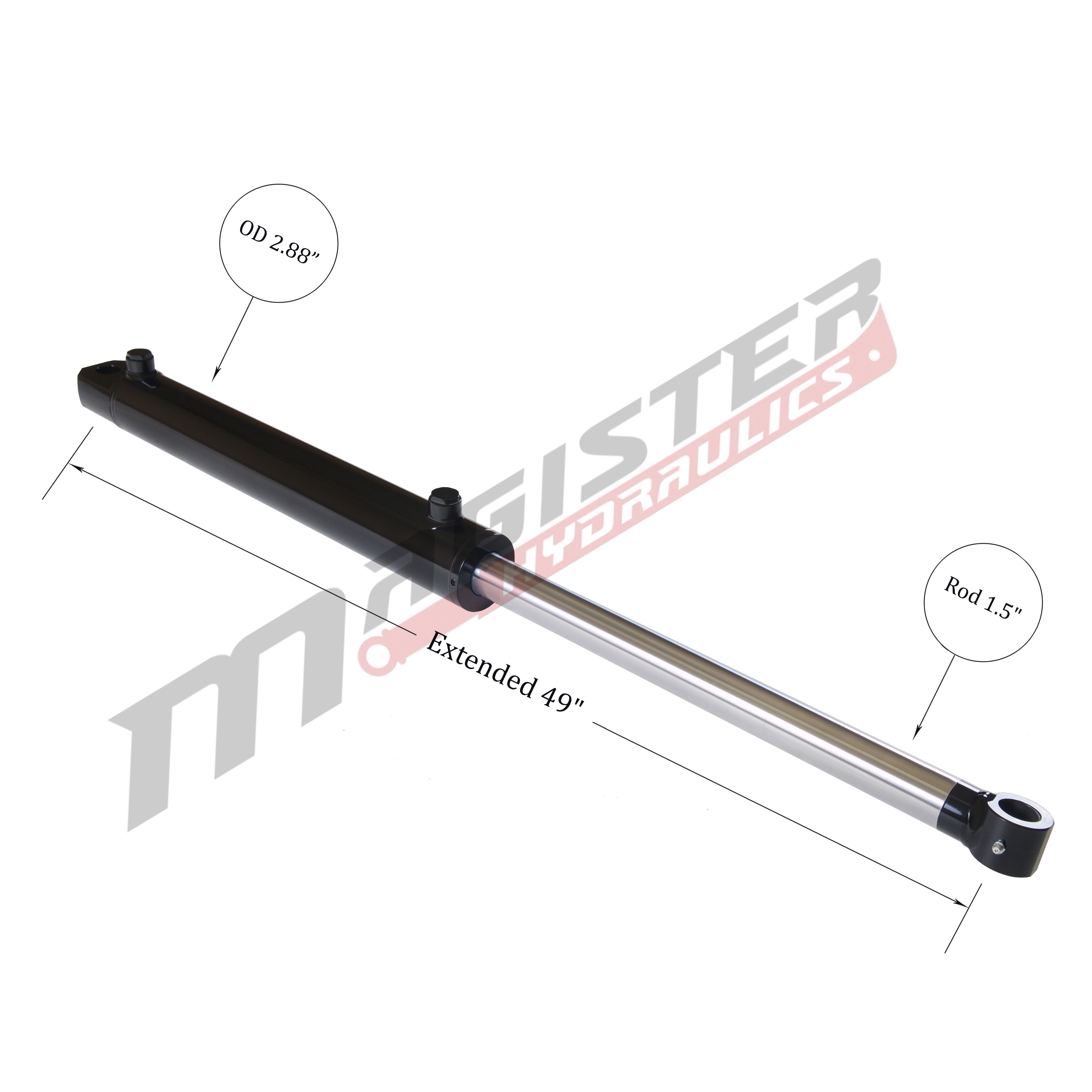

Extended : 49"

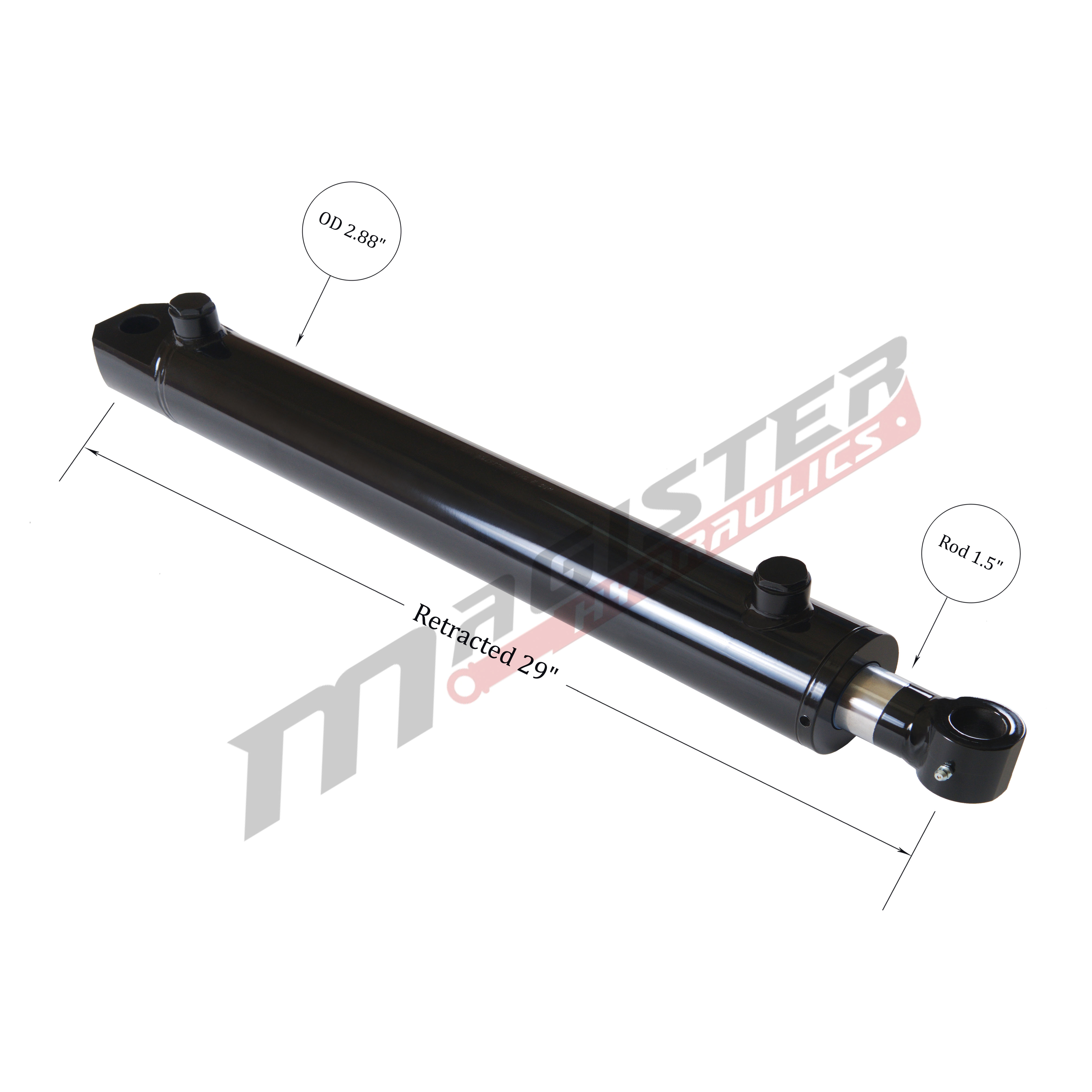

Retracted : 29"
Overall length : 30.69"
Pressure : 3500 PSI
Column Load (LBs) : 14,700
Oil Volume (quarts) : 1.7
Brand : Magister Hydraulics
GTIN : 854335007308
1+ PRICE EA
$227.70
4+ PRICE EA -5%
$216.31
8+ PRICE EA -10%
$204.93
In stock

139 in stock

DESCRIPTION

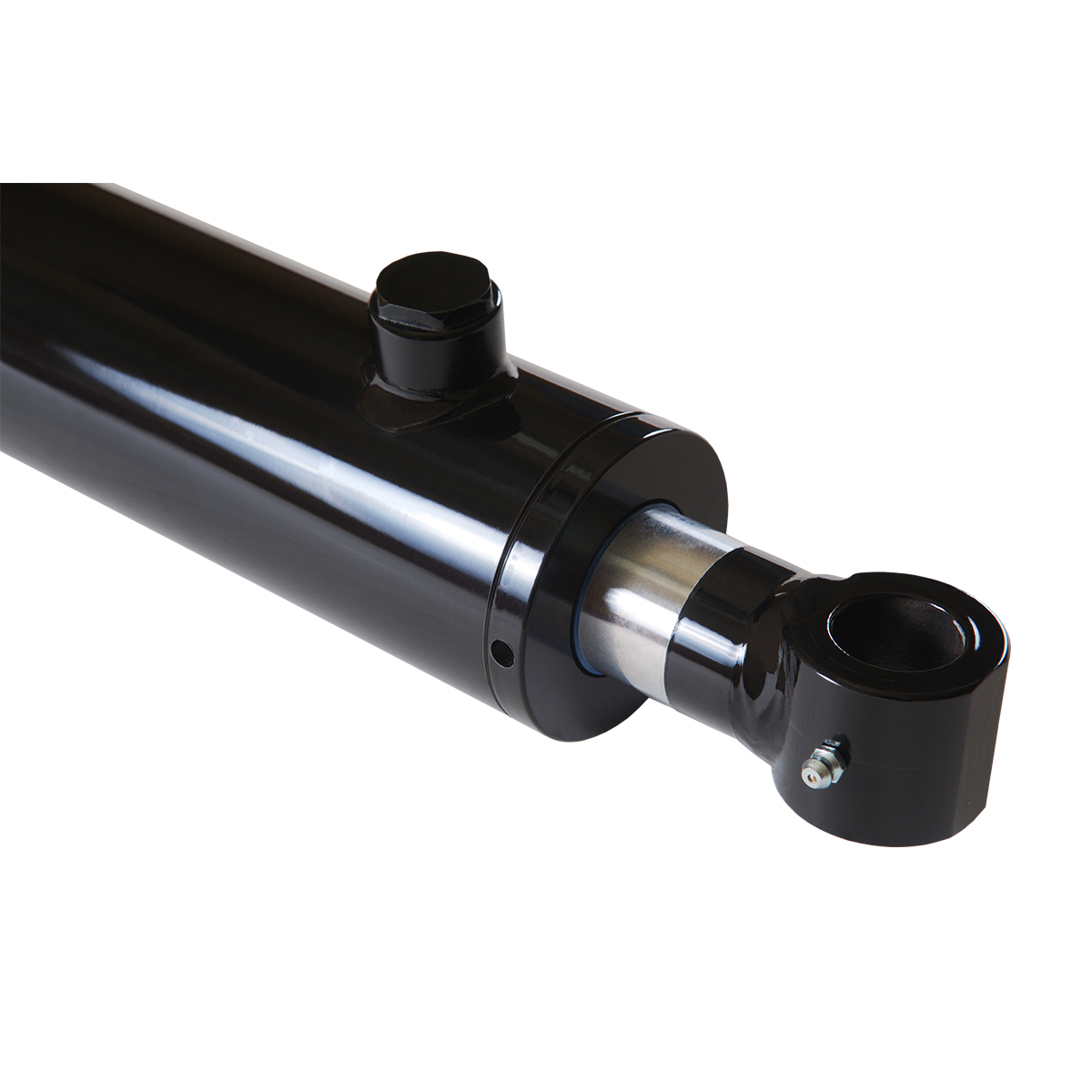

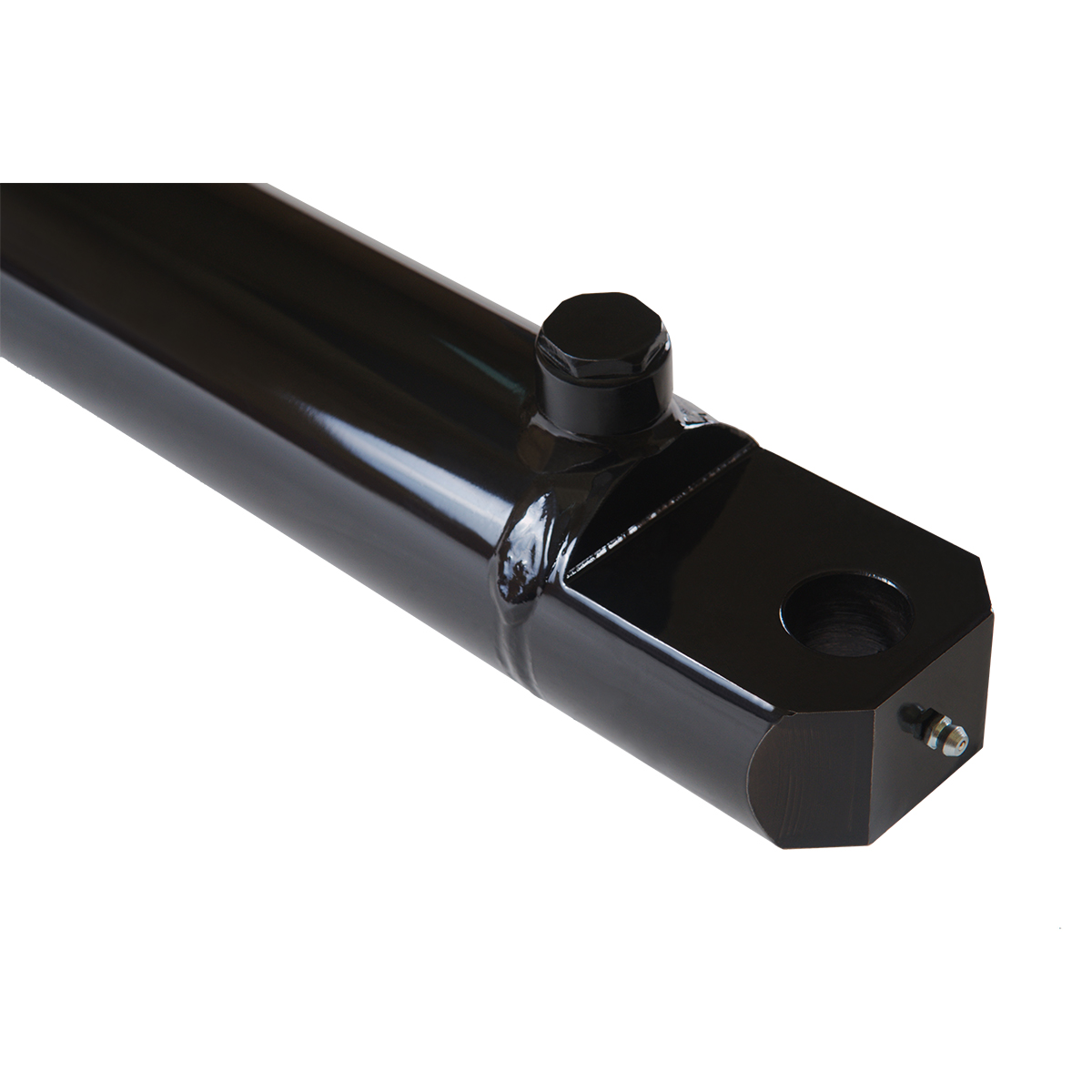

  • 2.5″ bore x 20″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
