2.5" bore x 8" stroke tang hydraulic cylinder


Pay in 4 interest-free payments of $47.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WTG 2.5x8

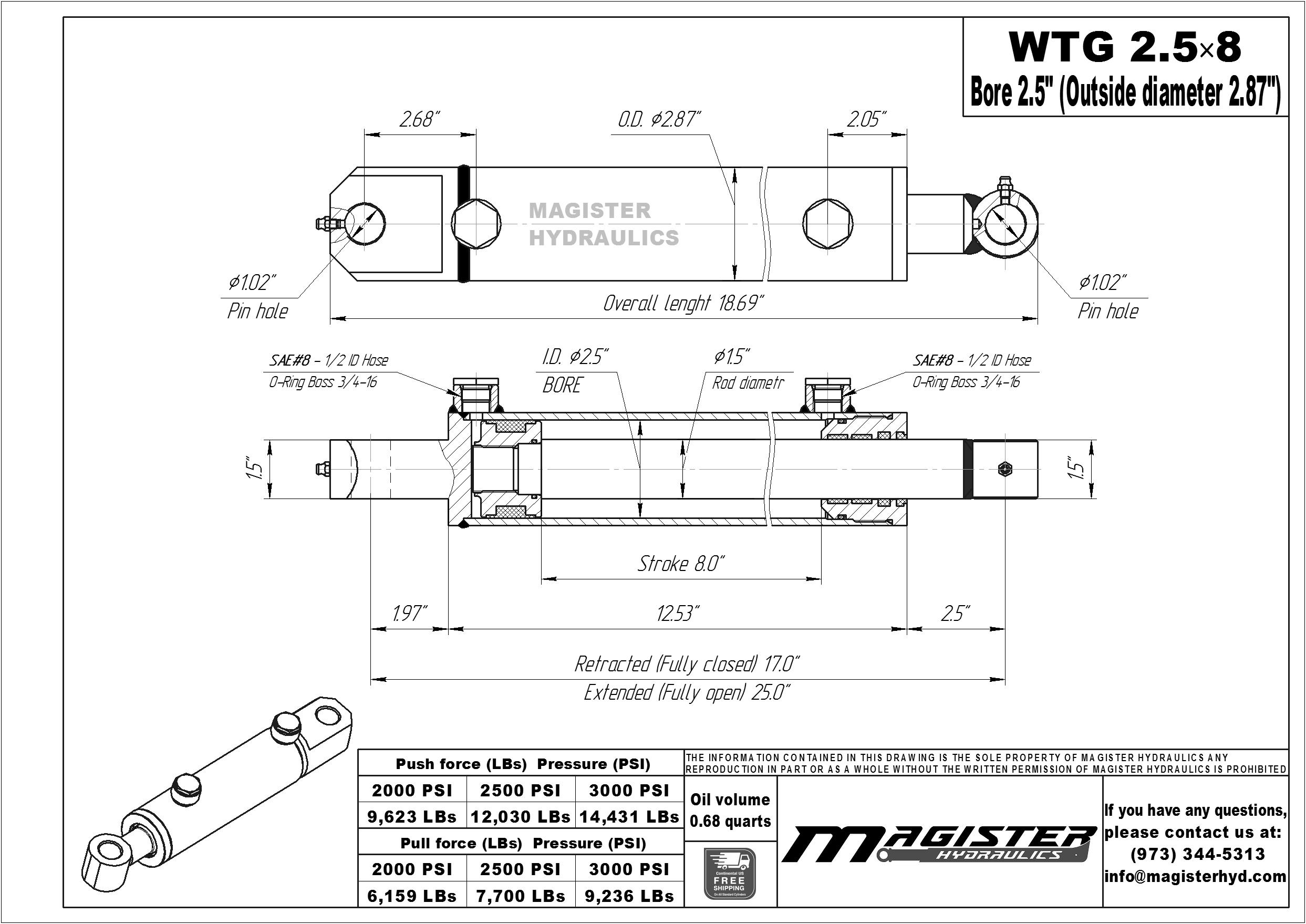

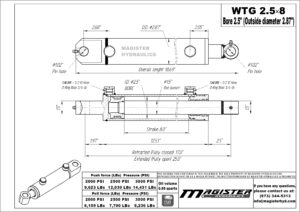

Bore :2.5” Bore Hydraulic Cylinders
OD :2.87"
Stroke :8” Stroke Hydraulic Cylinders
Rod :1.5"
Port Size :SAE 8
Pin :1"

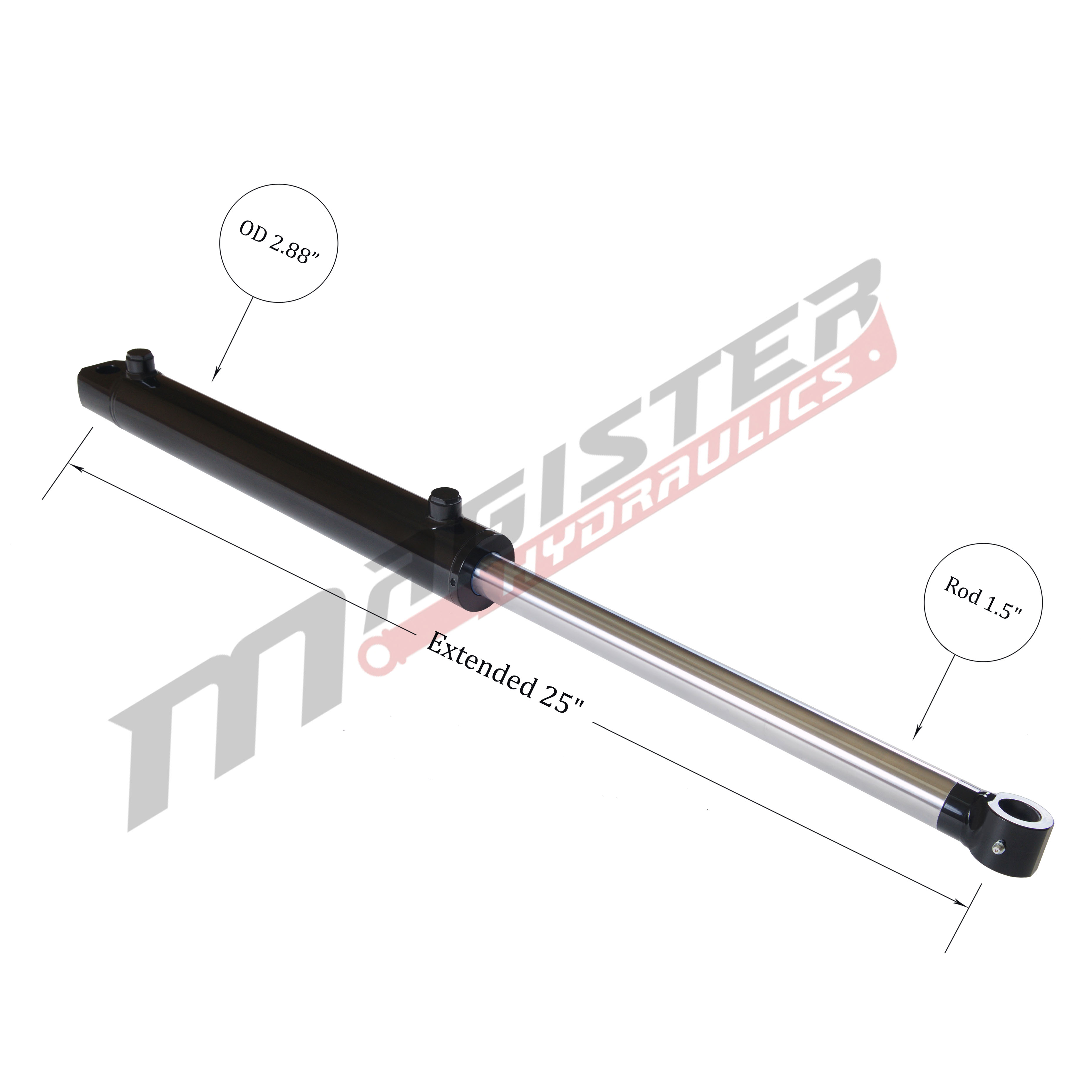

Extended :25"
Retracted :17"
Overall length :18.69"
Pressure :Hydraulic Cylinders 3500 PSI
Column Load (LBs) :14,700
Oil Volume (quarts) :0.68
Brand :Magister Hydraulics
GTIN :854335007247
4+ PRICE EA -3%
8+ PRICE EA -6%
In stock

51 in stock


  • 2.5″ bore x 8″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
