2.5 bore x 12 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics

2.5" bore x 12" stroke tang hydraulic cylinder

Name: 2.5" bore x 12" stroke tang hydraulic cylinder
SKU: WTG 2.5x12
Availability: InStock
Rating: 4.80 (6 reviews)

$222.00

Pay in 4 interest-free payments of $55.50

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WTG 2.5x12

Bore :	2.5 in
Outer Dia. (⌀) :	2.87 in
Stroke :	12 in
Rod Dia. (⌀) :	1.5 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

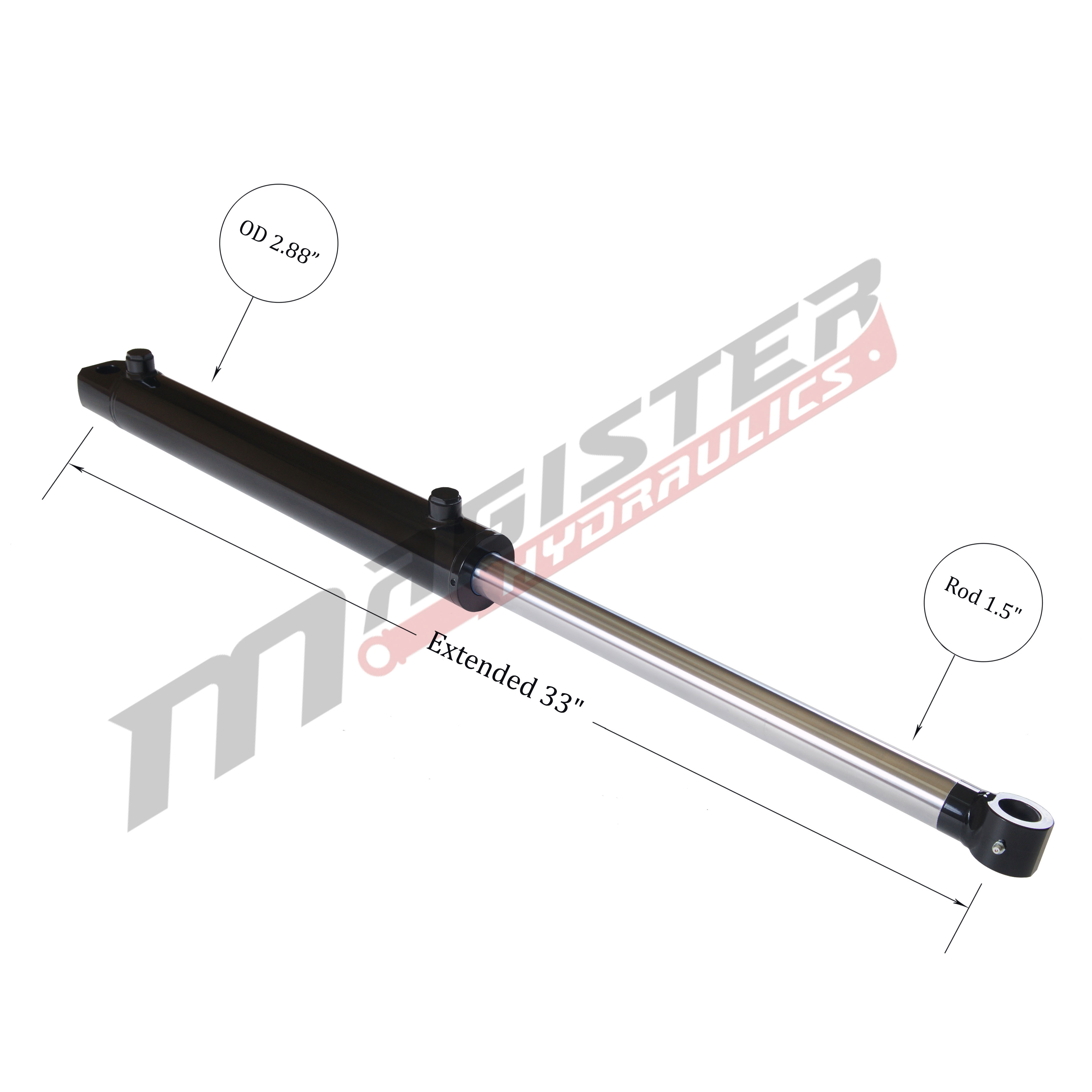

Extended :	33 in

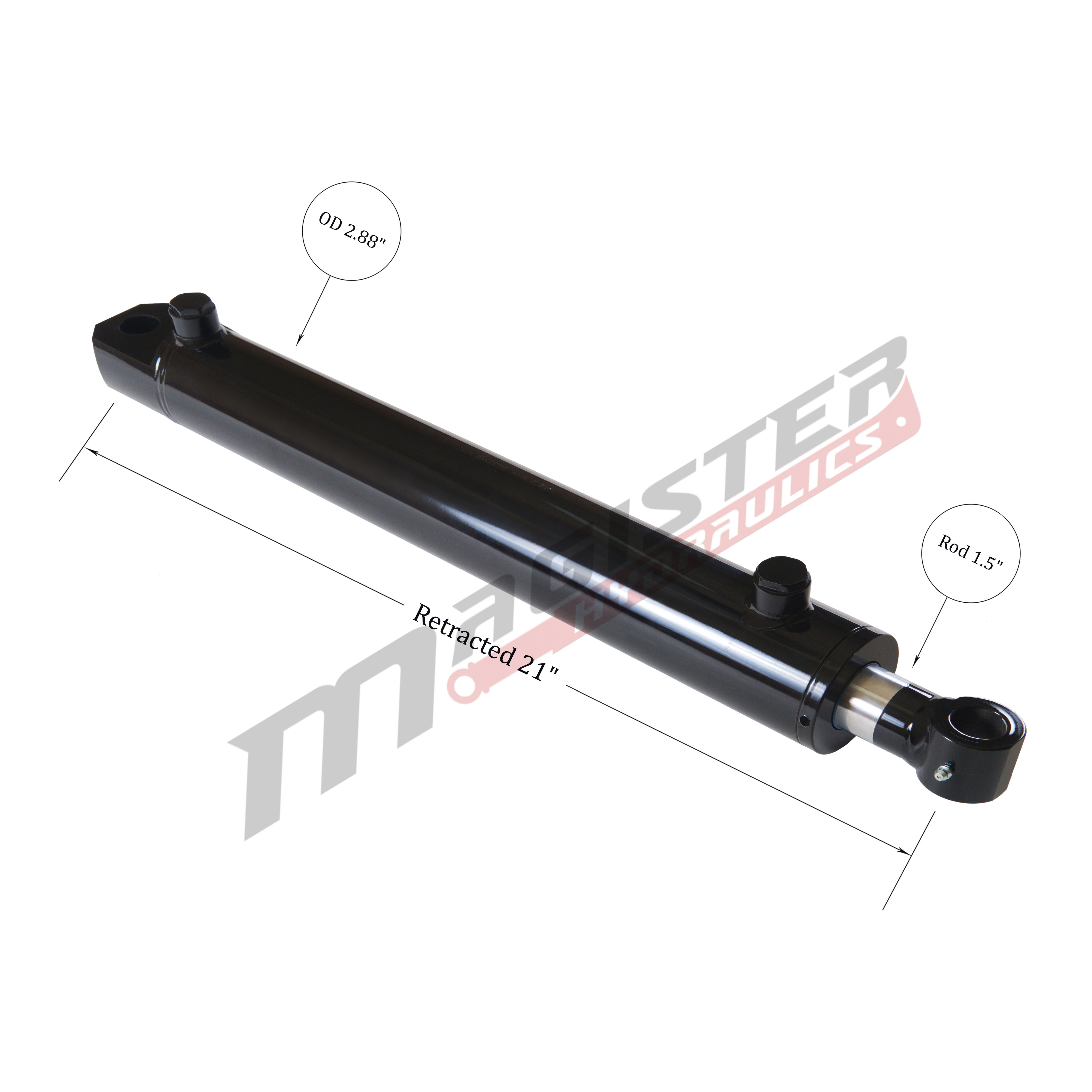

Retracted :	21 in
Overall length :	22.69 in
Pressure :	3500 PSI
Column Load :	14,700 LBs
Oil Volume :	1.02 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Narrow Tube
Action :	Double Acting
Weight :	24 LBs
GTIN :	854335007261

SKU: WTG 2.5x12 Categories: 2.5″ Bore Tang, Hydraulic Cylinders, Tang Hydraulic Cylinders

Volume discounts

4+ PRICE EA -5%

$210.90

8+ PRICE EA -10%

$199.80

In stock

41 in stock

Description

Designed for maximum performance and durability, the heavy-duty welded Tang Hydraulic Cylinder is engineered to handle the toughest jobs in agricultural, construction equipment. Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 2.5-inch bore and 12-inch stroke with tang and narrow tube ends with 3500 PSI. Due to their construction, these rams can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The Tang cylinders are perfect for any types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.

Key Features:

- - - – Extreme load capacity: Welded tang base end, ⌀ 2.87″ honed cold-drawn tubing, ⌀ 1.5″ chrome-plated rod (steel 1045) with welded narrow tube end, and top-quality piston seals make it capable of handling heavy loads with a 12″ stroke.
  - - – Wide Range Hydraulic Applications:Waste, recycling, construction, transportation, agriculture, material handling, ensuring reliable operation in harsh environments thanks to the usage of this tang cylinder.
  - - – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  - - – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  - - – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  - - – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  - - – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  - - – 2-year warranty
  - - – Same Day Free Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  - - – Made in Europe.
