2 bore x 12 stroke hydraulic cylinder, welded tang double acting cylinder | Magister Hydraulics

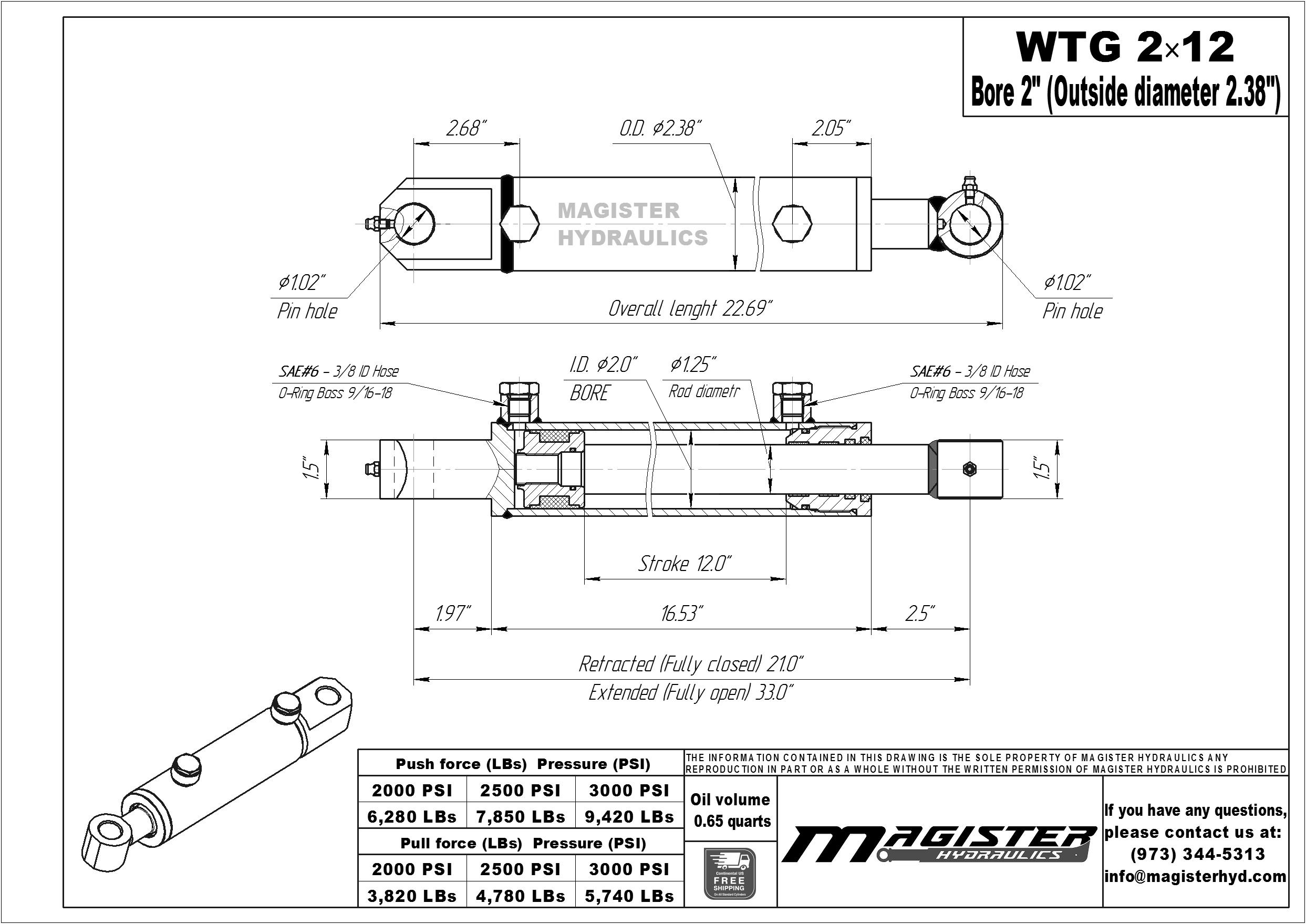

2" bore x 12" stroke tang hydraulic cylinder


Pay in 4 interest-free payments of $49.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WTG 2x12
Bore : 2 in
Outer Dia. (⌀) : 2.38 in
Stroke : 12 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 6
Pin Dia. (⌀) : 1 in

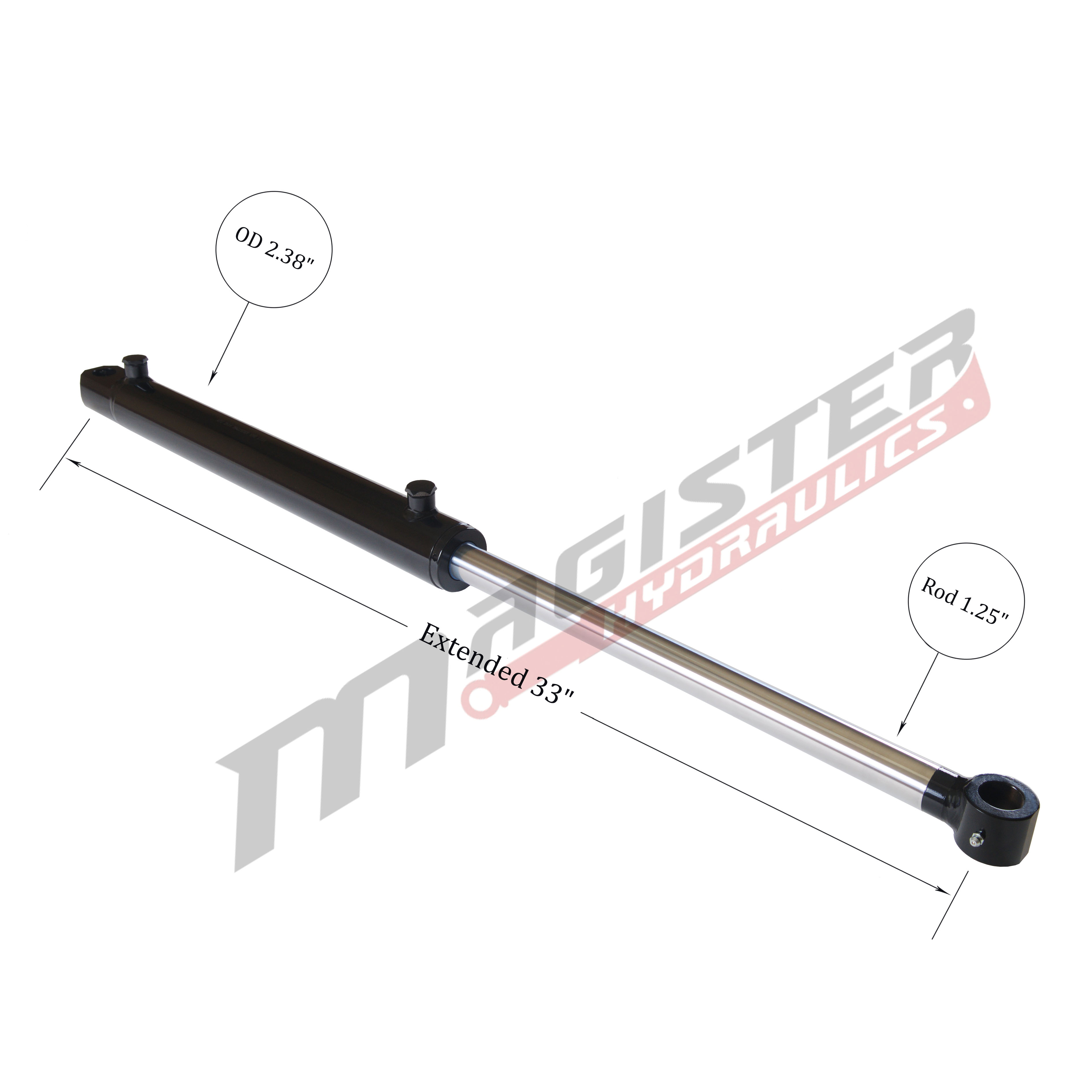

Extended : 33 in

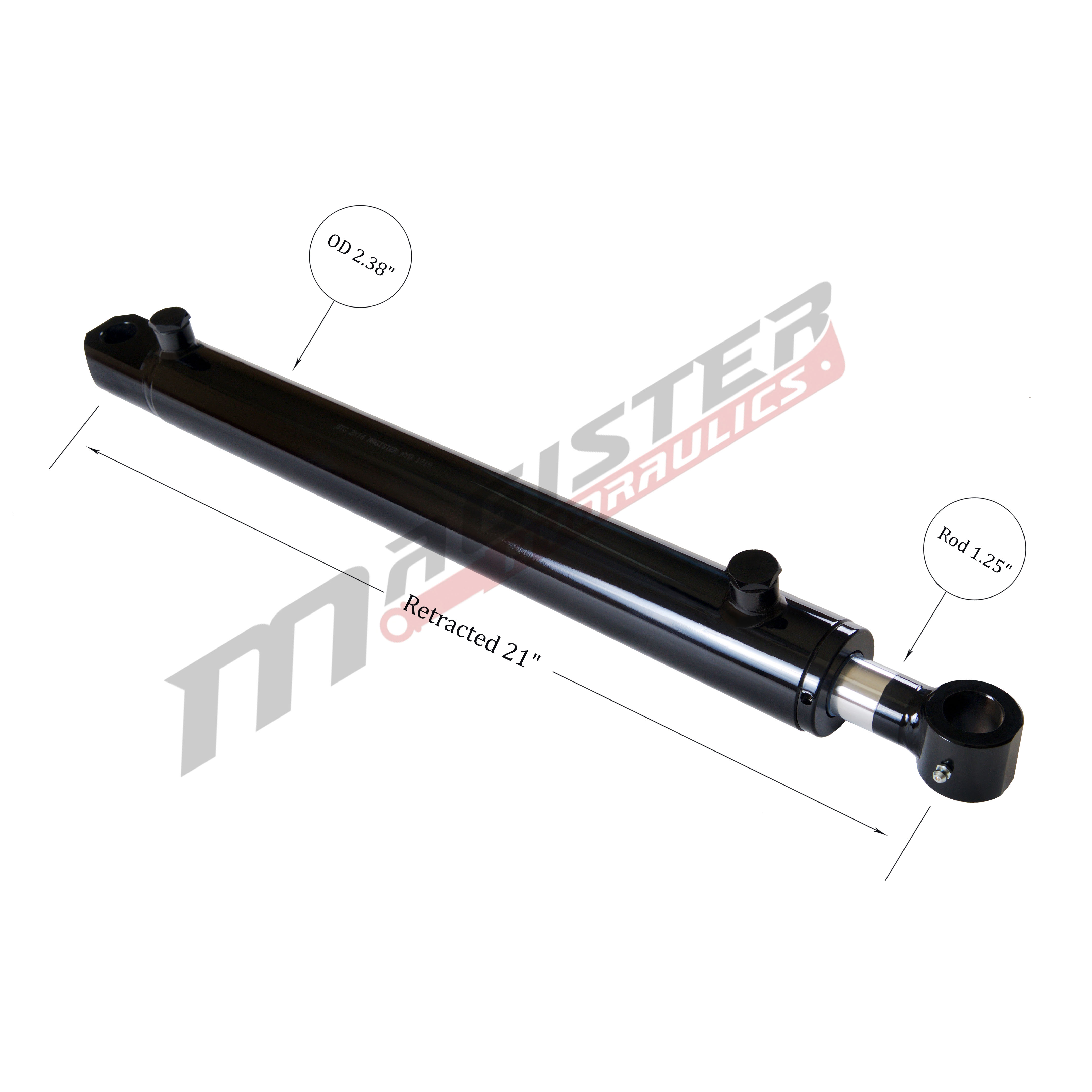

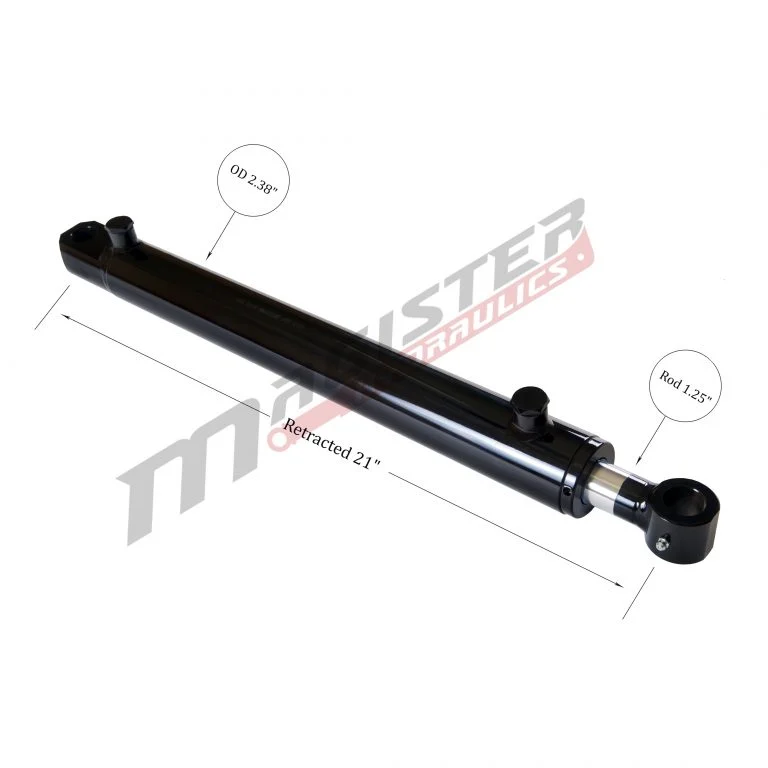

Retracted : 21 in
Overall length : 22.69 in
Pressure : 3500 PSI
Column Load : 9,400 LBs
Oil Volume : 0.65 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Narrow Tube
Action : Double Acting
Weight : 17 LBs
GTIN : 854335007186

Volume discounts

4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

95 in stock

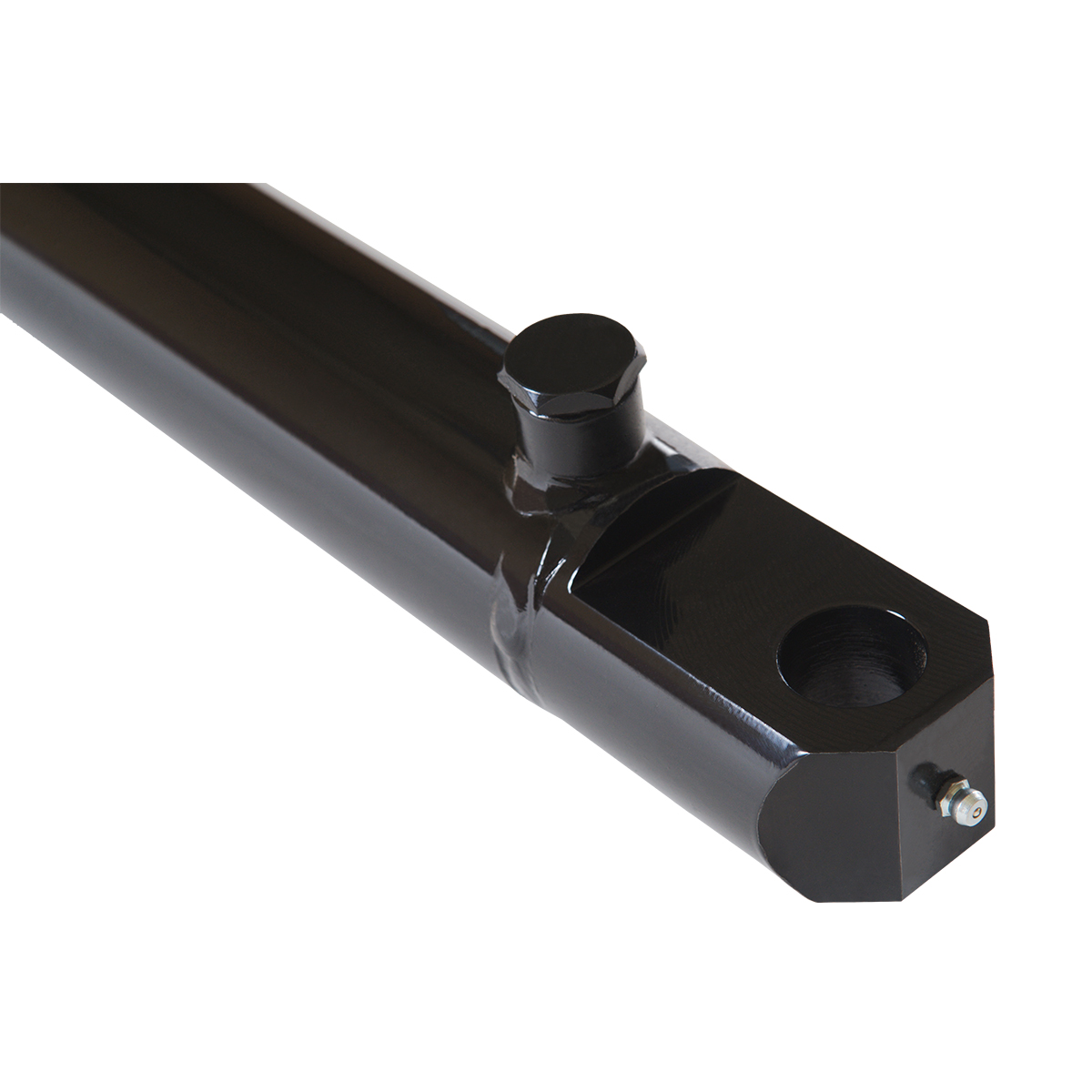

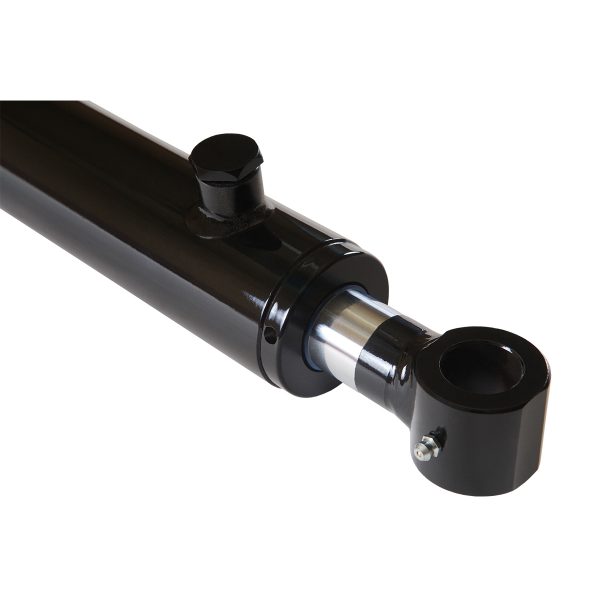

  • 2″ bore x 12″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.
