2" bore x 26" stroke tang hydraulic cylinder


Pay in 4 interest-free payments of $57.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WTG 2x26

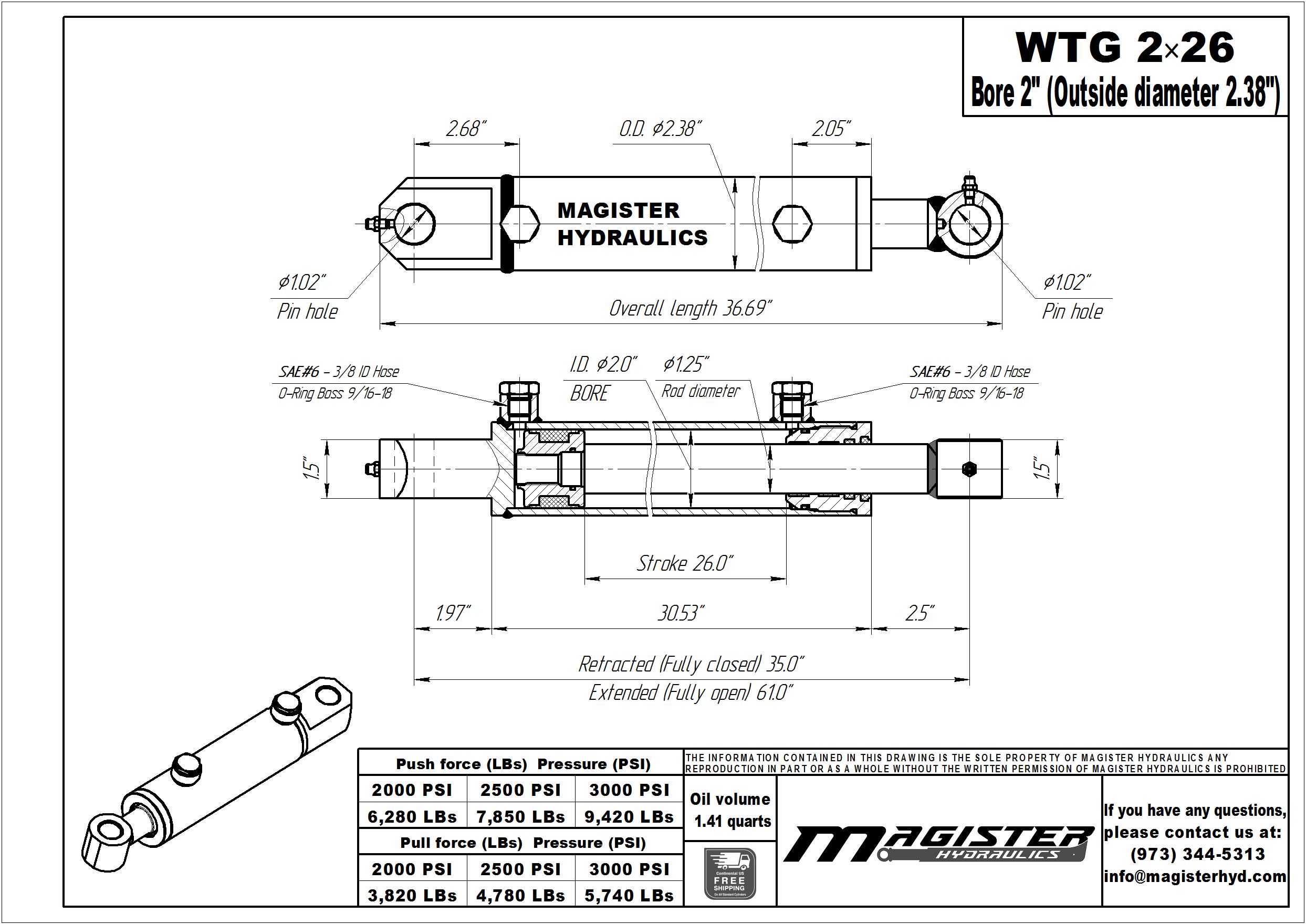

Bore :2 inch
OD :2.38"
Stroke :26” Stroke Hydraulic Cylinders
Rod :1.25"
Port Size :SAE 6
Pin :1"

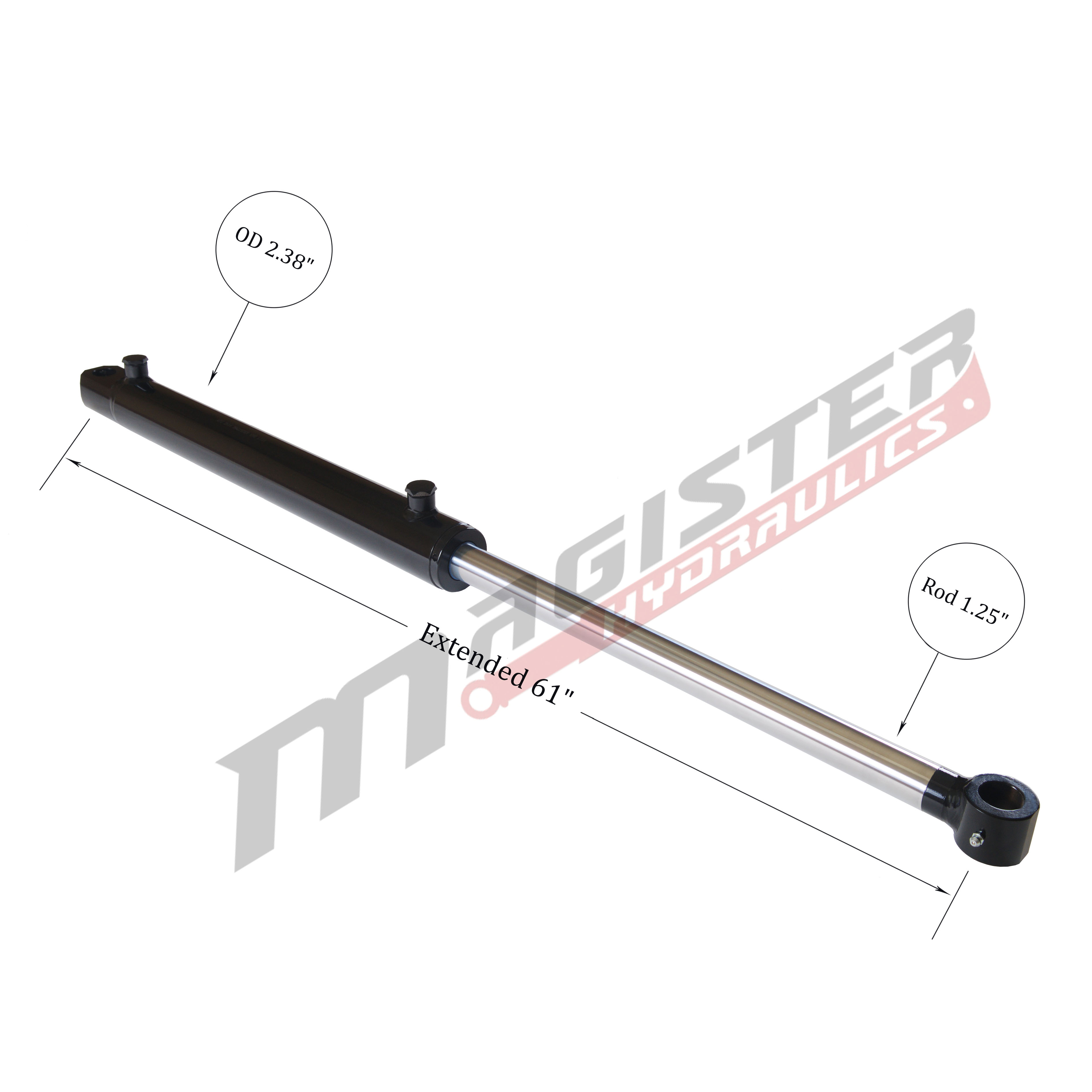

Extended :61"

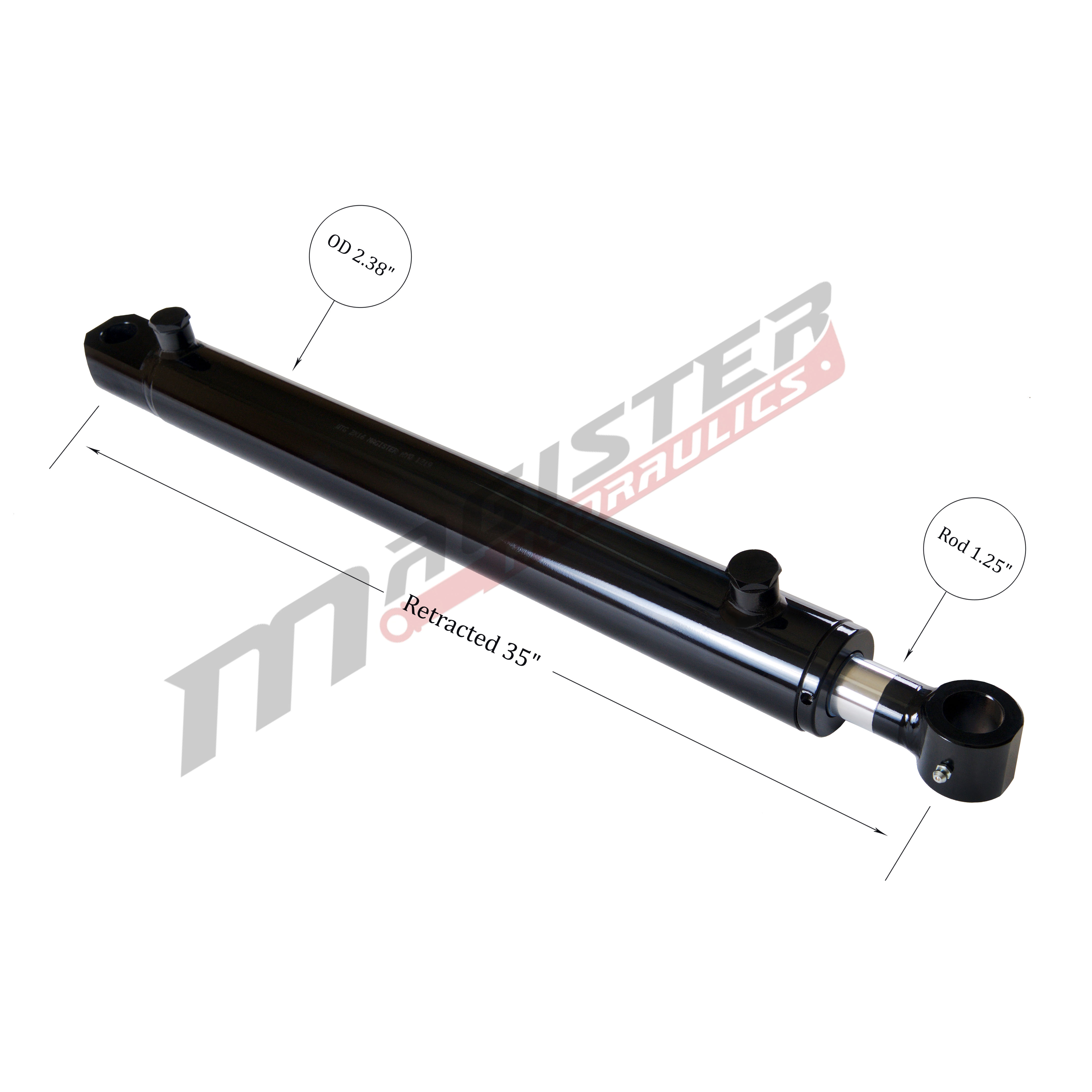

Retracted :35"
Overall length :36.69"
Pressure :Hydraulic Cylinders 3500 PSI
Column Load (LBs) :7,200
Oil Volume (quarts) :1.4
Brand :Magister Hydraulics
GTIN :850016509147
4+ PRICE EA -3%
8+ PRICE EA -6%
In stock

35 in stock


  • 2″ bore x 26″ stroke tang hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister tang cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded durable mounting ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends, this cylinder is a perfect replacement for front such industries as material handling, waste, construction, transportation and agriculture.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
