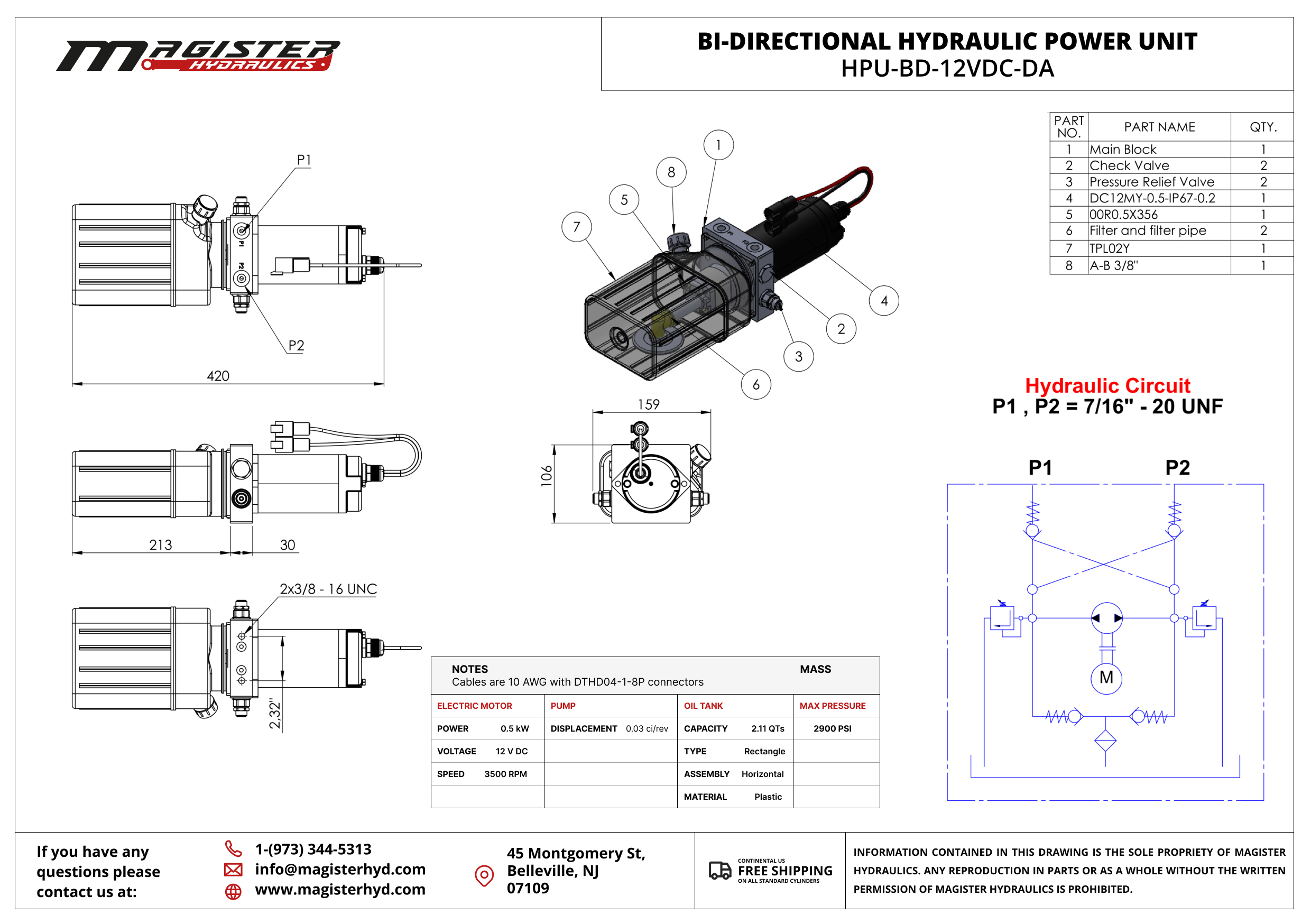

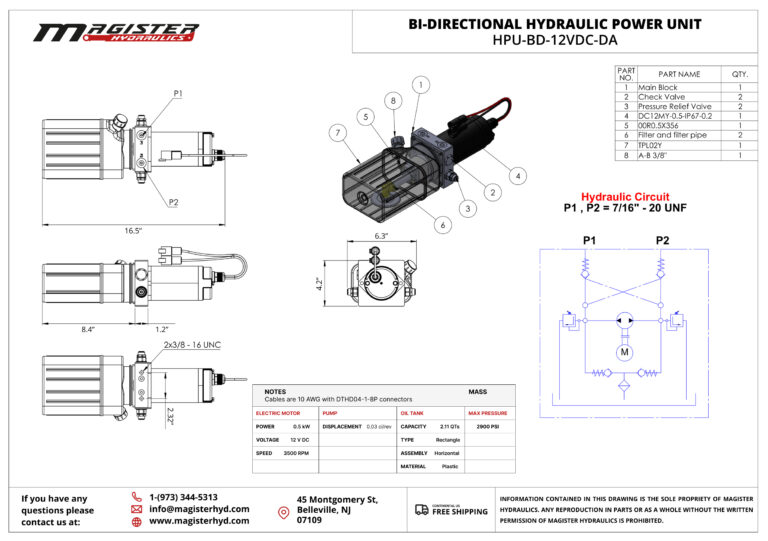

  • HPU-BD-12VDC-DA-drawing

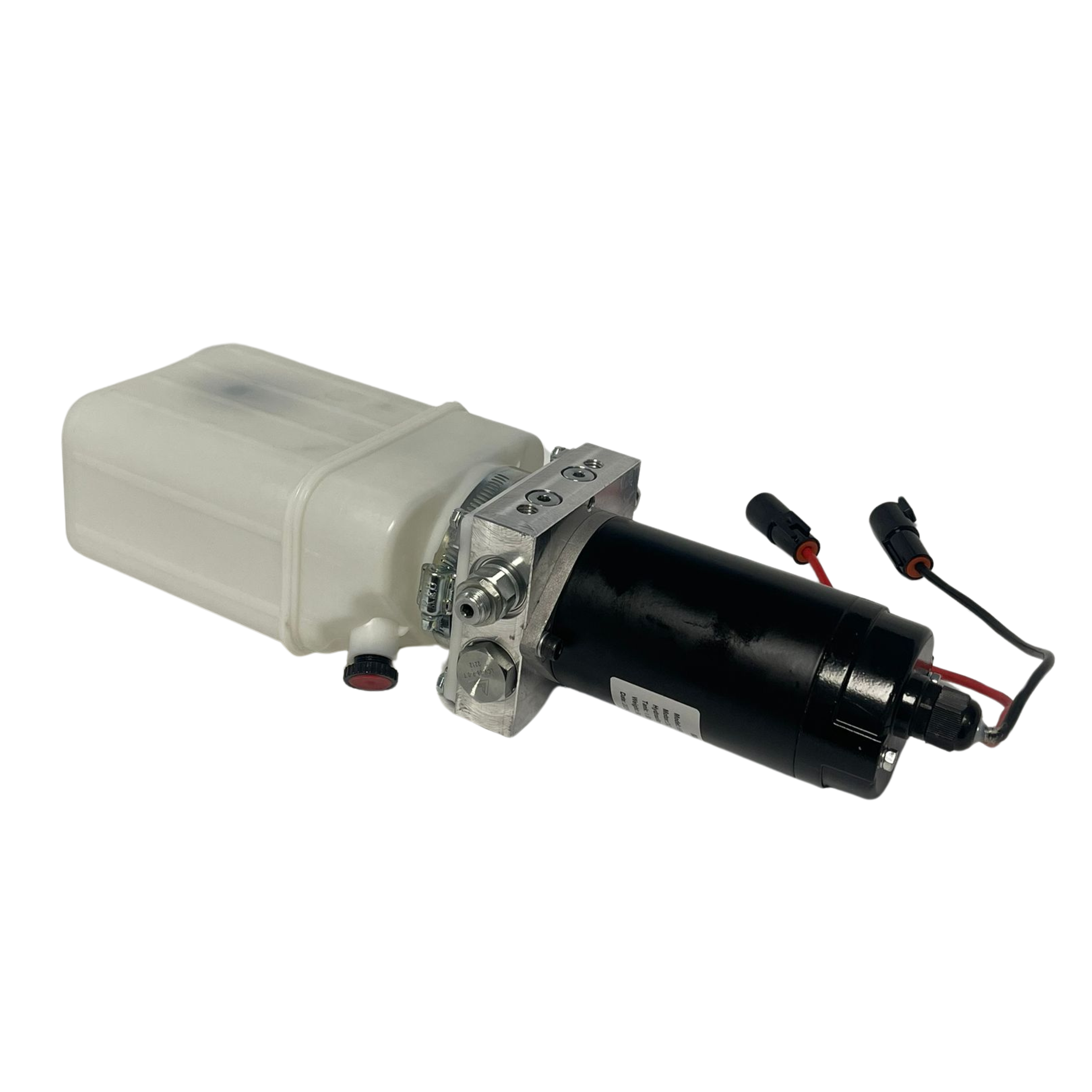

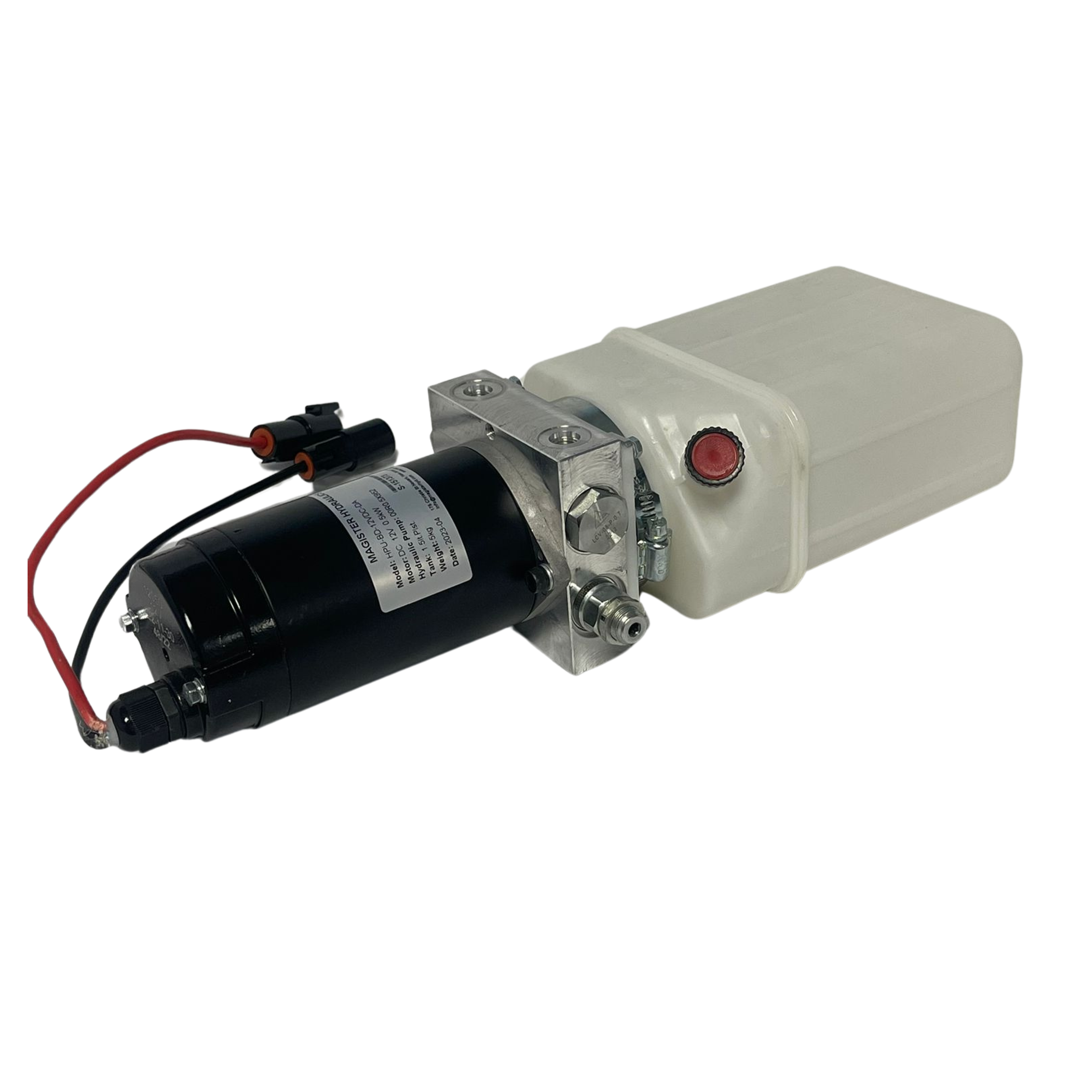

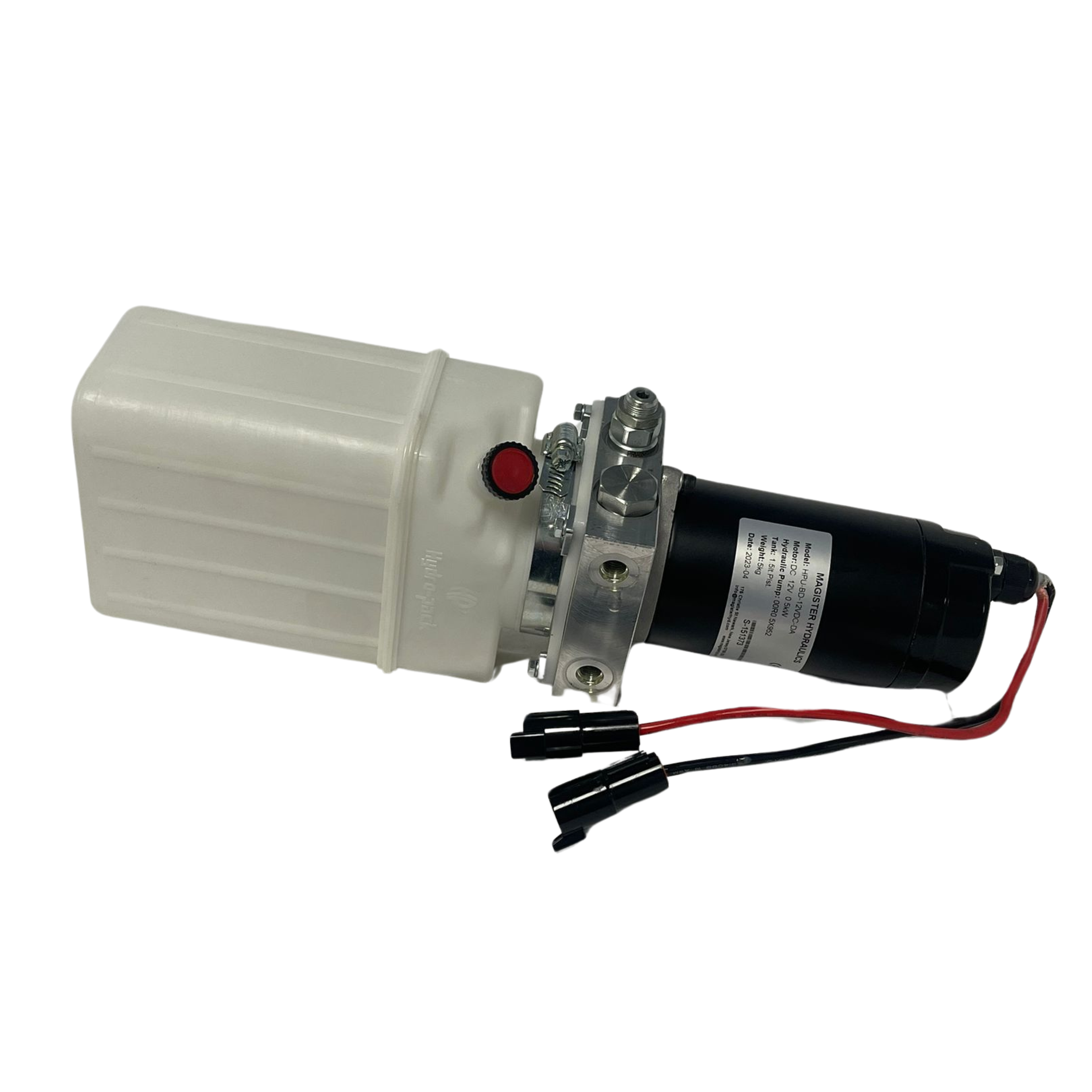

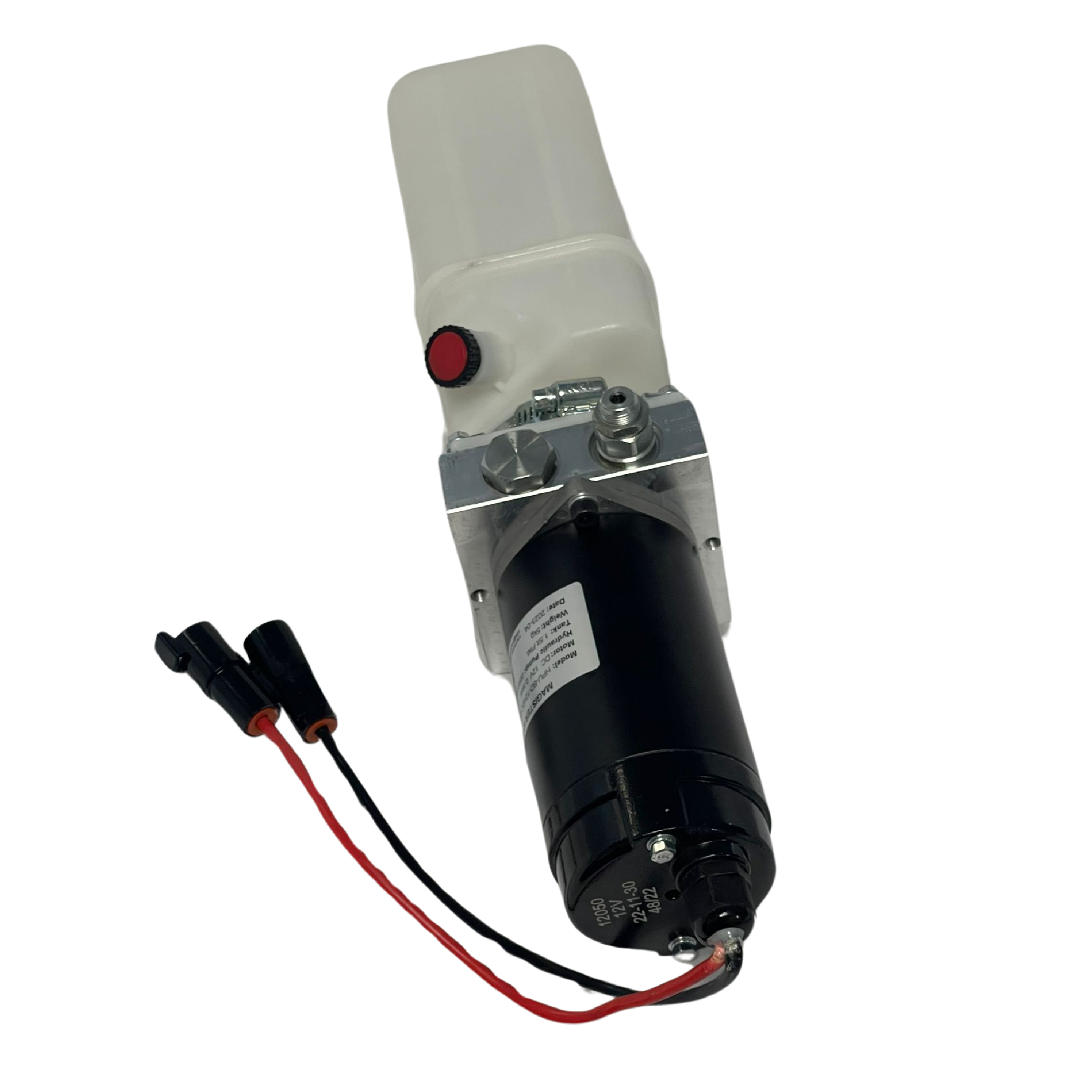

Bi-Directional Hydraulic Power Unit 12V DC Double Acting

SKU: HPU-BD-12VDC-DA

$415.00

In Stock
PayPalPay in 4 interest-free payments of $103.75

Volume Discounts

5+ PRICE EA -5%
$394.25
10+ PRICE EA -10%
$373.50

24 in stock

View cart
Same Day
Free Shipping
Made in Europe
US Customer Support
* Wholesale Discount is available for this product if you purchase 5 or more products.

This high-performance bi-directional hydraulic power unit is engineered for systems requiring double-acting control—providing consistent power up and power down operation. With a durable 2-quart plastic tank, corrosion-resistant housing, and a precision-built European gear pump, it offers strong performance in a compact form.

The integrated 2900 PSI adjustable pressure relief valve allows you to fine-tune system performance. A reliable 0.5 kW 12V DC motor delivers steady flow at 0.4 GPM @ 2500 PSI, supporting a wide range of residential, mobile, and industrial hydraulic applications.

This unit comes equipped with 10 AWG power cables and DTHD04-1-8P connectors, making electrical installation fast and secure.

Benefits

  • True bi-directional operation—ideal for equipment requiring powered motion in both directions
  • Compact and lightweight thanks to corrosion-resistant plastic reservoir
  • Adjustable relief valve enables precise system pressure control
  • Easy electrical installation with pre-terminated 10 AWG cables
  • Efficient 12V motor optimized for mobile equipment

Common Applications

  • Bi-directional cylinders
  • Agricultural attachments
  • Mobile equipment

Remote control NOT INCLUDED.

Same-Day Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Made in Europe.

If you need assistance, do not hesitate to contact us:

973-344-5313

View Full Specifications

Specifications

Bi-Directional Hydraulic Power Unit 12V DC Double Acting
SKU: HPU-BD-12VDC-DA
ActionDouble ActingPressure2900 PSI
Flow0.4 GPMRelief Valve2900 PSI
MAX RPM3500Voltage12 V
Pump Displacement0.03 ci/revCurrentDirect
Capacity2 QTsMotor Power0.5 kW
Tank MaterialPlasticMountingHorizontal
Port SizeSAE 4Weight15 LBs
BrandHydro-PackRemote ControlNOT Included
GTIN850054386106
