2" bore x 24" stroke cross tube hydraulic cylinder
$233.00
Pay in 4 interest-free payments of $58.25SKU: WCT 2x24

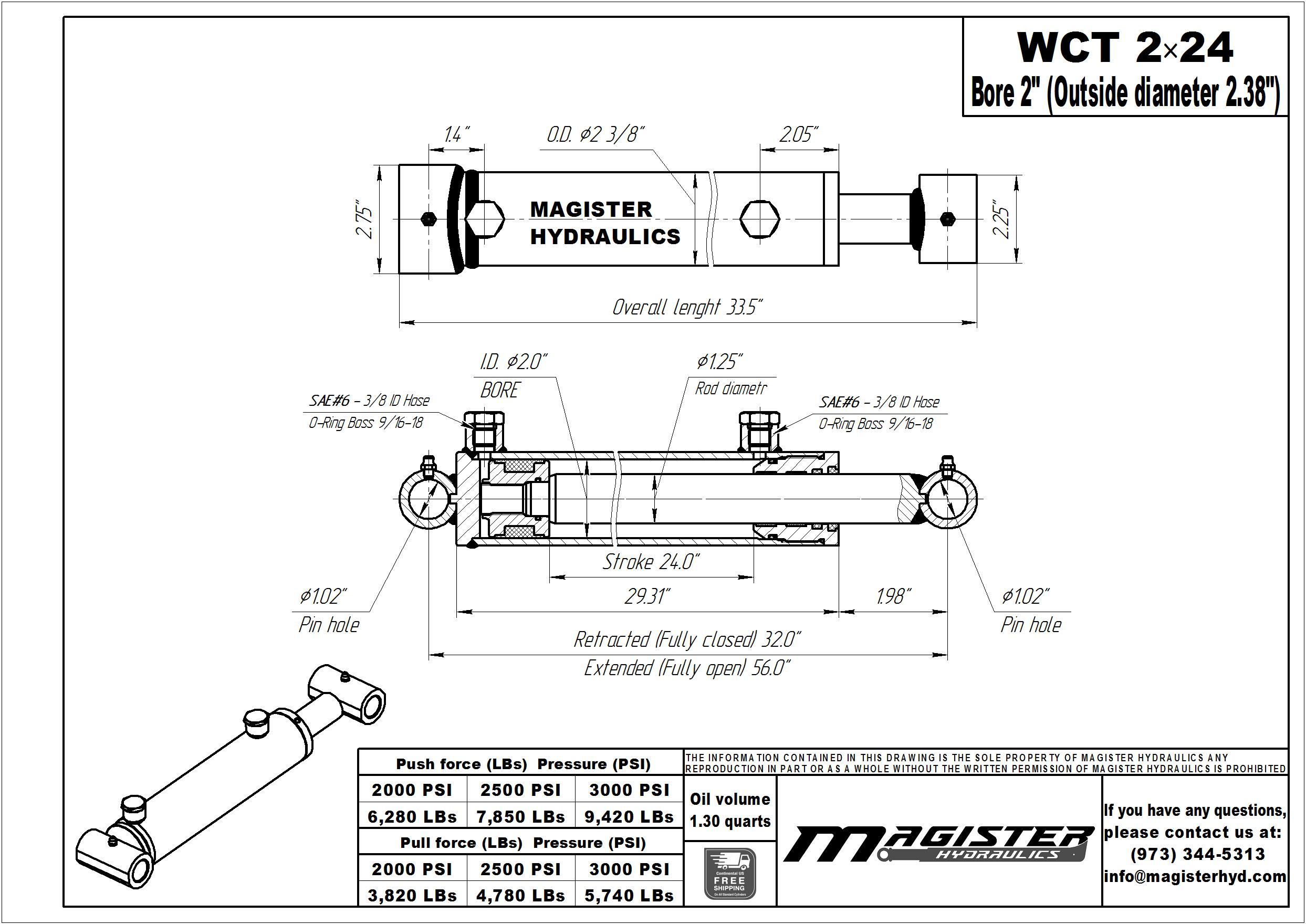

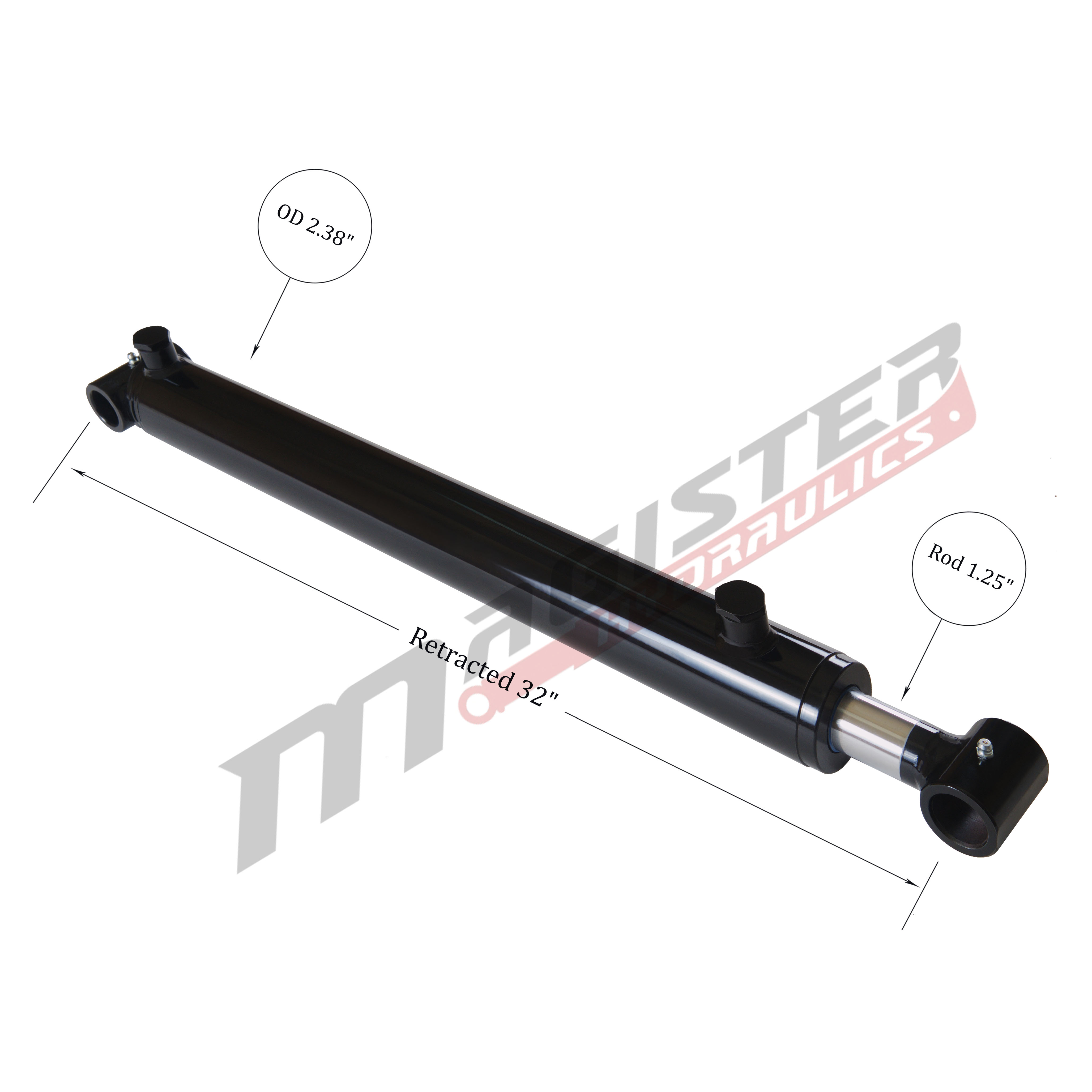

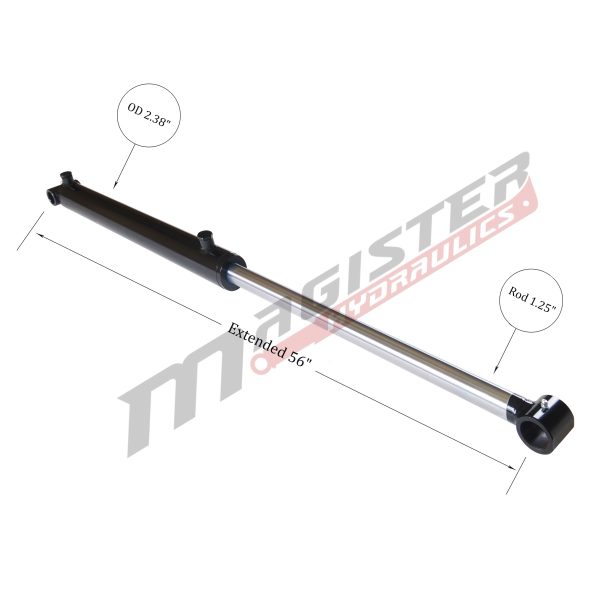

| Bore : | 2 in | Outer Dia. (⌀) : | 2.38 in | Stroke : | 24 in | Rod Dia. (⌀) : | 1.25 in | Port Size : | SAE 6 | Pin Dia. (⌀) : | 1 in | Extended : | 56 in | Retracted : | 32 in | Overall length : | 33.5 in | Pressure : | 3500 PSI | Column Load : | 8,400 LBs | Oil Volume : | 1.3 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Cross Tube | Action : | Weight : | 25 LBs |
|---|---|
| GTIN : | 850597006059 |
Volume discounts
4+ PRICE EA -5%
$221.35
8+ PRICE EA -10%
$209.70
In stock
33 in stock
Description

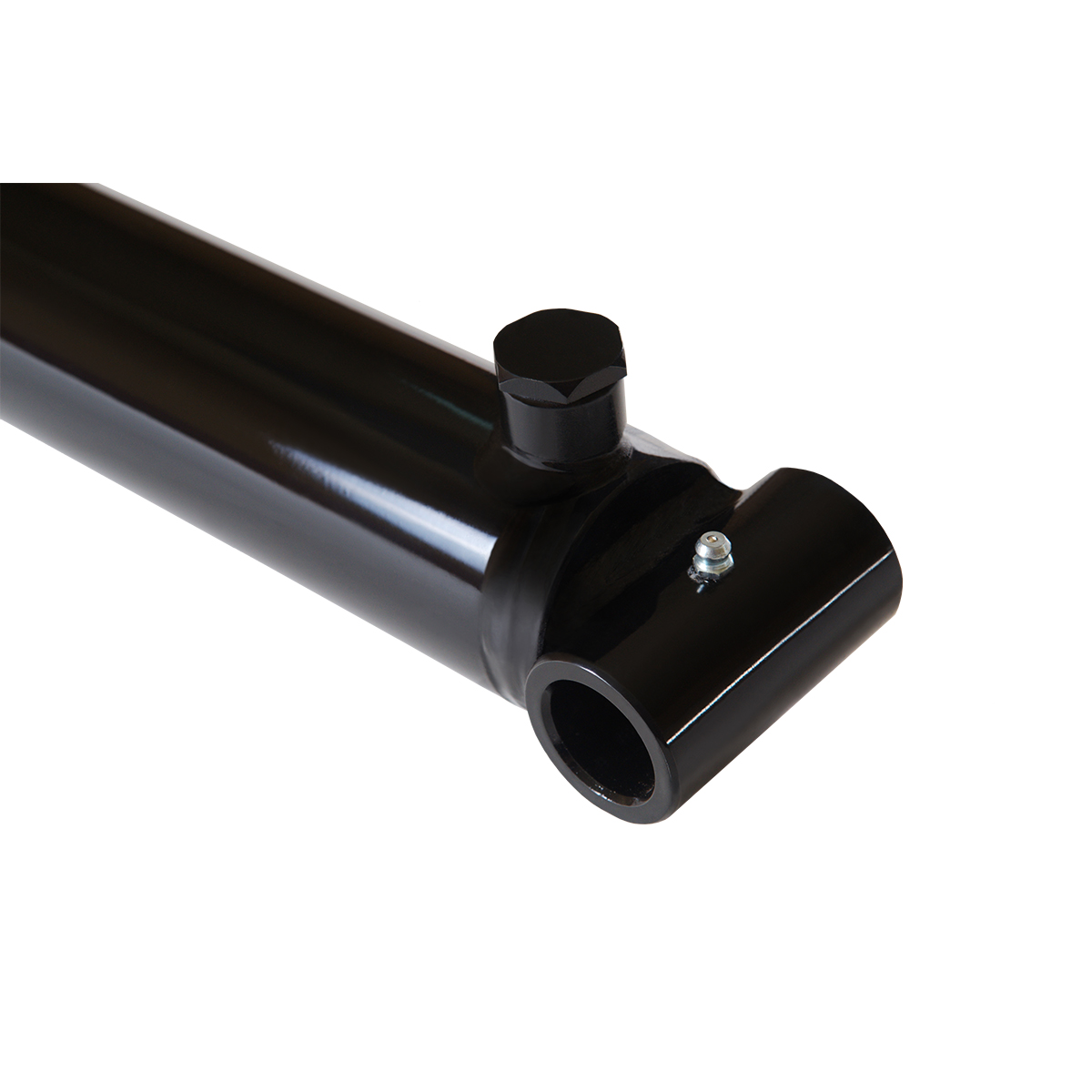

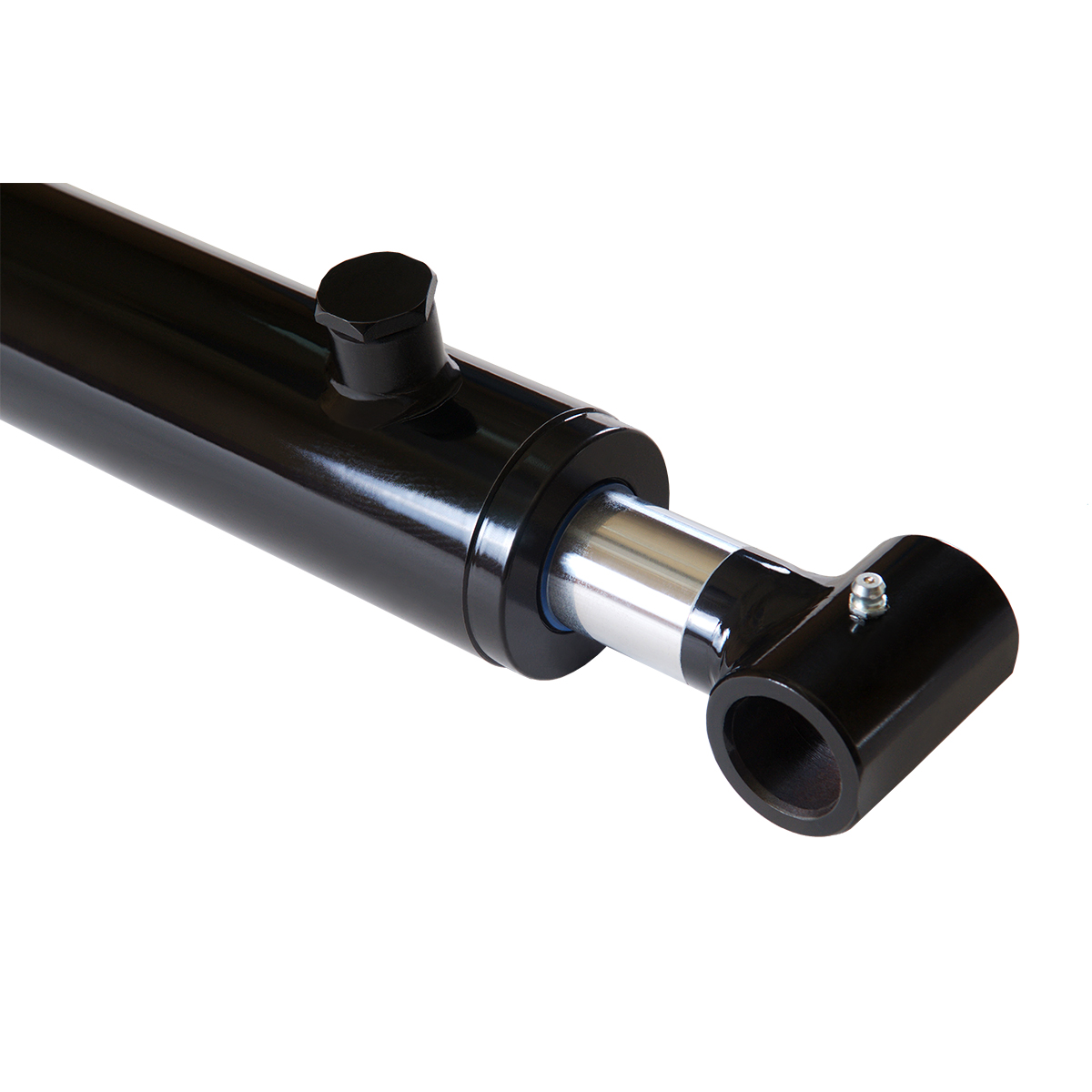

- 2″ bore x 24″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
- Applications:Â Welded Double Acting Hydraulic Cylinder.
- Color:Â Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
DWPalmer
I bought these for my kubota l2650 and they work great. Theyre made in ukraine and they are nice and thick.
Luisa
Very nice pleasant folks
cole2899
I got two of these cylinders to replace ones on our loader. They fit perfectly and work great. I saved over $200 by getting these cylinders, plus I was able to get the loader working much more quickly.
Niick
They fit perfectly
John Anderson
works as it should
Ben Coffman
I purchased the cylinder to use on the tilt of my Tractors front end loader. The install was simple and straight forward. Simply install a pin at each end’ add the hydraulic lines and off we go.
Charlotte Roderick
I put this cylinders on a Bobcat 310 had to do some Minor modification Other than that they seem to be very good
928922andrew
i bought these for my loader and still working no leaks after a year
Mike
i did have to modify them but so far they are awesome and as described
Tanya Algee
After about thirty hours of using my tractor with these on it they are holding up well. I sometimes abuse my loader and do things I should not but they are doing just as good as the original cylinders. I had to grind the shoulders 1/4 inch narrower to fit my tractor and use fender washer on the other end to keep them centered.
