2" bore x 8" stroke cross tube hydraulic cylinder


Pay in 4 interest-free payments of $44.00
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2x8
Bore :2 inch
OD :2.38"
Stroke :8” Stroke Hydraulic Cylinders
Rod :1.25"
Port Size :SAE 6
Pin :1"

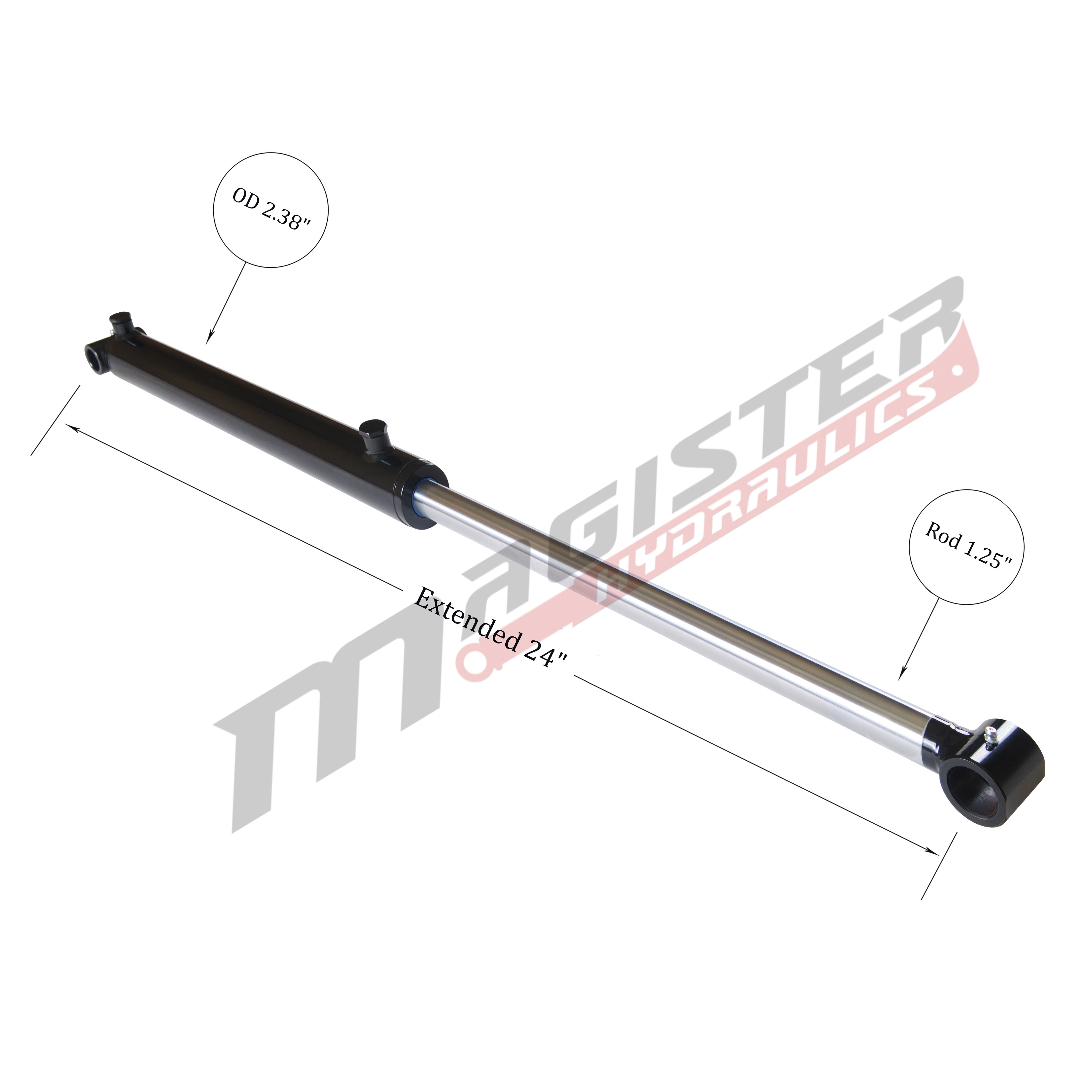

Extended :24"

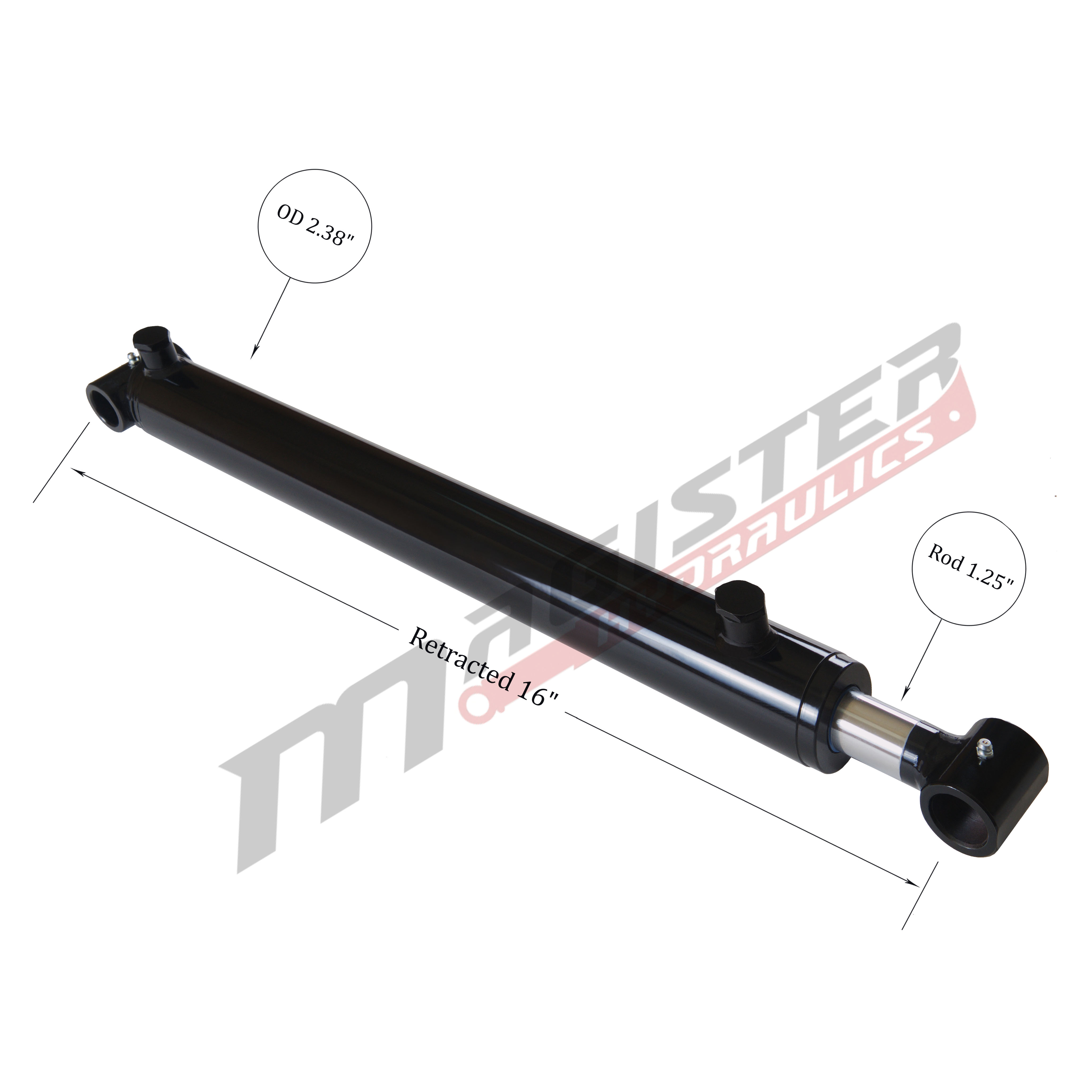

Retracted :16"
Overall length :17.5"
Pressure :Hydraulic Cylinders 3500 PSI
Column Load (LBs) :9,400
Oil Volume (quarts) :0.43
Brand :Magister Hydraulics
GTIN :850597006004
4+ PRICE EA -3%
8+ PRICE EA -6%
In stock

81 in stock

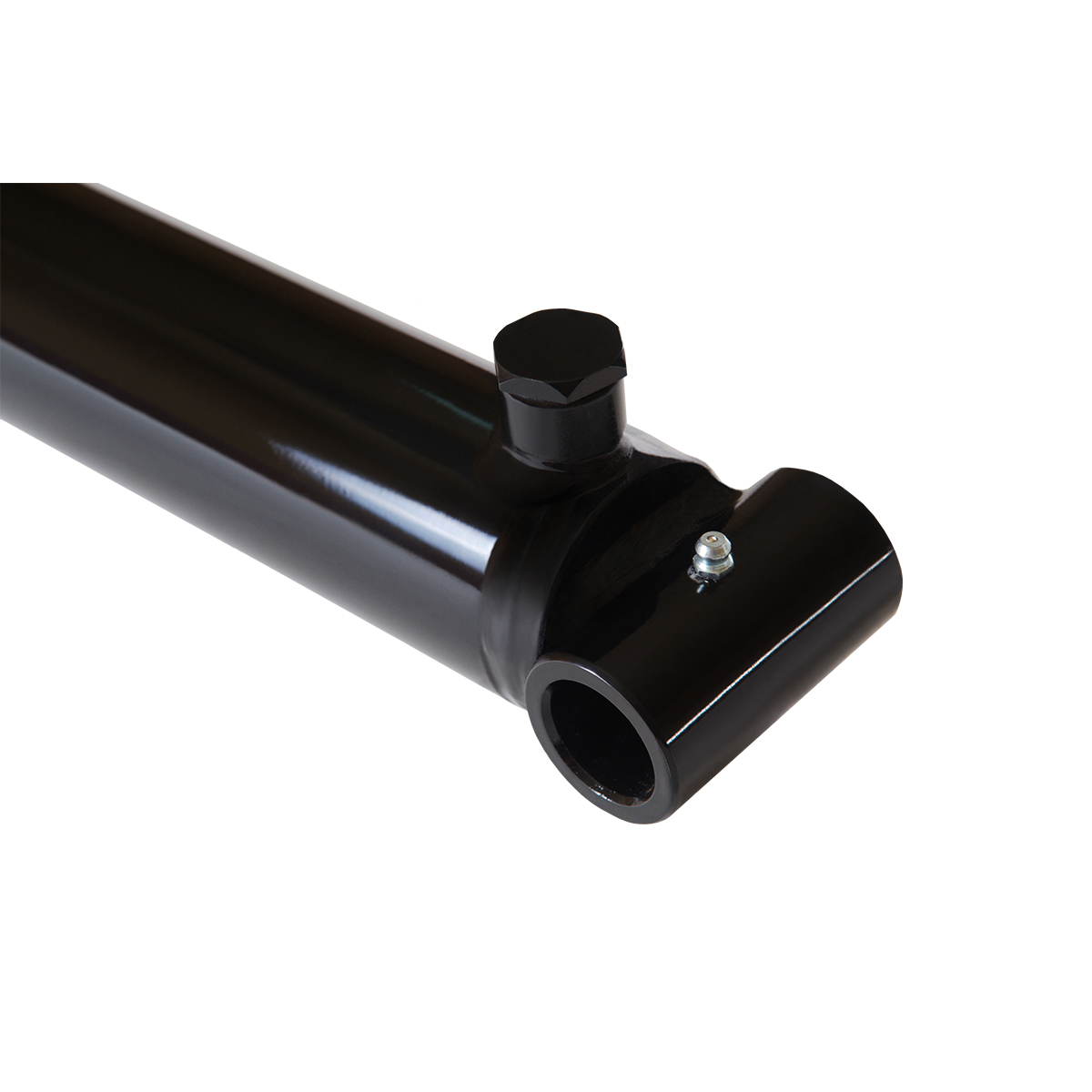

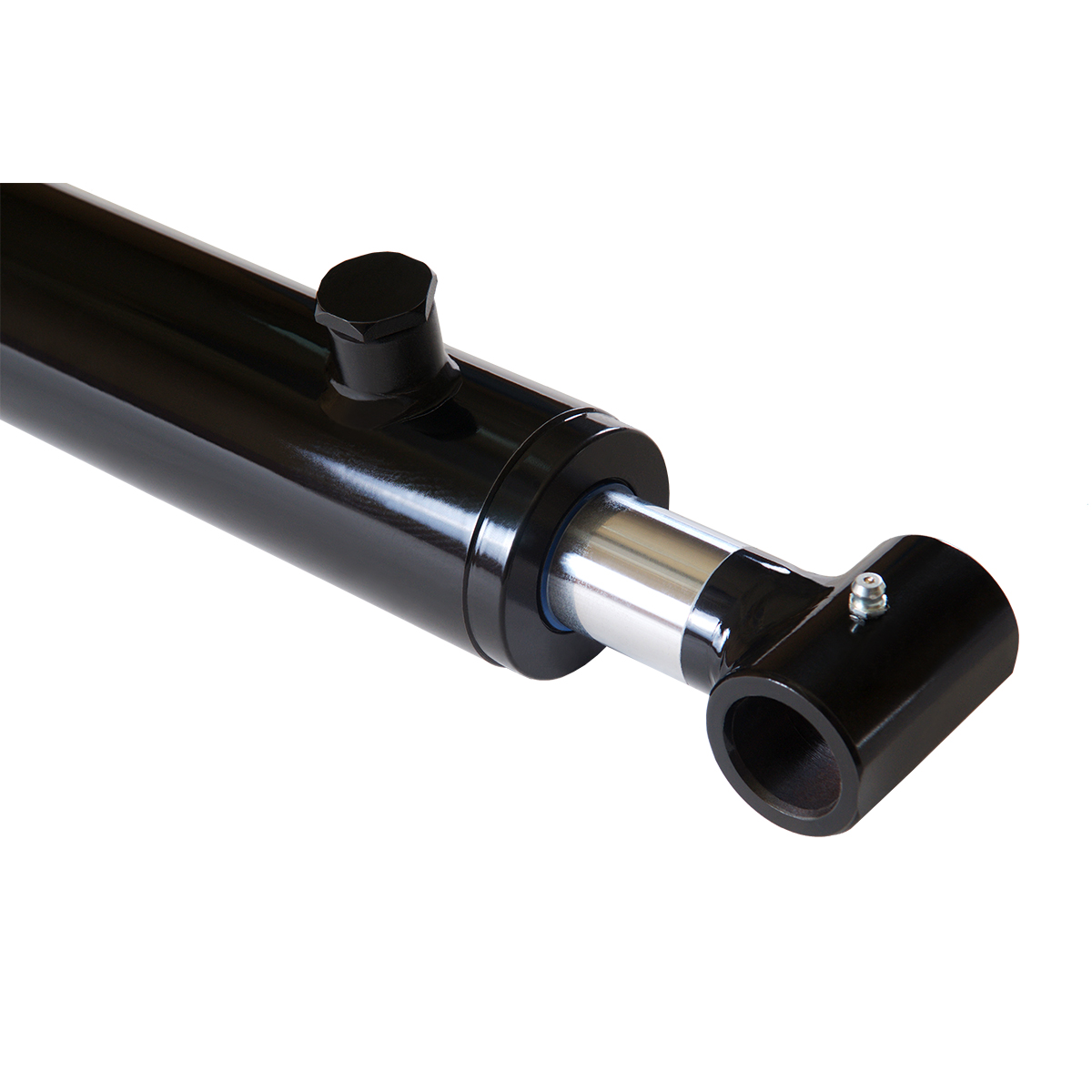

  • 2″ bore x 8″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
