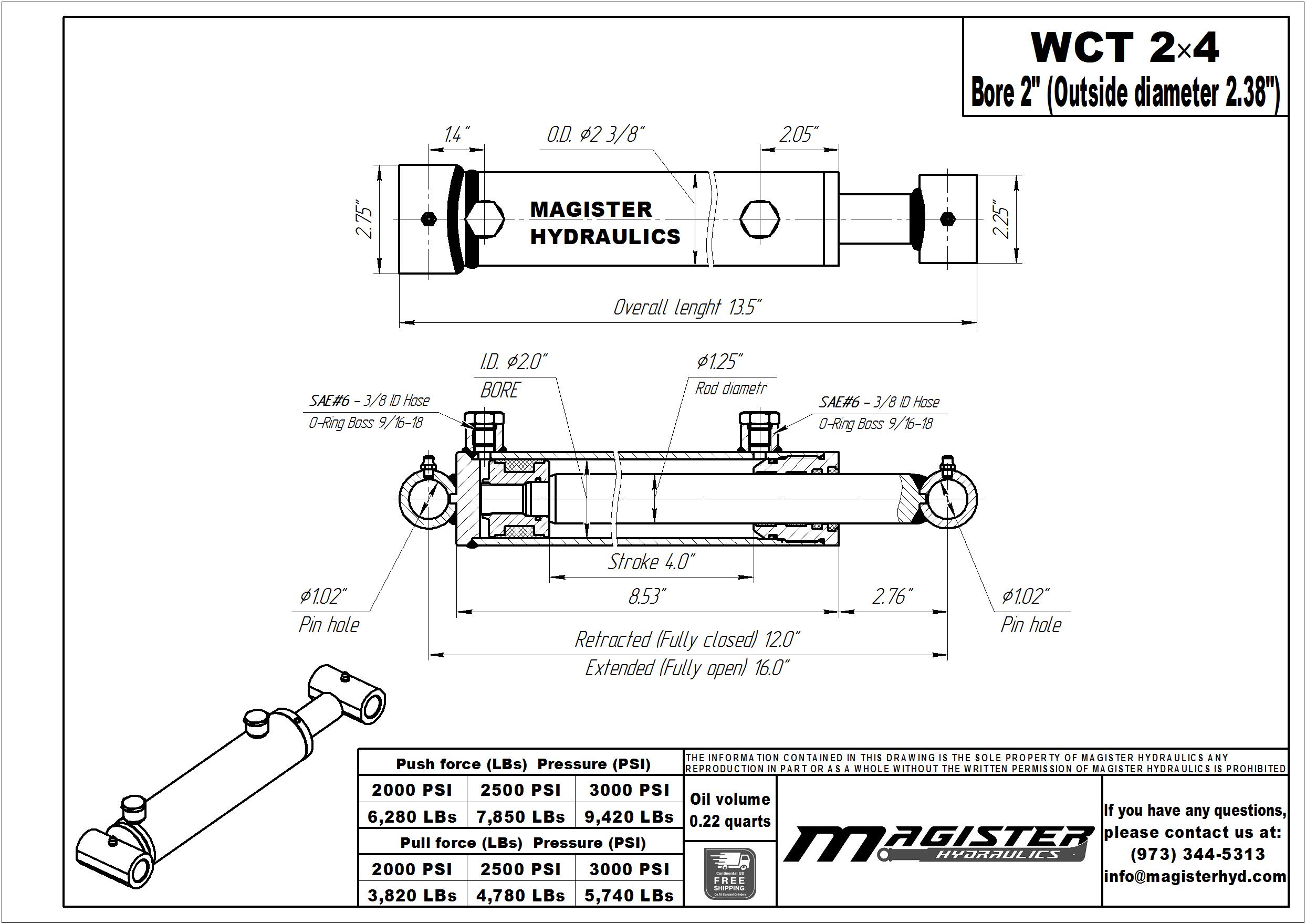

2" bore x 4" stroke cross tube hydraulic cylinder


Pay in 4 interest-free payments of $40.75
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2x4
Bore : 2 in
Outer Dia. (⌀) : 2.38 in
Stroke : 4 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 6
Pin Dia. (⌀) : 1 in

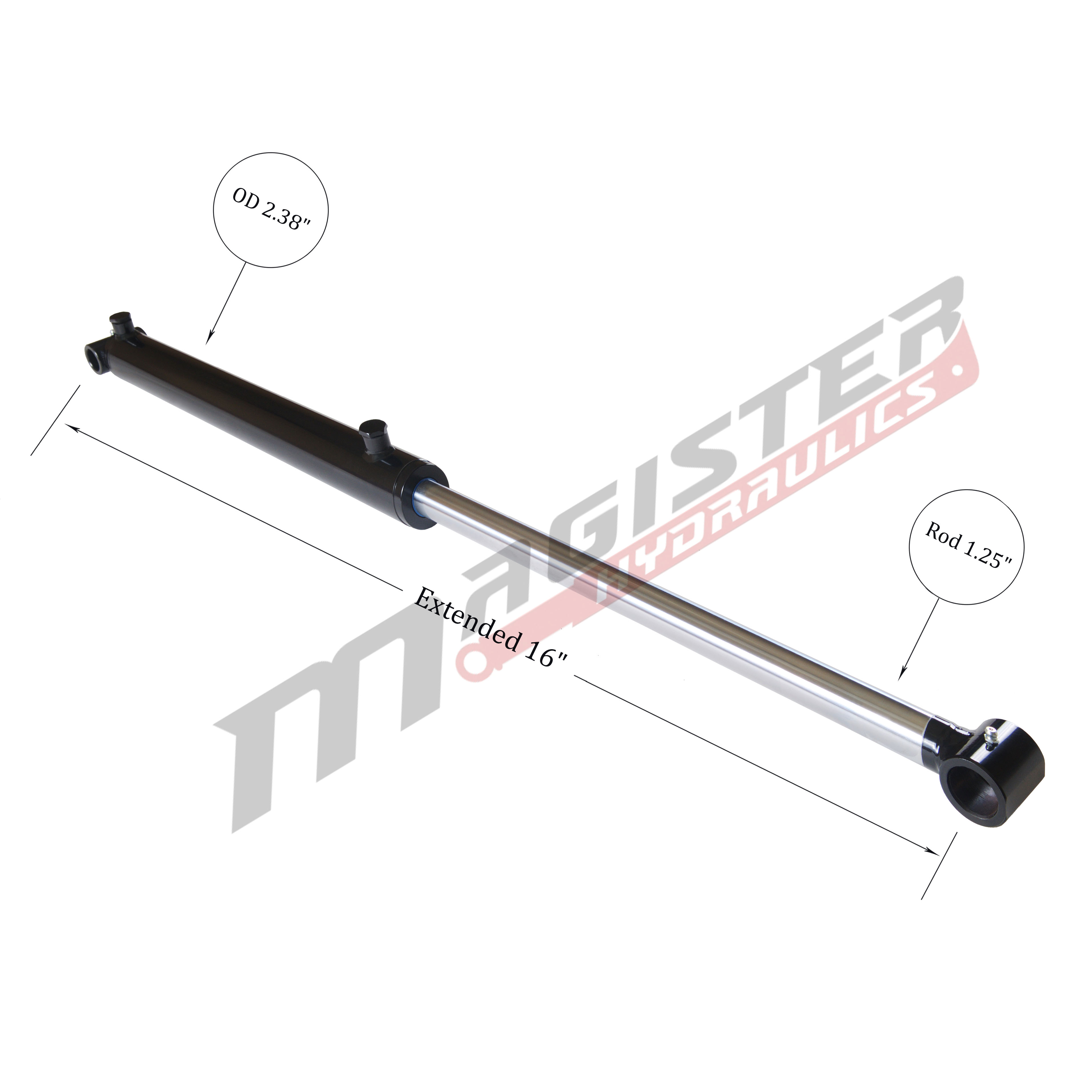

Extended : 16 in

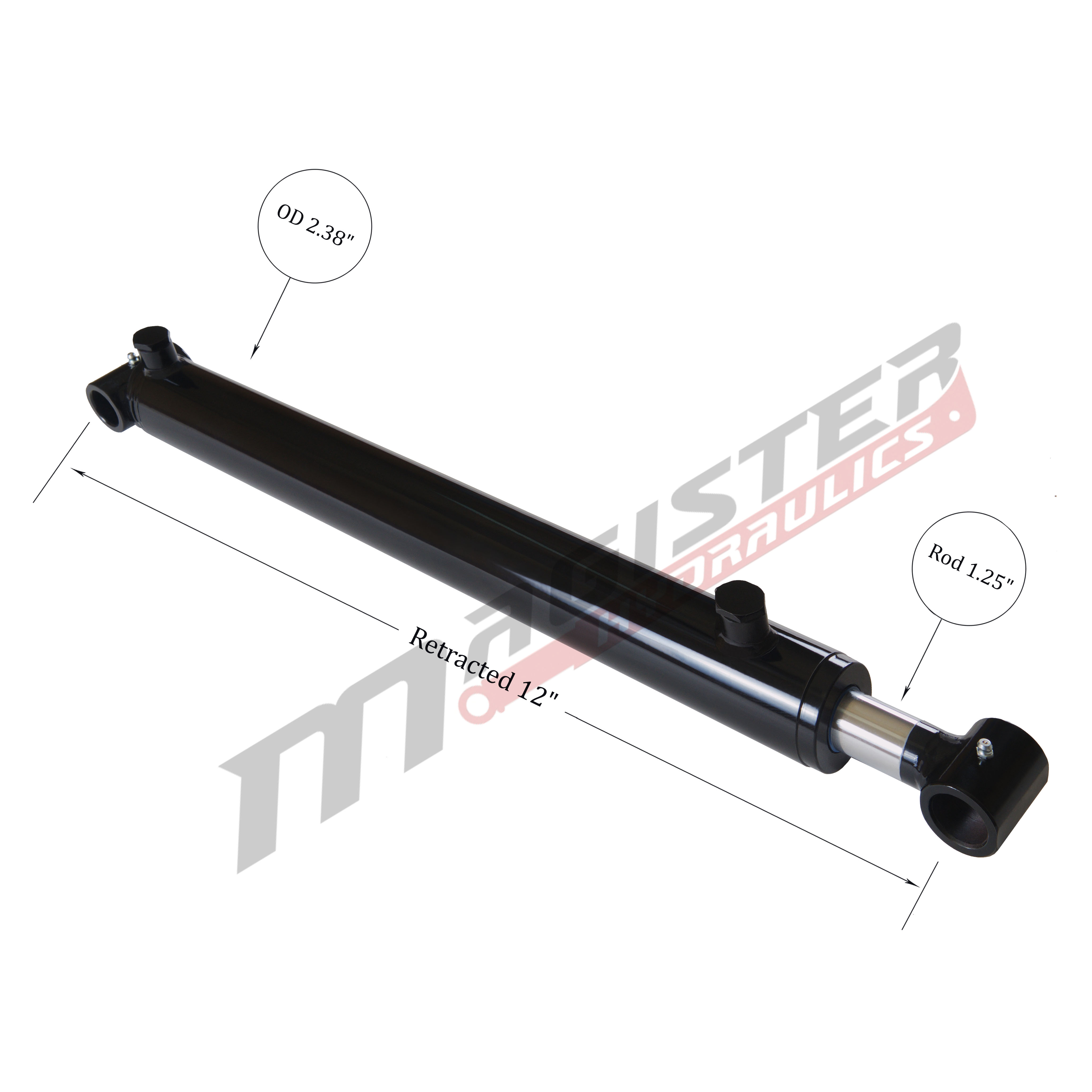

Retracted : 12 in
Overall length : 13.5 in
Pressure : 3500 PSI
Column Load : 9,400 LBs
Oil Volume : 0.22 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated

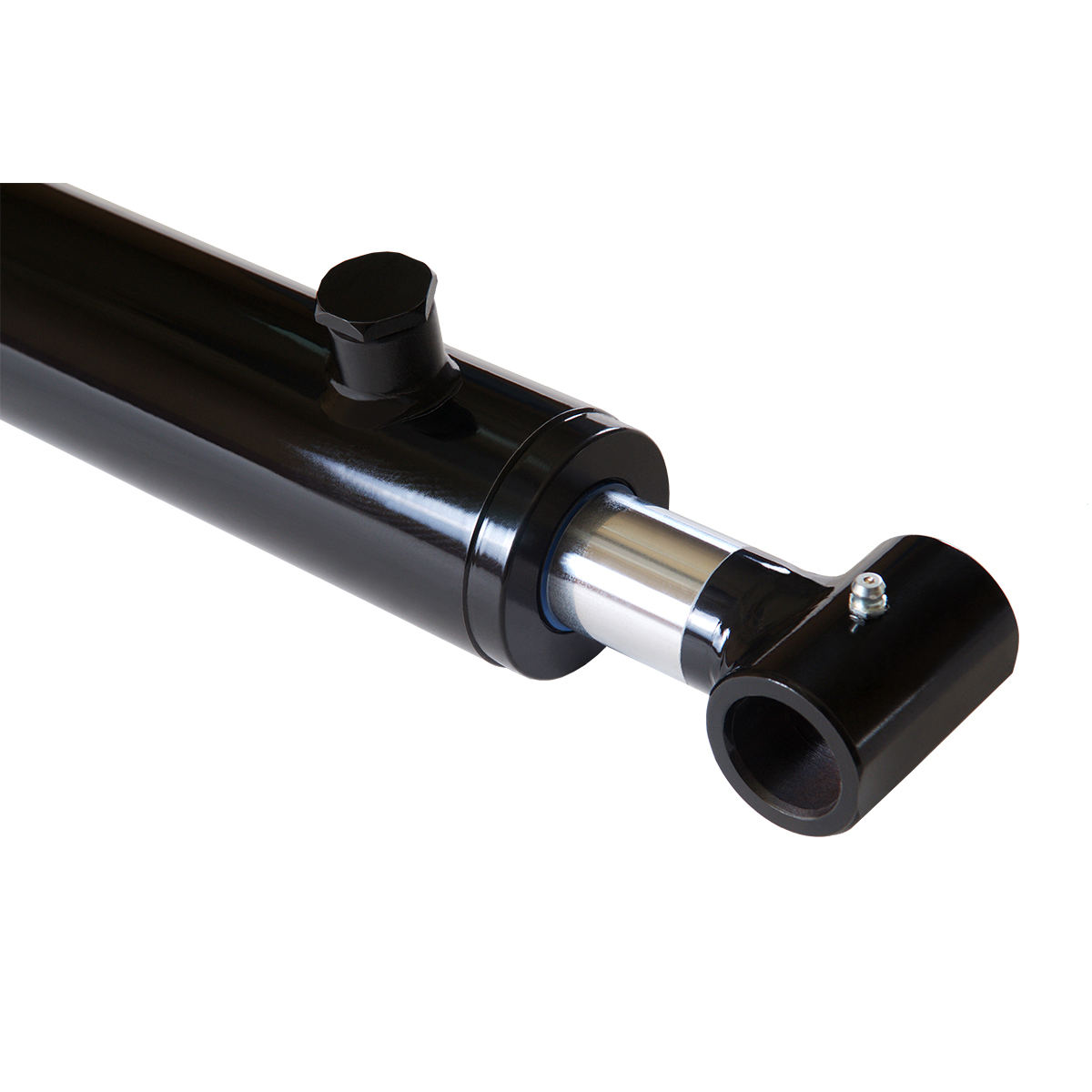

Rod End : Cross Tube
Action :
  • Double Acting
  • Weight : 10 LBs
    GTIN : 850597006974

    Volume discounts

    1+ PRICE EA
    4+ PRICE EA -5%
    8+ PRICE EA -10%
    In stock

    42 in stock


    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Tube: High tensile honed cold drawn tube.
    • Rod: High tensile ground & polished hard chrome plated rod.
    • Gland: Precision threaded gland with wear rings for long life.
    • Piston: High tensile steel for heavy duty applications.

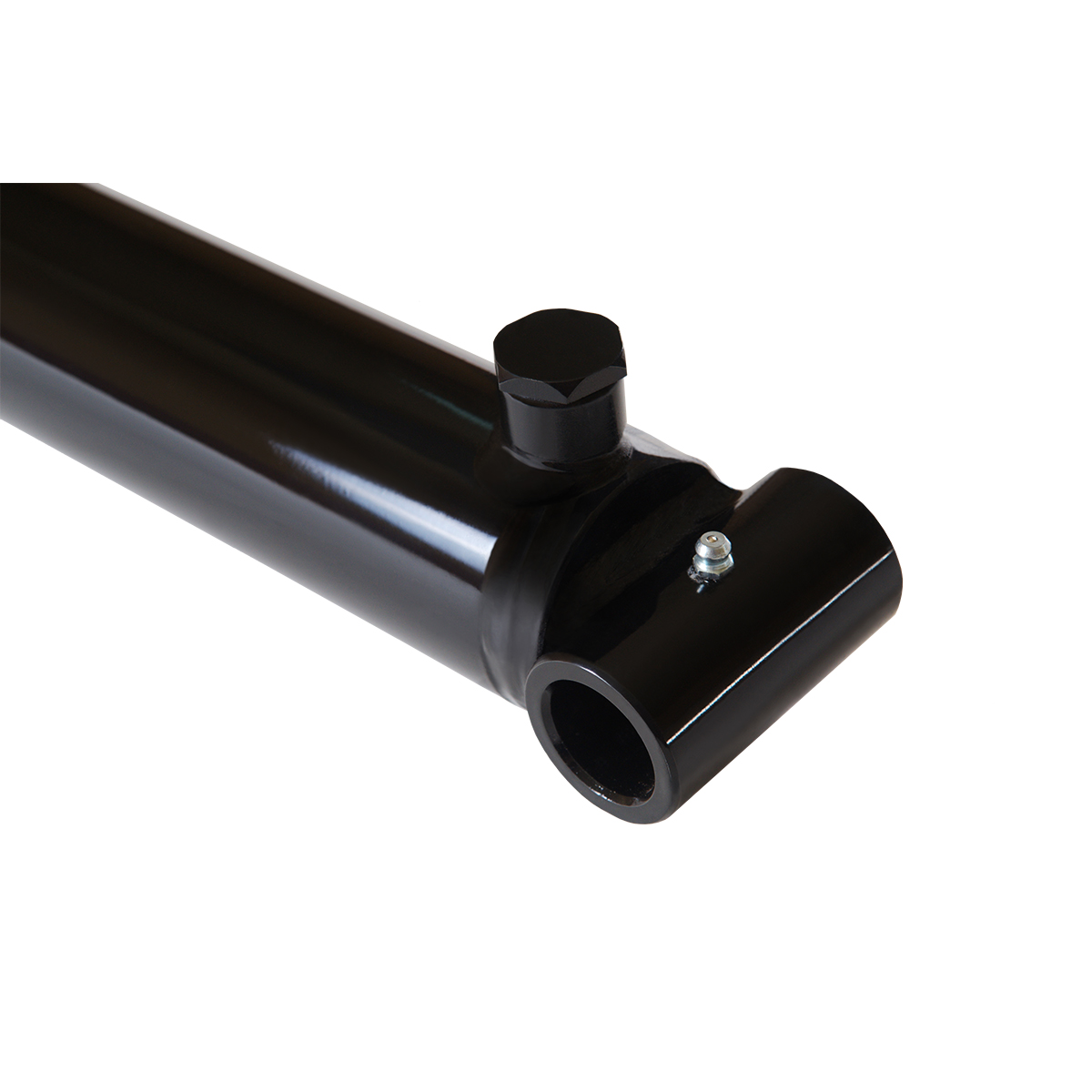

    • Base ends: High tensile welded steel end mounts.
    • Piston seals: Top quality five component compact seals for excellent performance.
    • Rod seals: Standard U-cup polyurethane rod seal with inner O-ring, POM-C wear rings and polyurethane wiper.
    • Warranty: 2 year limited warranty.
    • Pressure: 3500 PSI
    • Color: Black.
    • 2″ bore x 4″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
