2" bore x 6" stroke cross tube hydraulic cylinder

Name: 2" bore x 6" stroke cross tube hydraulic cylinder
Brand: Magister Hydraulics
SKU: WCT 2x6
Price: 171.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$171.00

Pay in 4 interest-free payments of $42.75

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WCT 2x6

Product SKU	Maxim part number	Prince-Wolverine part number	Prince-Magnum part number	Eagle part number
WCT 2x6	288308	WWXT2006-S	PC2006XL	HBU2006-ORB

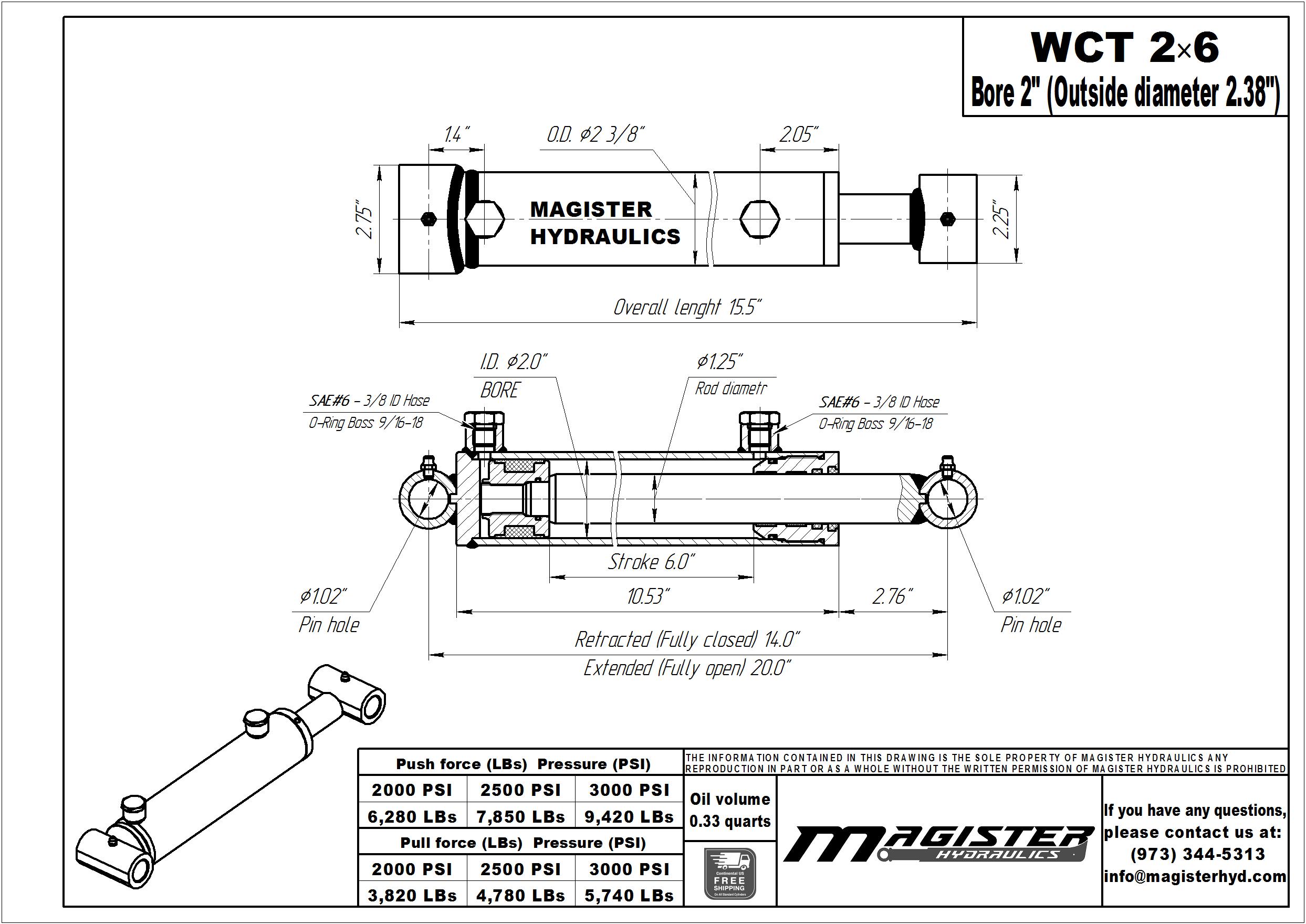

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	2 in
Outer Dia. (⌀) :	2.38 in
Stroke :	6 in
Rod Dia. (⌀) :	1.25 in
Port Size :	SAE 6
Pin Dia. (⌀) :	1 in

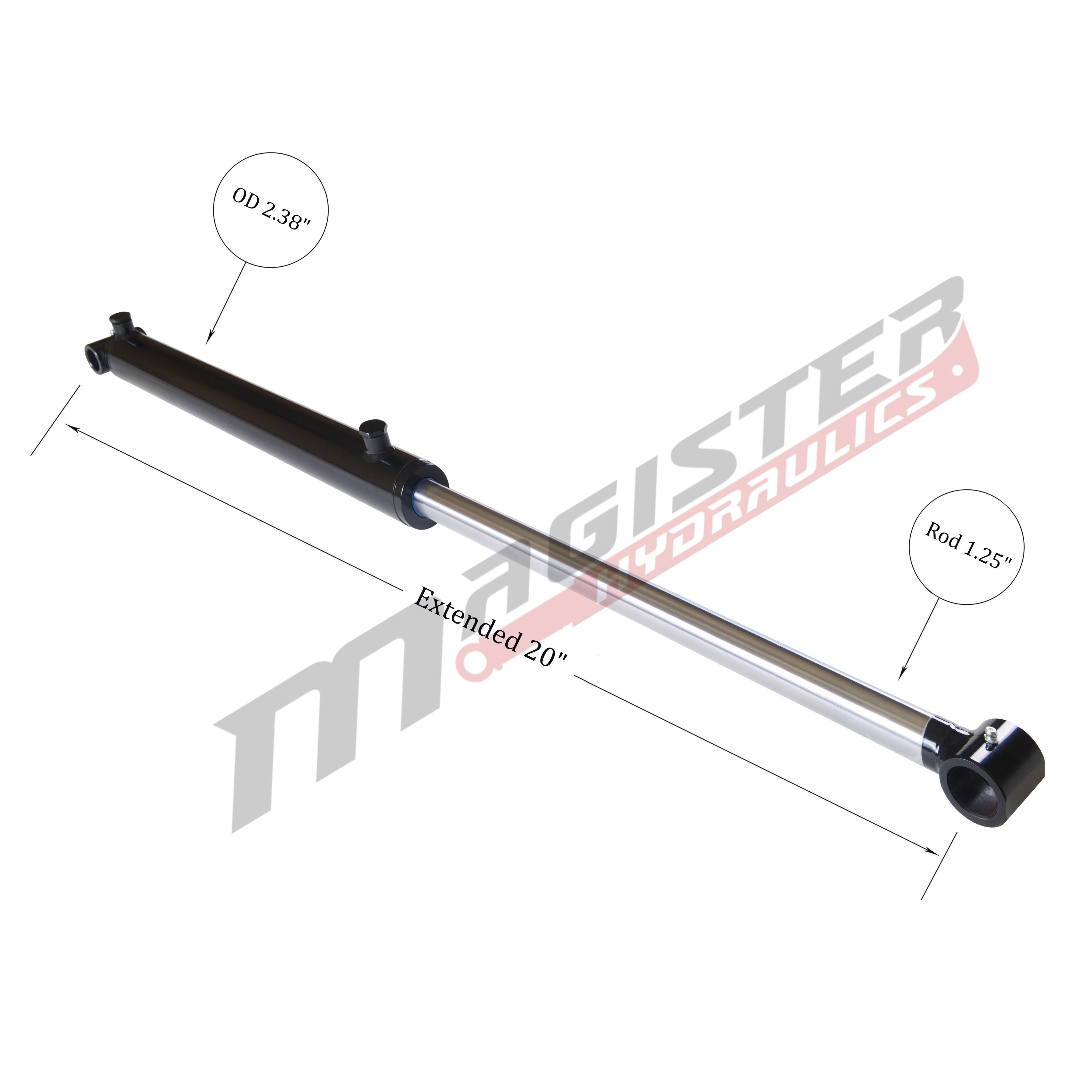

Extended :	20 in

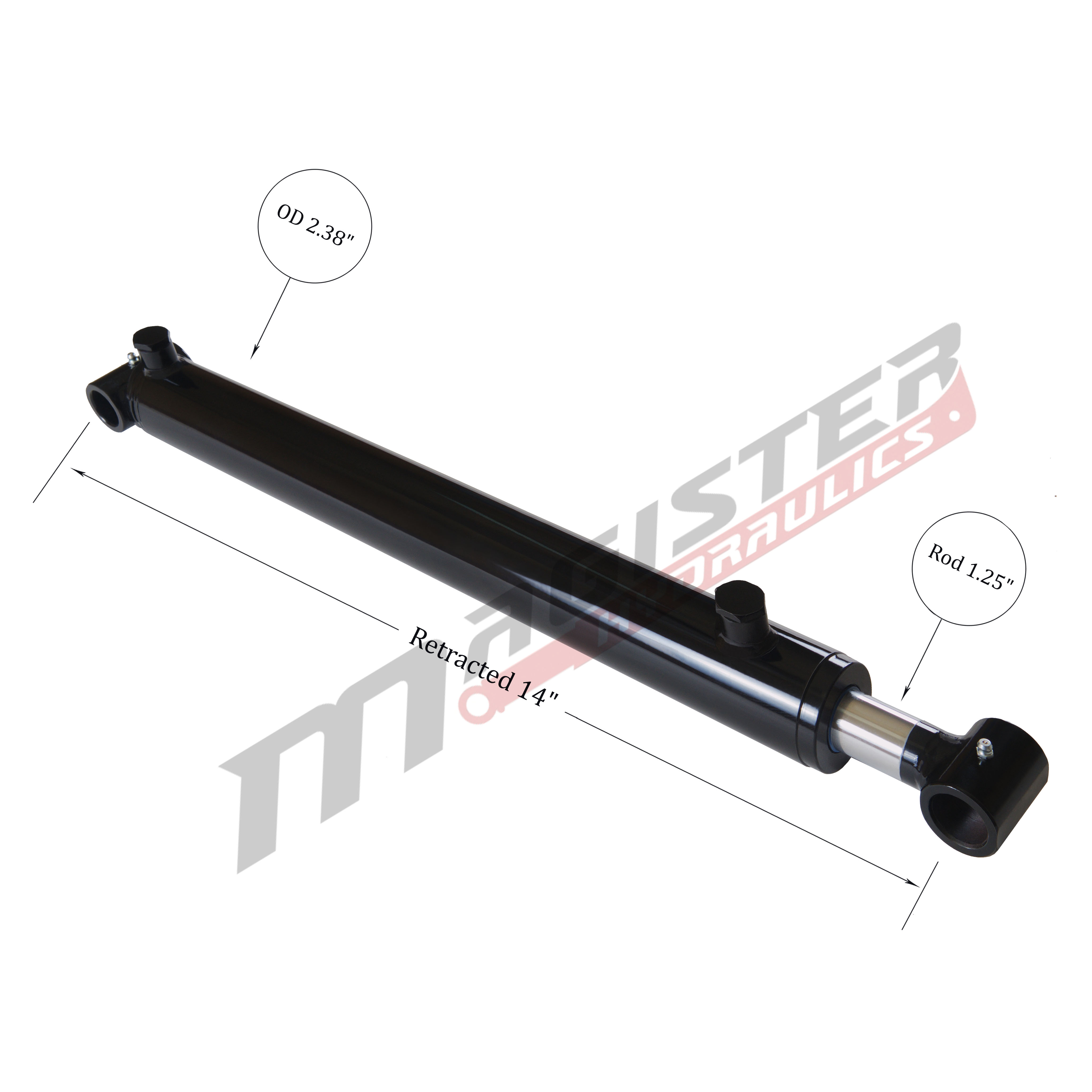

Retracted :	14 in
Overall length :	15.5 in
Pressure :	3500 PSI
Column Load :	9,400 LBs
Oil Volume :	0.33 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Cross Tube
Action :	Double Acting
Weight :	12 LBs
GTIN :	850597006981

SKU: WCT 2x6 Categories: 2" Bore Cross Tube, Cross Tube Hydraulic Cylinders, Hydraulic Cylinders

Volume discounts

1+ PRICE EA

$171.00

4+ PRICE EA -5%

$162.45

8+ PRICE EA -10%

$153.90

In stock

226 in stock

Description

2″ bore x 6″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

Tariff-FREE cylinders.

Made in Europe.
