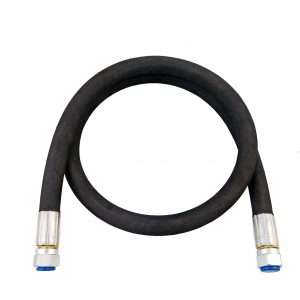

3/8-Inch Hydraulic Hose Assemblies with Female JIC Swivel Ends

3/8-Inch JIC Hose Assemblies in Stock

• Hose inside diameter: 3/8 in
• Fitting type: Female JIC swivel
• Lengths: 18 in to 72 in
• ProFlex hose working pressure: 4,800 PSI
• Minimum hose bend radius: 2.5 in
• Hose temperature range: -40°F to +212°F (-40°C to +100°C)

Hose construction and standards: Gates PRO Series ProFlex has a black, oil-resistant synthetic-rubber tube, integrated two-wire high-tensile steel reinforcement, and a black abrasion-resistant synthetic-rubber cover. It meets or exceeds the performance requirements of SAE 100R2, EN 857 2SC, and EN 853 2SN. It satisfies SAE 100R16 and SAE 100R17 dimensional and performance-cycle requirements for this hose size.

Custom Options

Magister Hydraulics builds custom hose assemblies to customer requirements. Custom assemblies require a minimum order quantity of 50 SKUs per order.

Benefits

• One-year warranty
• Free shipping in the United States
• Bulk-order discounts
• Made in Europe

Selecting a 3/8-Inch JIC Hose Assembly

Before ordering, check the required working pressure, temperature range, hose length, inside diameter, fitting type, couplings, and minimum bend radius for your application.

For help, call (973) 344-5313 or email [email protected].
