Hydraulic Hose Assembly 3/8" ID x 18" Length, JIC Swivel Female
$20.00
* Wholesale Discount is available for this product if you purchase 4 or more products.SKU: HHA-D06-06-FJS-18
| Hose Length : | 18 in | Fittings : | Female Straight Swivel | Hose Inner Dia. (⌀) : | 3/8 in | Thread : | JIC | Bend Radius : | 5.1 in | Pressure : | 3500 PSI | Brand : | Magister Hydraulics | Weight : | 2 LBs |
|---|---|
| GTIN : | 850033934335 |
Volume discounts
4+ PRICE EA -5%
$19.00
8+ PRICE EA -10%
$18.00
In stock
97 in stock
Description

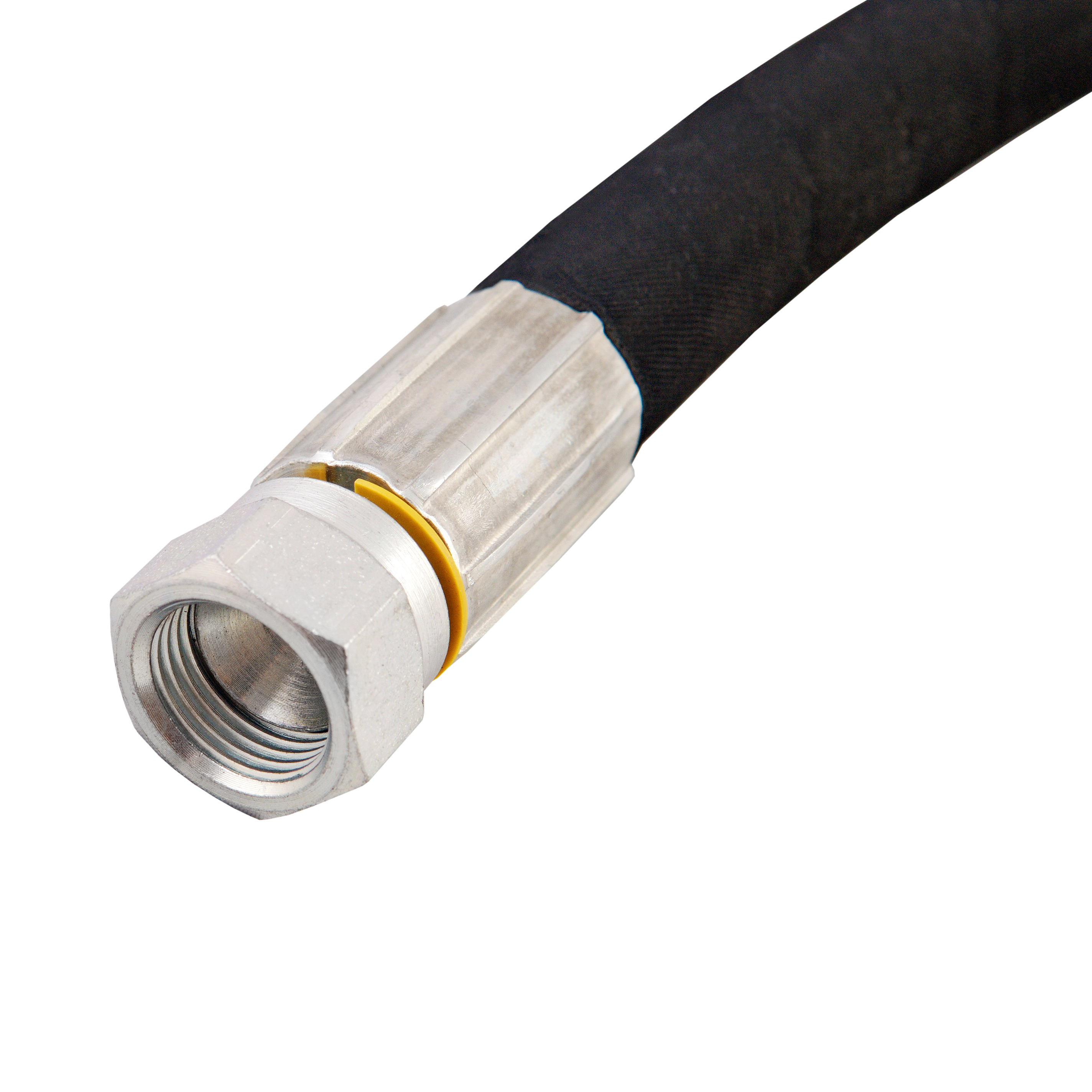

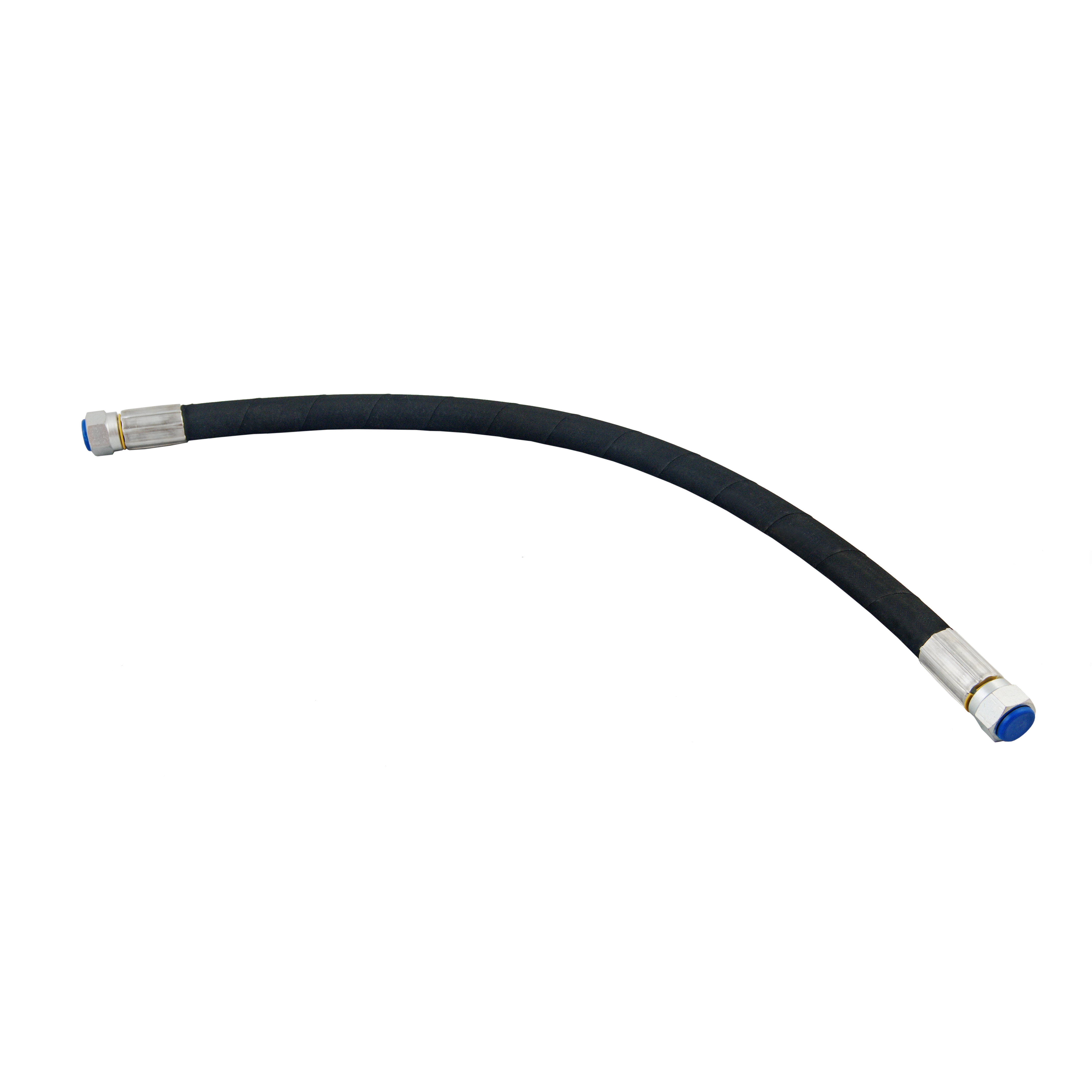

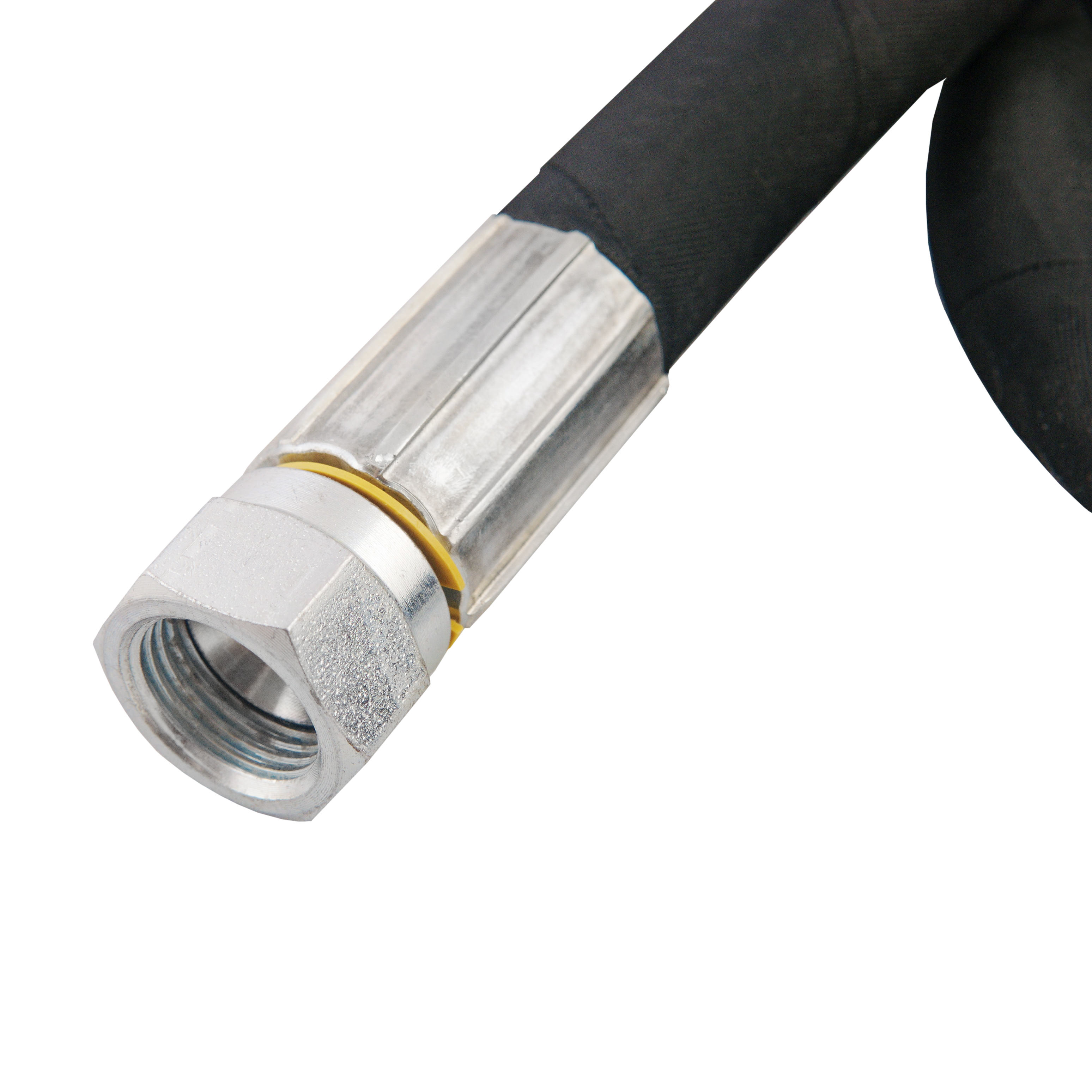

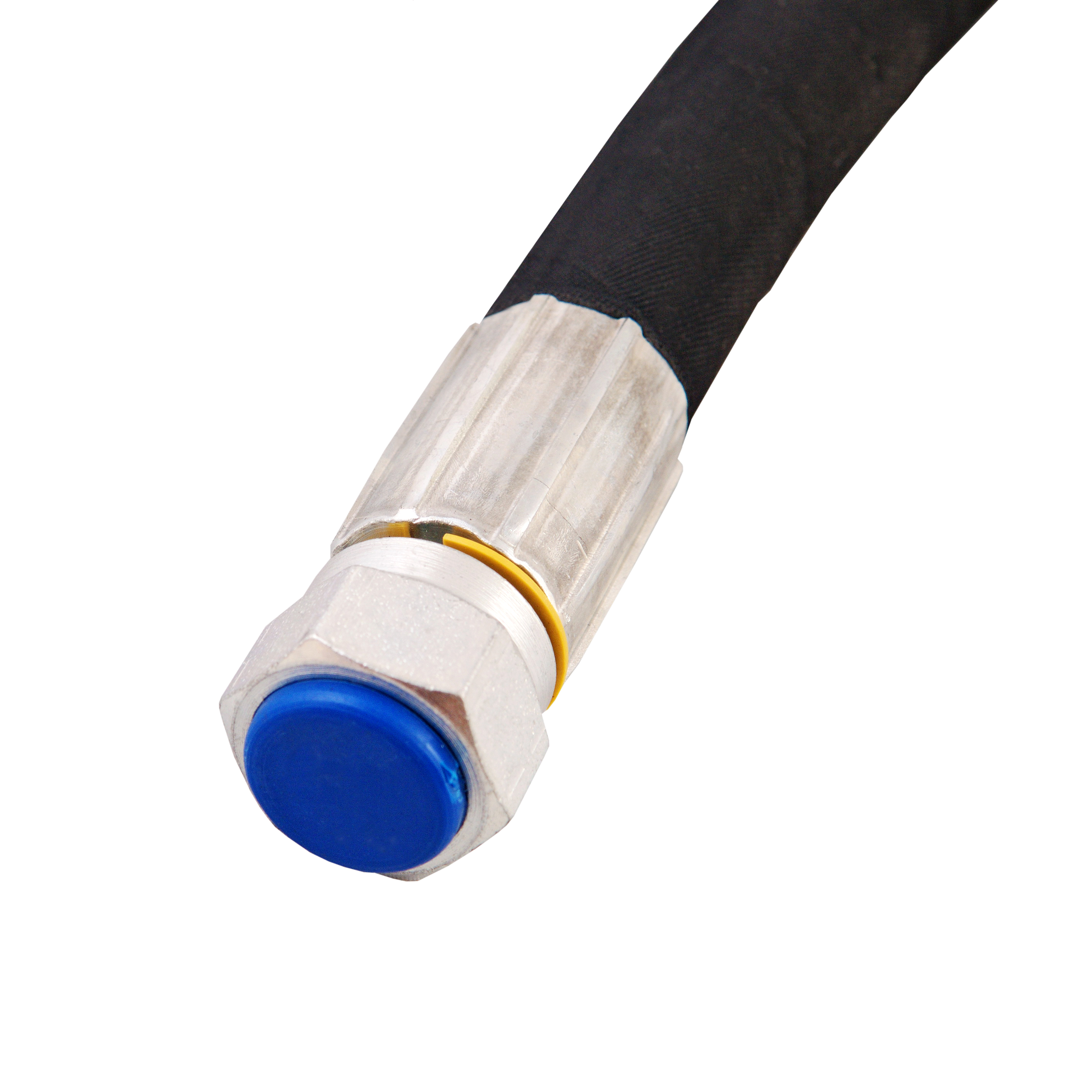

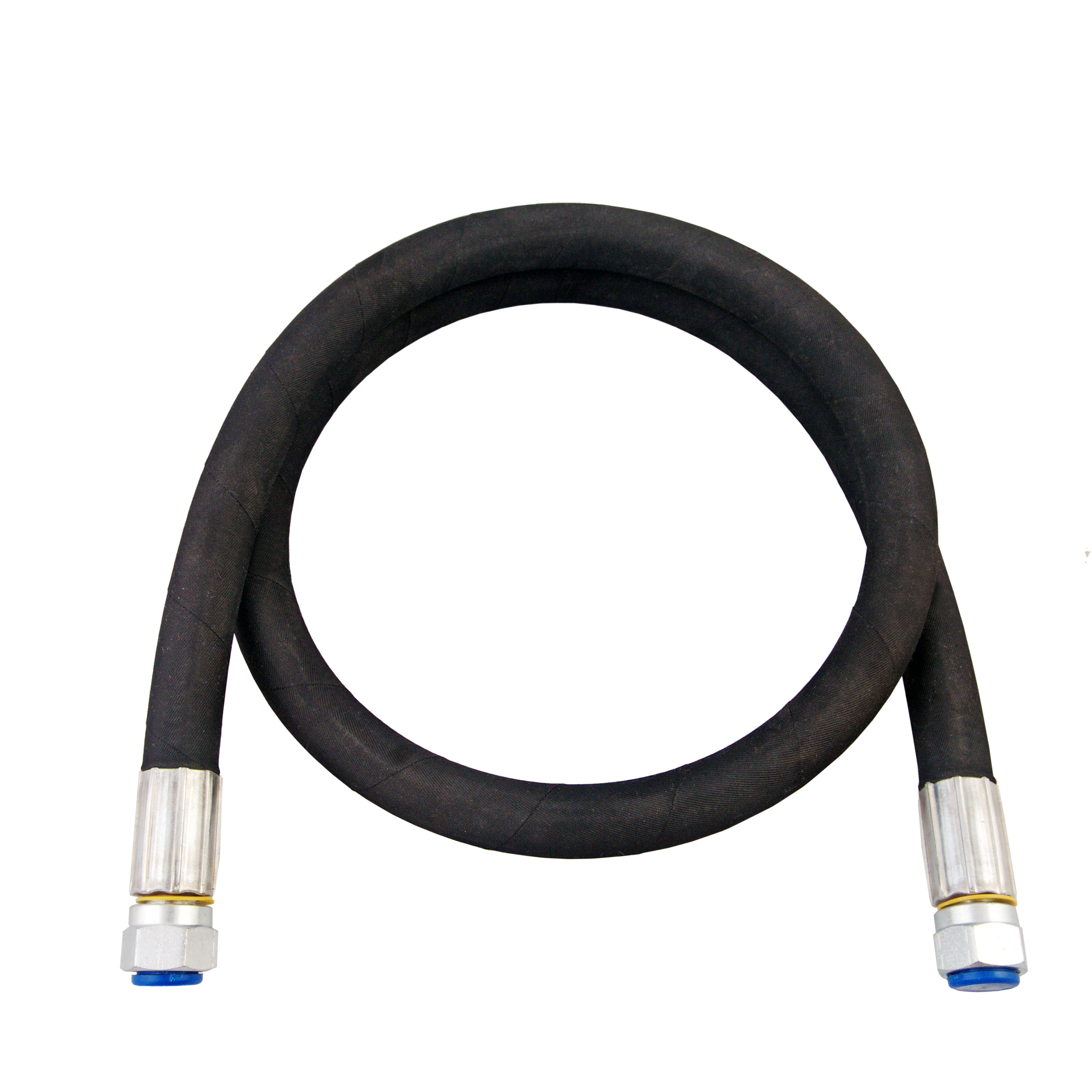

This 18 inches-inch Length Hydraulic Hose Assembly features durable two-wire steel braid reinforcement and 3/8″ ID JIC swivel female fittings, providing a reliable connection between hydraulic components in high-pressure systems.
Hose Brand: Premium rubber hoses by Gates PRO™
Designed for flexibility and durability, this hose assembly easily routes around corners and tight spaces while maintaining excellent performance under demanding hydraulic conditions.
Key Features:
- Length: 18 inches inches
- Fittings: 3/8″ ID JIC swivel female fittings
- Reinforcement: Two-Wire Steel Braid
- Standard: SAE 100 R17 (2-wire)
- Working Pressure: 3500 PSI
- Maximum Pressure: up to 4800 PSI
- Bend Radius: 5.1″”
- Standards: Manufactured according to DIN EN853
Made in Europe
1-Year Warranty
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
If you need assistance, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
Daniel S. Foster
Great quality hose. Installed it on my skid steer and it handled pressure perfectly with no leaks.
