Hydraulic Hose Assembly, 24" x 3/8" JIC, Swivel Female Fittings | Magister Hydraulics

Hydraulic Hose Assembly, 24" x 3/8" JIC, Swivel Female Fittings


* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: HHA-D06-06-FJS-24
Hose Inside Diameter : 3/8
Hose Length : 24
Hose End Fittings : 3/8″ Female JIC Swivel
Pressure : 3500 PSI
Max Bent Radius (inches) : 5.1
Temperature range (Hydraulic oil) : -40F to +212F
Temperature range (liquid solutions) : -40F to +158F
Temperature range (Water) : 32F to +158F
Brand : Magister Hydraulics
GTIN : 850033934342

Volume discounts

4+ PRICE EA -5%
10+ PRICE EA -10%
In stock

193 in stock

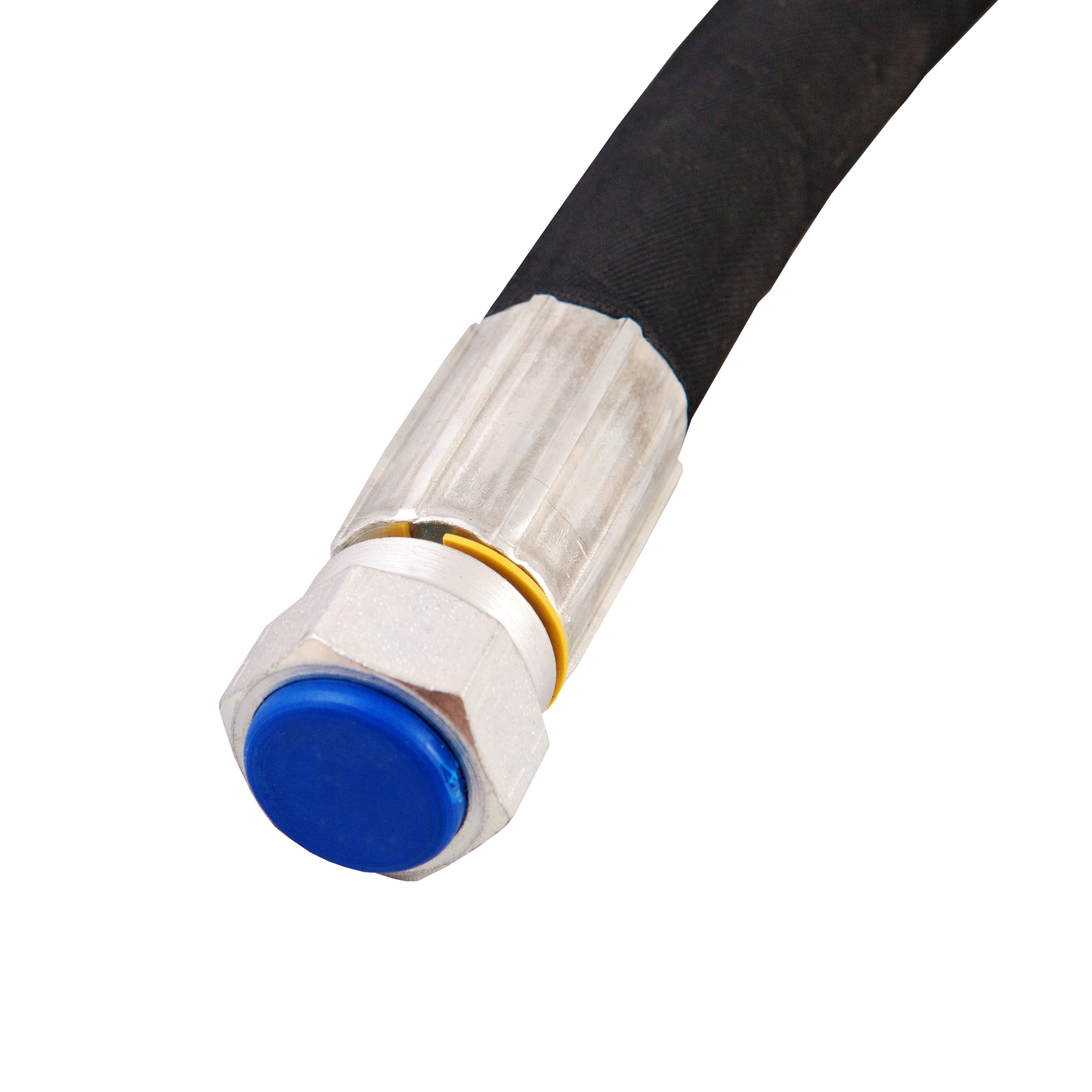

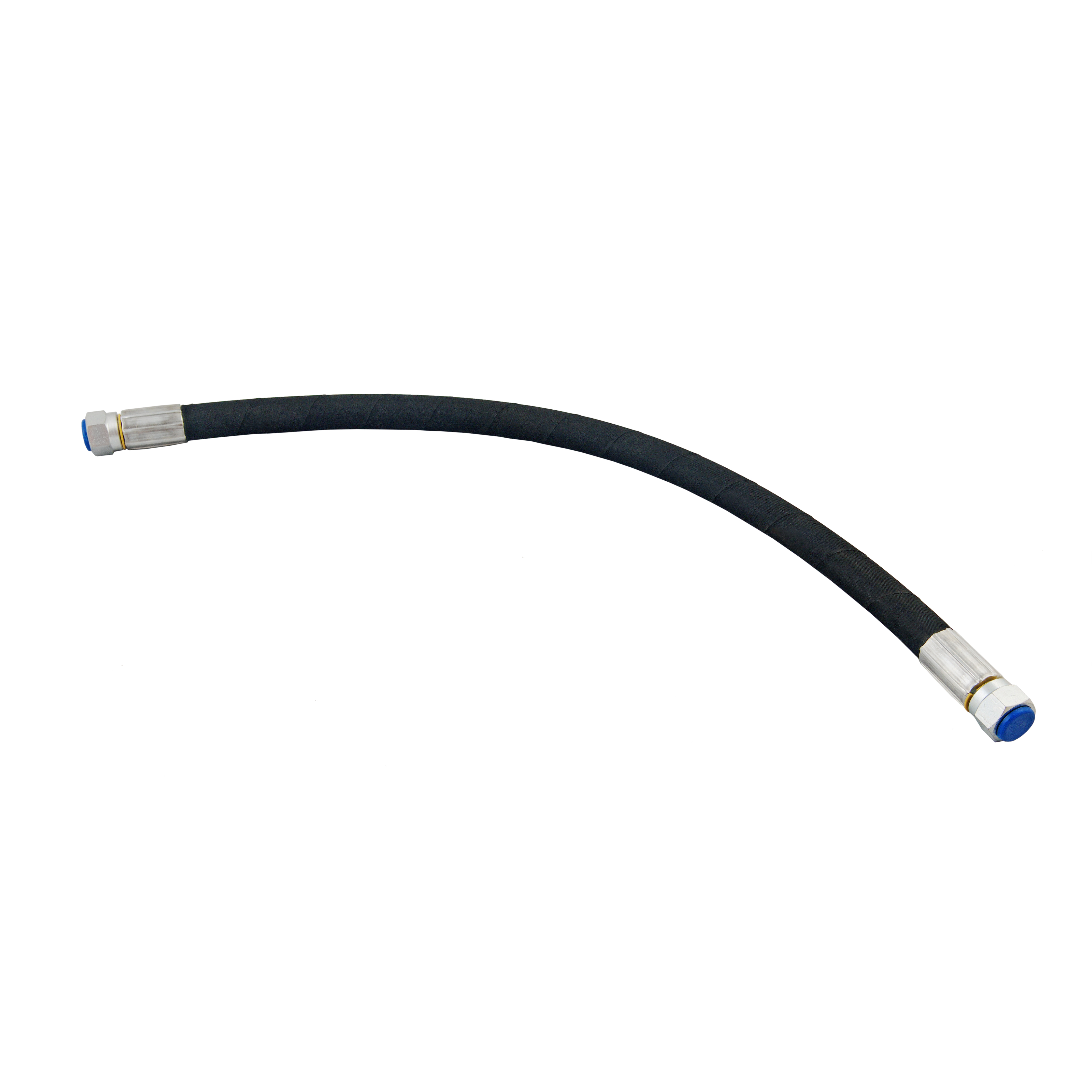

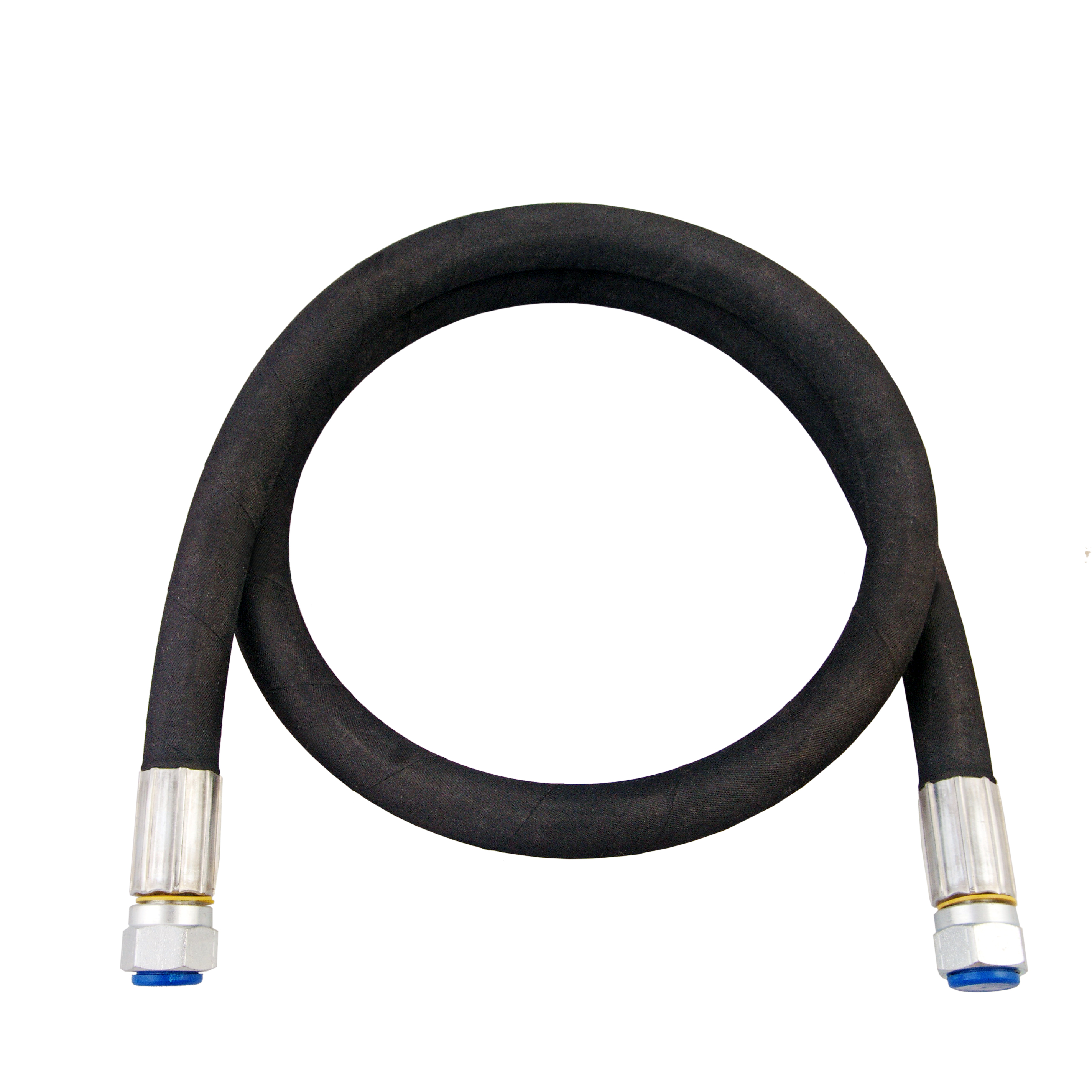

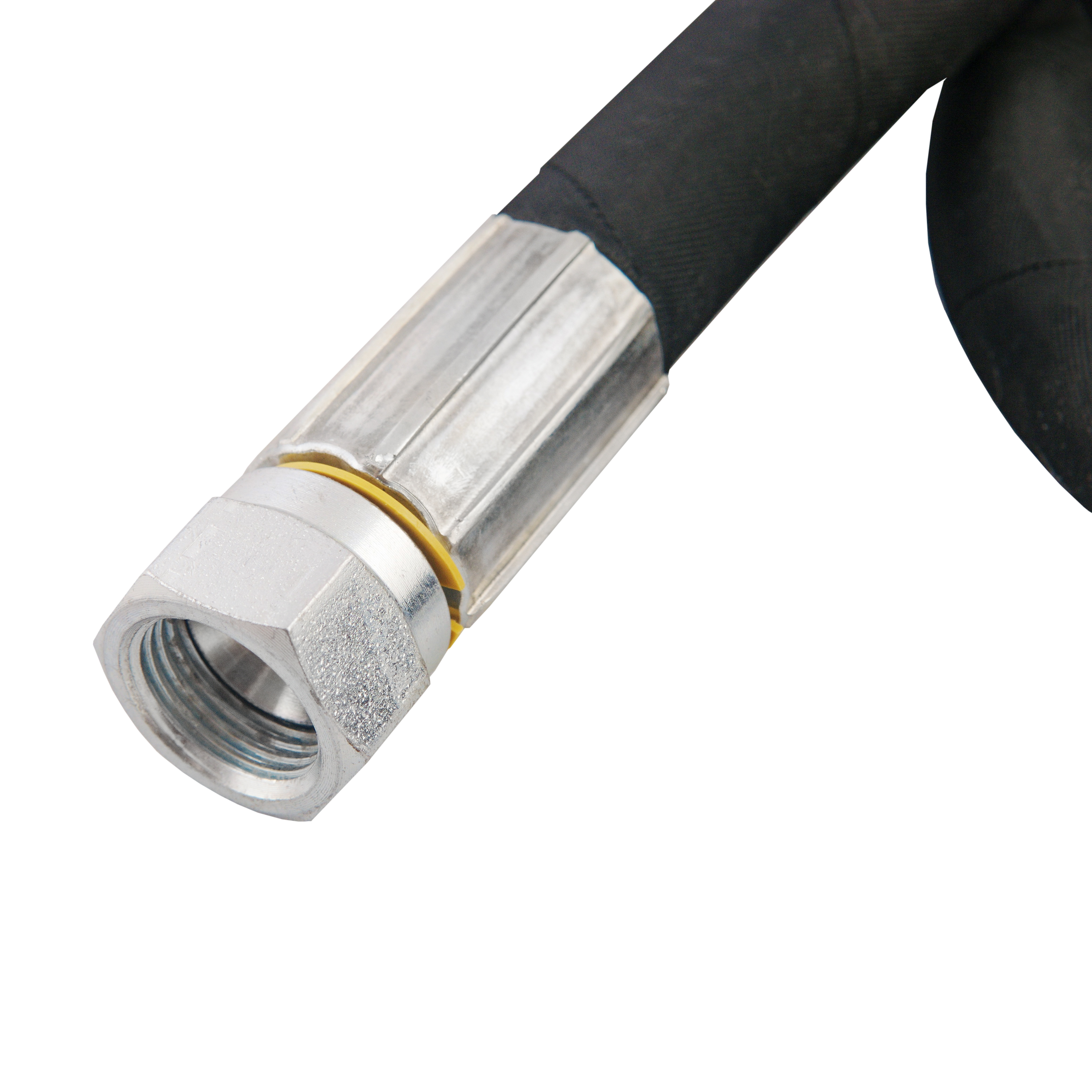

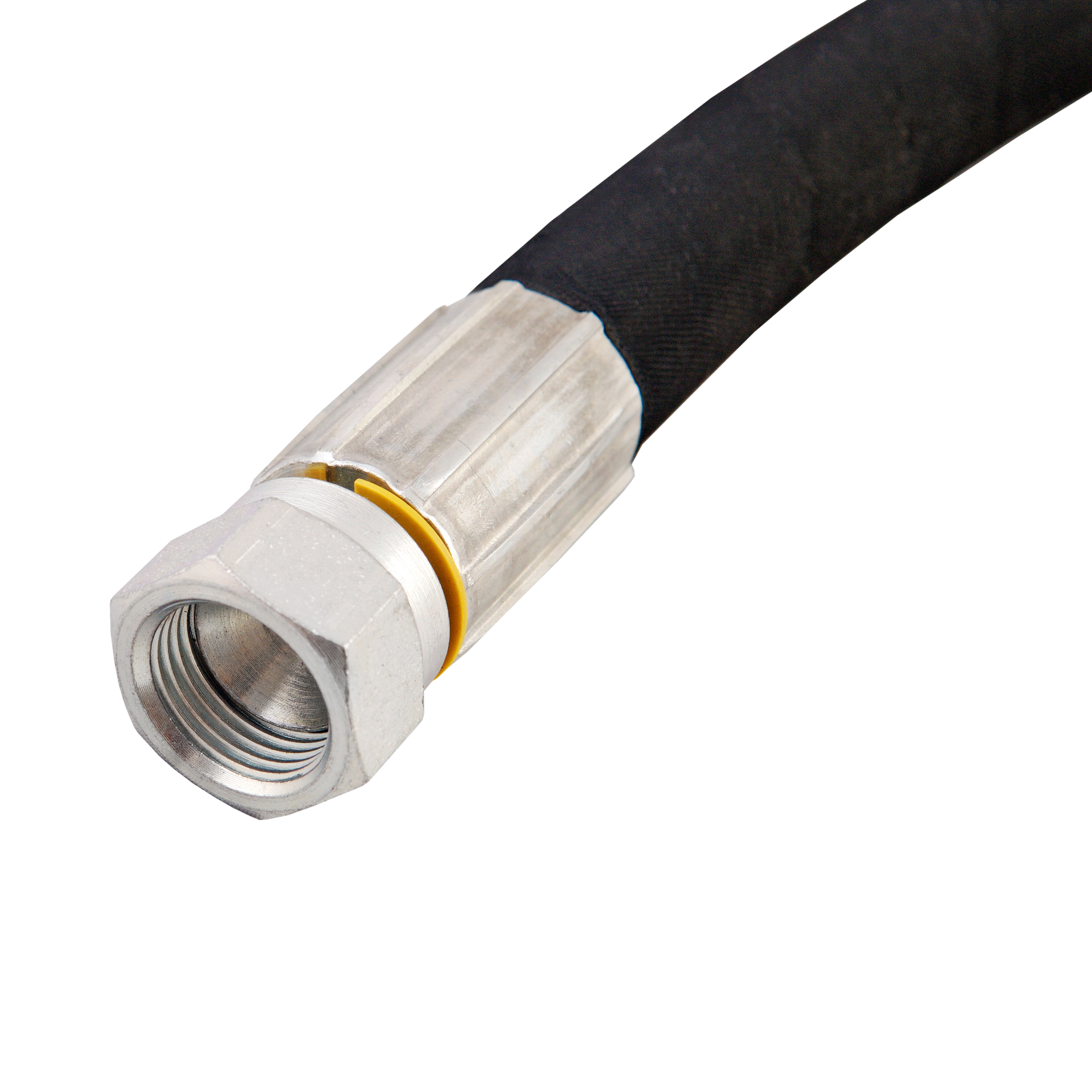

24 inch long x 3/8″ Two-Wire Steel Braid Hydraulic Hose Assembly with JIC swivel female fittings. This hydraulic hose assembly conveys hydraulic fluid to or between hydraulic components. Its’ design is flexible enough to bend around corners and fit in tight spaces. Able to withstand a wide temperature range. 3500 psi Hydraulic Hose Assembly suitable for tracktors, front end loaders, hydraulic cylinders, hydraulic gear pumps, hydraulic power paks, hydraulic motors forklifts and any other application needing to convey fluid between hydraulic components. All of Magister Hydraulics Hose Assemblies are manufactured in accordance with DIN EN853 standards. Made in Europe. 1-year warranty. Tariff-free product.

Tariff-FREE power unit.
Made in Europe.
