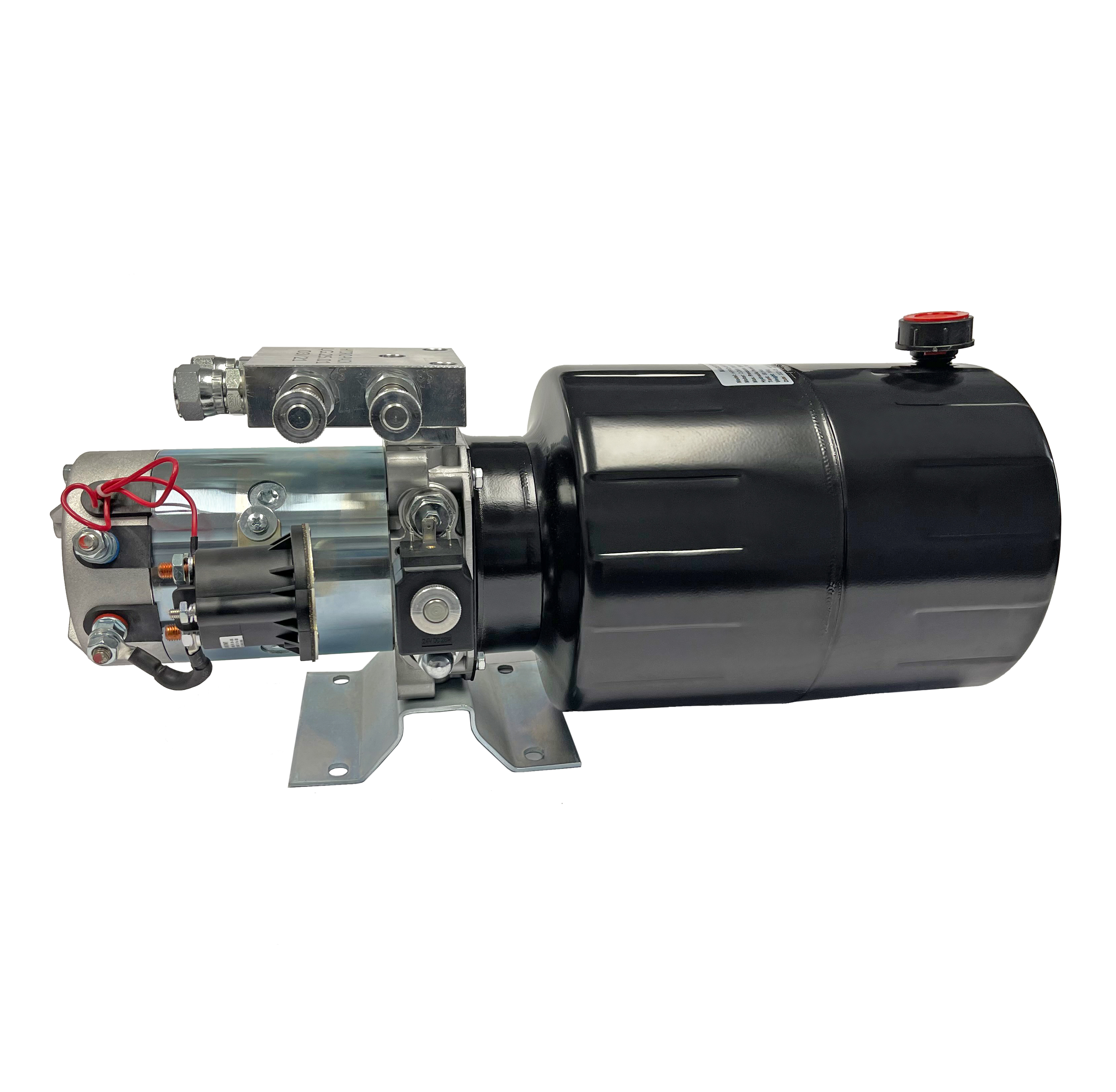

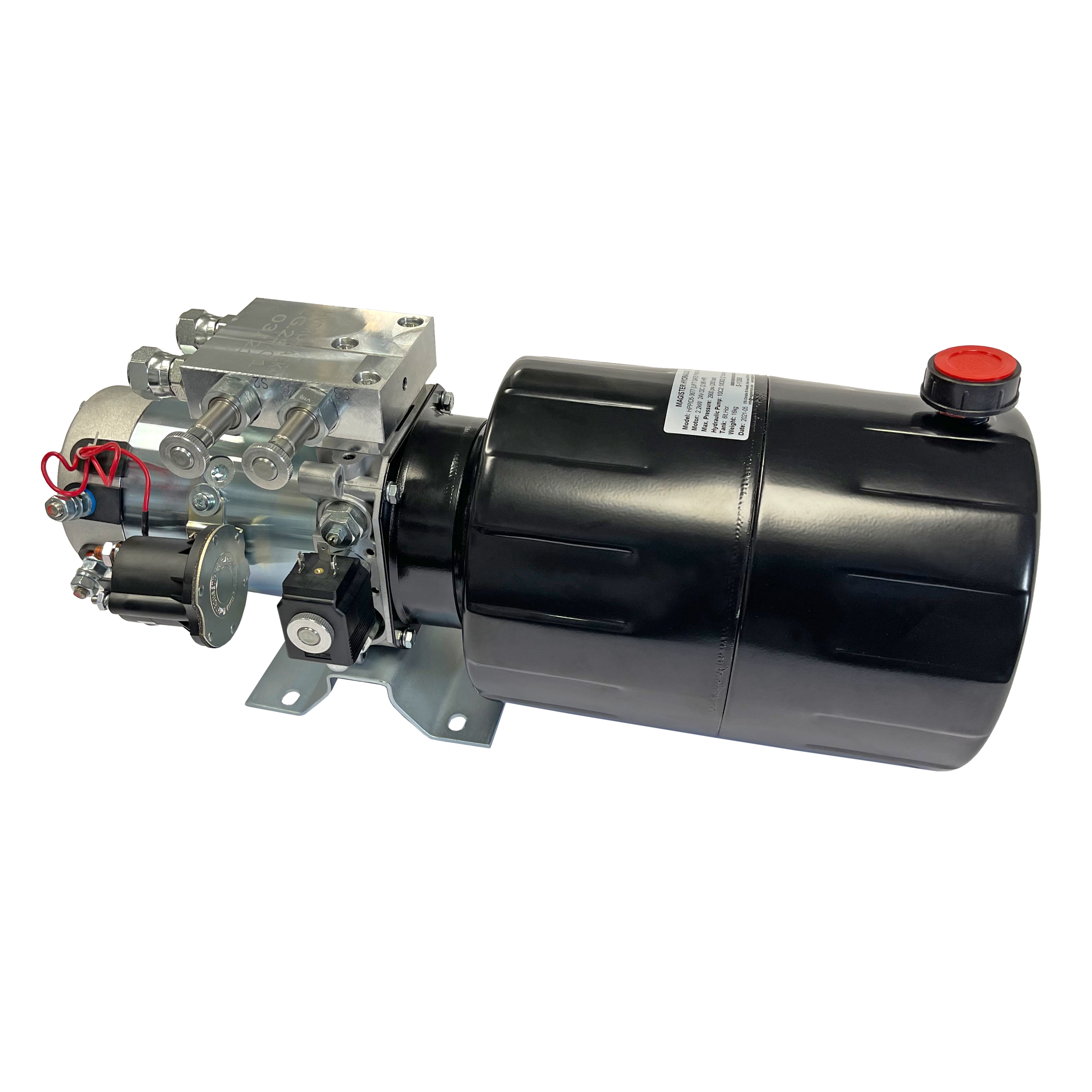

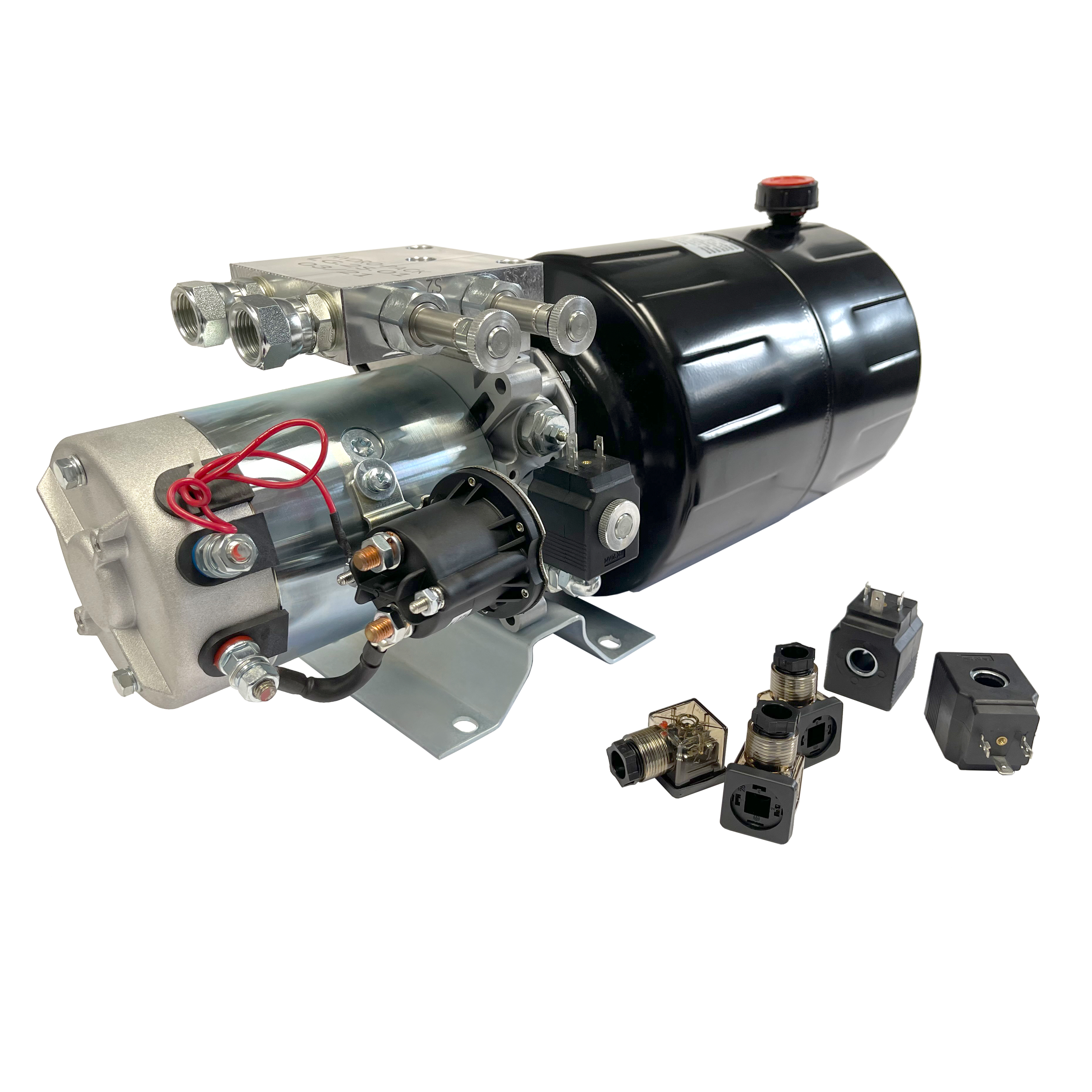

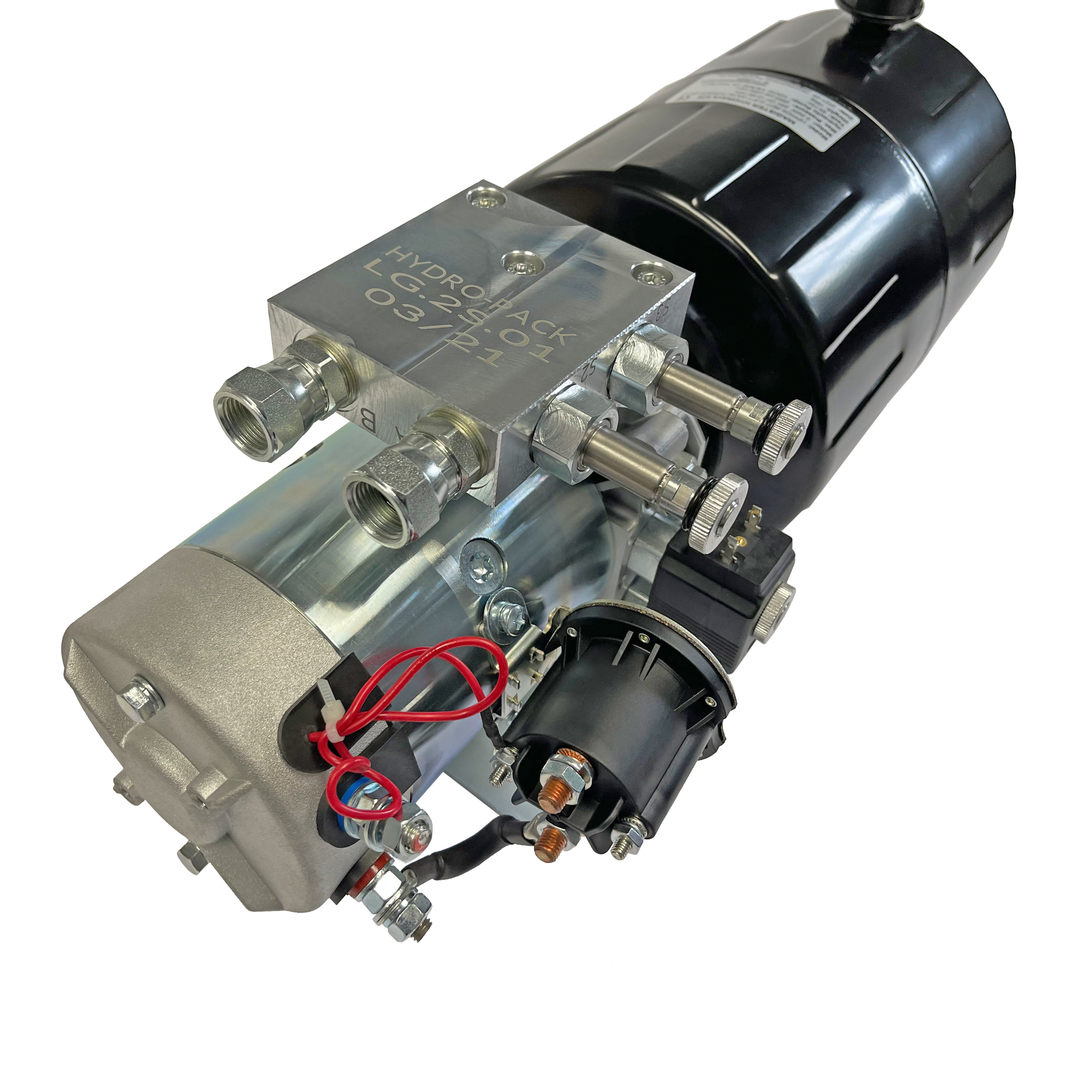

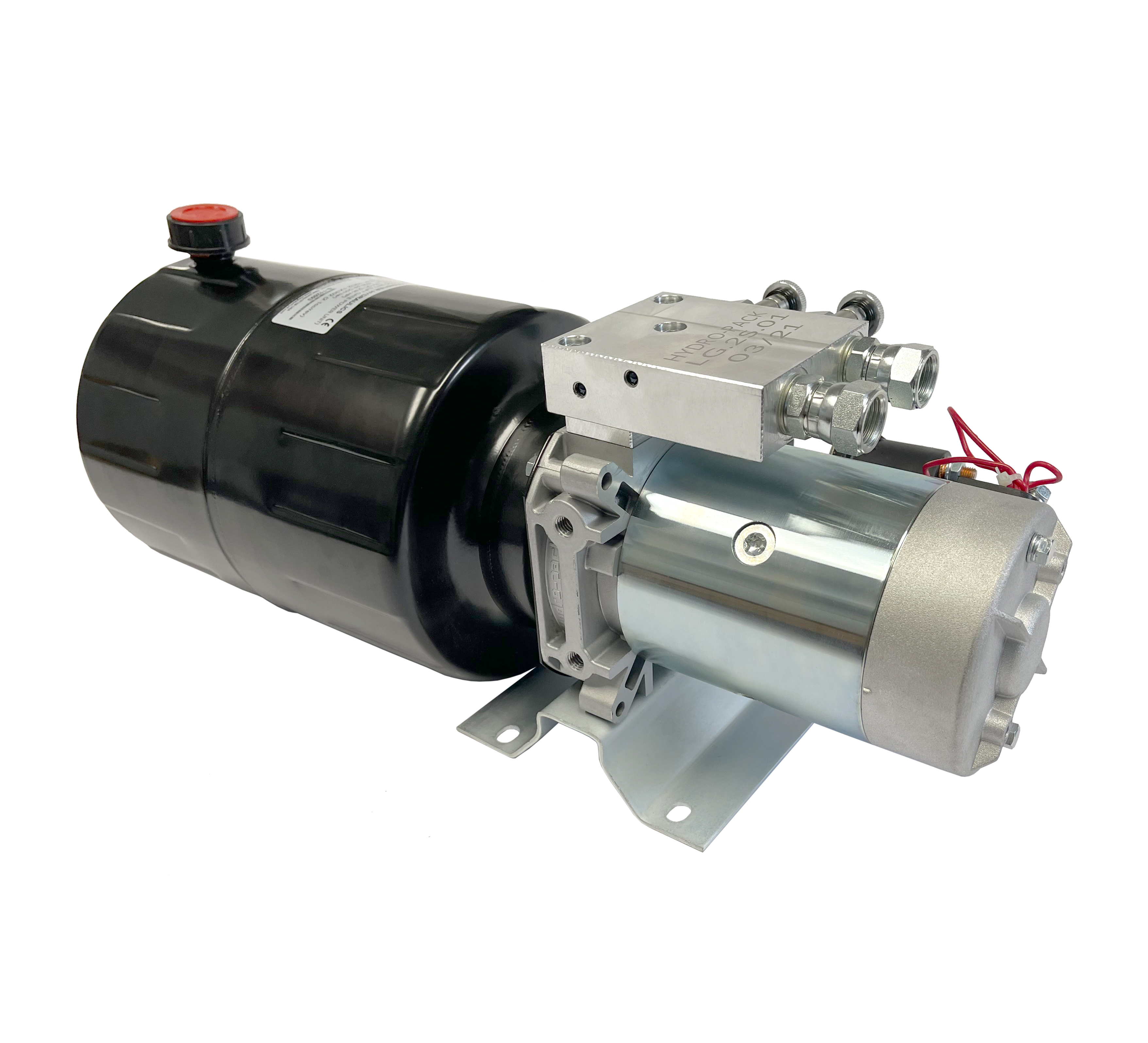

Lift Gate Hydraulic Power Unit Single Acting 24V DC with 8 qts steel tank

This single-acting hydraulic power unit is built for lift gates that require power up and gravity down operation. Designed with an 8-quart steel reservoir, the system offers durability and stability even in demanding commercial environments.

Powered by a strong 2.2 kW 24V DC motor and a precision gear pump, the unit delivers a consistent 1.3 GPM at 2500 PSI with a displacement of 0.13 ci/rev. The adjustable 2900 PSI pressure relief valve allows precise control of lifting force.

Suitable for lift gate systems that use two single-acting cylinders, this unit is assembled horizontally and engineered for smooth, efficient operation. Remote: Not included.

Benefits

• Smooth power up / gravity down operation ideal for lift gates
• Durable steel tank resists corrosion and vibration
• Adjustable pressure relief valve for precise performance
• Efficient 24V DC motor ensures reliable lifting even under load
• Supports dual single-acting cylinders

Common Applications

• Commercial lift gates
• Cargo truck lift platforms

Same-Day Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Made in Europe.
