Hydraulic Hoses and Adapters

Hose Assemblies in Stock

• Hose inside diameter: 1/4 in, 3/8 in, and 1/2 in
• Assembly lengths: 18 in to 72 in

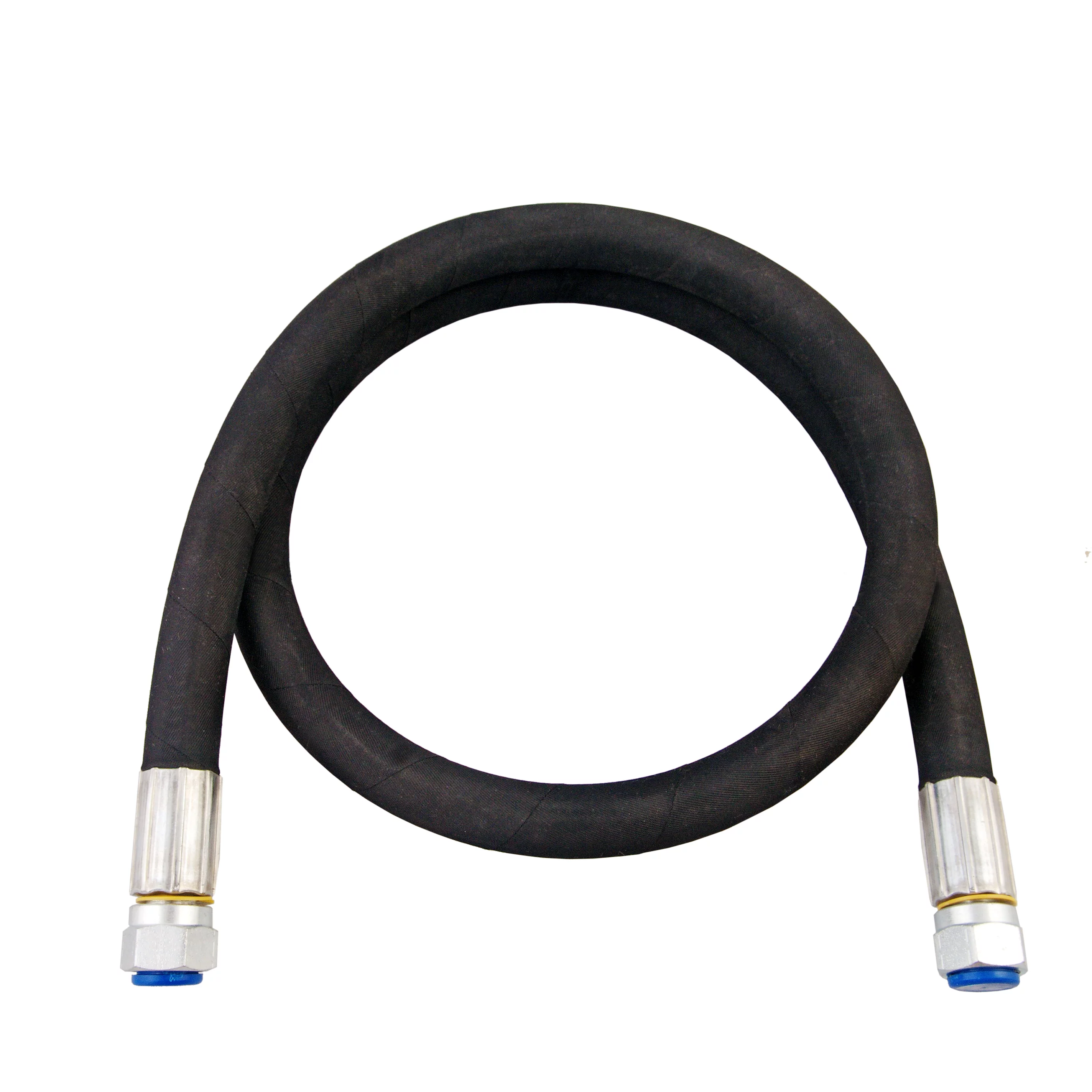

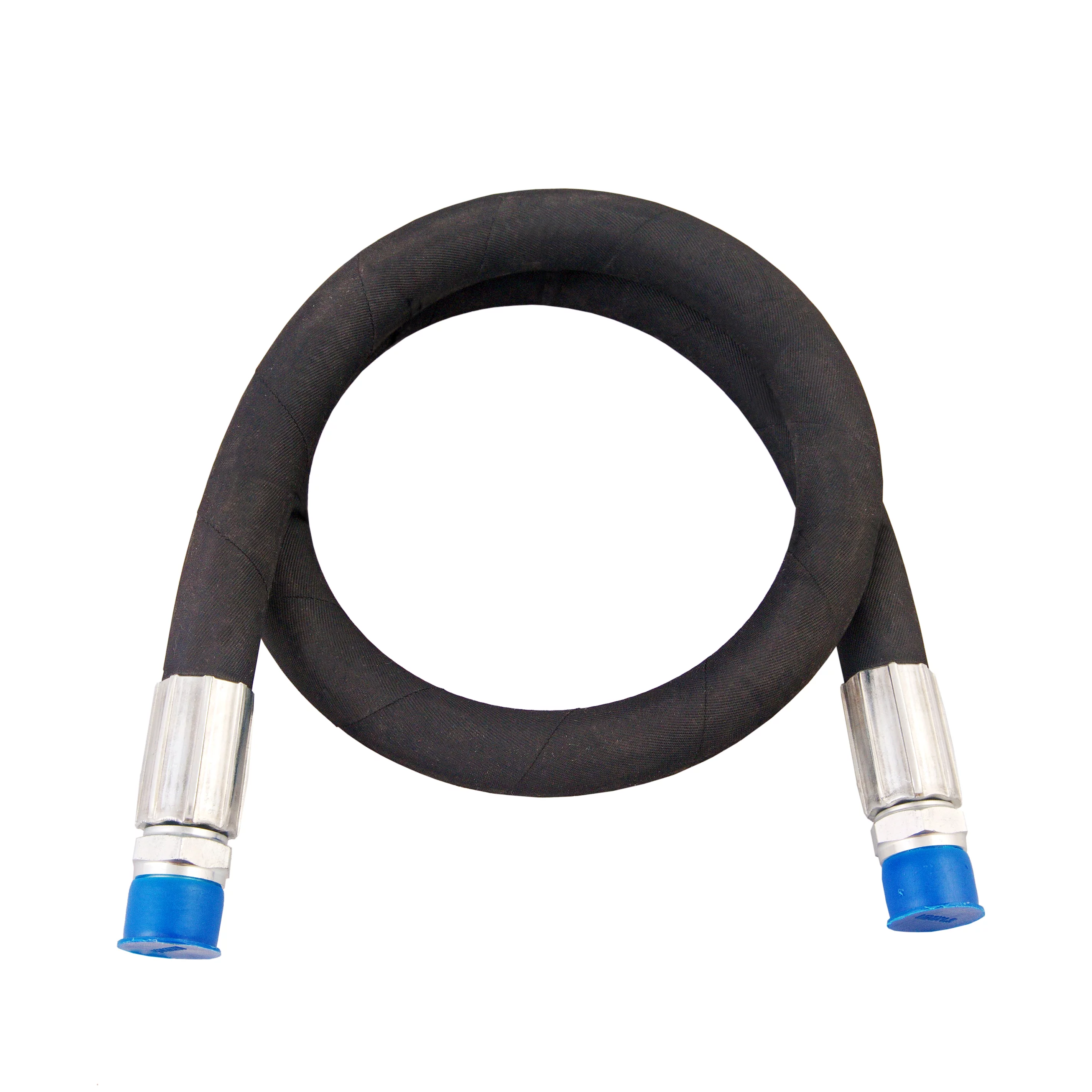

• Fitting types: Female JIC swivel and male NPTF straight

Temperature range (hose): -40°F to +212°F (-40°C to +100°C).

Hose construction and standards: Gates PRO Series ProFlex has a black, oil-resistant synthetic-rubber tube, integrated two-wire high-tensile steel reinforcement, and a black abrasion-resistant synthetic-rubber cover. The hose meets or exceeds the performance requirements of SAE 100R2, EN 857 2SC, and EN 853 2SN. It satisfies SAE 100R16 and SAE 100R17 dimensional and performance-cycle requirements for the hose sizes listed here.

Custom assemblies: Magister Hydraulics can build custom hose assemblies to customer requirements. Custom assemblies require a minimum order quantity of 50 SKUs per order.

Benefits

Heavy-duty hydraulic components, a one-year hassle-free warranty, and shipping within the continental United States.

Selecting a Hydraulic Hose Assembly

Before ordering, check the required assembly working pressure, hose temperature range, inside diameter, length, end fittings, couplings, and minimum bend radius. Hose ratings alone do not establish the working pressure of the finished assembly.

For help selecting an assembly, call (973) 344-5313 or email [email protected].
