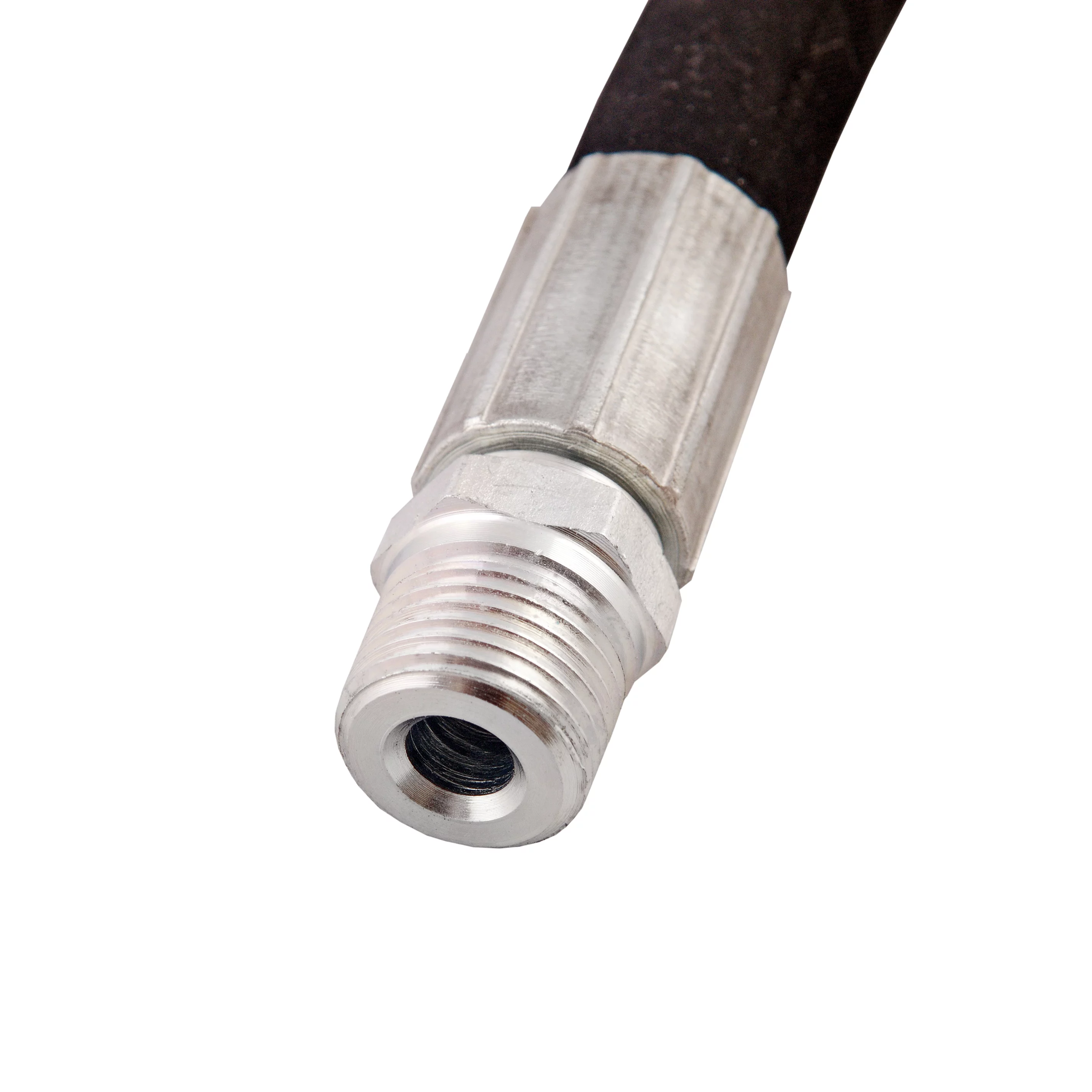

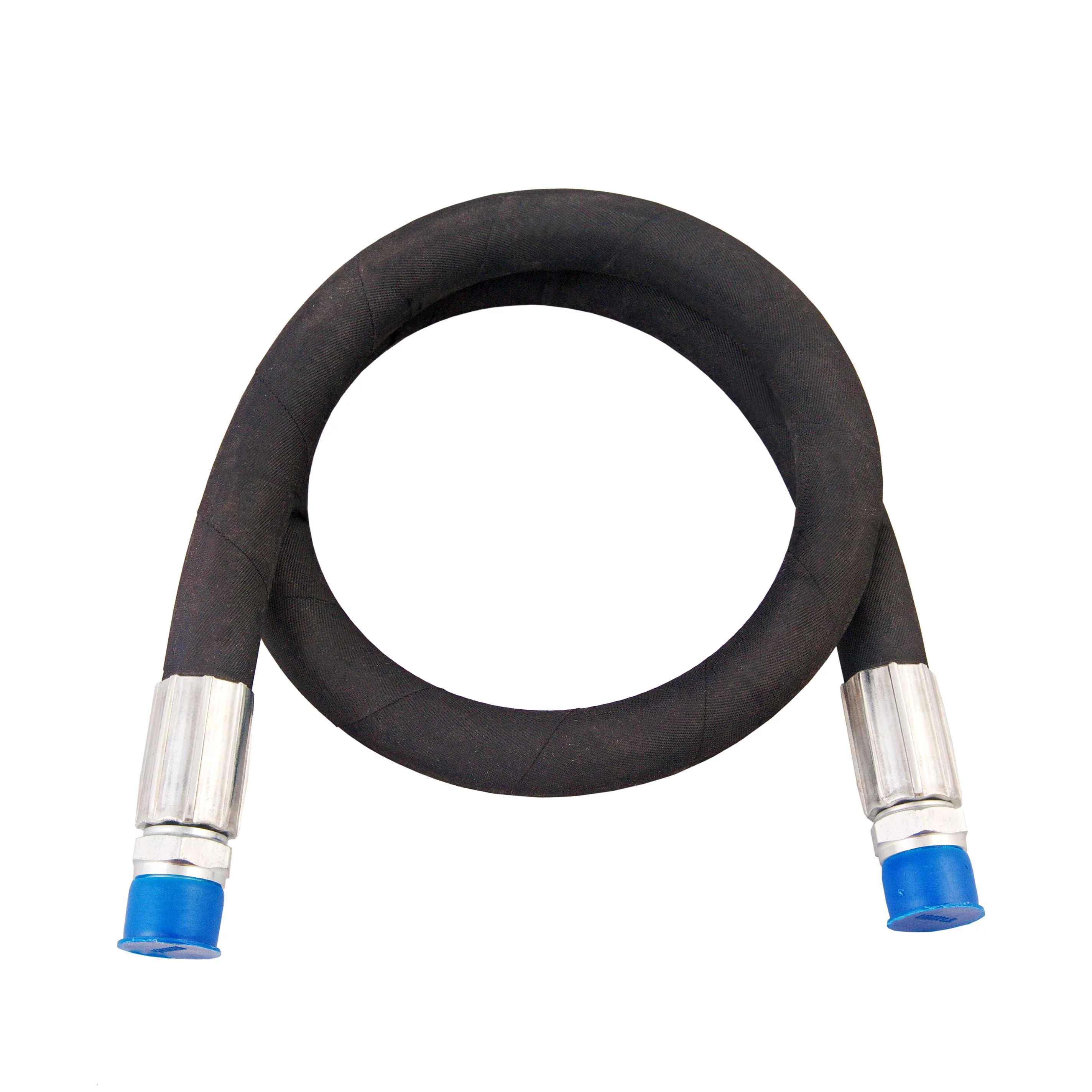

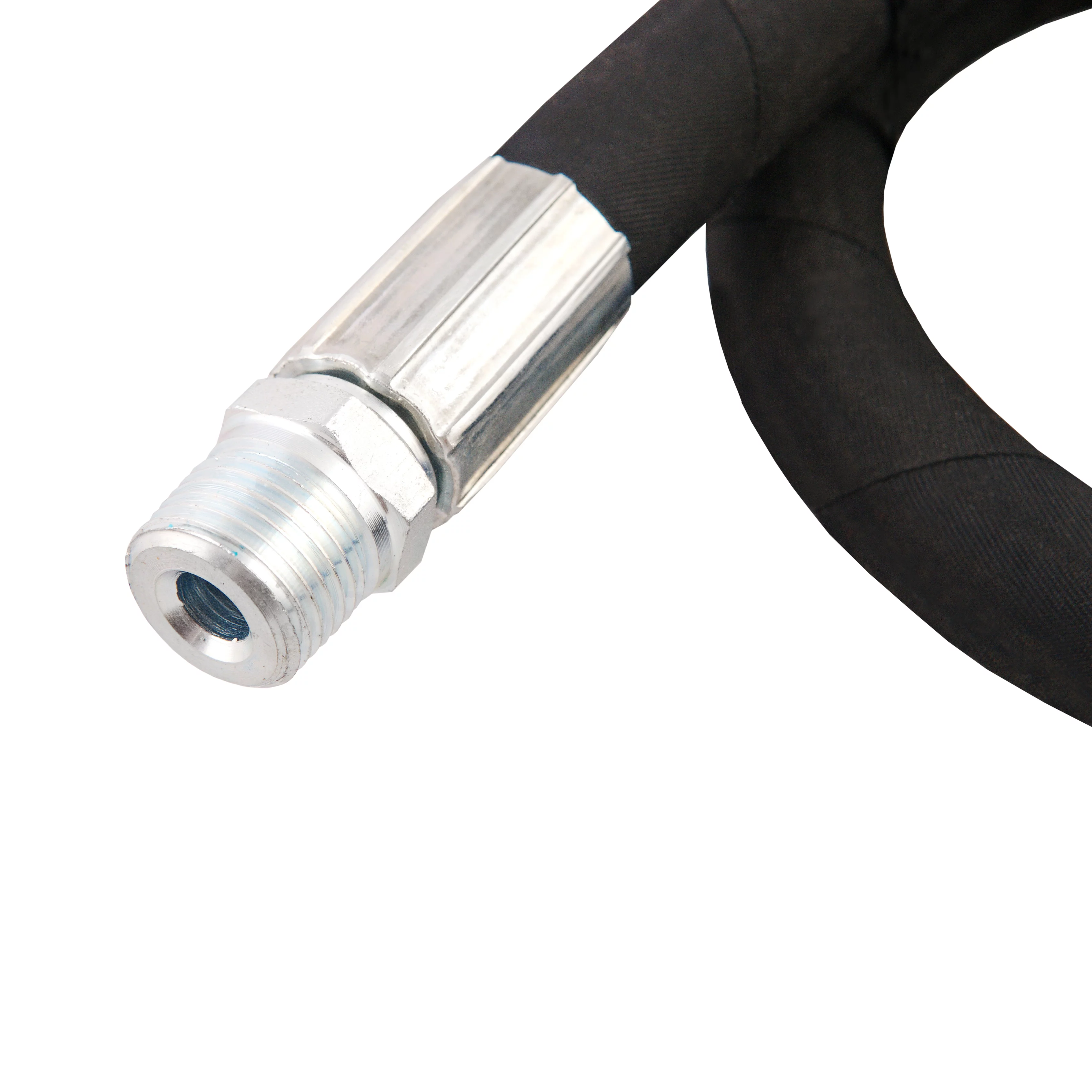

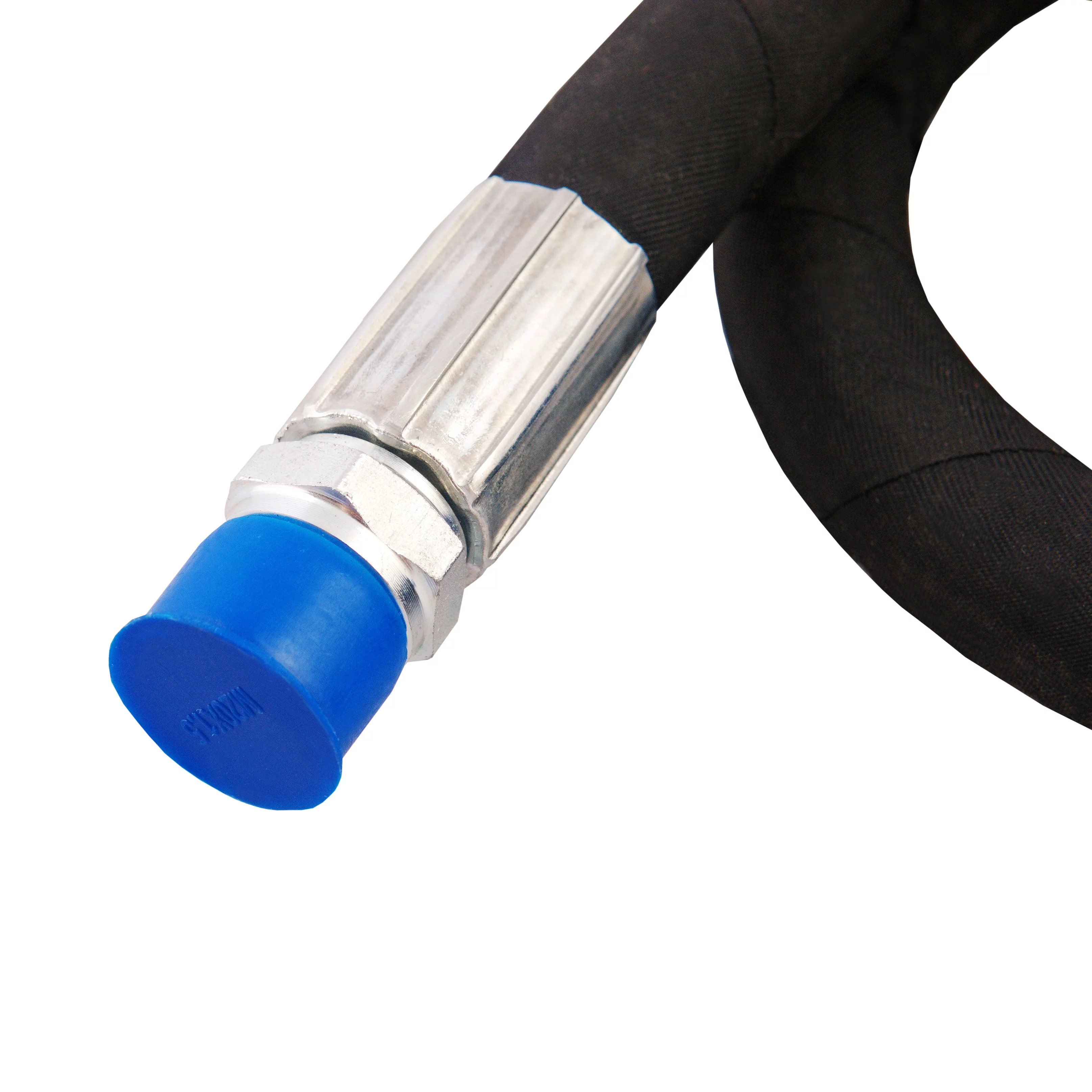

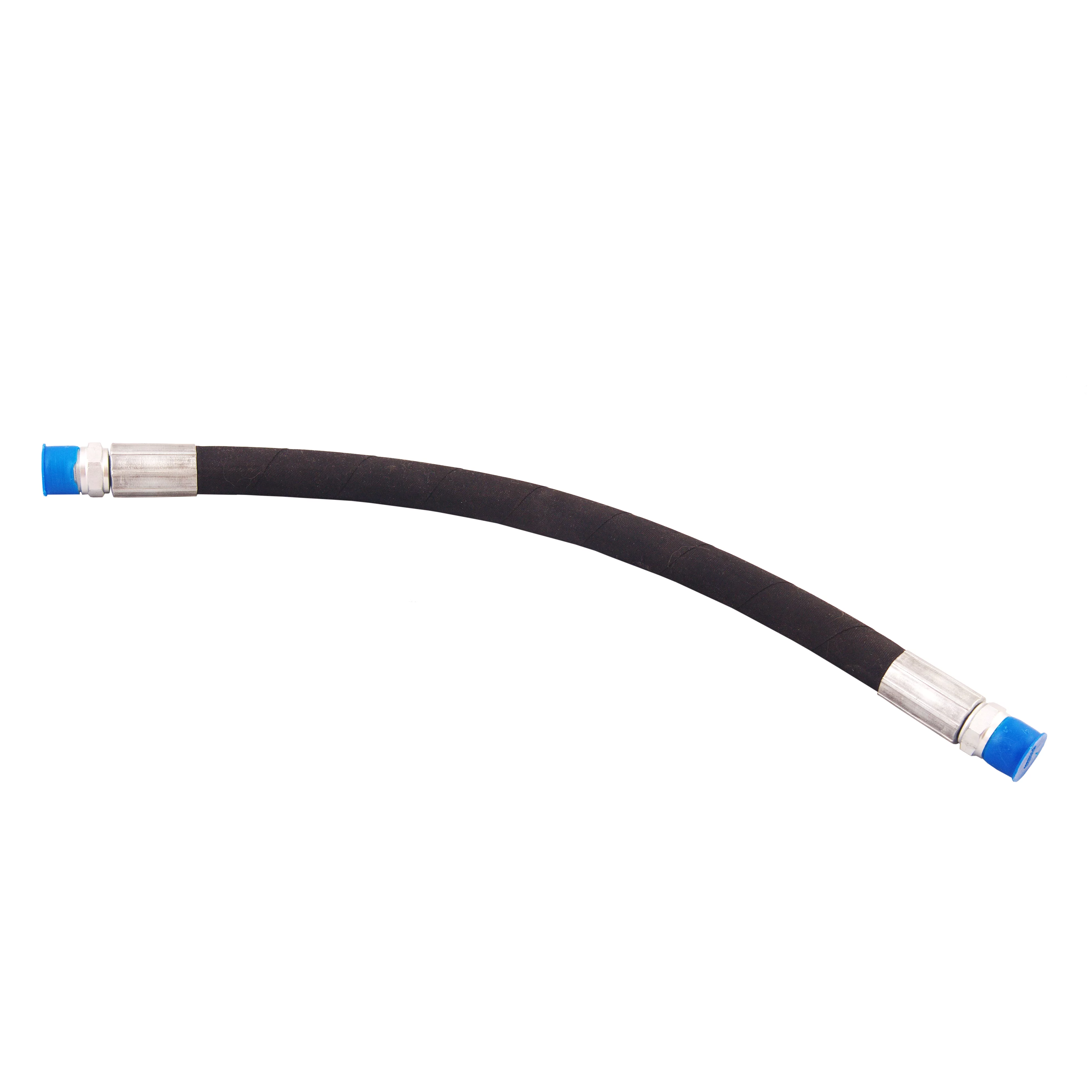

Hydraulic Hose Assembly 1/4" ID x 24" Length, NPT Male Straight

This 24-inch length Hydraulic Hose Assembly features durable two-wire steel braid reinforcement and 1/4″ NPT Male Straight Fittings, providing a reliable connection between hydraulic components in high-pressure systems.

Hose Brand: Gates PRO™ Series ProFlex™

Designed for flexibility and durability, this hose assembly easily routes around corners and tight spaces while maintaining excellent performance under demanding hydraulic conditions.

Key Features:

• Length: 24 inches
• Fittings: 1/4″ NPT Male Straight Fittings
• Reinforcement: Two-Wire Steel Braid
• Hose standards: Meets or exceeds the performance requirements of SAE 100R2, EN 857 2SC, and EN 853 2SN. Satisfies SAE 100R16 and SAE 100R17 dimensional and performance-cycle requirements for these hose sizes
• Assembly Working Pressure: 3,500 PSI
• Hose Working Pressure: 5,800 PSI
• Minimum Hose Burst Pressure: 23,200 PSI
• Minimum Hose Bend Radius: 1.9"
• Temperature Range (hose): -40°F to +212°F (-40°C to +100°C)
• Cover: Black, abrasion-resistant synthetic rubber
• MSHA: Flame-resistant hose

Made in Europe

1-Year Warranty
