Hydraulic Hose Assembly 3/8" ID x 48" Length, JIC Swivel Female
SKU:
HHA-D06-06-FJS-48
$28.00
In Stock
Volume Discounts
4+ PRICE EA -5%
$26.60
8+ PRICE EA -10%
$25.20
Hydraulic Hose Assemblies 3/8″ JIC
157 in stock
Made in Europe
US Customer Support
* Wholesale Discount is available for this product if you purchase 4 or more products.

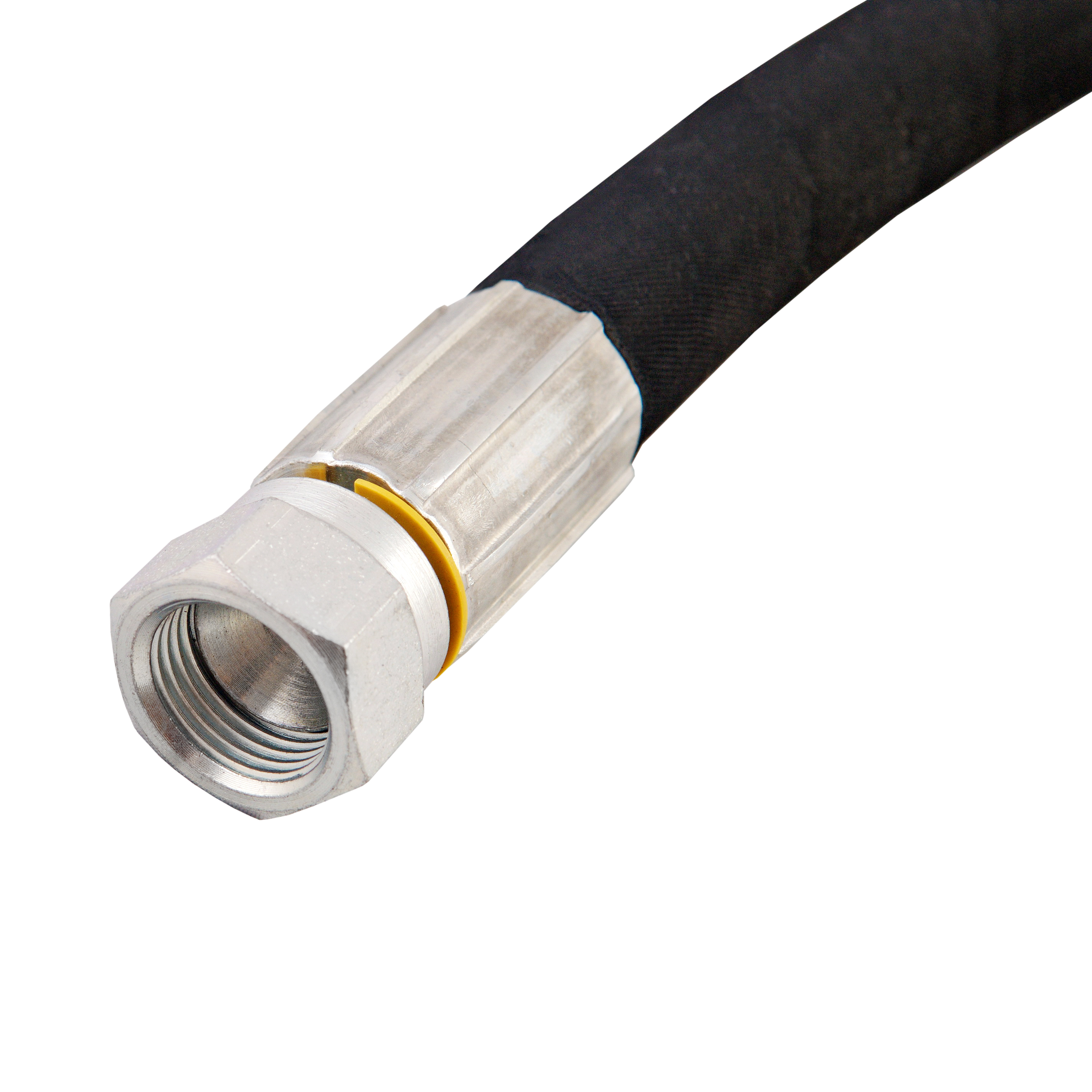

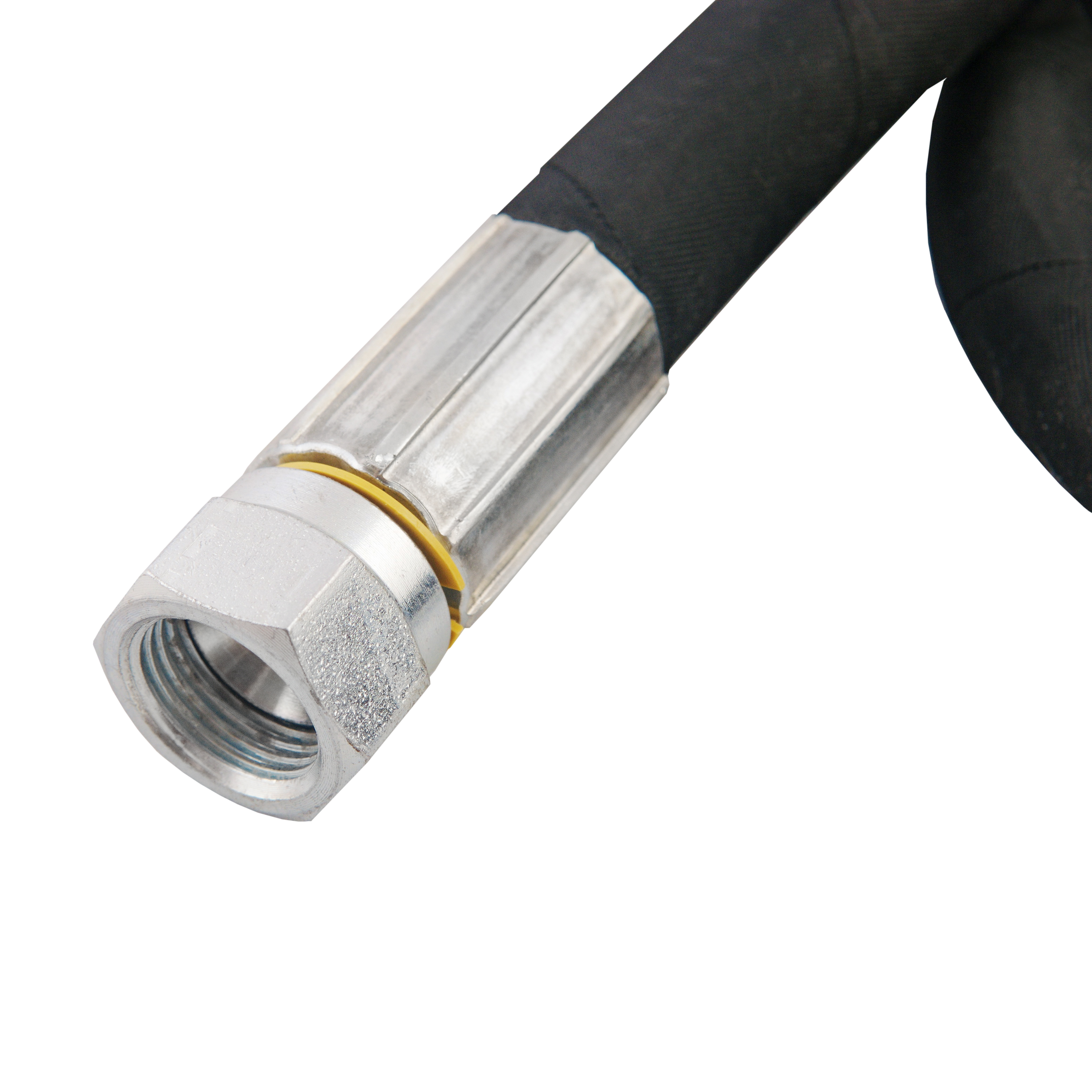

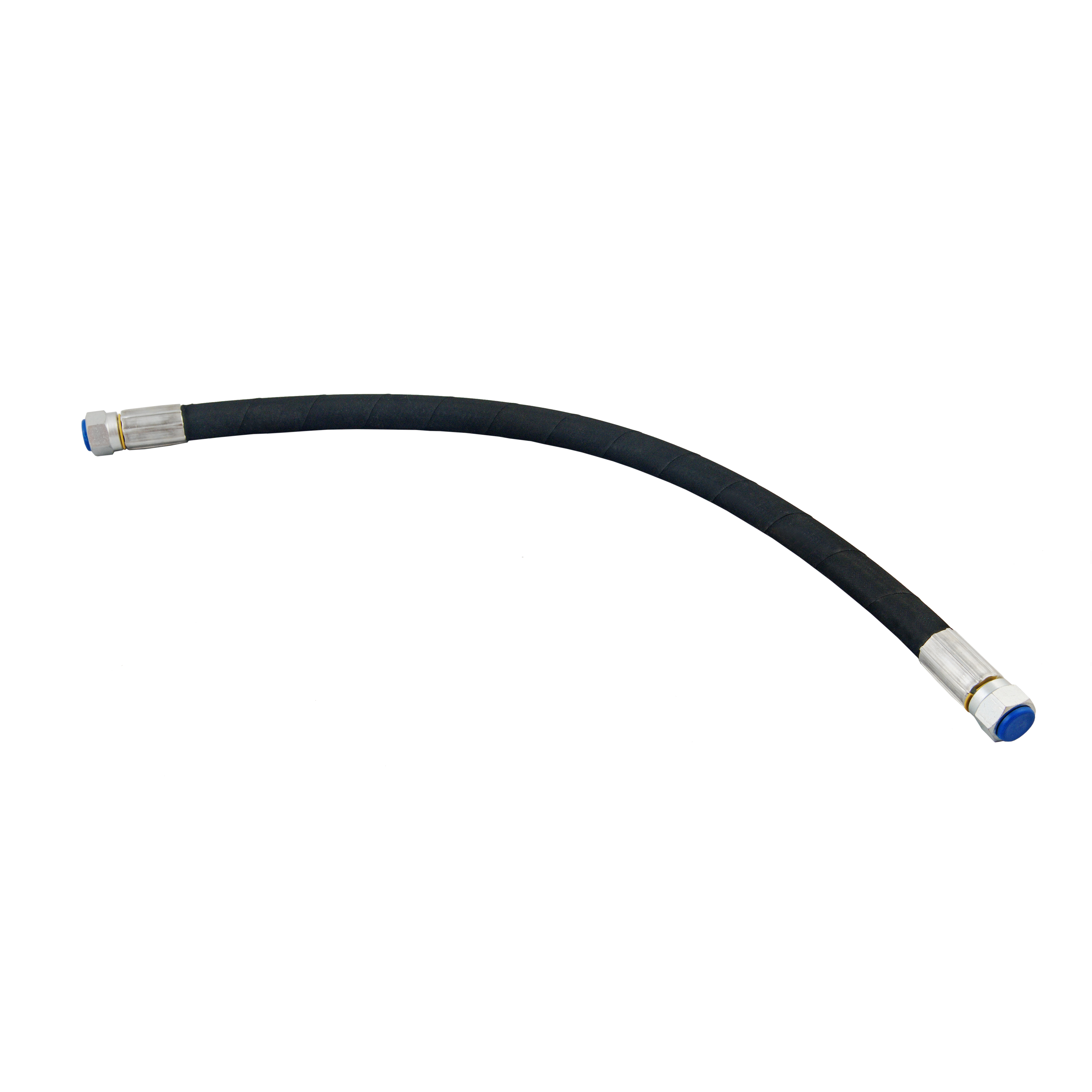

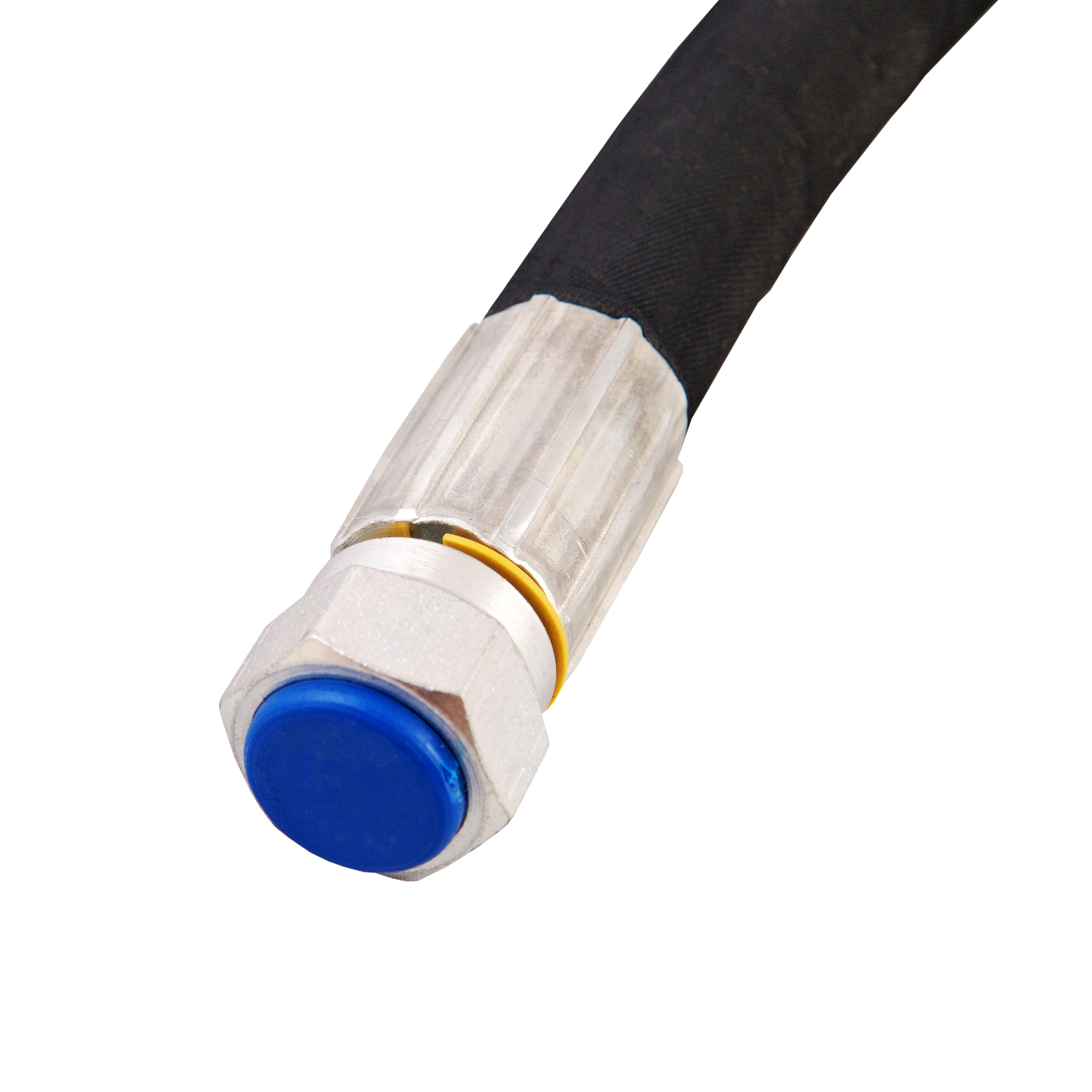

This 48-inch length Hydraulic Hose Assembly features durable two-wire steel braid reinforcement and 3/8″ ID JIC swivel female fittings, providing a reliable connection between hydraulic components in high-pressure systems.
Hose Brand: Gates PRO™ Series ProFlex™
Designed for flexibility and durability, this hose assembly easily routes around corners and tight spaces while maintaining excellent performance under demanding hydraulic conditions.
Key Features:
- Length: 48 inches
- Fittings: 3/8″ ID JIC swivel female fittings
- Reinforcement: Two-Wire Steel Braid
- Hose standards: Meets or exceeds the performance requirements of SAE 100R2, EN 857 2SC, and EN 853 2SN. Satisfies SAE 100R16 and SAE 100R17 dimensional and performance-cycle requirements for these hose sizes
- Assembly Working Pressure: 3,500 PSI
- Hose Working Pressure: 4,800 PSI
- Minimum Hose Burst Pressure: 19,200 PSI
- Minimum Hose Bend Radius: 2.5"
- Temperature Range (hose): -40°F to +212°F (-40°C to +100°C)
- Cover: Black, abrasion-resistant synthetic rubber
- MSHA: Flame-resistant hose
Made in Europe
1-Year Warranty
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
If you need assistance, do not hesitate to contact us:
973-344-5313
Frequently bought together
Related Categories
Specifications
Hydraulic Hose Assembly 3/8" ID x 48" Length, JIC Swivel Female
SKU:
HHA-D06-06-FJS-48
| Hose Length | 48 in | Fittings | Female Straight Swivel |
|---|---|---|---|
| Hose Inner Dia. (⌀) | 3/8 in | Thread | JIC |
| Bend Radius | 2.5 in | Hose Working Pressure | 4800 PSI |
| Brand | Magister Hydraulics | Weight | 3 LBs |
