2 bore x 22 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics

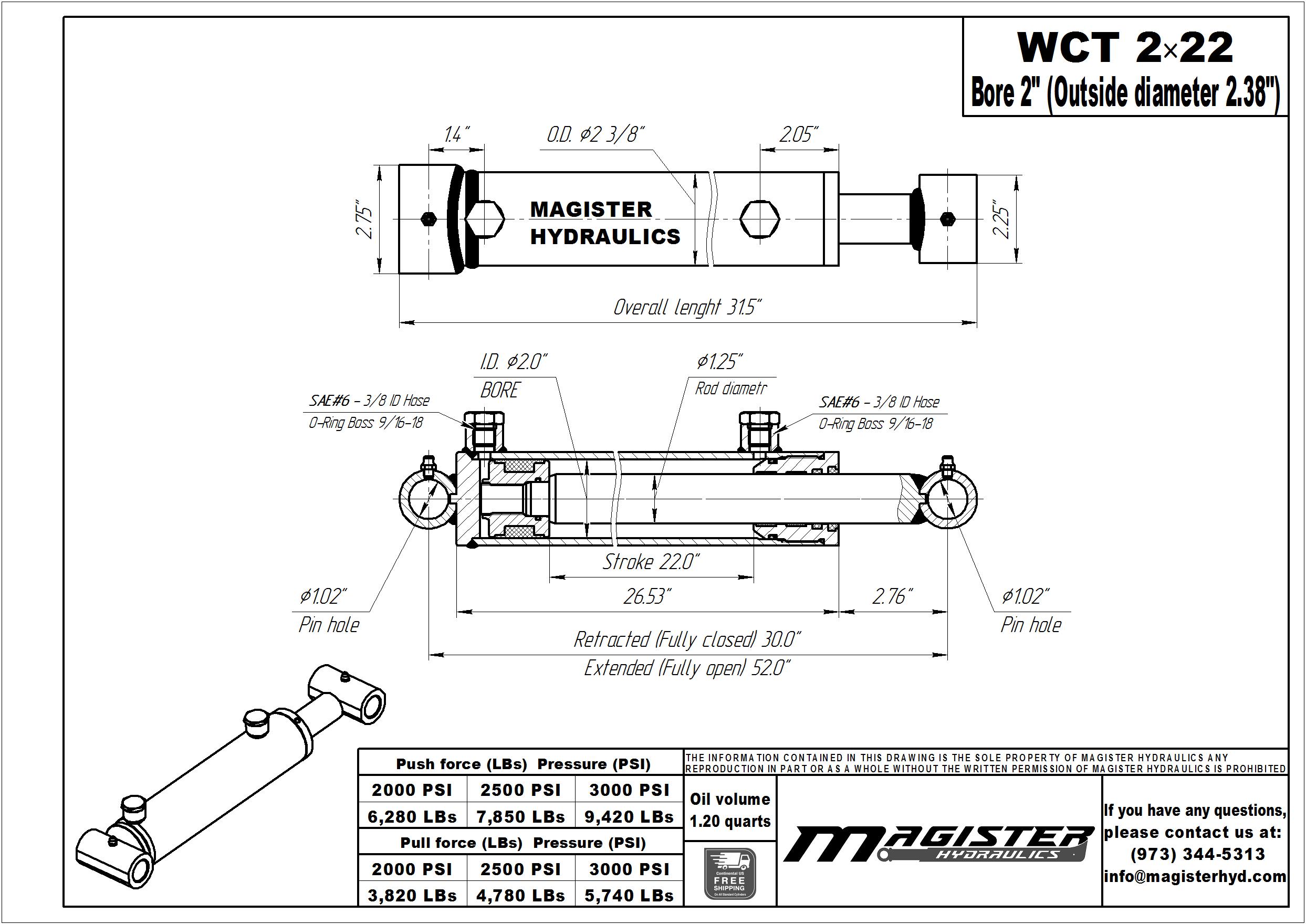

2" bore x 22" stroke cross tube hydraulic cylinder

$215.00

Pay in 4 interest-free payments of $53.75
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2x22
Bore :2 inch
OD :2.38"
Stroke :22” Stroke Hydraulic Cylinders
Rod :1.25"
Port Size :SAE 6
Pin :1"

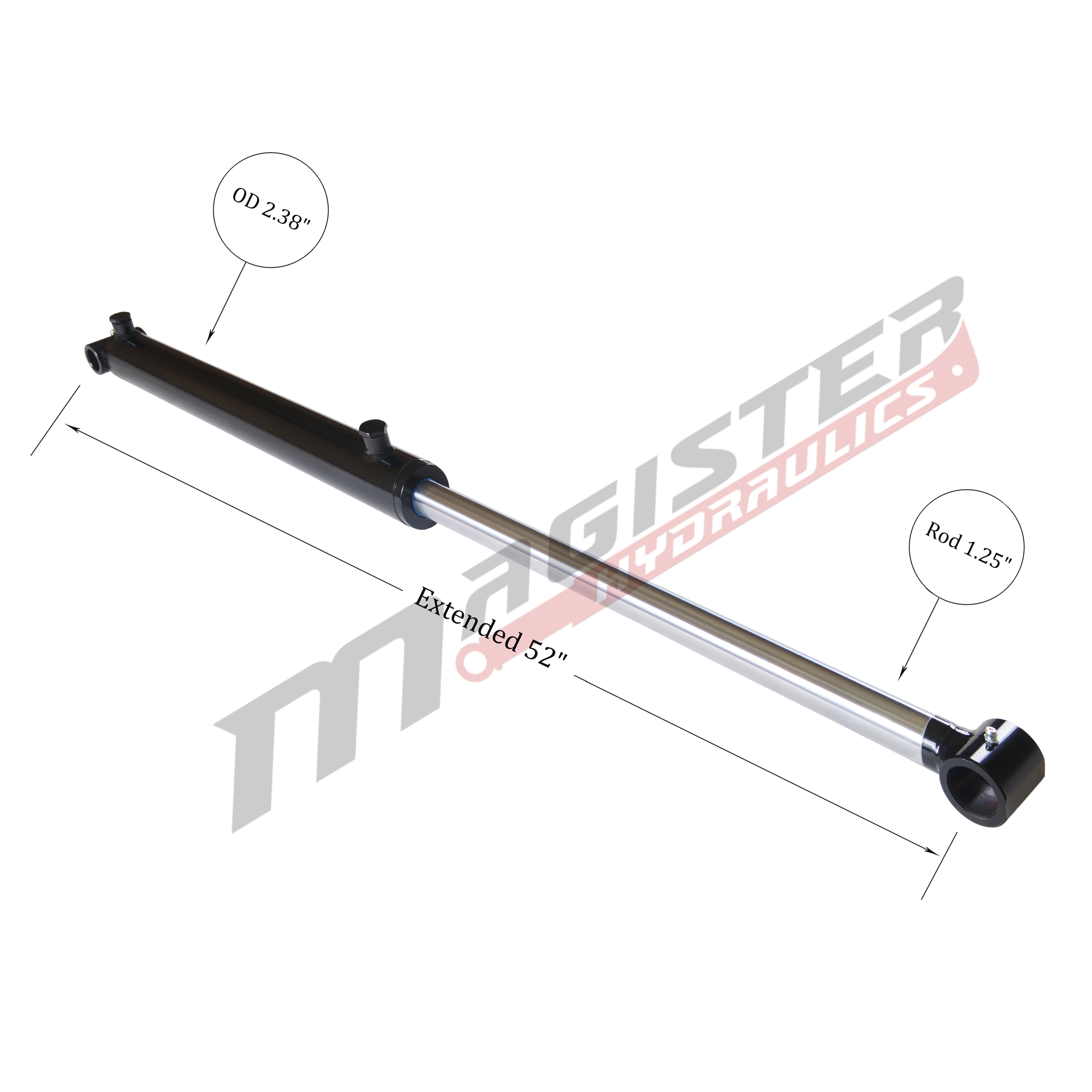

Extended :52"

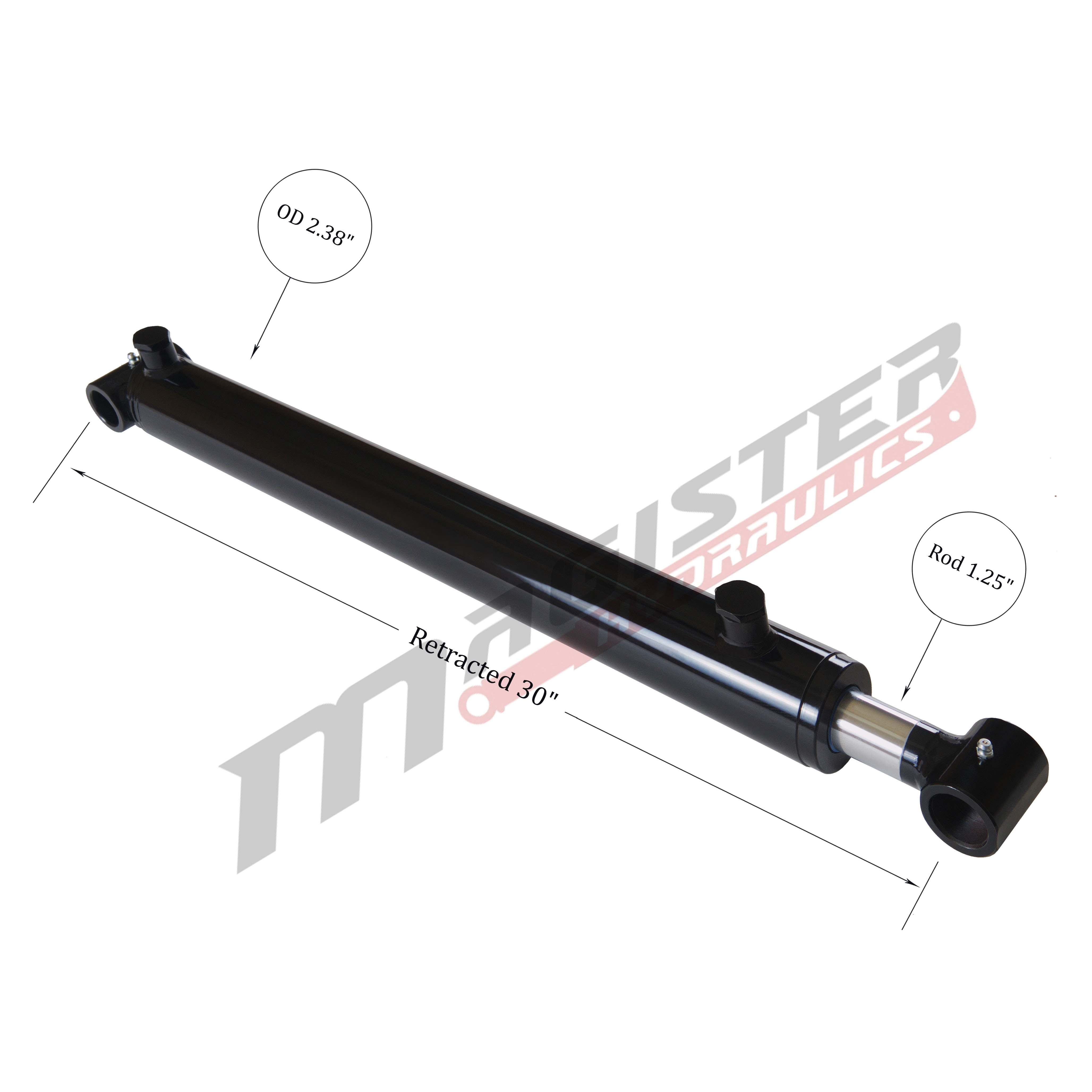

Retracted :30"
Overall length :31.5"
Pressure :Hydraulic Cylinders 3500 PSI
Column Load (LBs) :8,800
Oil Volume (quarts) :1.2
Brand :Magister Hydraulics
GTIN :857743006789
1+ PRICE EA
$215.00
4+ PRICE EA -5%
$204.25
8+ PRICE EA -10%
$193.50
In stock

1 in stock

DESCRIPTION

  • 2″ bore x 22″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
