2 bore x 48 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics
On sale!
Zoom

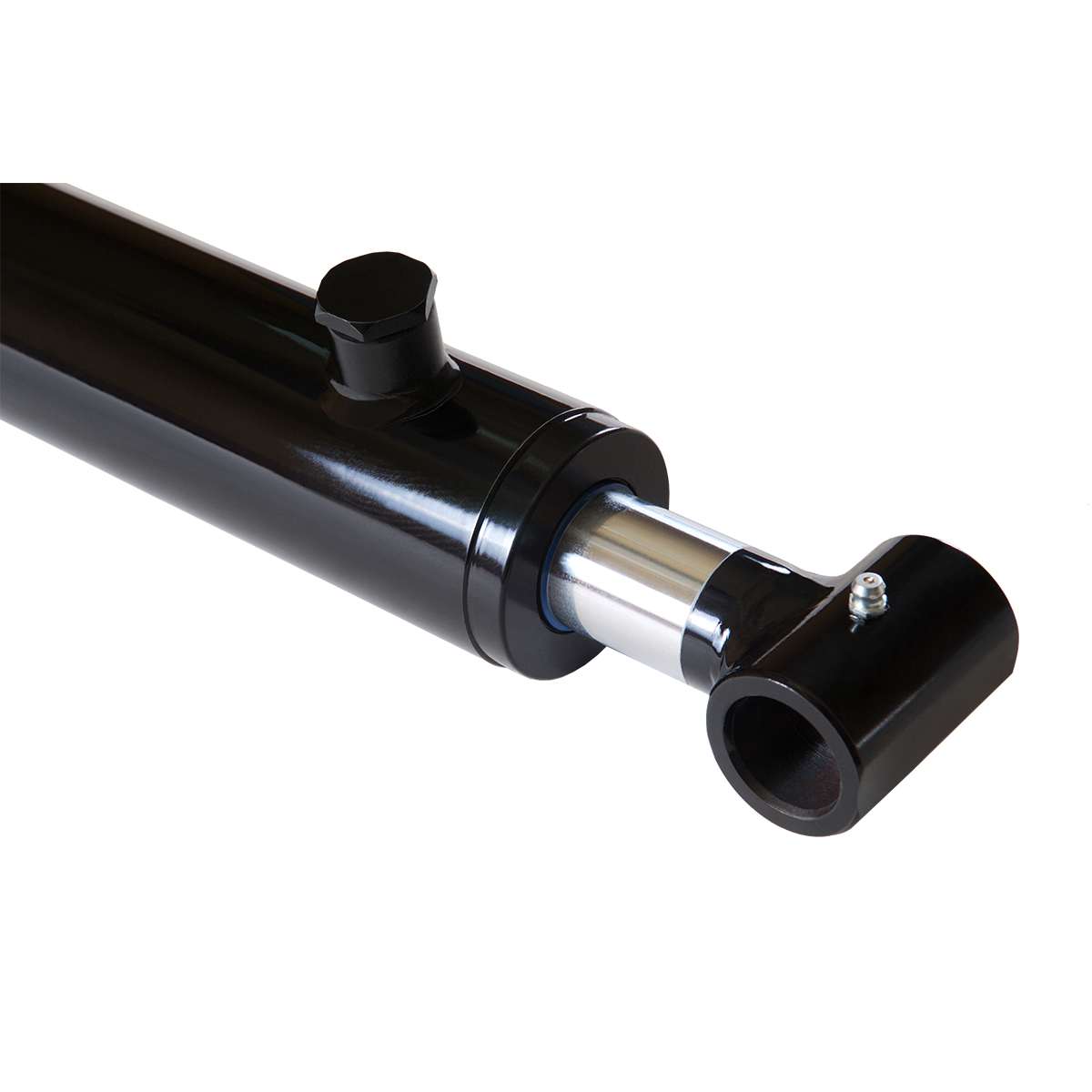

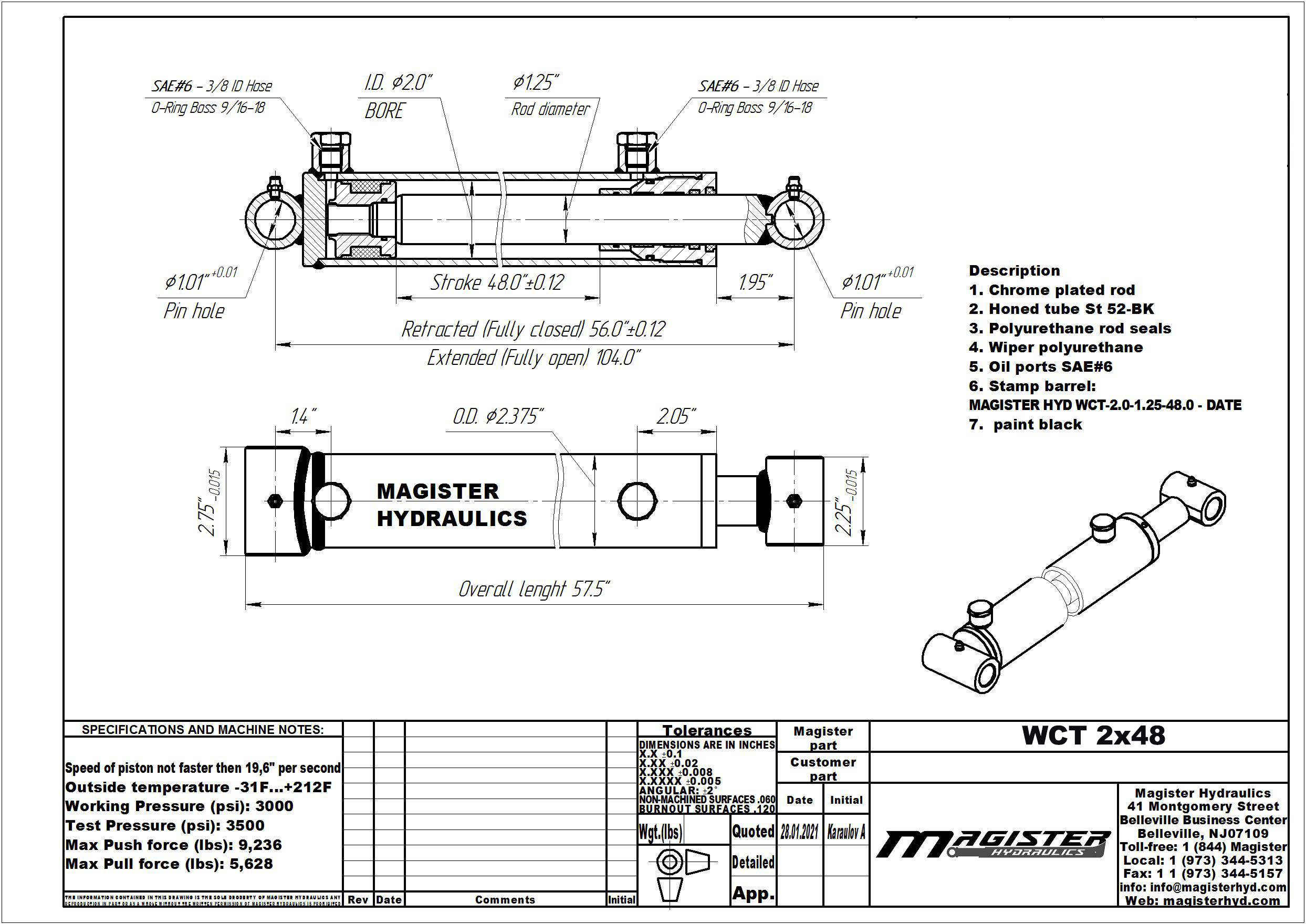

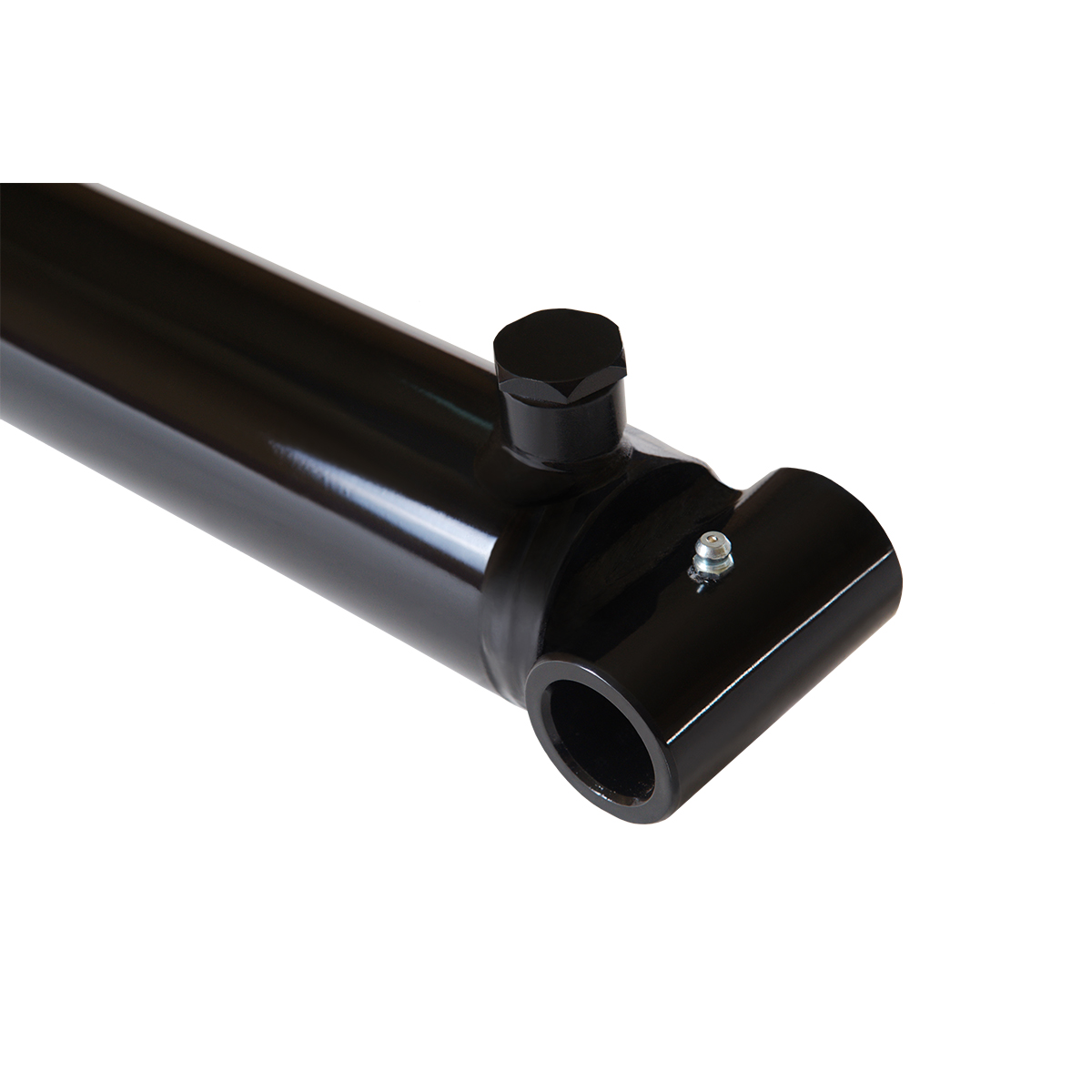

2" bore x 48" stroke cross tube hydraulic cylinder

$299.00

Pay in 4 interest-free payments of $74.75
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2x48
Bore : 2 in
Outer Dia. (⌀) : 2.38 in
Stroke : 48 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 6
Pin Dia. (⌀) : 1 in

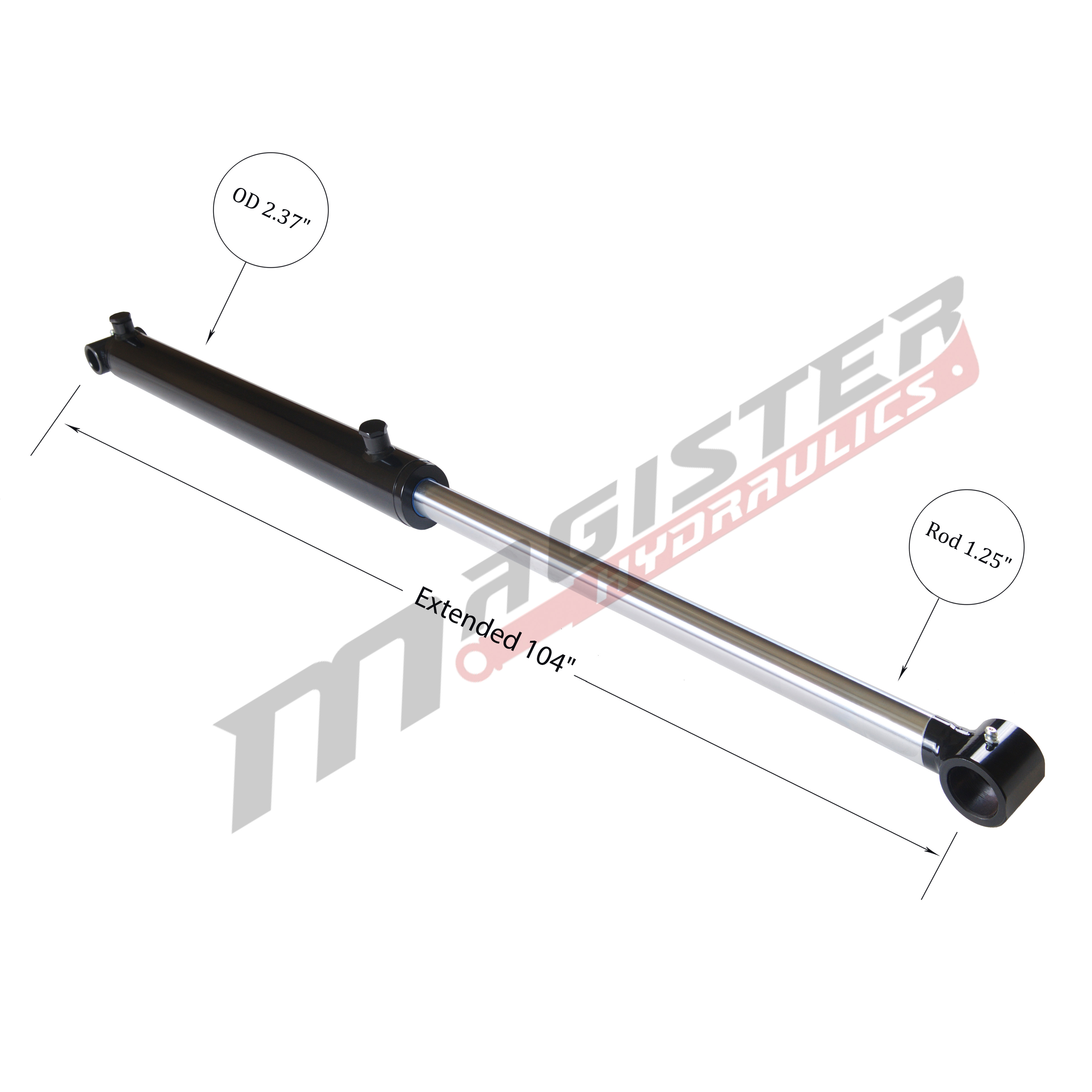

Extended : 104 in

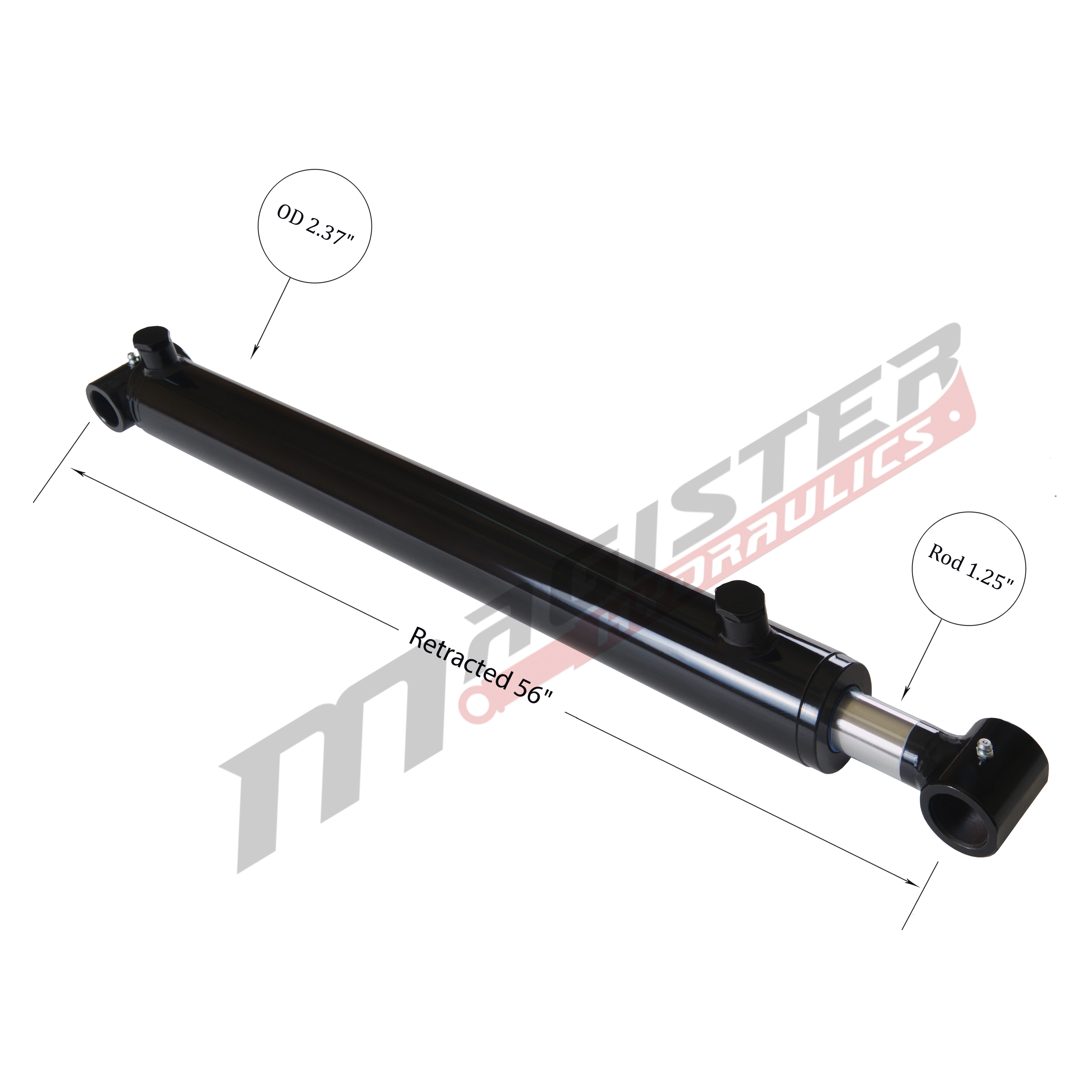

Retracted : 56 in
Overall length : 57.5 in
Pressure : 3500 PSI
Column Load : 3100 LBs
Oil Volume : 2.61 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Cross Tube
Action :
  • Double Acting
  • Weight : 44 LBs
    GTIN : 850054386021

    Volume discounts

    1+ PRICE EA
    $299.00
    4+ PRICE EA -5%
    $284.05
    8+ PRICE EA -10%
    $269.10
    In stock

    9 in stock

    Description

    • 2″ bore x 48″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
    • Color: Black.

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
