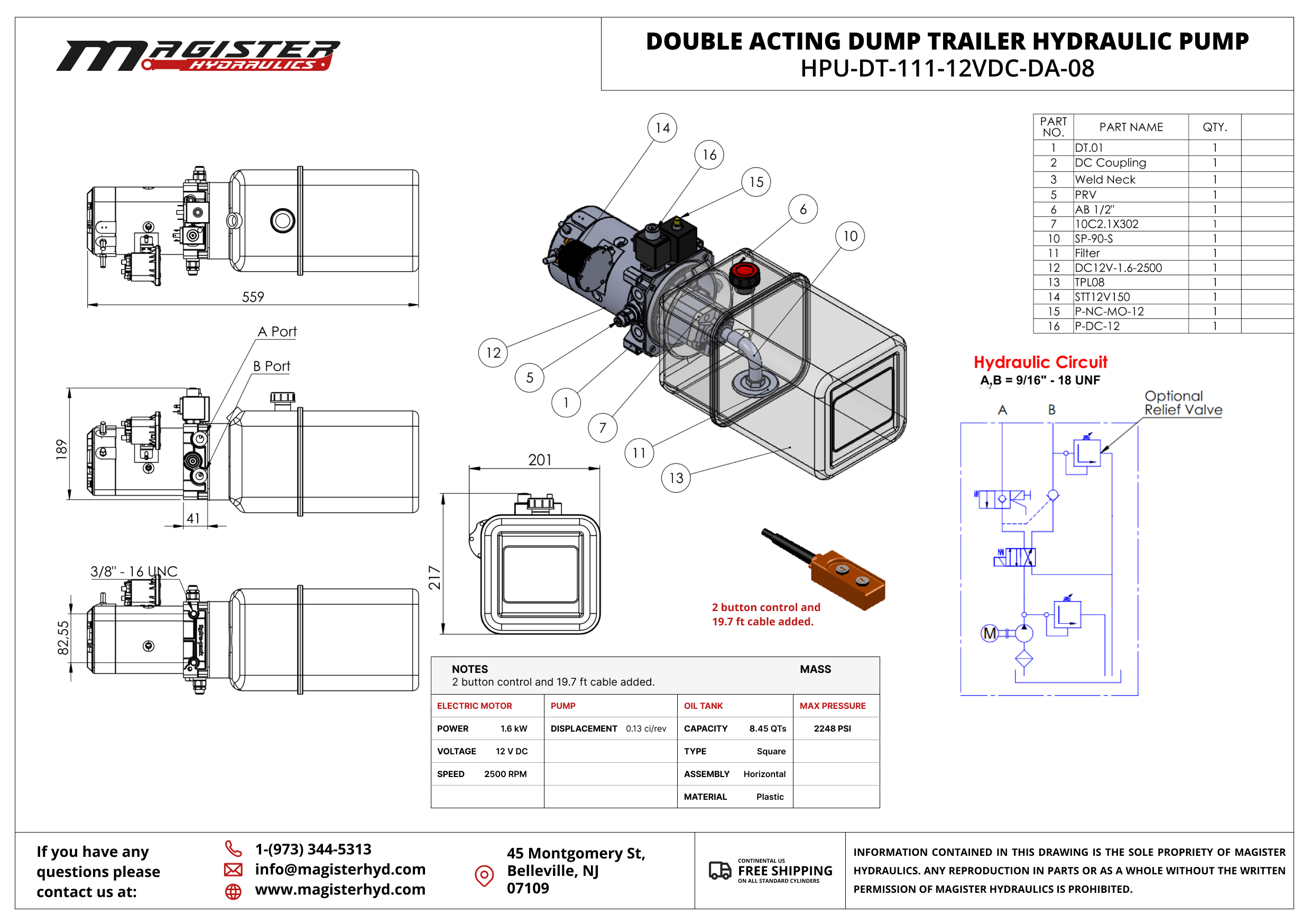

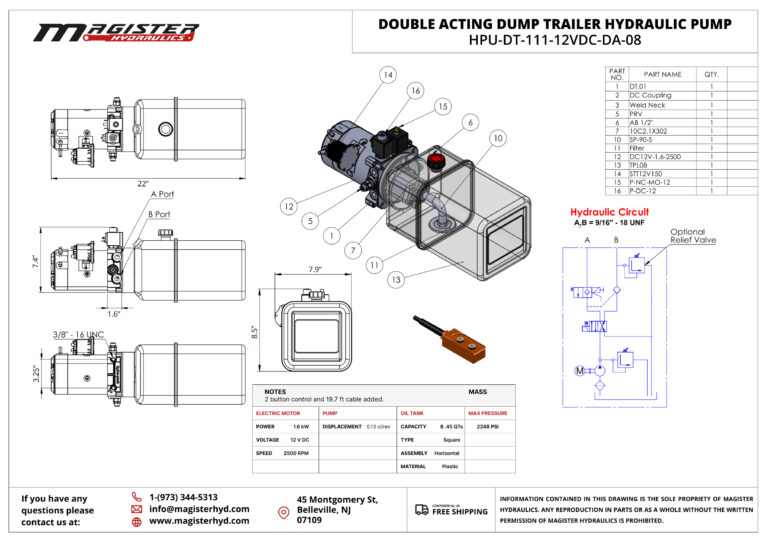

Dump trailer hydraulic power unit drawing

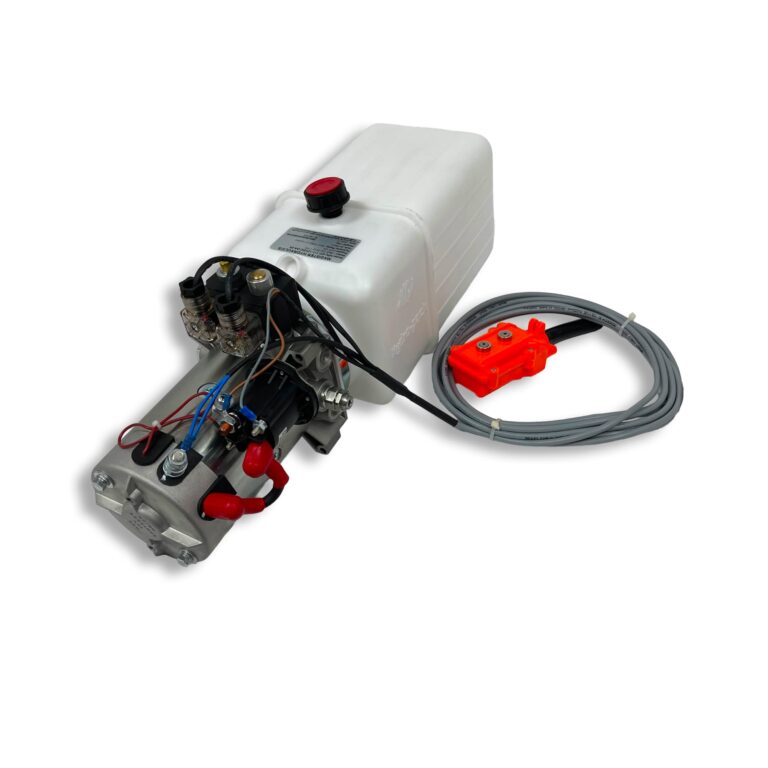

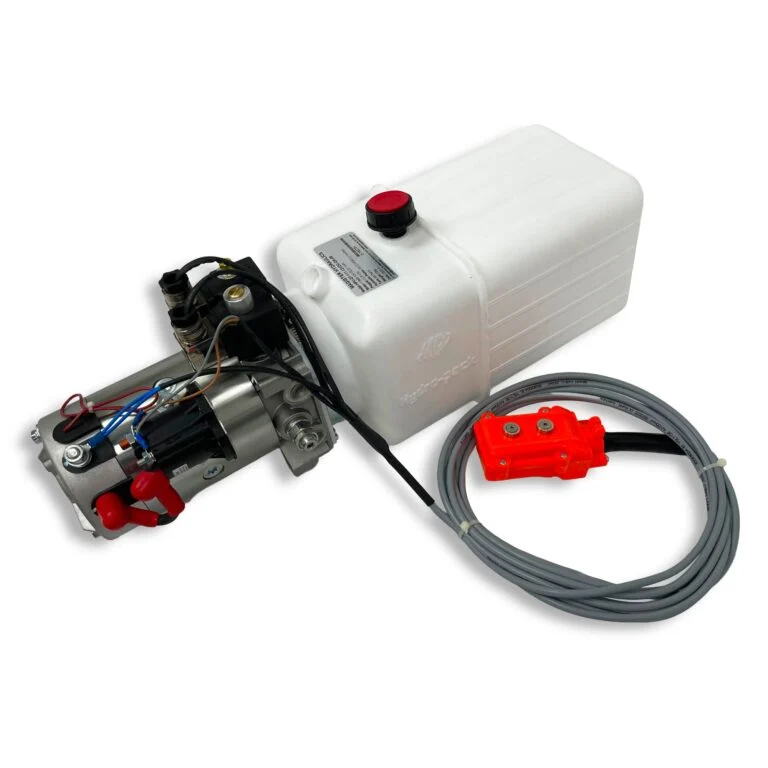

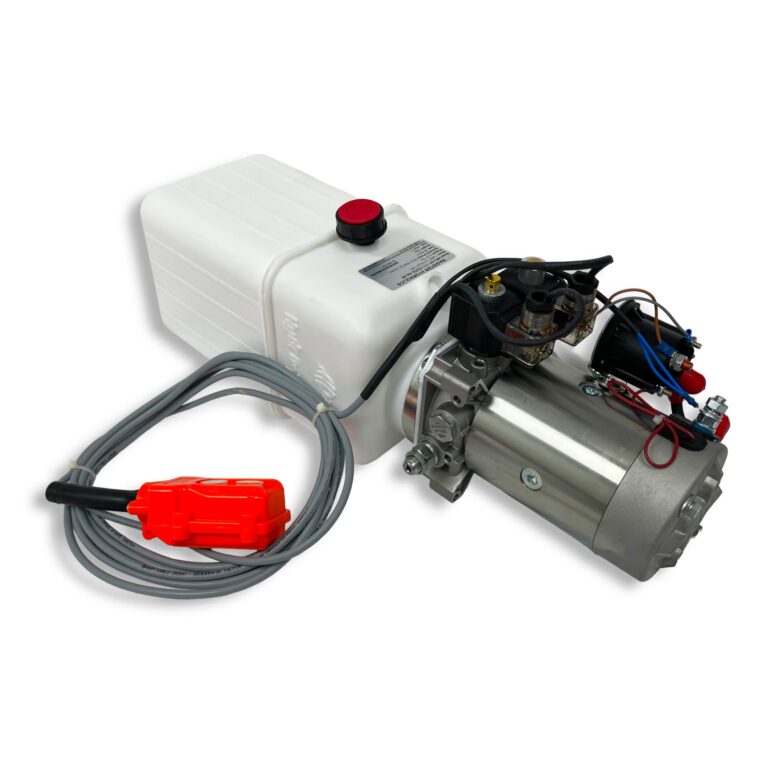

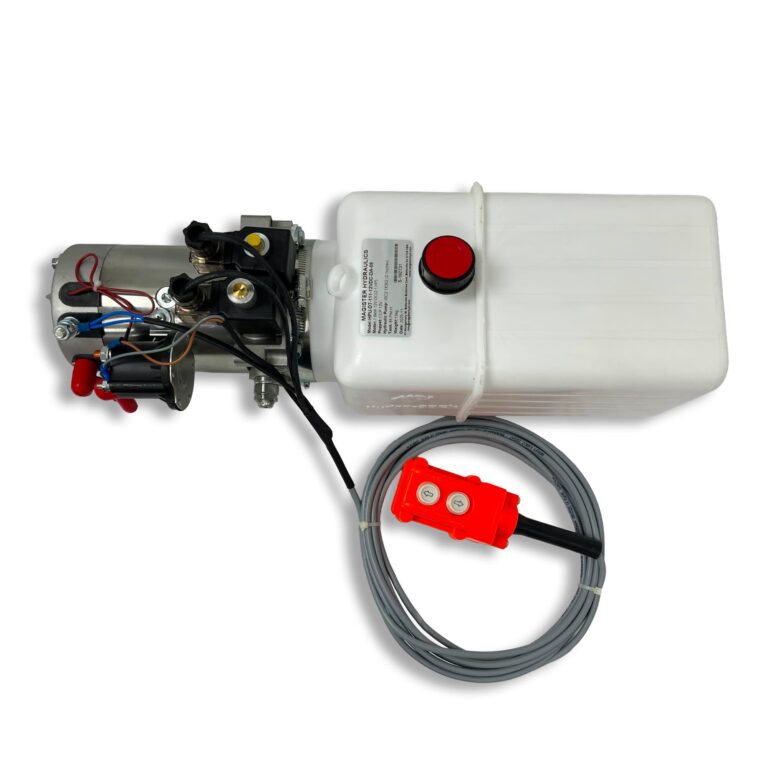

12 Volt DC Double Acting Dump Trailer Hydraulic Pump 8 QTs Plastic Reservoir

Name: 12 Volt DC Double Acting Dump Trailer Hydraulic Pump 8 QTs Plastic Reservoir
Brand: Magister Hydraulics
SKU: HPU-DT-111-12VDC-DA-08
Price: 331.50 USD
Availability: InStock
Rating: 5 (10 reviews)

$331.50

Pay in 4 interest-free payments of $82.88

SKU: HPU-DT-111-12VDC-DA-08

Action :	Double Acting
Max flow :	1.25 GPM
GPM @2500PSI :	1.25GPM
Pressure :	2100 PSI
Relief Valve :	2500 PSI
MAX RPM :	2500
Pump Displacement :	0.128 ci/rev
Reservoir (QTs) :	8
Tank Material :	Plastic
Voltage :	12 V
Current :	Direct
Motor Power :	1.6kW
Port Size :	SAE 6
Mounting :	Horizontal
Country of Origin :	Bulgaria
GTIN :	850033934656

SKU: HPU-DT-111-12VDC-DA-08 Categories: 12 Volt Hydraulic Power Units, Double Acting Hydraulic Power Units, Dump Trailer Hydraulic Pumps, Hydraulic Power Units, Hydraulic Power Units with Plastic Reservoir

In stock

38 in stock

DESCRIPTION

Double-acting hydraulic pump with 8-quart oil tank. Compact power unit for various dump trailers (Big Tex, Griffin, MAXX-D, PJ, Lamar, Belmont). Pressure relief valve at 2500 PSI, easily adjustable. Power up, power down application with wired remote included. 1.6kW motor works from battery 12V DC. Flow rated at 1.25 GPM flow @ 2500 PSI. Made in Europe by Hydro-Pack. 1-year warranty, free shipping within Continental US. Tariff-free product.

OPEN MANUAL

VIDEO REVIEW
