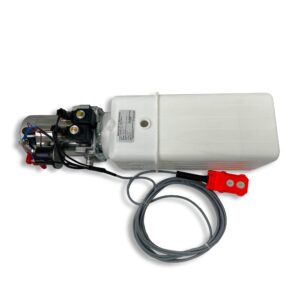

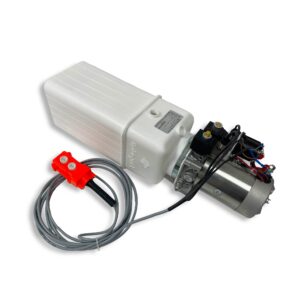

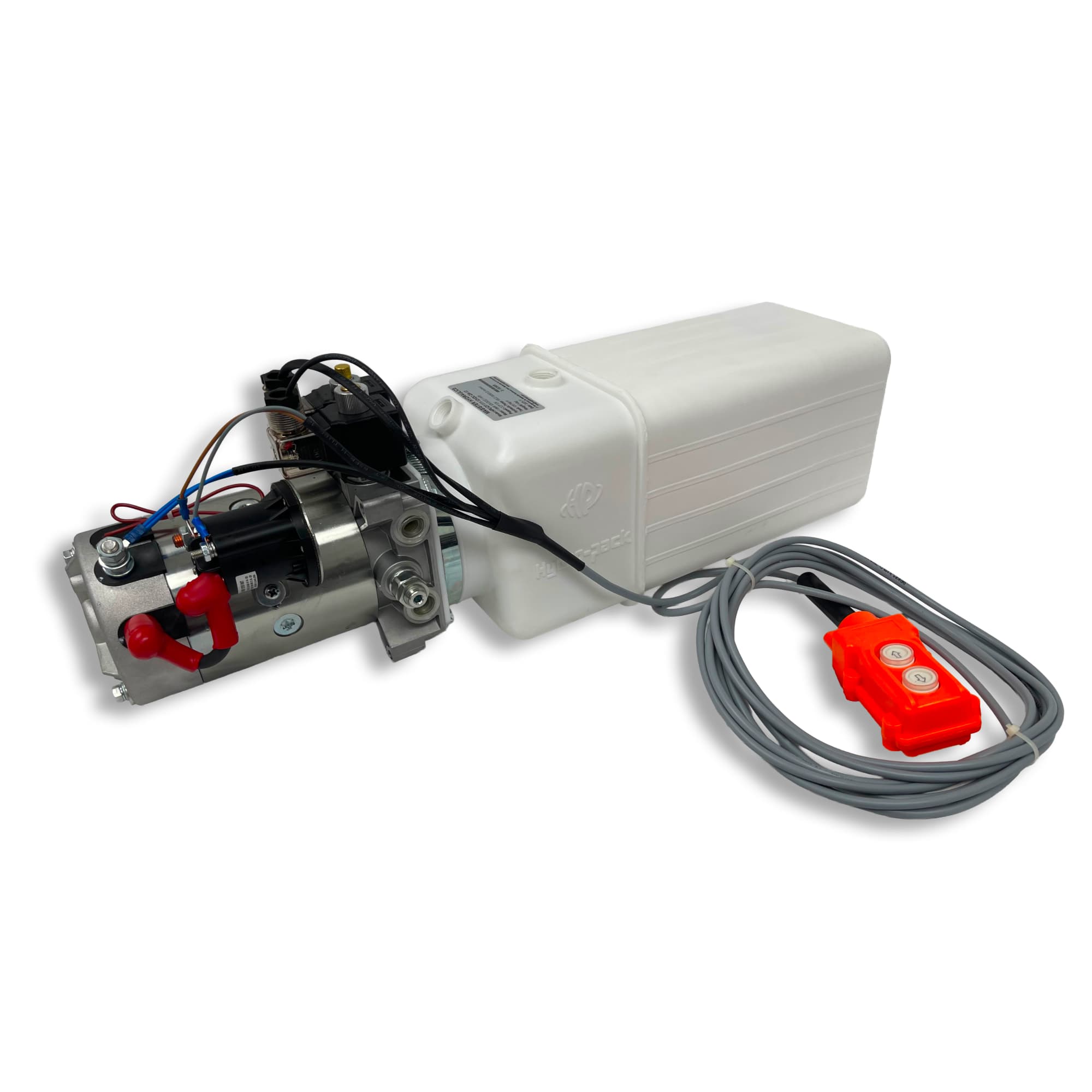

12 Volt DC Double Acting Dump Trailer Hydraulic Pump 10 QTs Plastic Reservoir

Upgrade your dump trailer with this high-performance, double-acting hydraulic power unit, designed for maximum reliability and versatility. Perfectly suited for a range of popular dump trailer brands including Big Tex, Griffin, MAXX-D, PJ, Lamar, and Belmont.

Key Features

• Double-Acting Operation: Delivers both power-up and power-down functions for smooth, controlled lifting and lowering.
• Compact & Efficient Design: Space-saving unit equipped with a durable, 10-quart oil reservoir, ideal for most dump trailers and lift applications.
• Reliable Performance: Motor 1.6kW high-efficiency motor operates on 12V DC directly from a standard battery.
• Flow Rate: Delivers 1.25 GPM at 2500 PSI for fast and consistent hydraulic response.
• Adjustable Pressure Relief Valve: Factory set at 2500 PSI with easy adjustment to suit your needs.
• User-Friendly Operation: Includes a wired remote control for convenient, safe operation from the ground.
• Premium Build Quality: Manufactured in Europe. Built for heavy-duty commercial use; engineered for long service life.

1-Year Warranty

Applications

• Dump trailers (compatible with Big Tex, PJ, MAXX-D, Griffin, Lamar, Belmont and more)
• Utility lifts
• Scissor hoists
• Other hydraulic equipment needing double-acting power
