2.5" bore x 16" stroke tie rod hydraulic cylinder
$180.00
Pay in 4 interest-free payments of $45.00SKU: TRC 2.5x16
| Bore : | 2.5 in | Outer Dia. (⌀) : | 2.87 in | Stroke : | 16 in | Rod Dia. (⌀) : | 1.125 in | Port Size : | 3/8" NPT | Pin Dia. (⌀) : | 1 in | Extended : | 46.25 in | Retracted : | 28.25 in | Overall length : | 28.25 in | Pressure : | 2500 PSI | Column Load : | 12,270 LBs | Oil Volume : | 1.36 QTs | Brand : | Magister Hydraulics | Design : | Tie Rod | Rod Type : | Chrome Plated | Rod End : | Clevis | Action : | Weight : | 28 LBs |
|---|---|
| GTIN : | 854335007568 |
Volume discounts
1+ PRICE EA
$180.00
4+ PRICE EA -5%
$171.00
8+ PRICE EA -10%
$162.00
In stock
34 in stock
Description

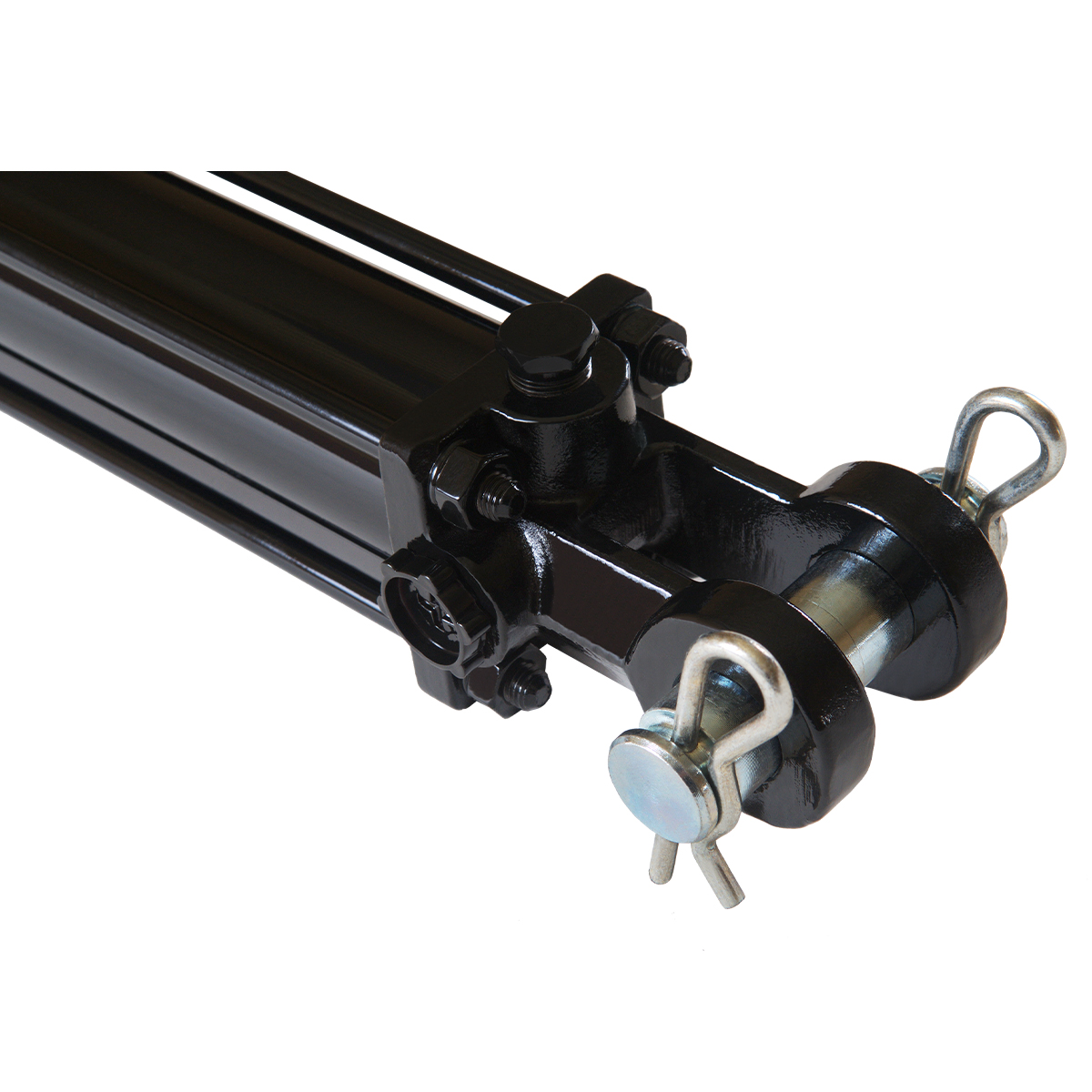

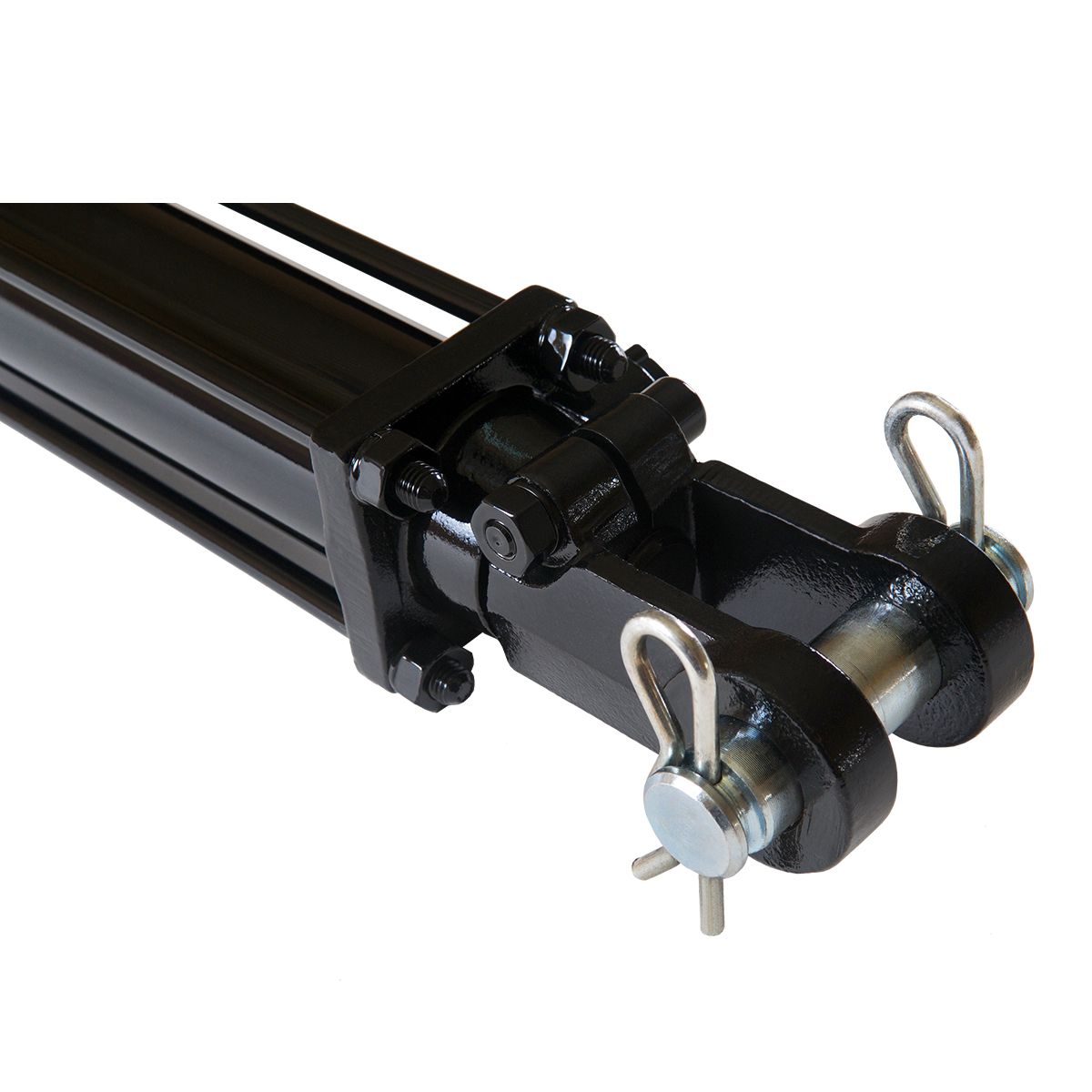

- 2.5″ bore x 16″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
- Applications:Â Tie-rod double acting hydraulic cylinder
- Color:Â Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
