2" bore x 16" stroke ag clevis hydraulic cylinder


Pay in 4 interest-free payments of $45.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WBC 2x16
Bore : 2 in
Outer Dia. (⌀) : 2.37 in
Stroke : 16 in
Rod Dia. (⌀) : 1.125 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

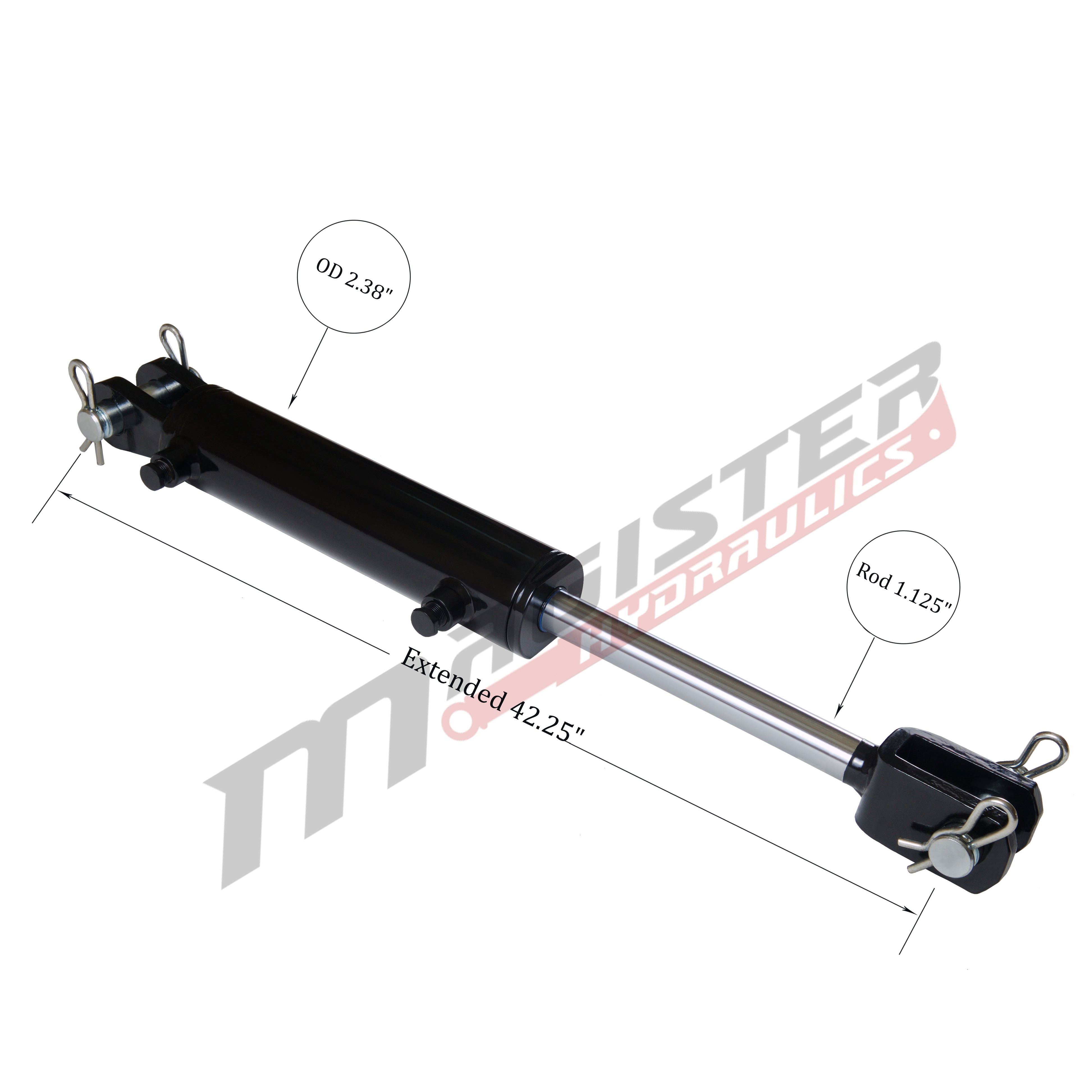

Extended : 42.25 in

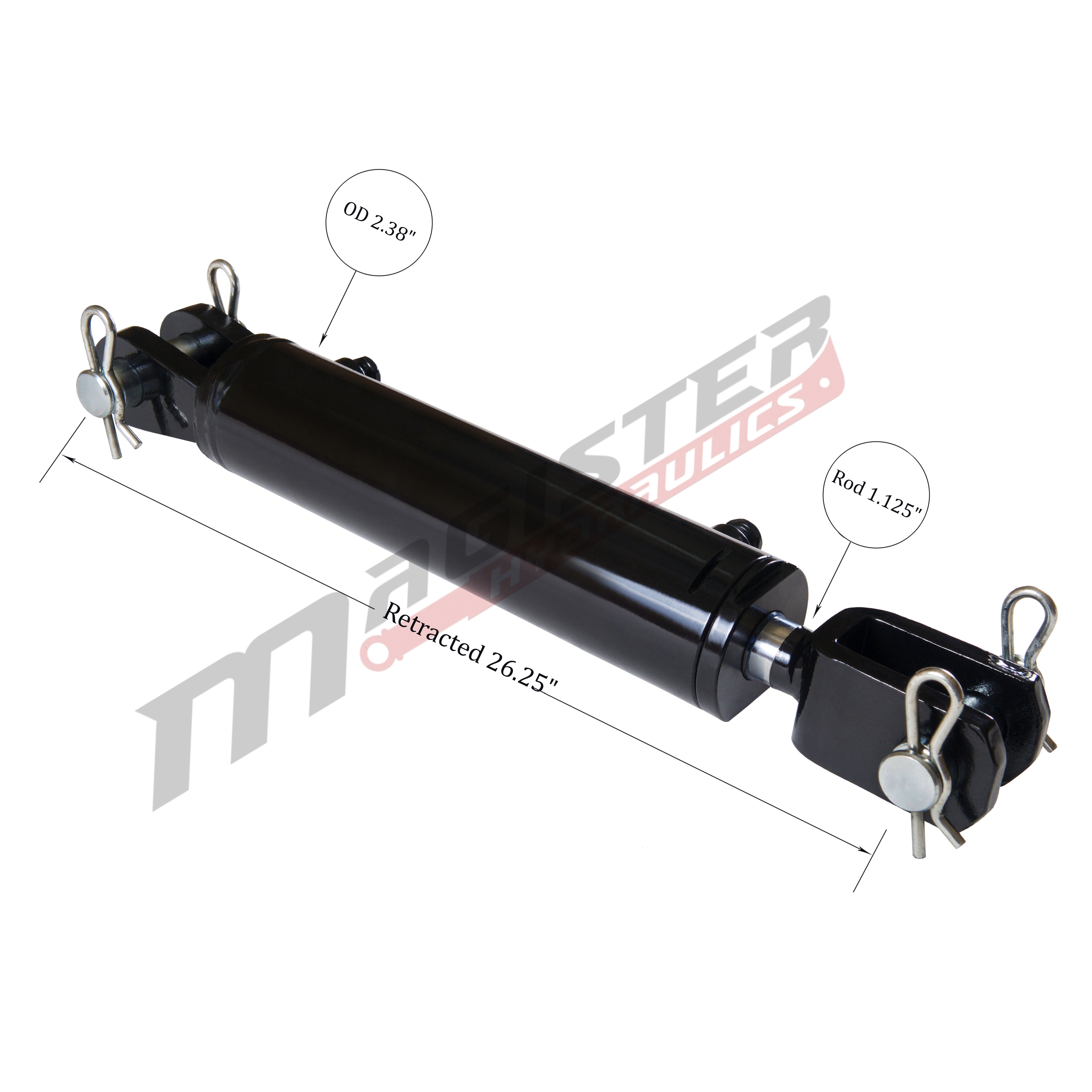

Retracted : 26.25 in
Overall length : 28.25 in
Pressure : 2500 PSI
Column Load : 7,850 LBs
Oil Volume : 0.87 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Clevis
Action :
  • Double Acting
  • Weight : 20 LBs
    GTIN : 850016509307
    SKU: WBC 2x16 Categories: ,

    Volume discounts

    1+ PRICE EA
    4+ PRICE EA -5%
    8+ PRICE EA -10%
    In stock

    20 in stock


    • 2″ bore x 16″ stroke ag clevis hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis ends, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Agriculture clevis cylinder is a perfect welded alternative of tie rod cylinder. Great replacement for farming equipment and others.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.
