2" bore x 10" stroke ag clevis hydraulic cylinder

Name: 2" bore x 10" stroke ag clevis hydraulic cylinder
Brand: Magister Hydraulics
SKU: WBC 2x10
Price: 164.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$164.00

Pay in 4 interest-free payments of $41.00

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WBC 2x10

Product SKU	Chief part number
WBC 2x10	297072

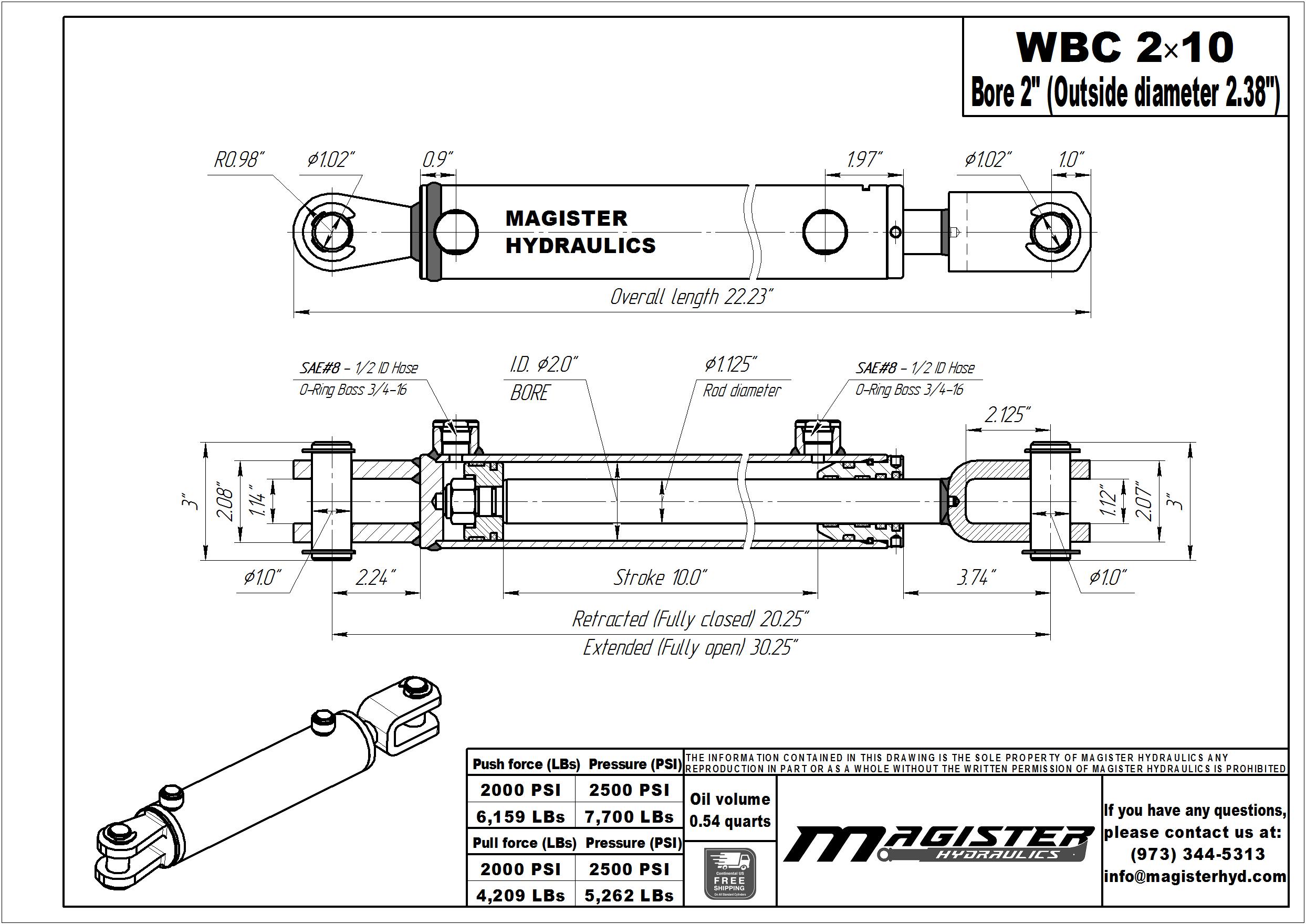

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	2 in
Outer Dia. (⌀) :	2.37 in
Stroke :	10 in
Rod Dia. (⌀) :	1.125 in
Port Size :	SAE 8
Pin Dia. (⌀) :	1 in

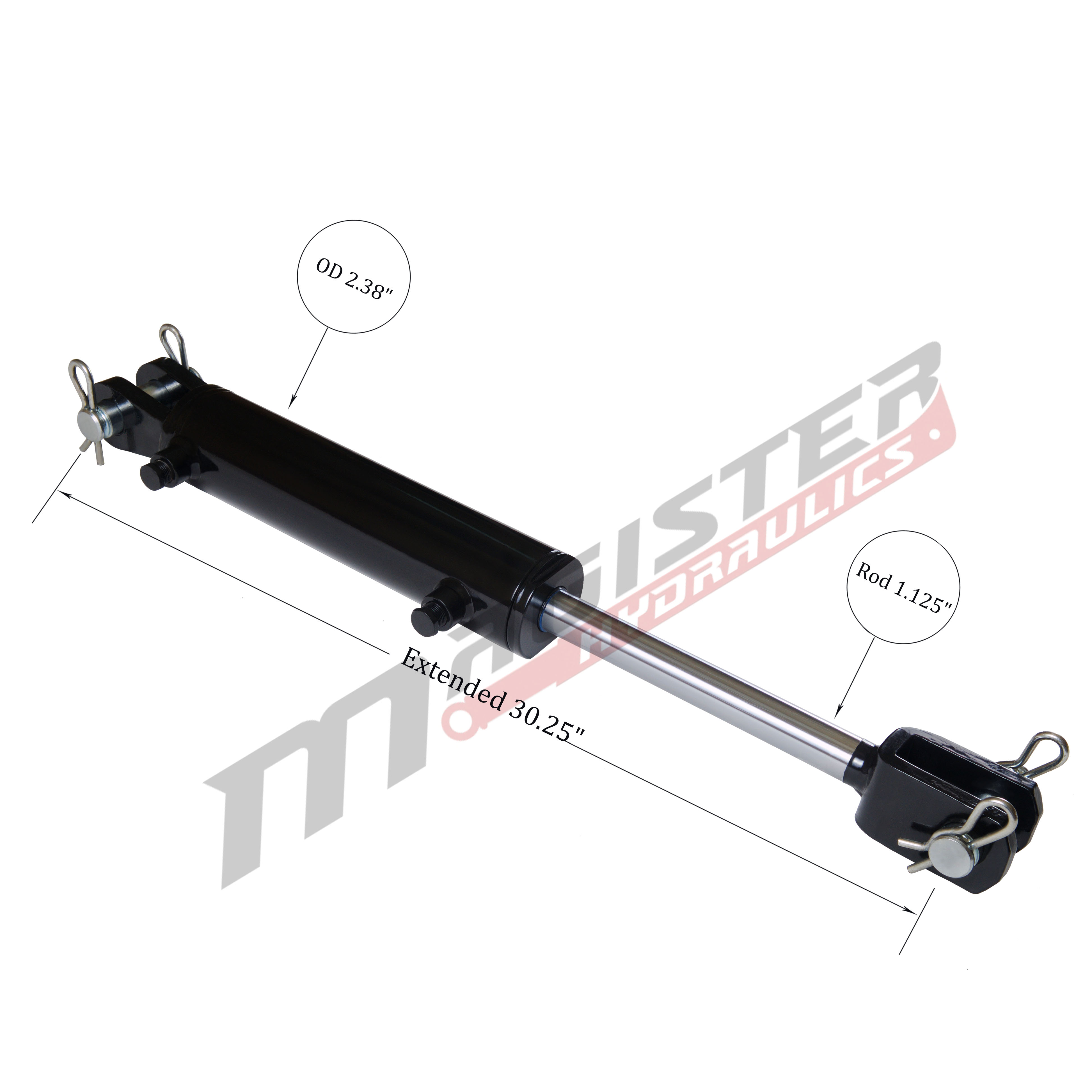

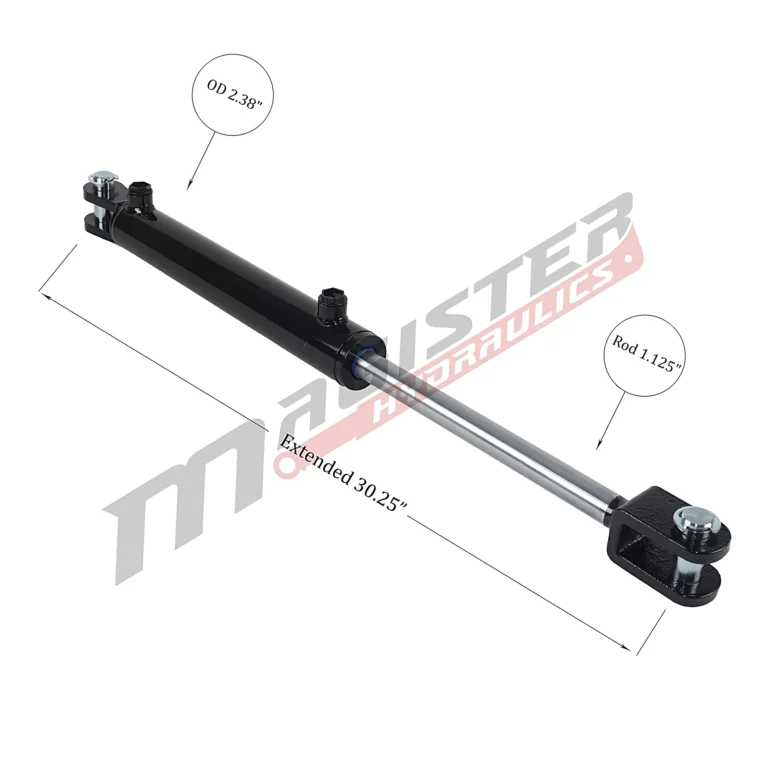

Extended :	30.25 in

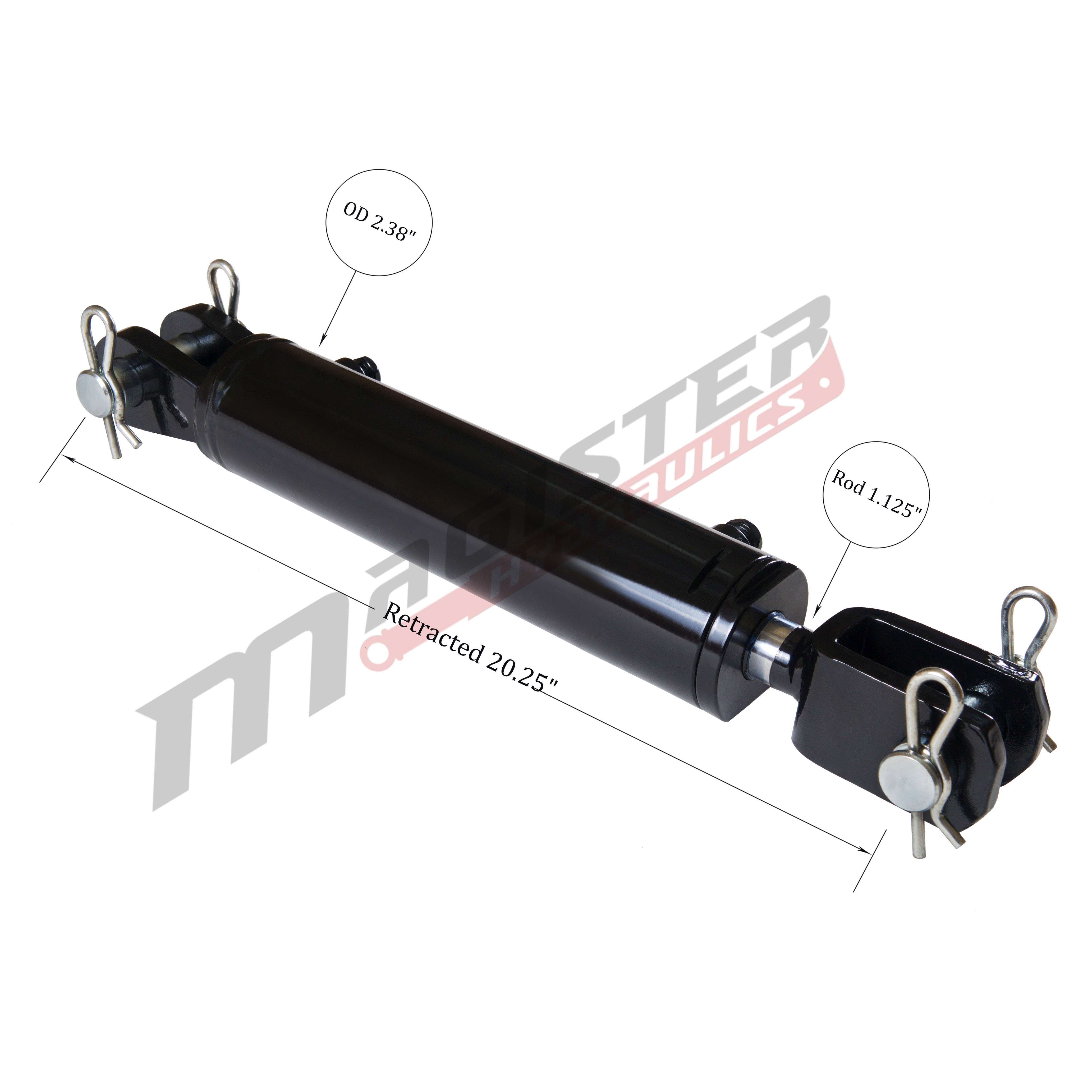

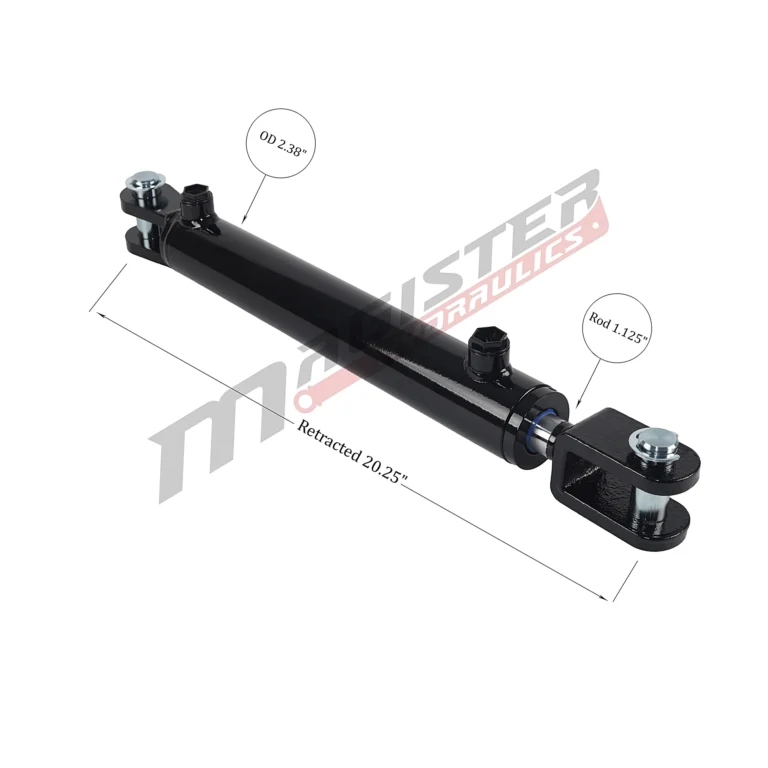

Retracted :	20.25 in
Overall length :	22.25 in
Pressure :	2500 PSI
Column Load :	7,850 LBs
Oil Volume :	0.54 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated

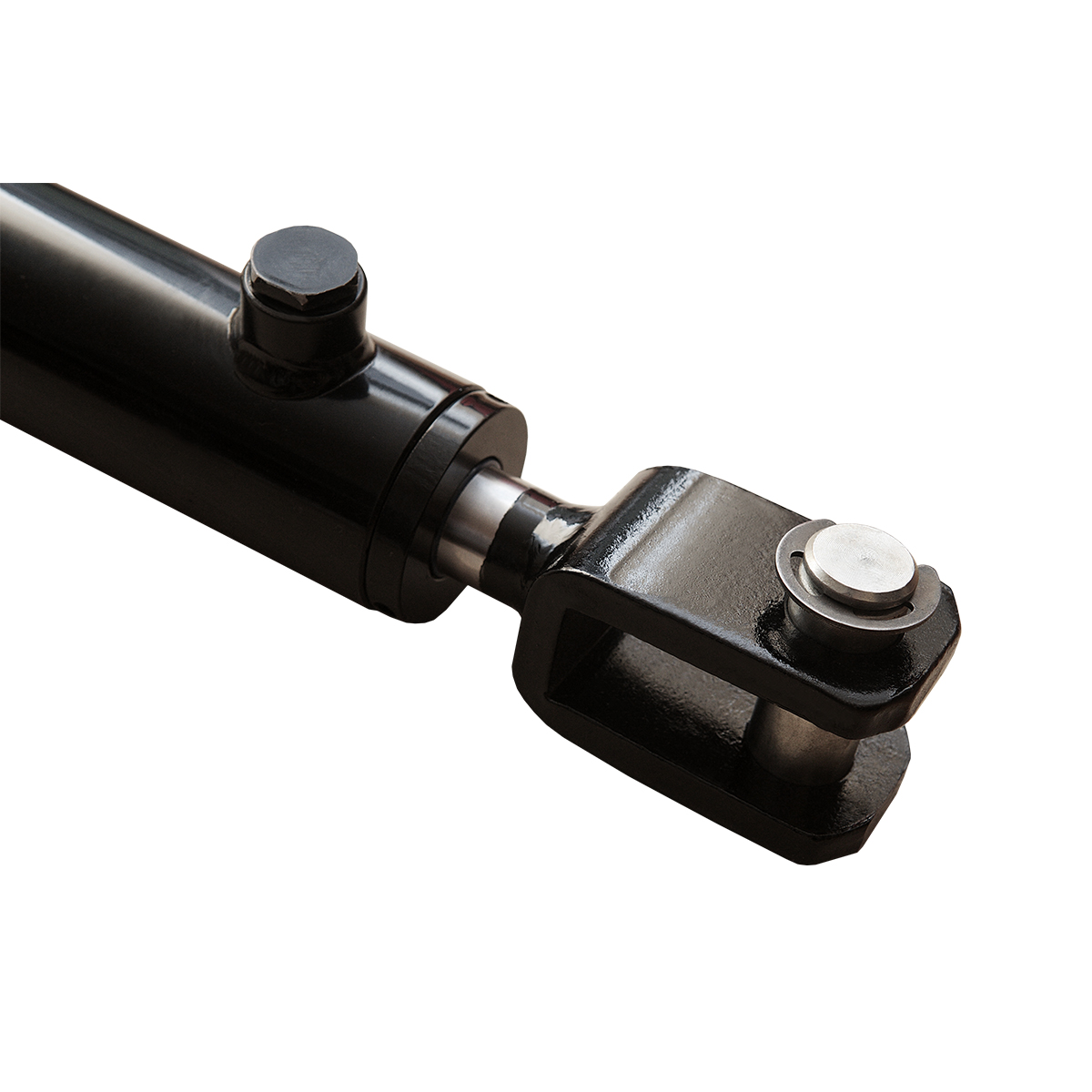

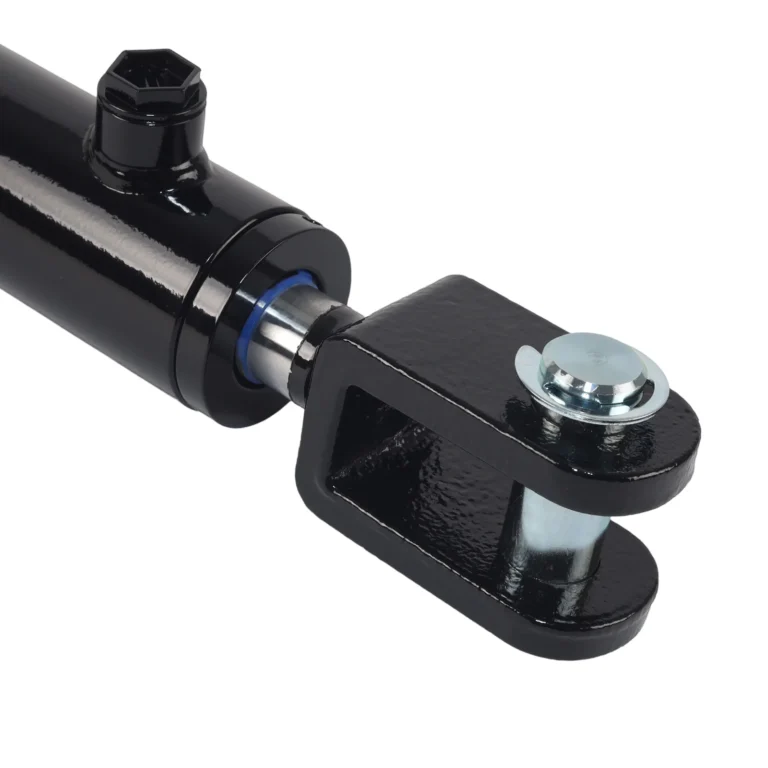

Rod End :	Clevis
Action :	Double Acting
Weight :	16 LBs
GTIN :	850016509277

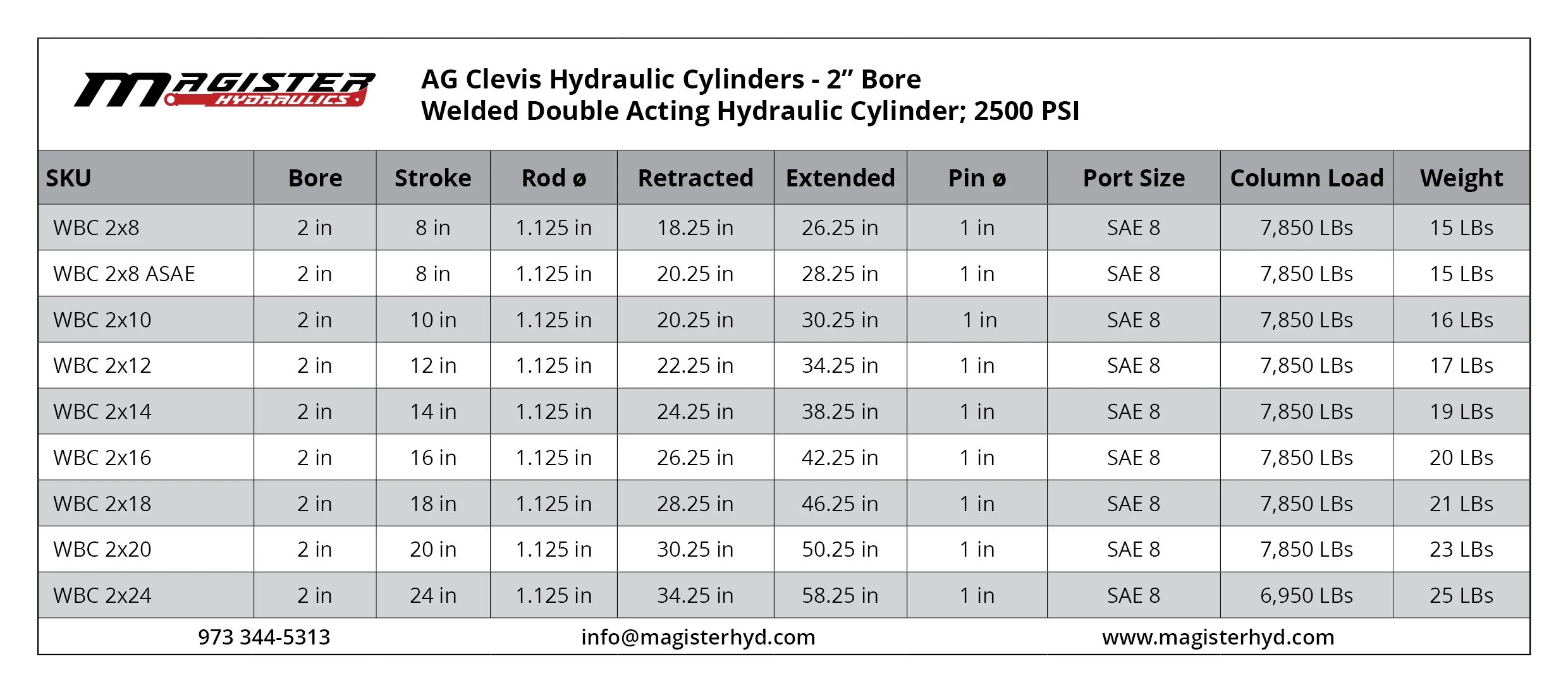

SKU: WBC 2x10 Categories: 2" Bore AG Clevis, Hydraulic Cylinders

Volume discounts

1+ PRICE EA

$164.00

4+ PRICE EA -5%

$155.80

8+ PRICE EA -10%

$147.60

In stock

81 in stock

Description

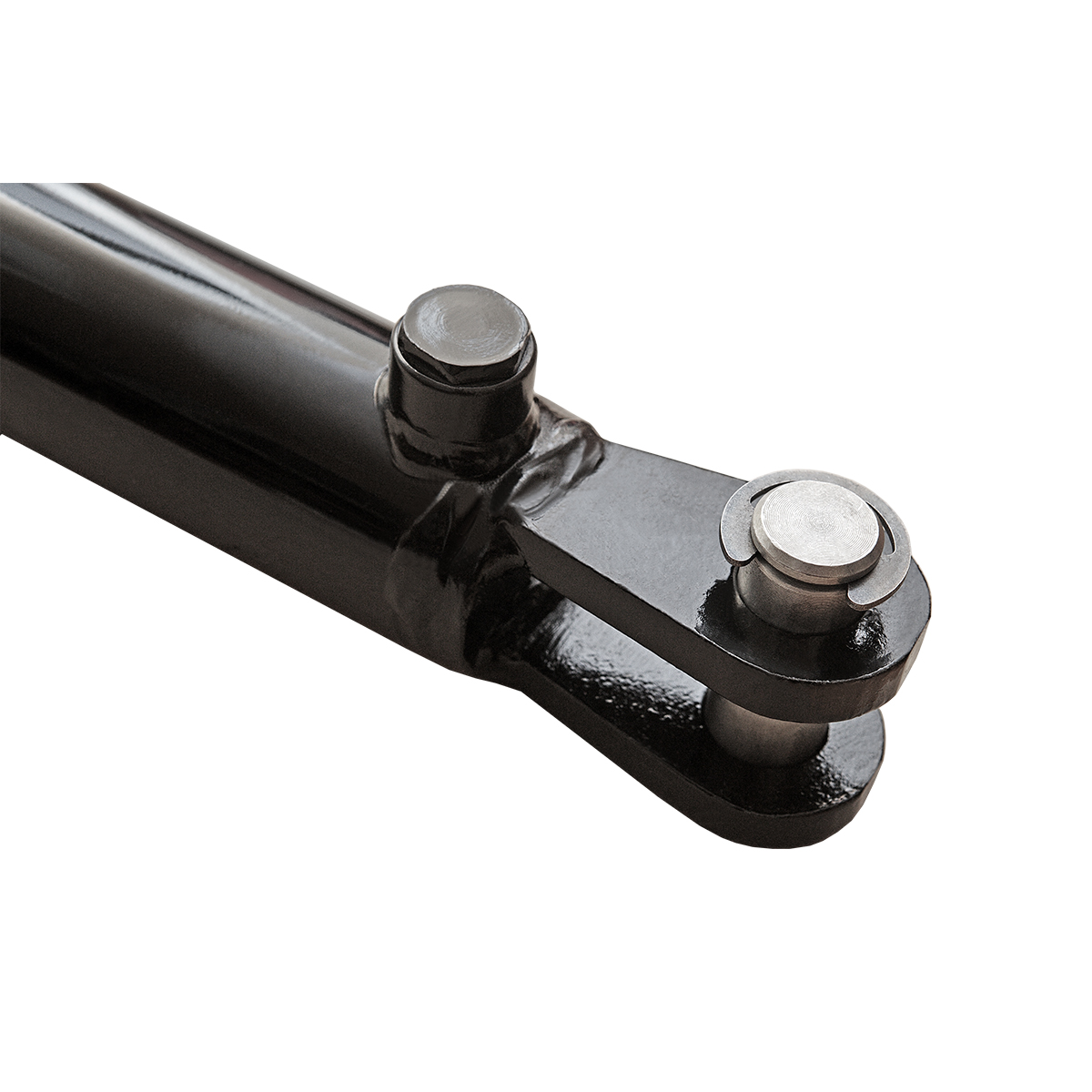

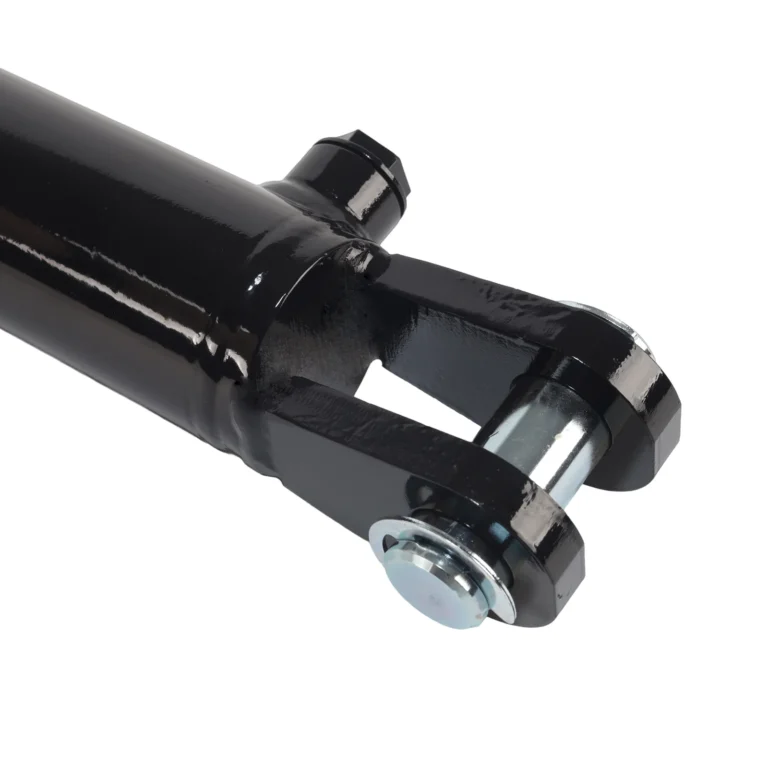

2″ bore x 10″ stroke ag clevis hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel gland with wear rings for long life. Welded steel clevis ends, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Agriculture clevis cylinder is a perfect welded alternative of tie rod cylinder. Great replacement for farming equipment and others.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

973-344-5313
