2.5 bore x 20 stroke hydraulic cylinder, tie rod double acting cylinder | Magister Hydraulics

2.5" bore x 20" stroke tie rod hydraulic cylinder

Name: 2.5" bore x 20" stroke tie rod hydraulic cylinder
SKU: TRC 2.5x20
Availability: InStock
Rating: 4.80 (6 reviews)

$195.00

Pay in 4 interest-free payments of $48.75

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: TRC 2.5x20

Product SKU	Maxim part number	Chief part number	Prince-Wolverine part number	Eagle part number	Cross part number
TRC 2.5x20	218324	211329	F250200ABAAA07B	HTR2520-ORB-P	2520DB

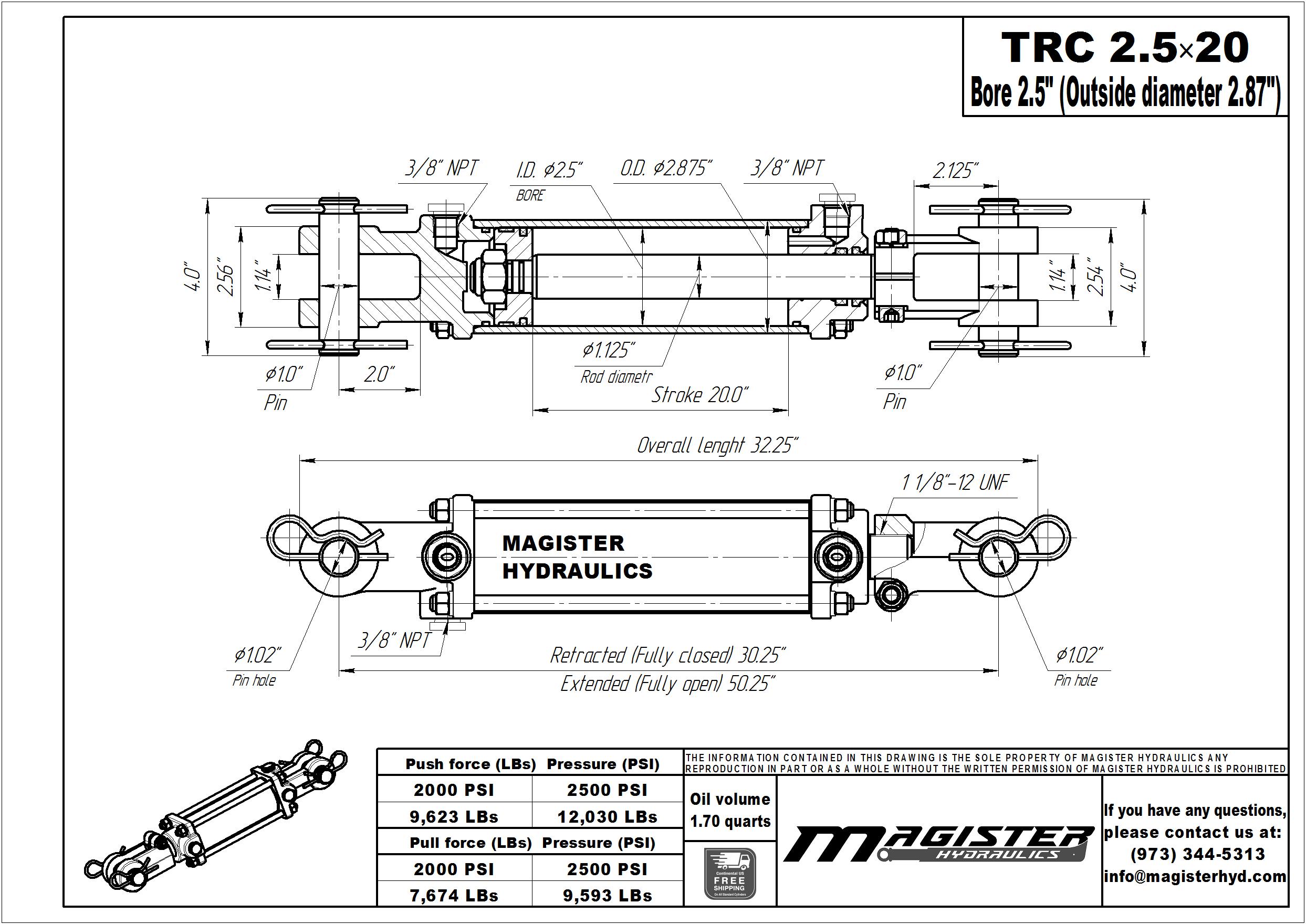

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	2.5 in
Outer Dia. (⌀) :	2.87 in
Stroke :	20 in
Rod Dia. (⌀) :	1.125 in
Port Size :	3/8" NPT
Pin Dia. (⌀) :	1 in
Extended :	50.25 in
Retracted :	30.25 in
Overall length :	32.25 in
Pressure :	2500 PSI
Column Load :	7,100 LBs
Oil Volume :	1.7 QTs
Brand :	Magister Hydraulics
Design :	Tie Rod
Rod Type :	Chrome Plated
Rod End :	Clevis
Action :	Double Acting
Weight :	32 LBs
GTIN :	854335007582

SKU: TRC 2.5x20 Categories: 2.5" Bore Tie Rod, Hydraulic Cylinders

Volume discounts

4+ PRICE EA -5%

$185.25

8+ PRICE EA -10%

$175.50

In stock

12 in stock

Description

2.5″ bore x 20″ stroke tie rod hydraulic cylinder 2500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured with wear rings for long life. Cast iron clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
Applications: Tie-rod double acting hydraulic cylinder
Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
