2" bore x 30" stroke clevis hydraulic cylinder
$255.00
Pay in 4 interest-free payments of $63.75SKU: WCL 2x30

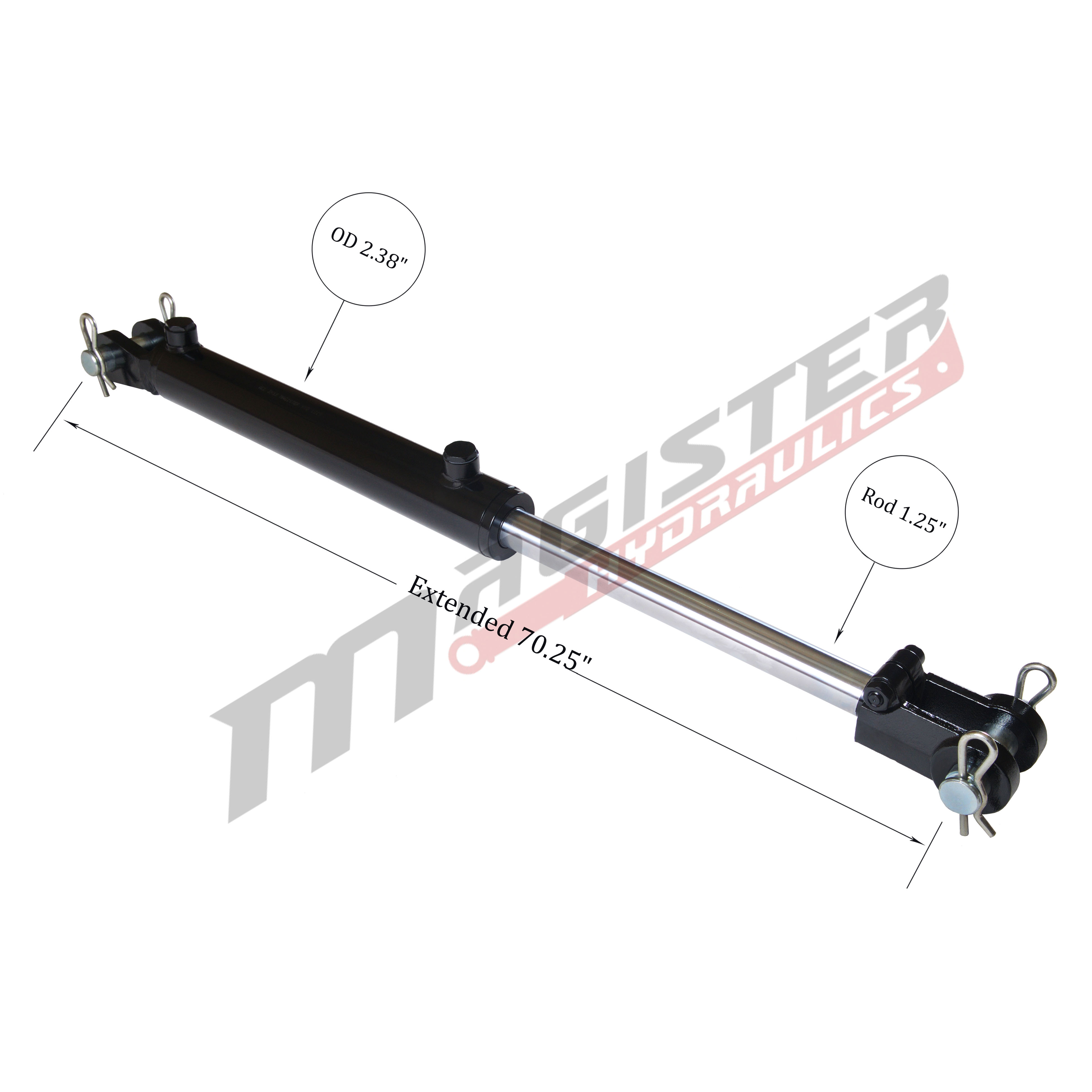

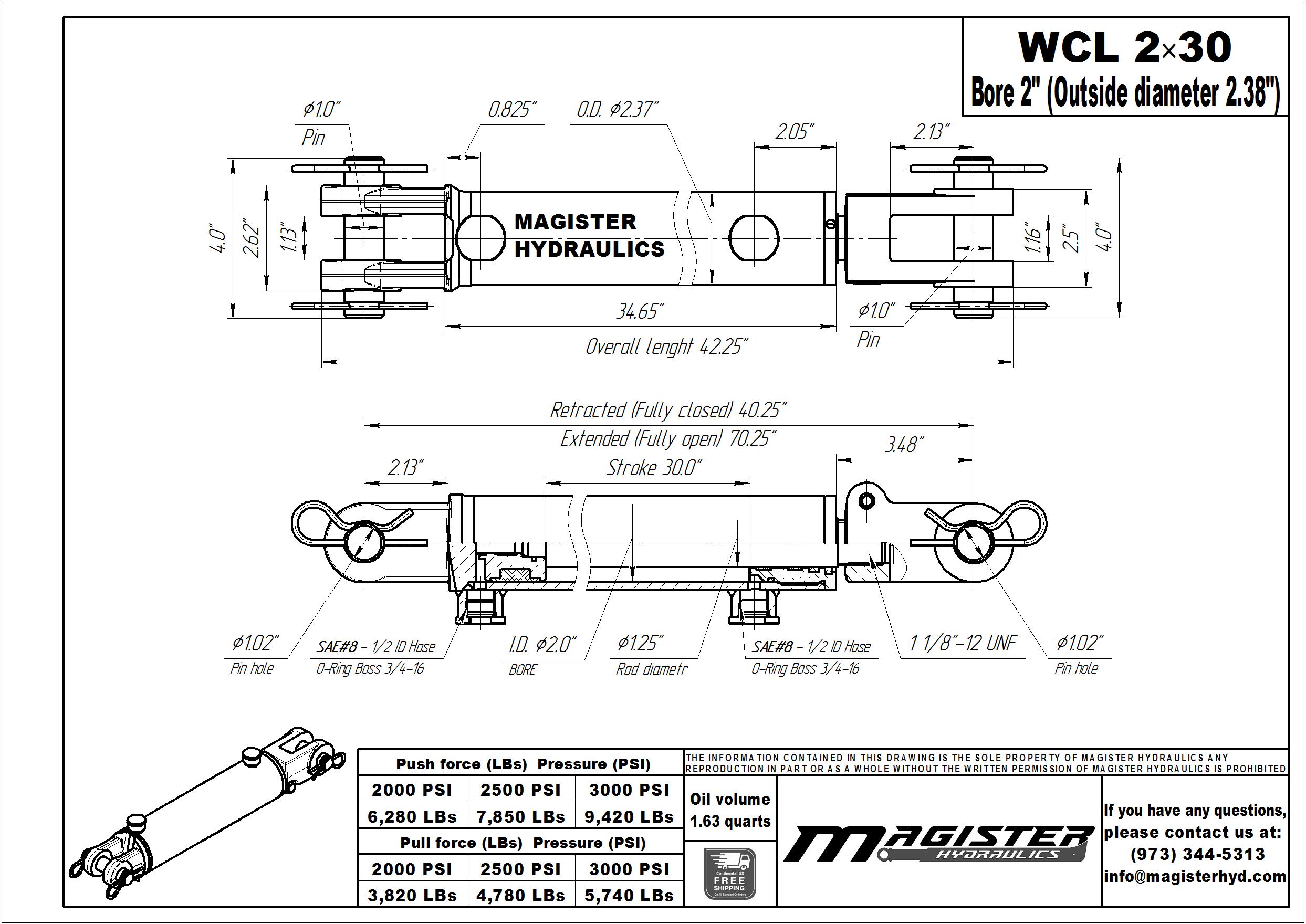

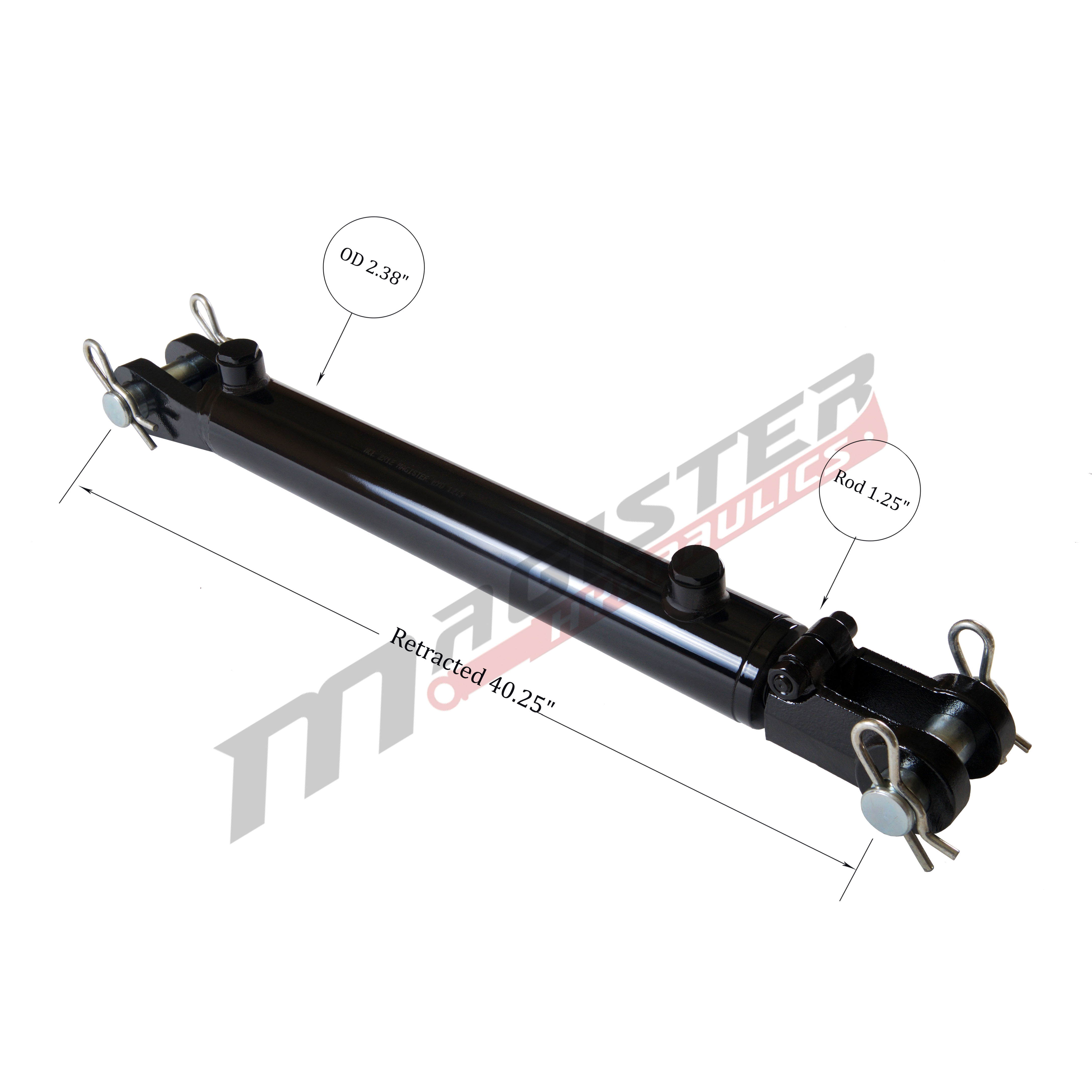

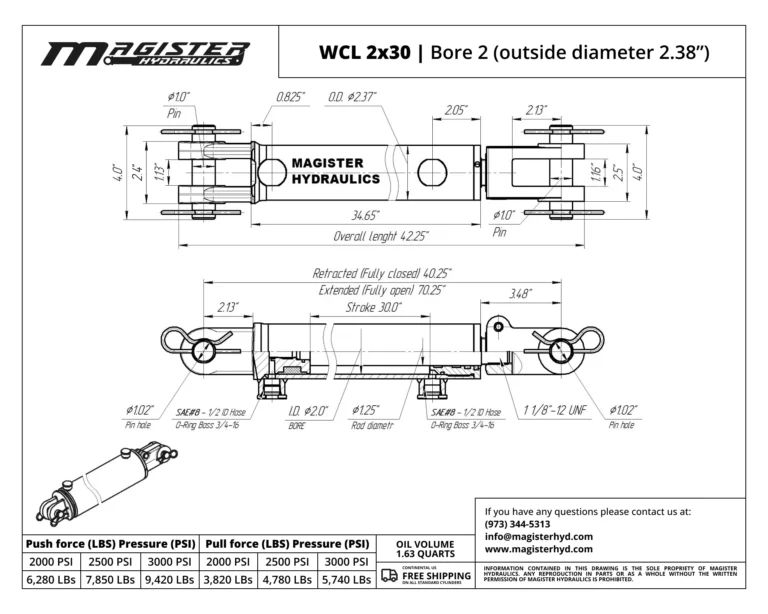

| Bore : | 2 in | Outer Dia. (⌀) : | 2.37 in | Stroke : | 30 in | Rod Dia. (⌀) : | 1.25 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 70.25 in | Retracted : | 40.25 in | Overall length : | 42.25 in | Pressure : | 3500 PSI | Column Load : | 5,300 LBs | Oil Volume : | 1.63 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Clevis | Action : | Double Acting | Weight : | 34 LBs |
|---|---|
| GTIN : | 850597006851 |
Volume discounts
1+ PRICE EA
$255.00
4+ PRICE EA -5%
$242.25
8+ PRICE EA -10%
$229.50
In stock
73 in stock
Description
- 2″ bore x 30″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
