2" bore x 14" stroke clevis hydraulic cylinder


Pay in 4 interest-free payments of $52.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCL 2x14

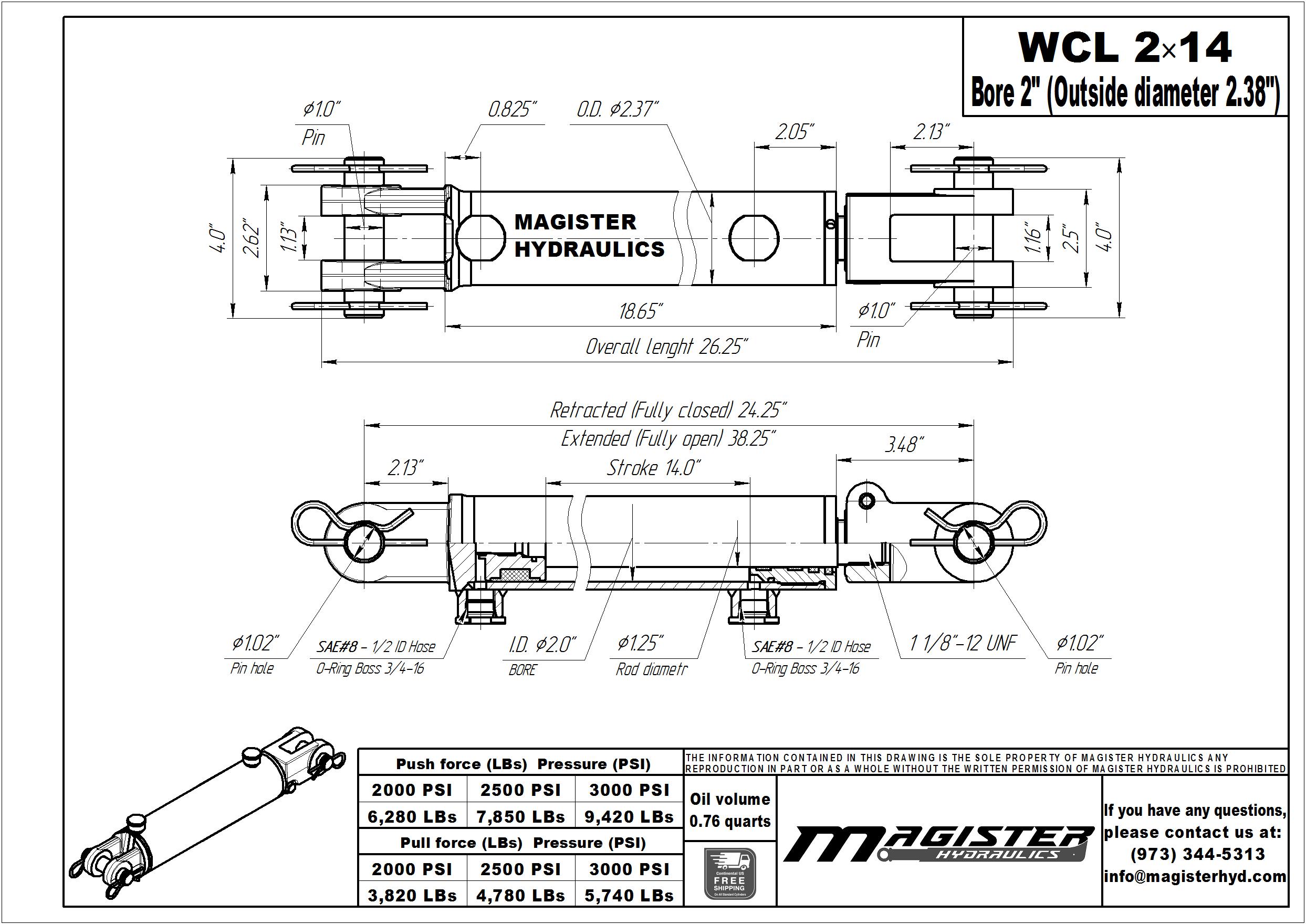

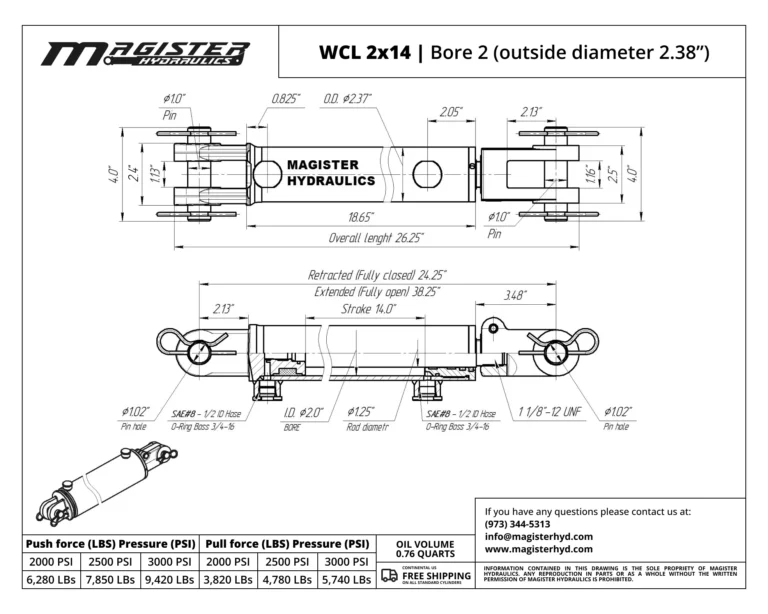

Bore : 2 in
Outer Dia. (⌀) : 2.37 in
Stroke : 14 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

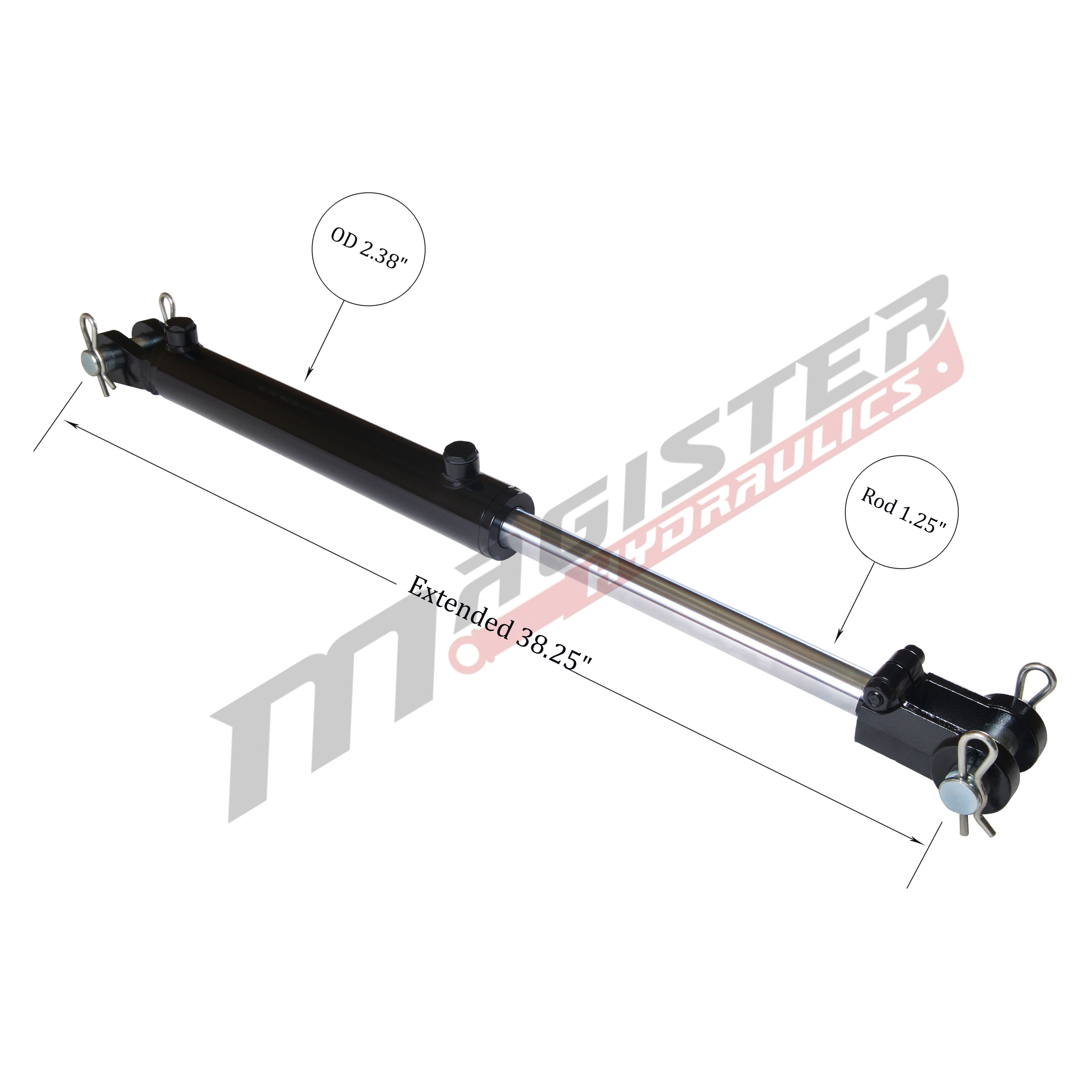

Extended : 38.25 in

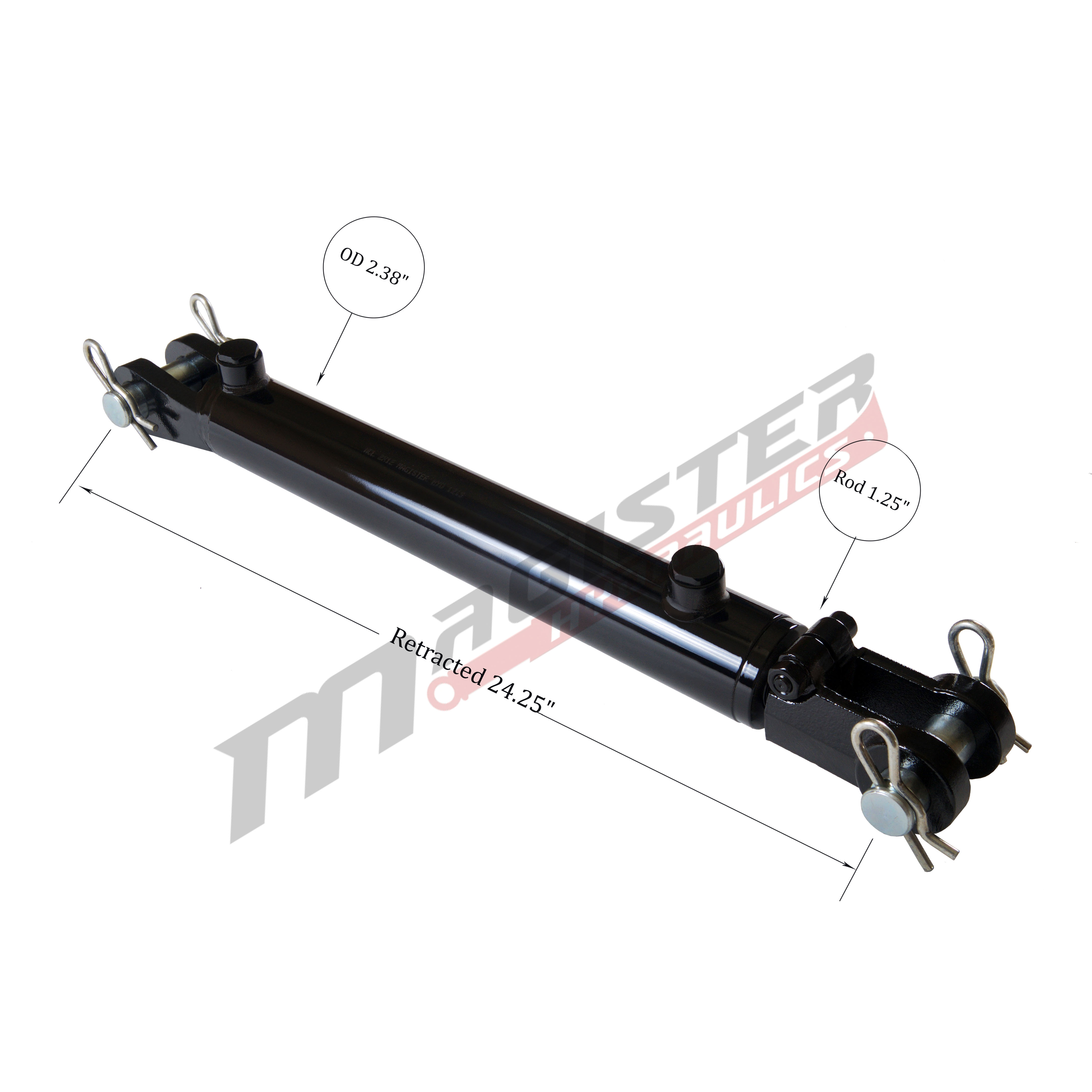

Retracted : 24.25 in
Overall length : 26.25 in
Pressure : 3500 PSI
Column Load : 9,400 LBs
Oil Volume : 0.76 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated

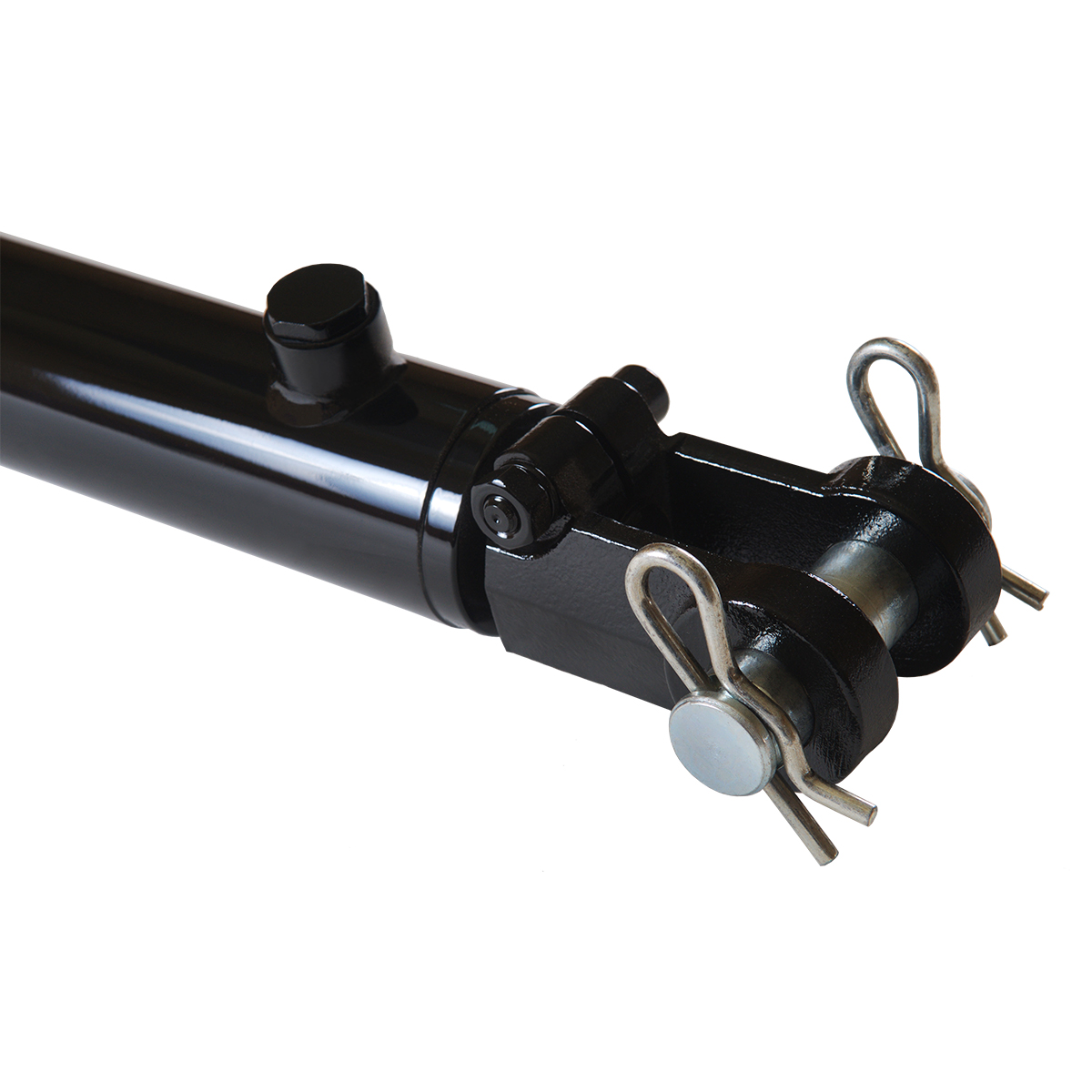

Rod End : Clevis
Action : Double Acting
Weight : 23 LBs
GTIN : 850597006752
SKU: WCL 2x14 Categories: ,

Volume discounts

4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

57 in stock

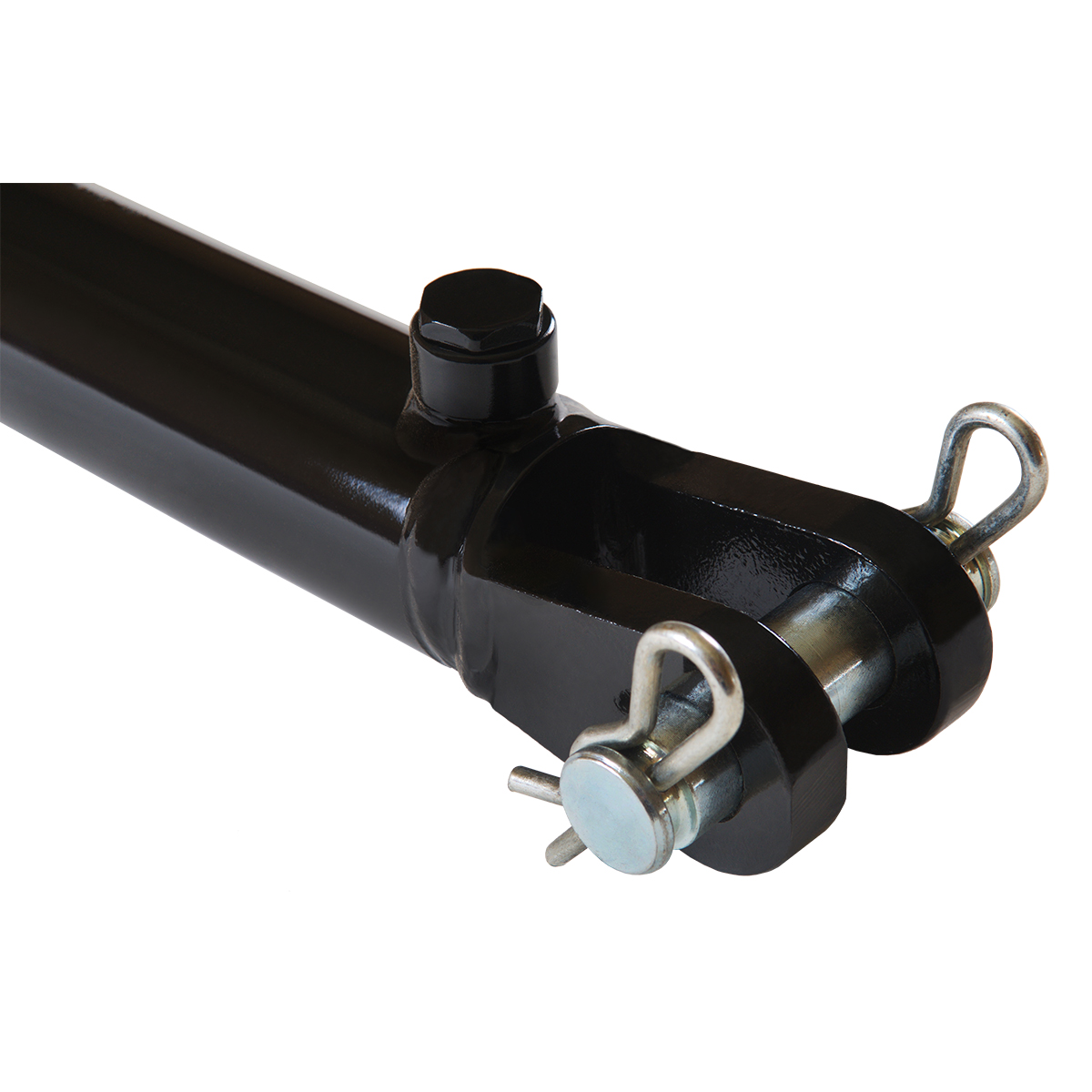

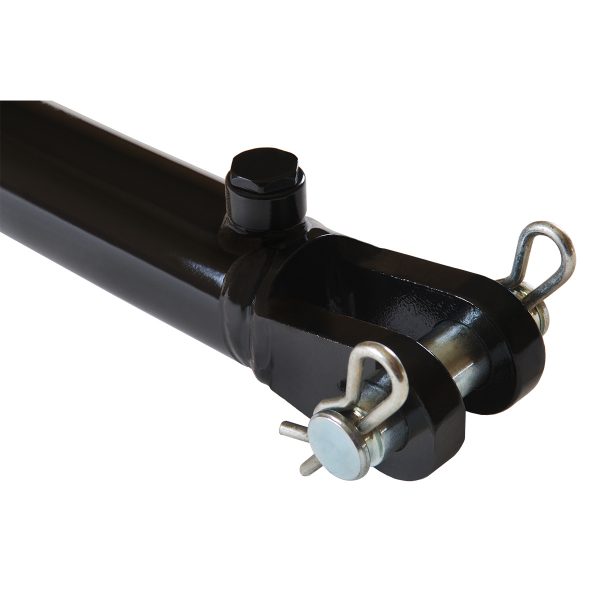

  • 2″ bore x 14″ stroke clevis hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded steel clevis ends with screw-on clevis on the rod end, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for farming equipment and others.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.
