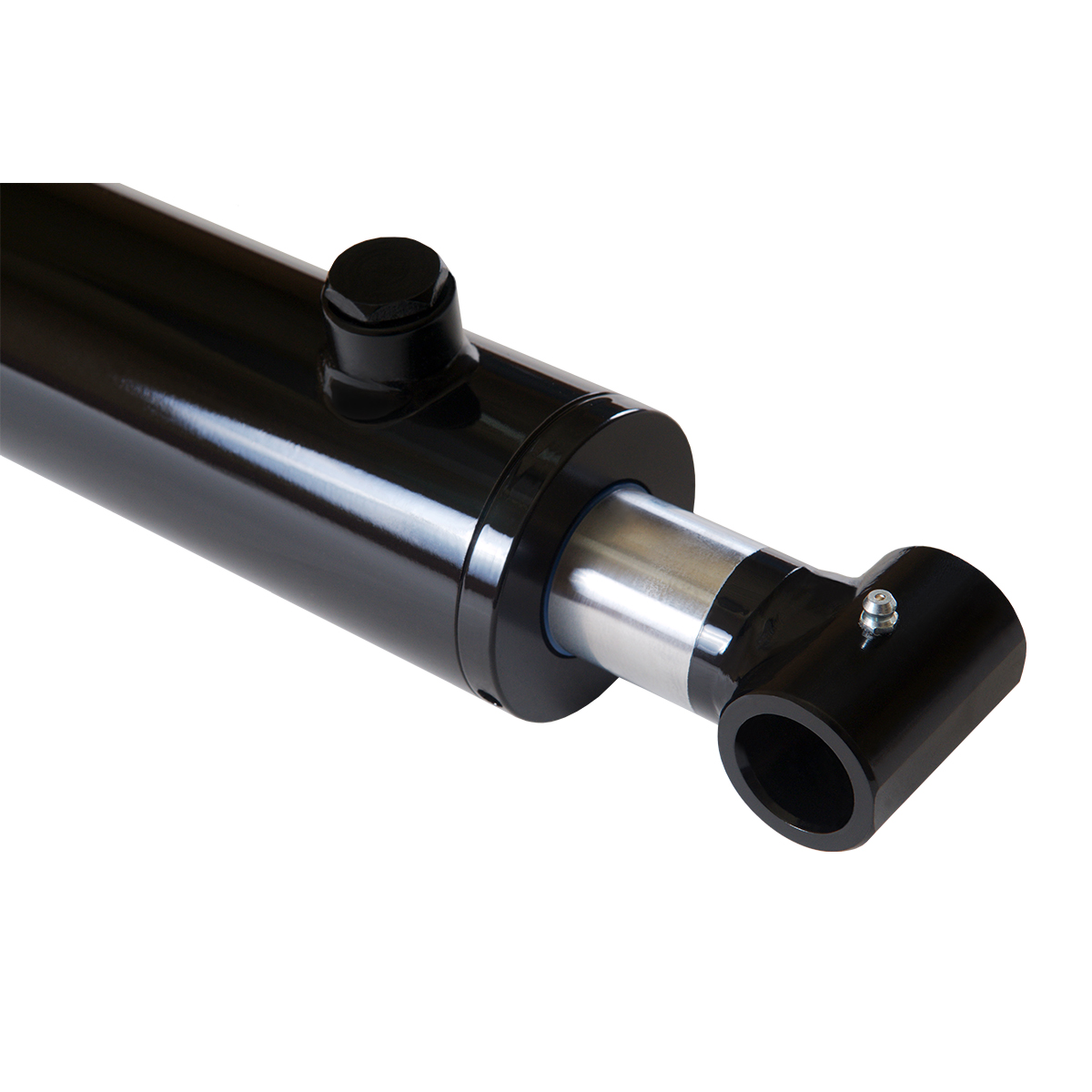

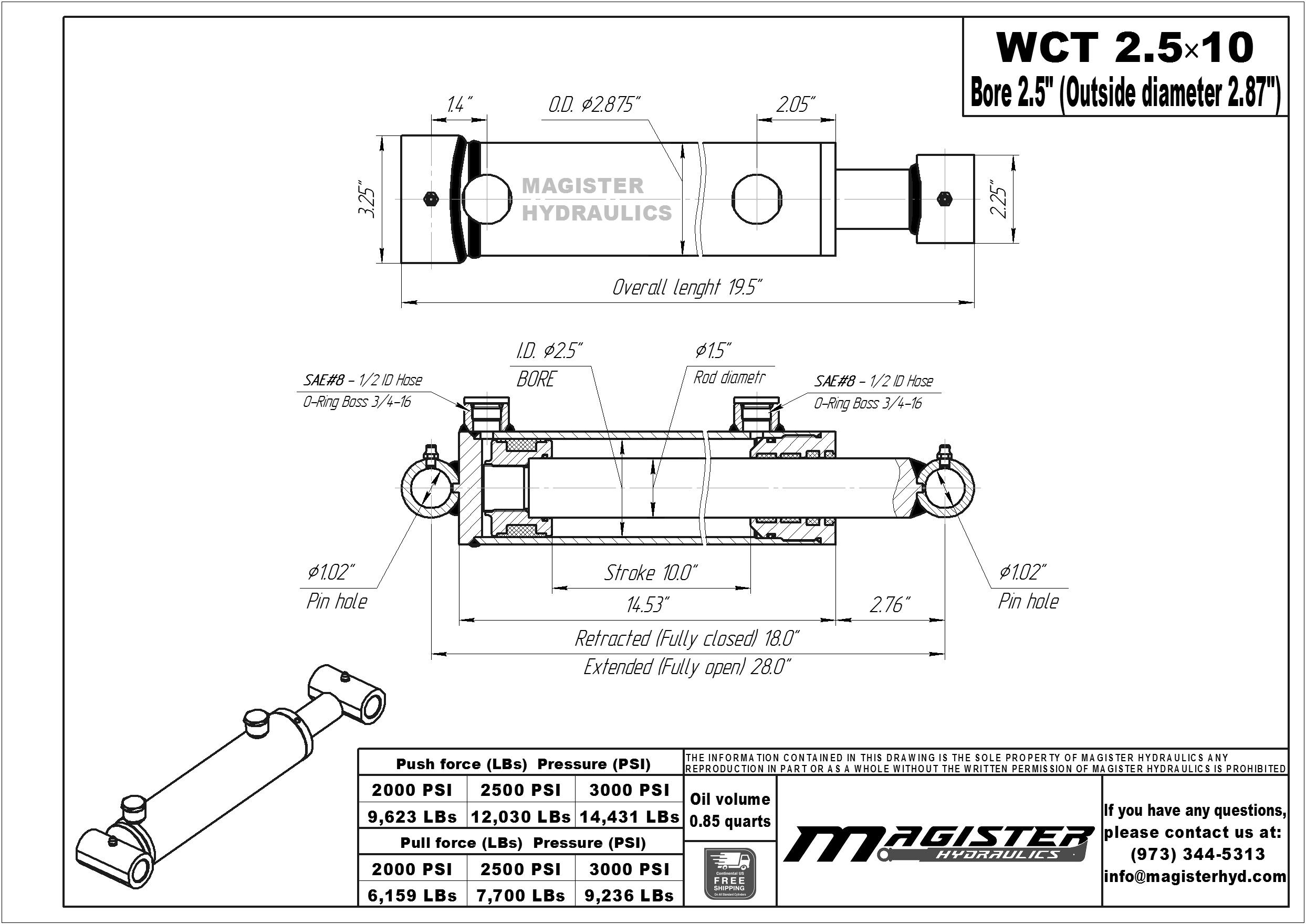

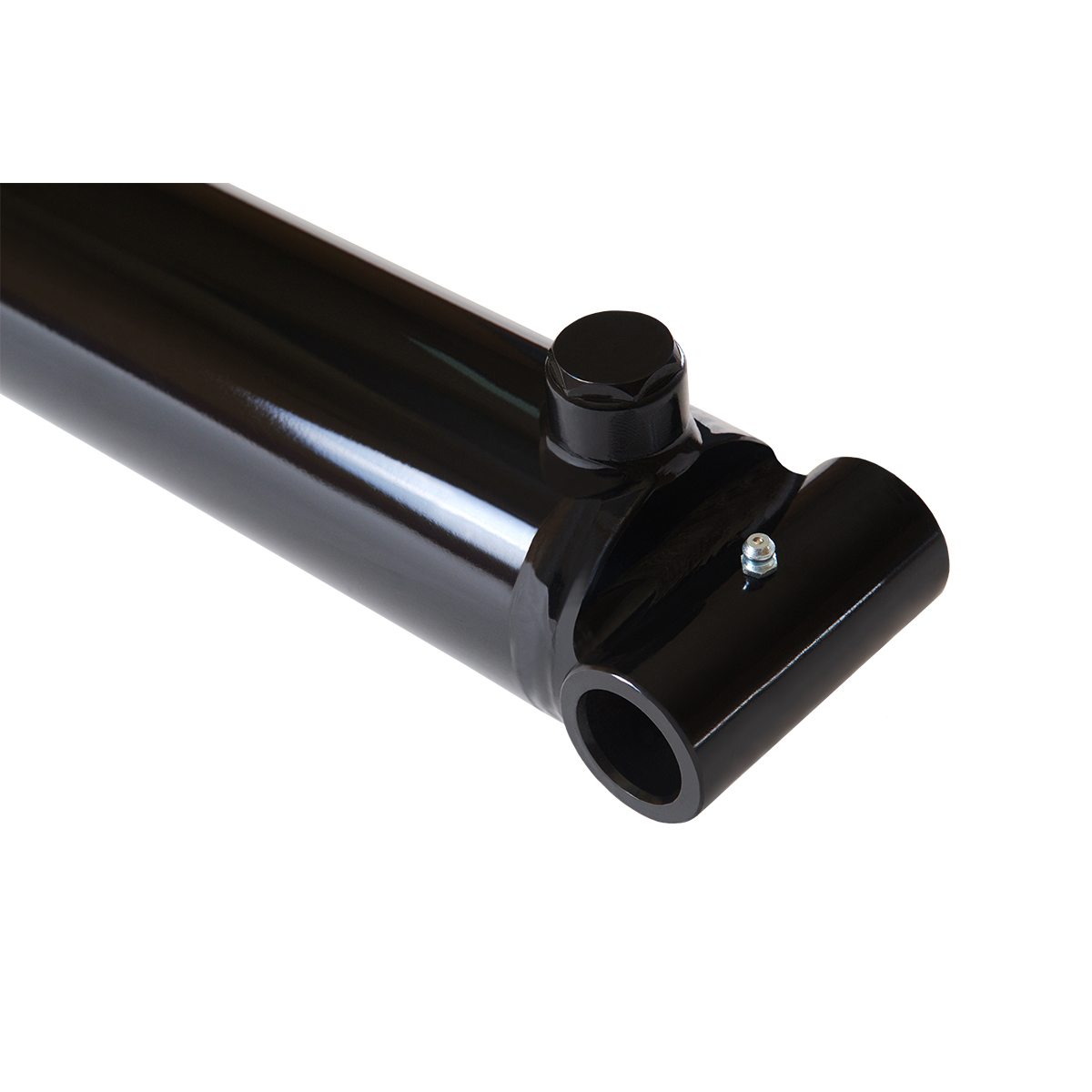

2.5" bore x 10" stroke cross tube hydraulic cylinder

$205.00

Pay in 4 interest-free payments of $51.25
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2.5x10
Bore : 2.5 in
Outer Dia. (⌀) : 2.875 in
Stroke : 10 in
Rod Dia. (⌀) : 1.5 in
Port Size : SAE 8
Pin Dia. (⌀) : 1 in

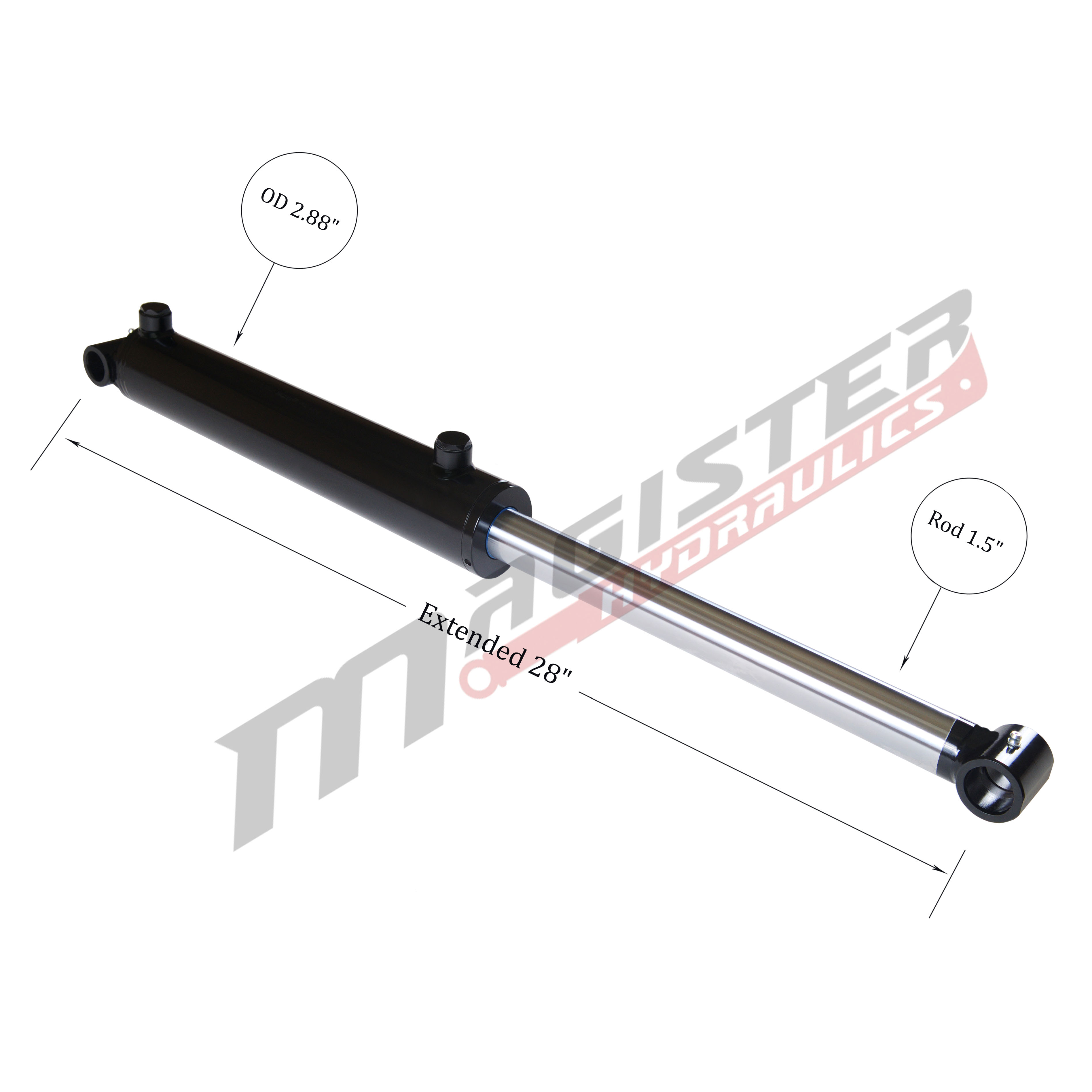

Extended : 28 in
Retracted : 18 in
Overall length : 19.5 in
Pressure : 3500 PSI
Column Load : 14,700 LBs
Oil Volume : 0.85 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Cross Tube
Action :
  • Double Acting
  • Weight : 20 LBs
    GTIN : 850597006073

    Volume discounts

    1+ PRICE EA
    $205.00
    4+ PRICE EA -5%
    $194.75
    8+ PRICE EA -10%
    $184.50
    In stock

    159 in stock

    Description

    • 2.5″ bore x 10″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
    • Applications: Welded Double Acting Hydraulic Cylinder.
    • Color: Black.

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
