2.5" bore x 6" stroke cross tube hydraulic cylinder
Pay in 4 interest-free payments of $44.75* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2.5x6

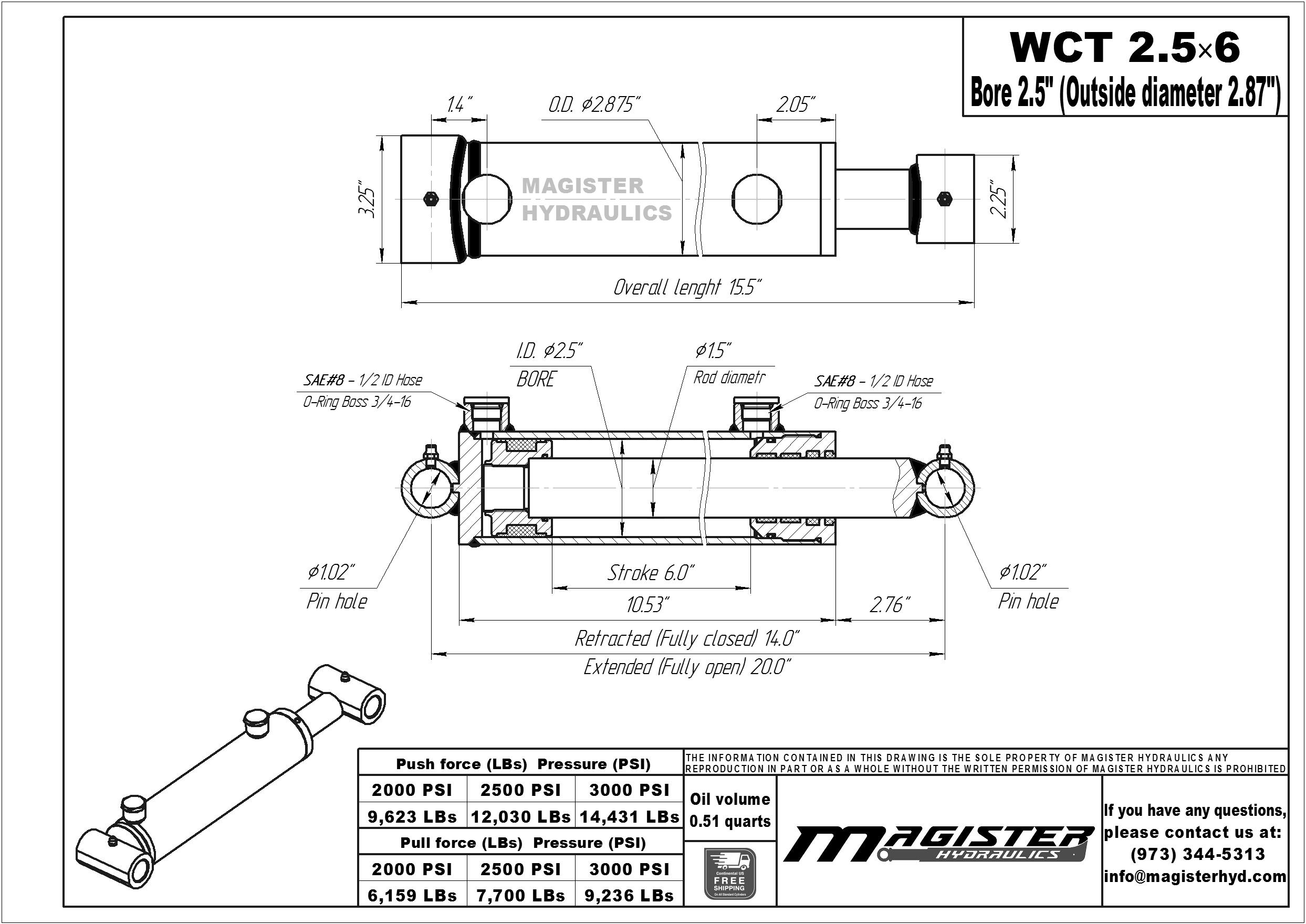

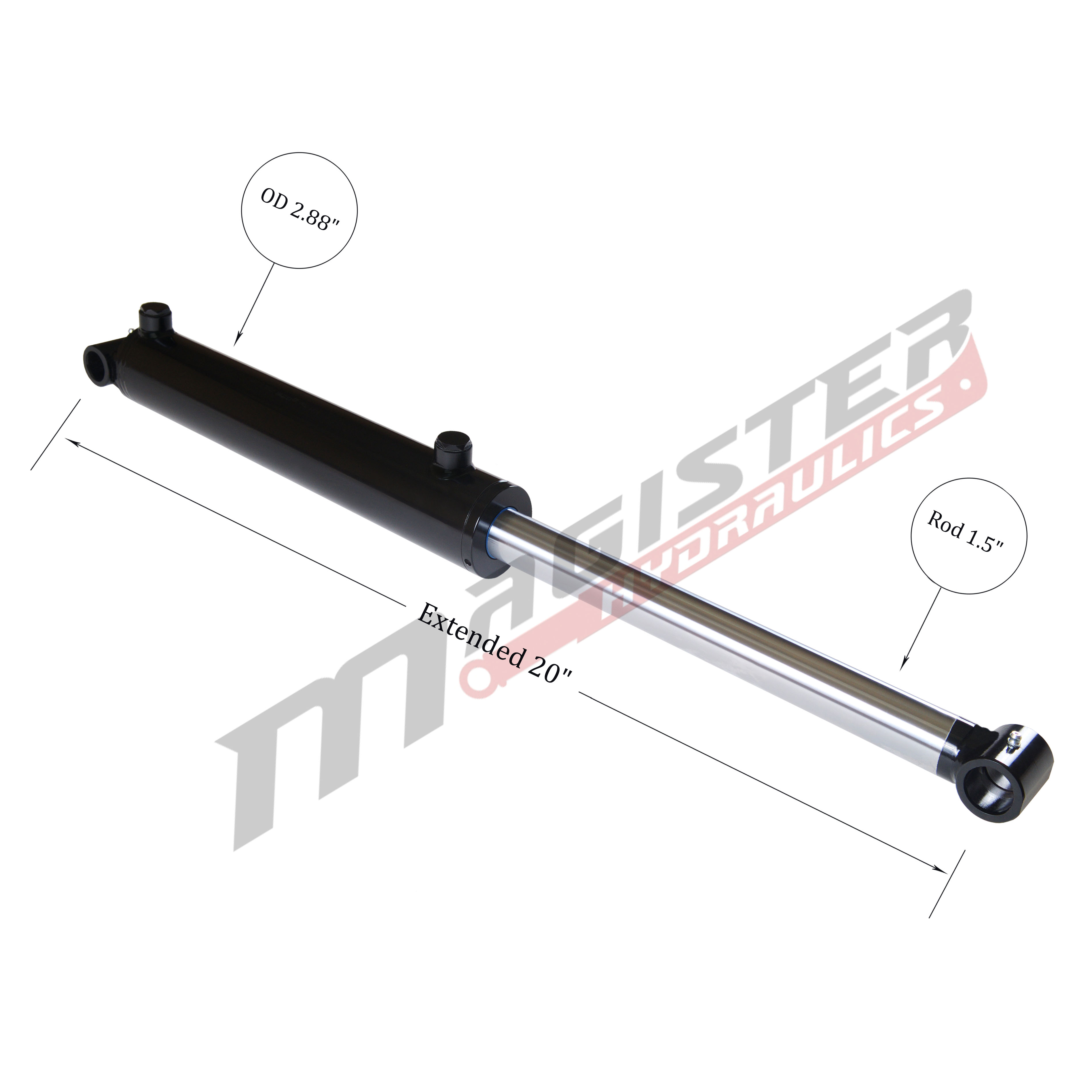

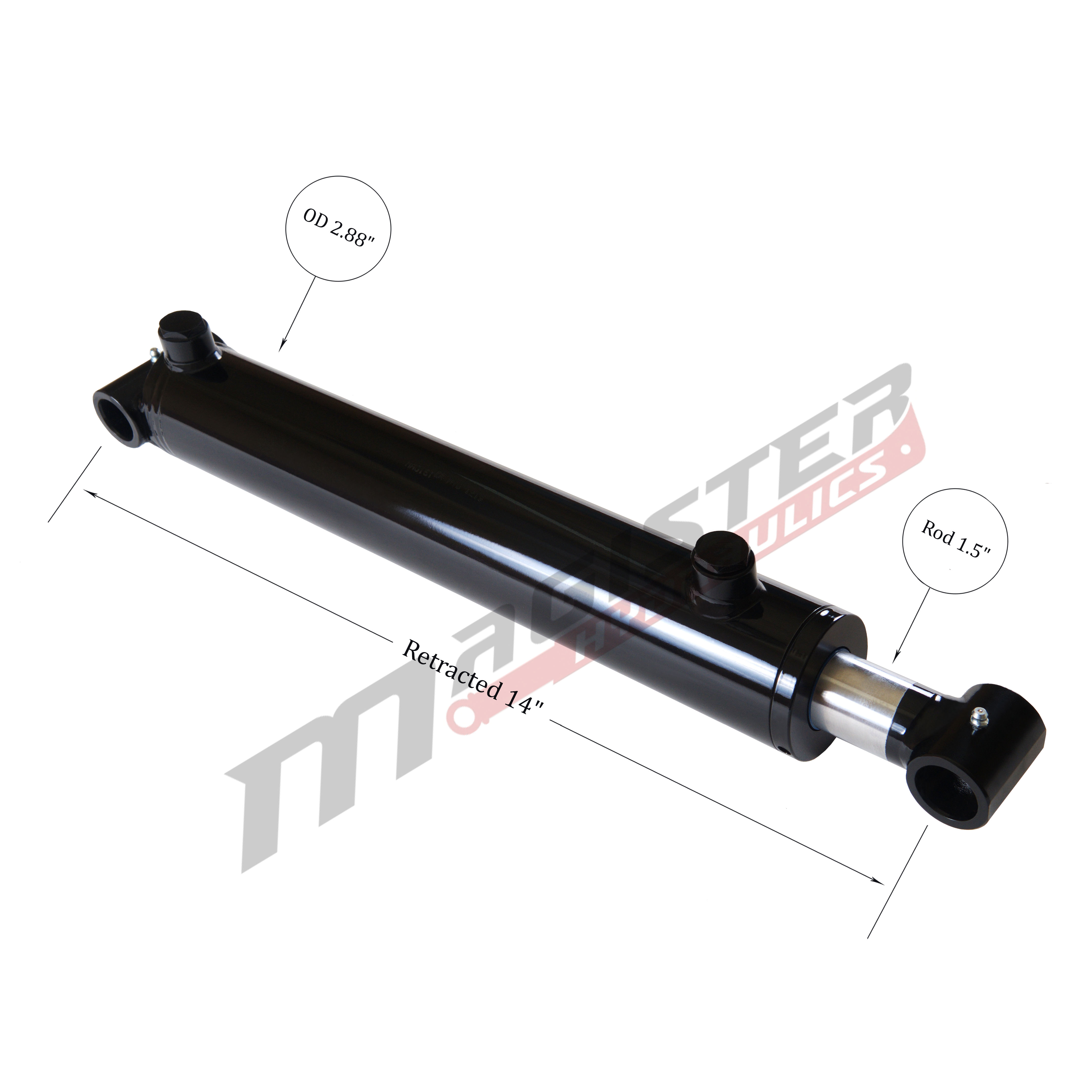

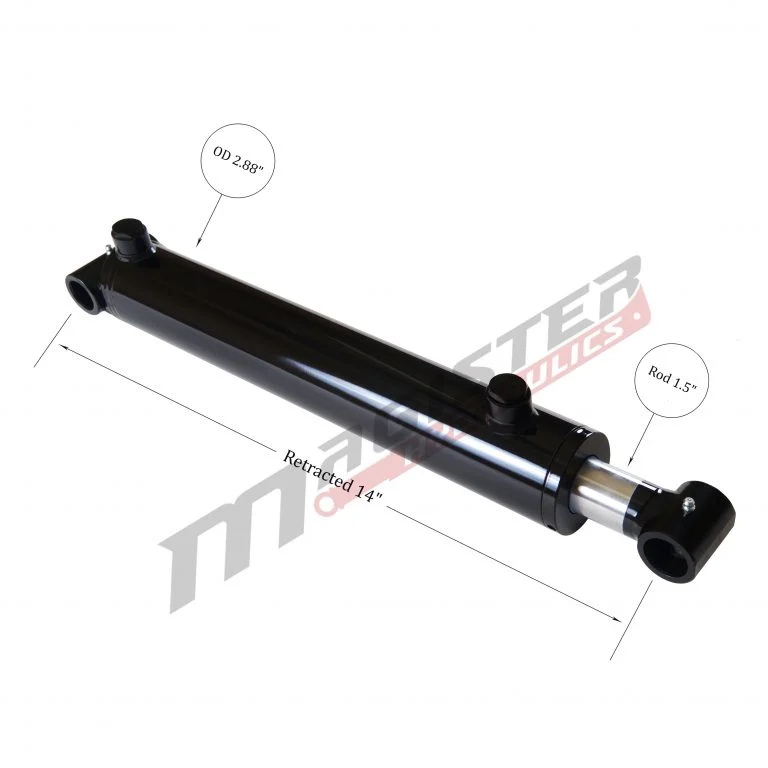

|Bore :||2.5” Bore Hydraulic Cylinders||OD :||2.875"||Stroke :||6” Stroke Hydraulic Cylinders||Rod :||1.5"||Port Size :||SAE 8||Pin :||1"||Extended :||20"||Retracted :||14"||Overall length :||15.5"||Pressure :||Hydraulic Cylinders 3500 PSI||Column Load (LBs) :||14,700||Oil Volume (quarts) :||0.51||Brand :||Magister Hydraulics|
1+ PRICE EA
4+ PRICE EA -5%
8+ PRICE EA -10%
47 in stock

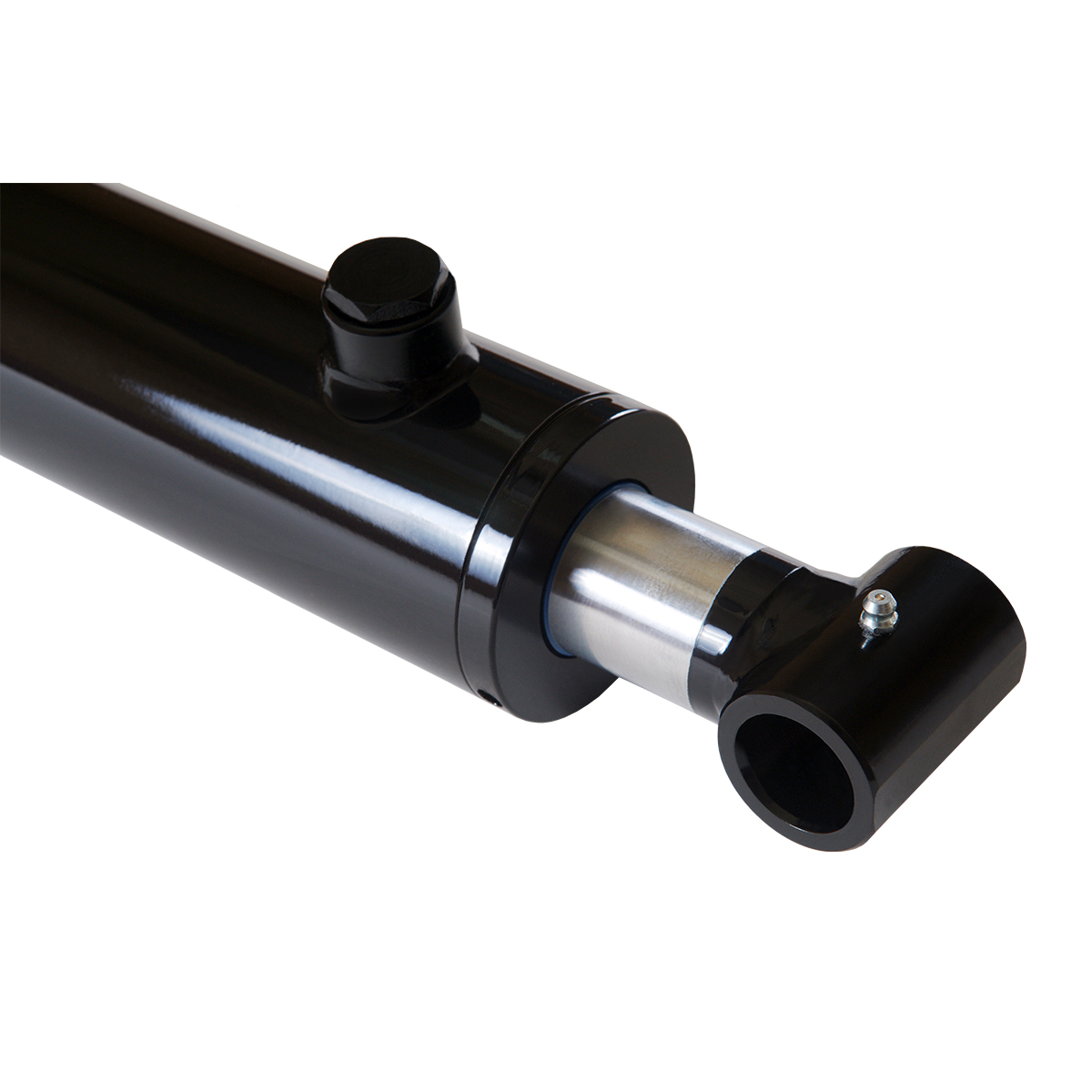

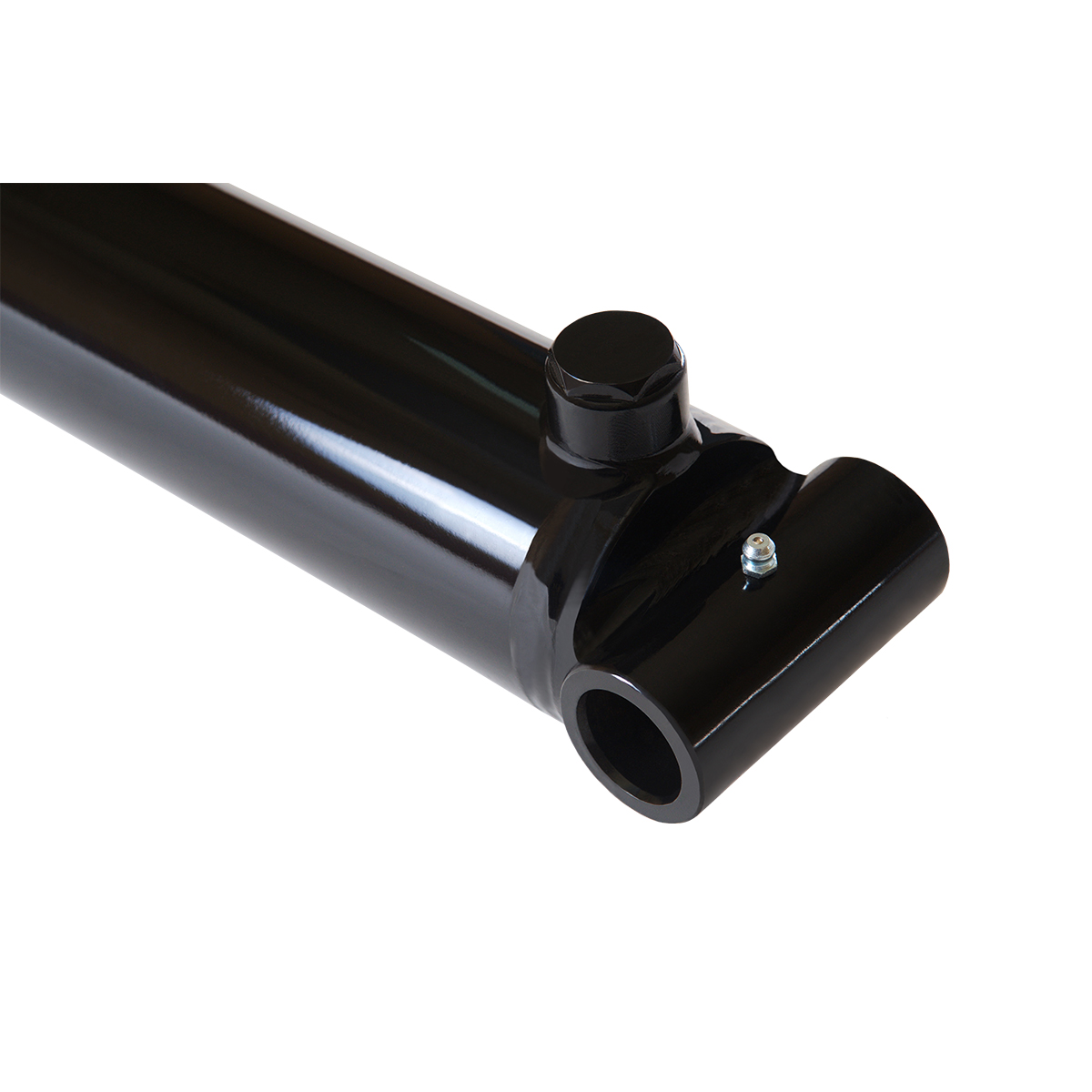

- 2.5″ bore x 6″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
