2.5 bore x 30 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics

2.5" bore x 30" stroke cross tube hydraulic cylinder

$277.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 2.5x30
OD : 2.875"
Stroke : 30 inch
Rod : 1.5"
Port Size : SAE 8
Pin : 1"

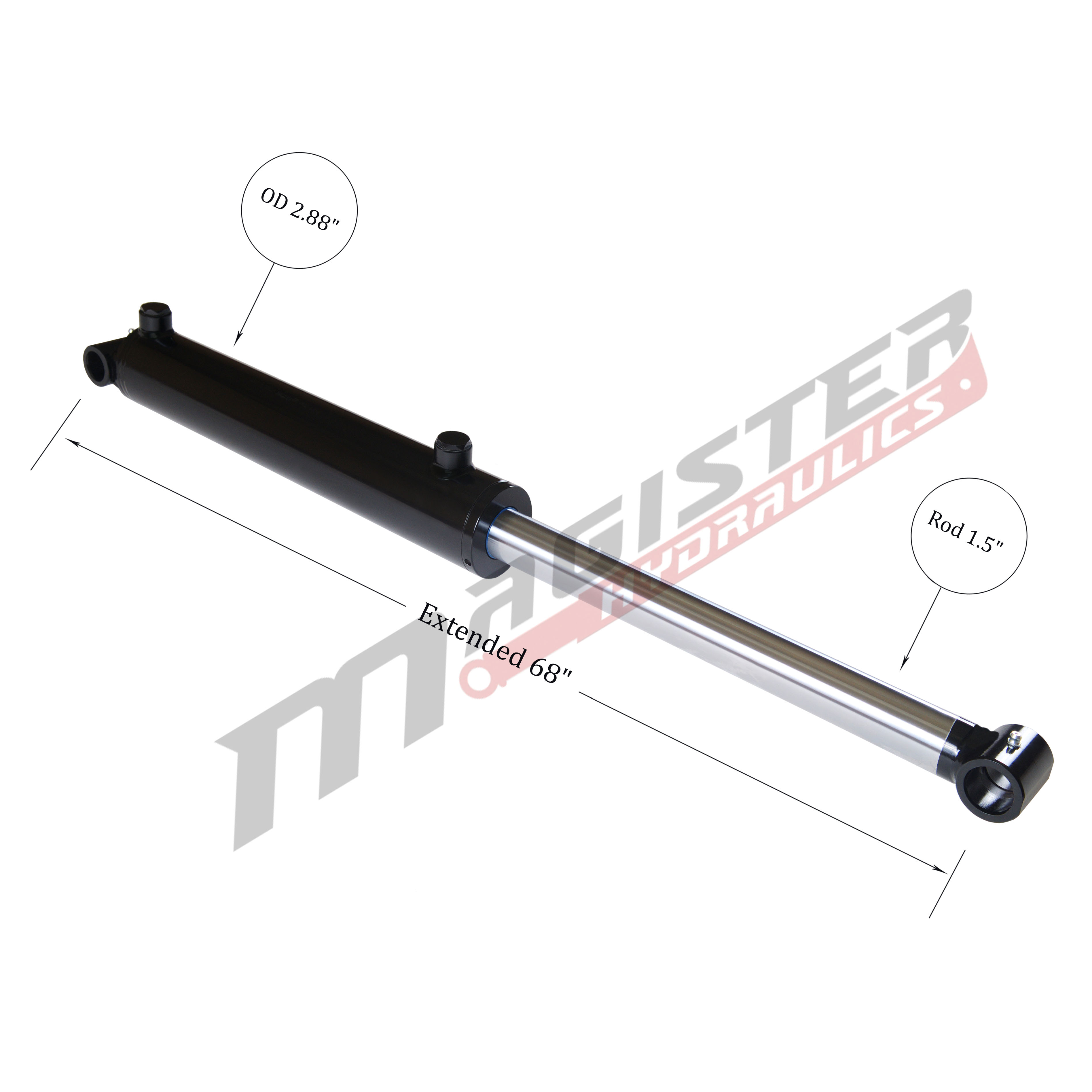

Extended : 68"

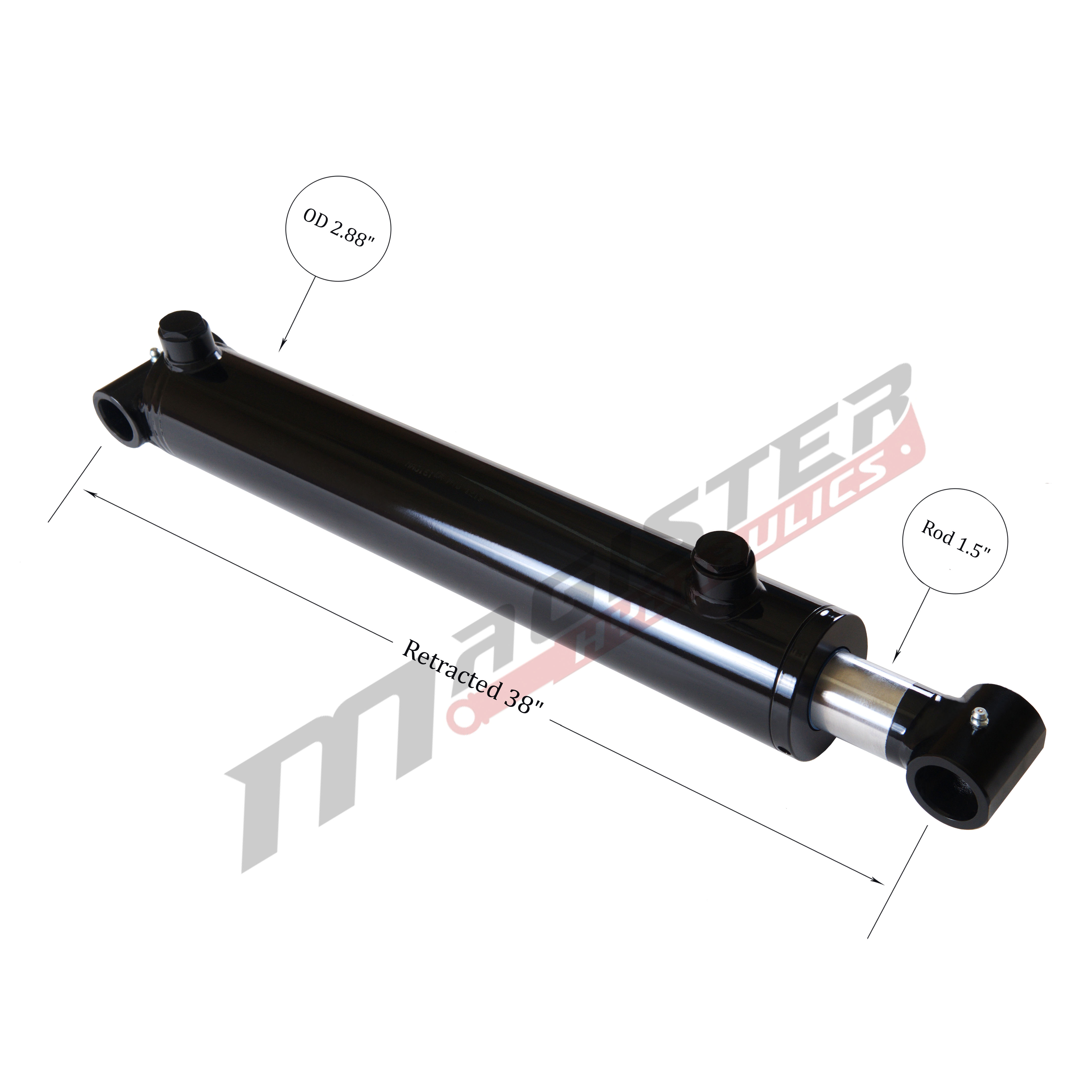

Retracted : 38"
Overall length : 39.5"
Pressure : 3500 PSI
Column Load (LBs) : 11,700
Oil Volume (quarts) : 2.55
Brand : Magister Hydraulics
GTIN :850597006820
1+ PRICE EA
$277.00
4+ PRICE EA -5%
$263.15
10+ PRICE EA -10%
$249.30
In stock

59 in stock

DESCRIPTION

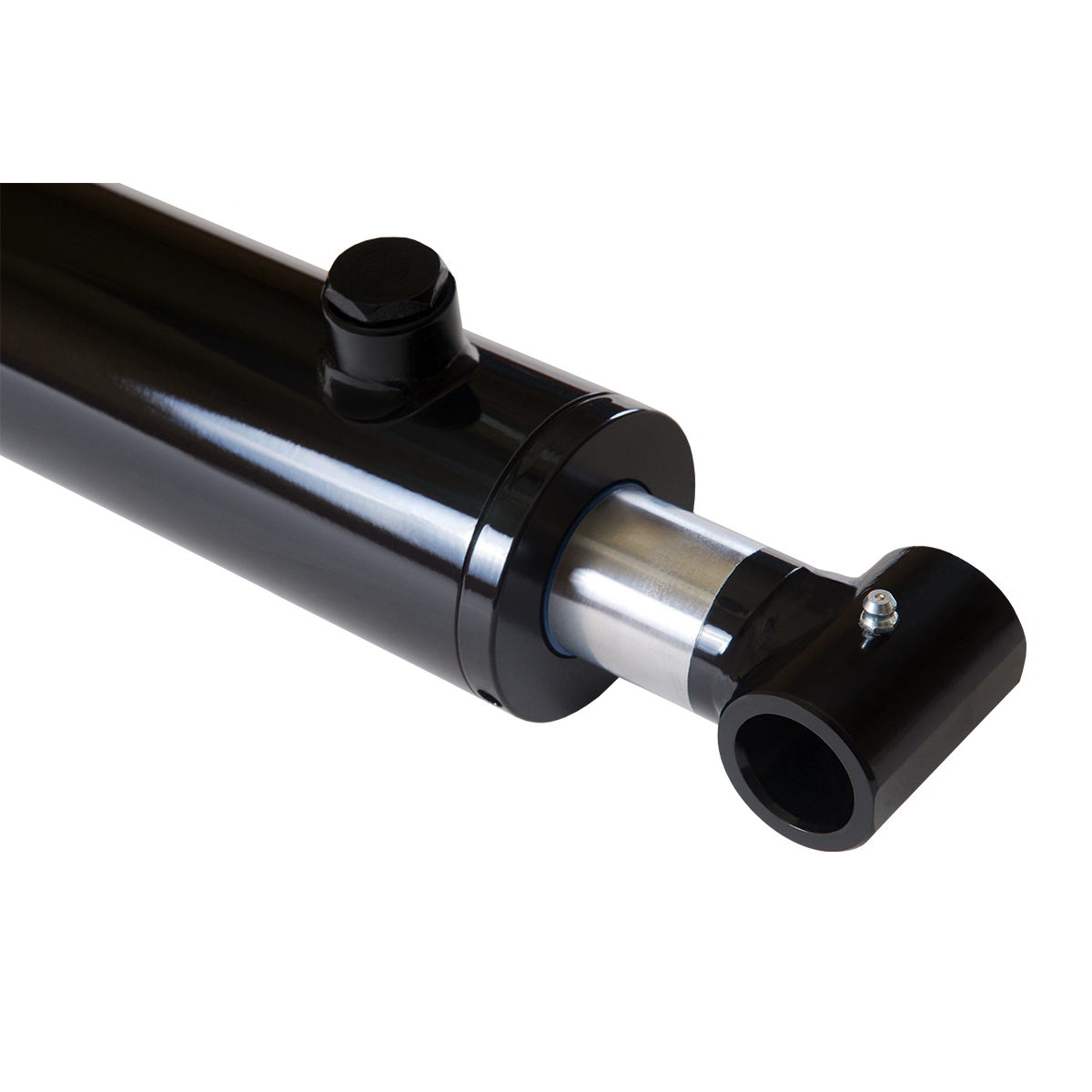

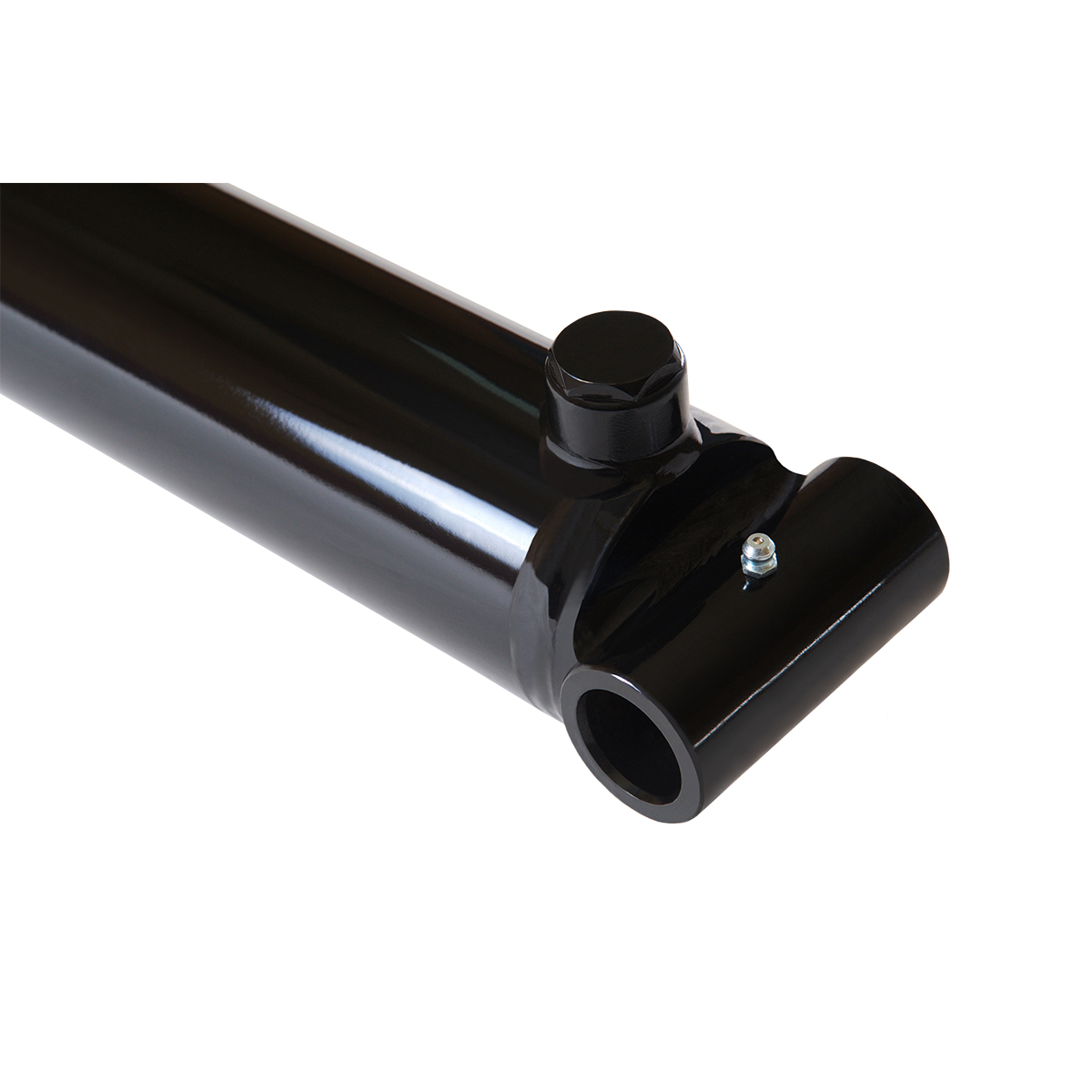

  • 2.5″ bore x 30″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
