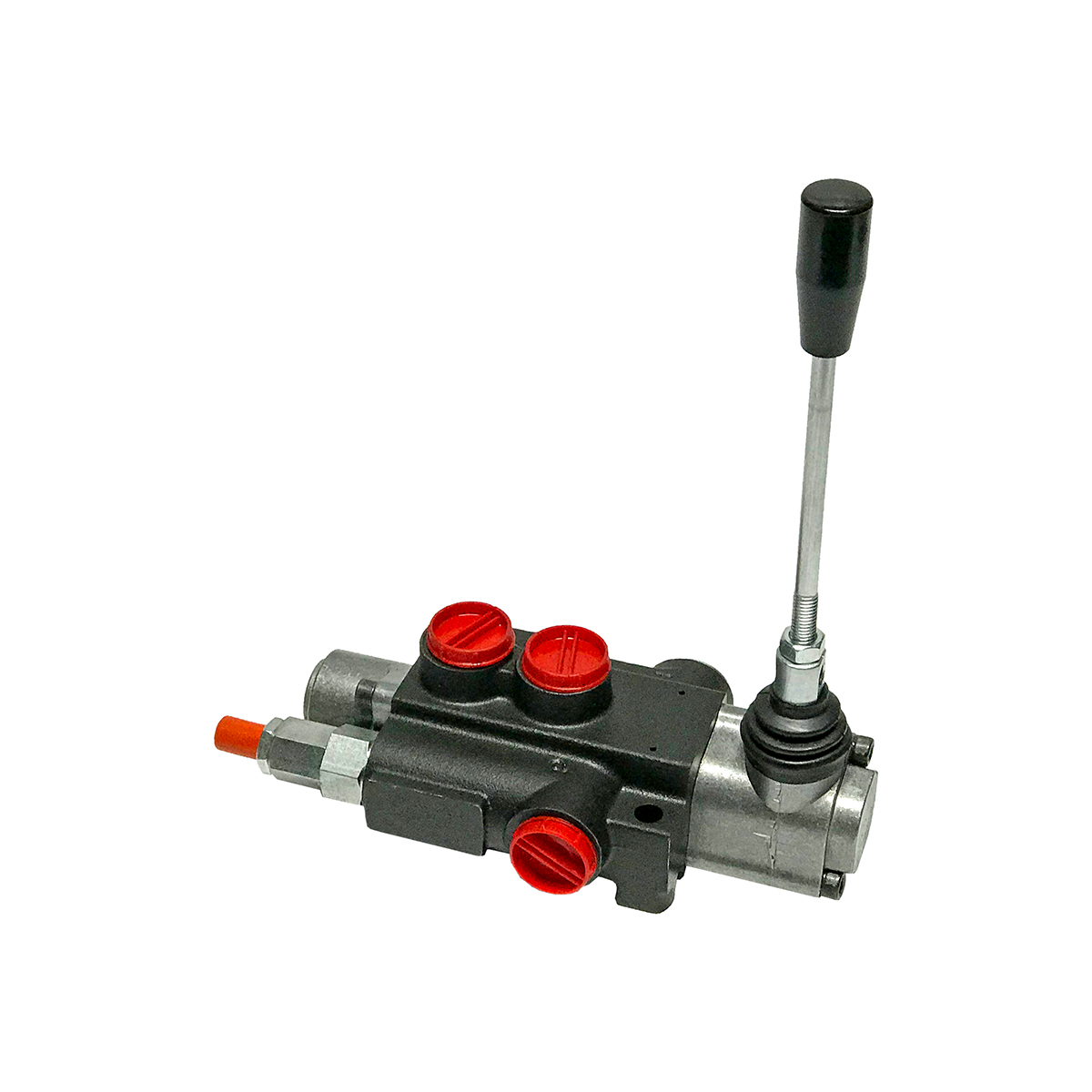

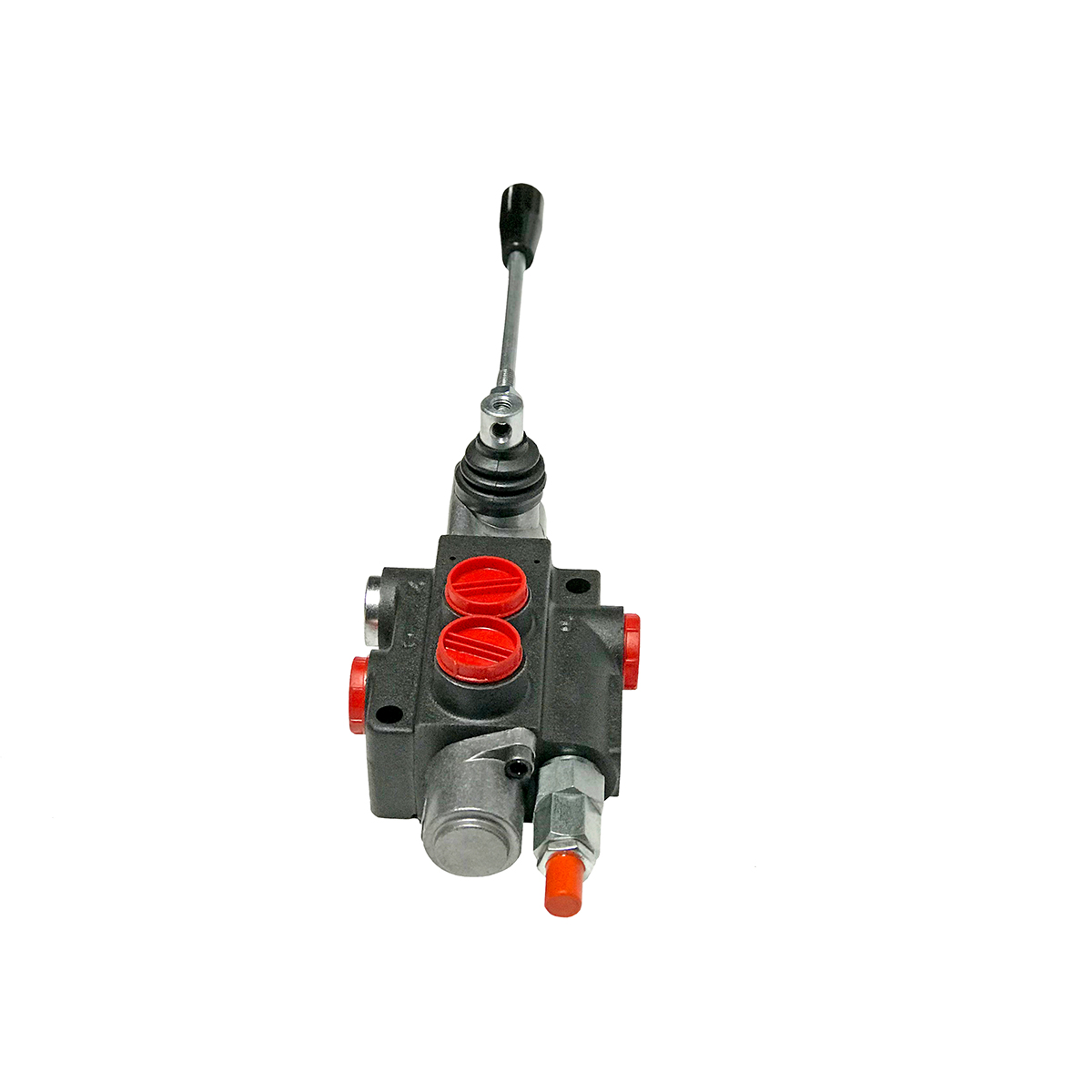

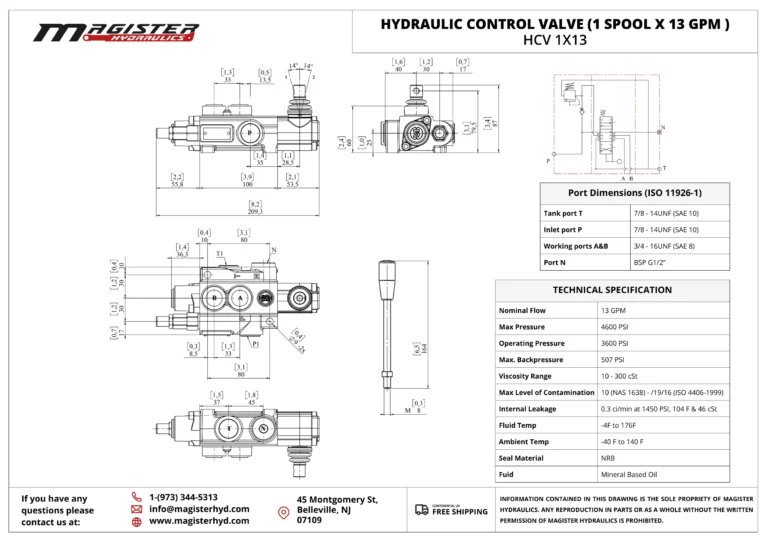

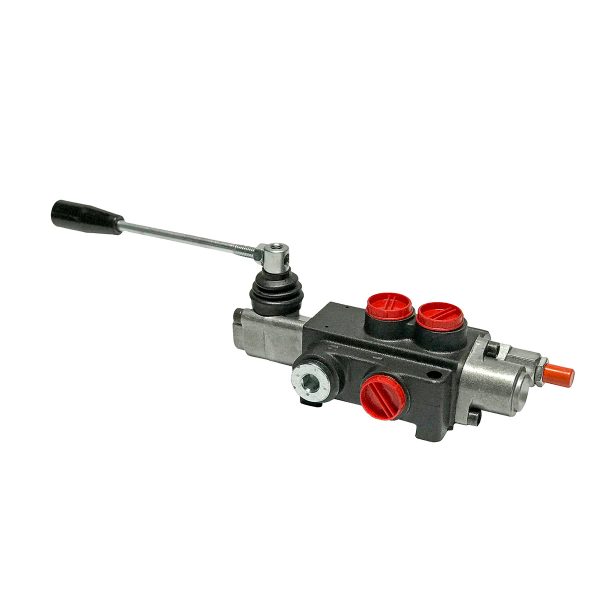

1 spool x 13 GPM hydraulic control valve
$105.00
Pay in 4 interest-free payments of $26.25SKU: HCV 1x13
| Number of Spools : | 1 | Flow : | 13 GPM | Pressure : | 3600 PSI | Inlet Port : | SAE 10 | Spool Type : | 4-way 3 pos Open Center | Outlet Port : | SAE 10 | Spool Action : | 3-pos Spring center | Working Ports : | SAE 8 | Brand : | Badestnost |
|---|---|
| GTIN : | 854763008342 |
Volume discounts
1+ PRICE EA
$105.00
4+ PRICE EA -5%
$99.75
8+ PRICE EA -10%
$94.50
In stock
267 in stock
Description
1 spool x 13 GPM hydraulic control valve with max pressure of 3600 PSI. Heavy-duty hydraulic valve, durable cast iron monoblock body, free ground shipping & 1-year warranty. This control valve is designed to manage and direct hydraulic oil flow between hydraulic pumps, hydraulic cylinders, motors, tanks, etc. Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F. Tariff free control valve. Excellent replacement for small tractors, tractor loaders, log splitters, forklifts and tow trucks.
Mounting with 2 bolts M8 size. Handles can be installed vertically or horizontally, included with control valve.
Power beyond option is available and plug must be installed into “N” Port.
POWER BEYOND PLUG
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE Hydraulic control valves.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
Thomas Cyprych
Buyer beware this valve does have open center with float A-B, not tandem (blocked ports A-B)
dmic8120
Works well
