5 bore x 36 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics

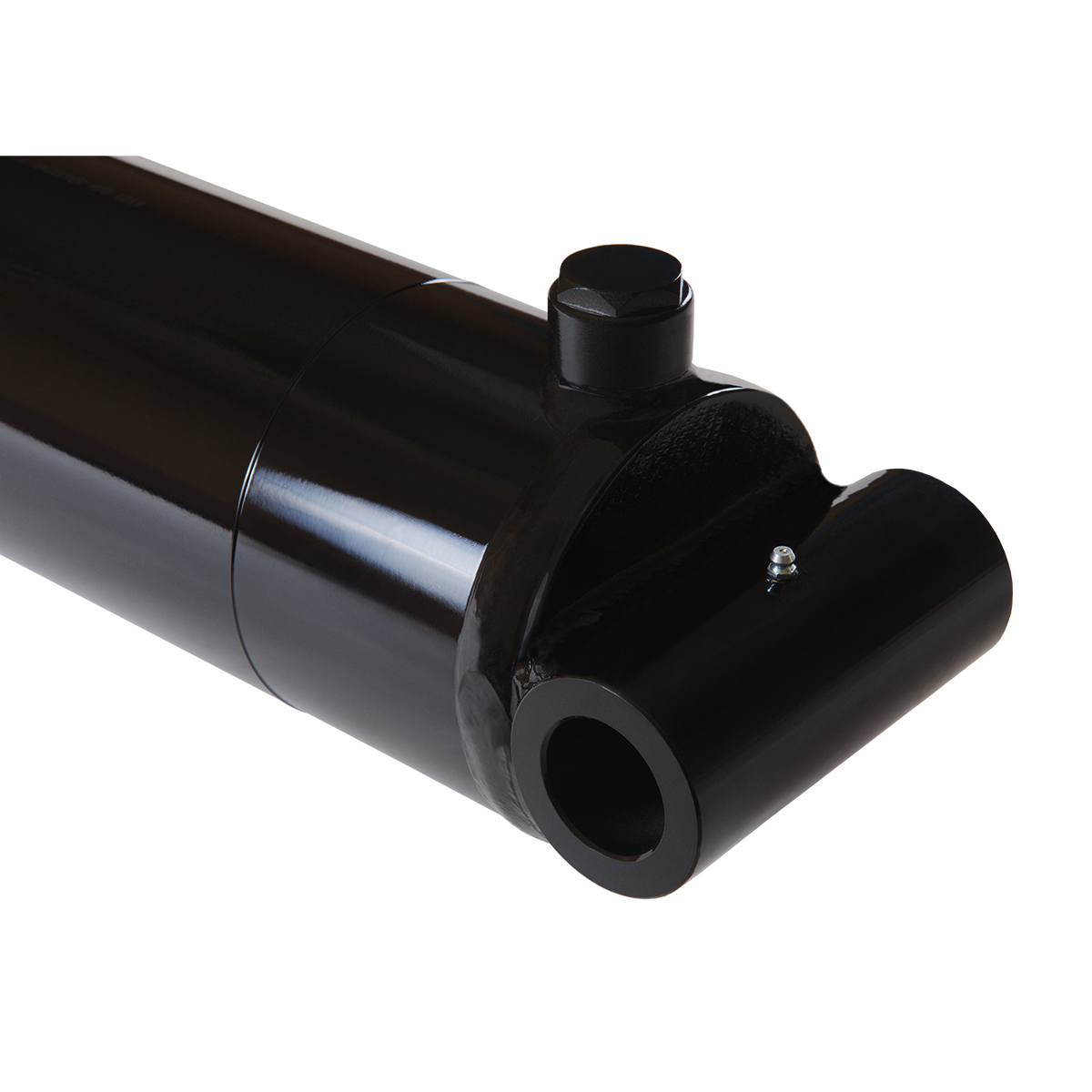

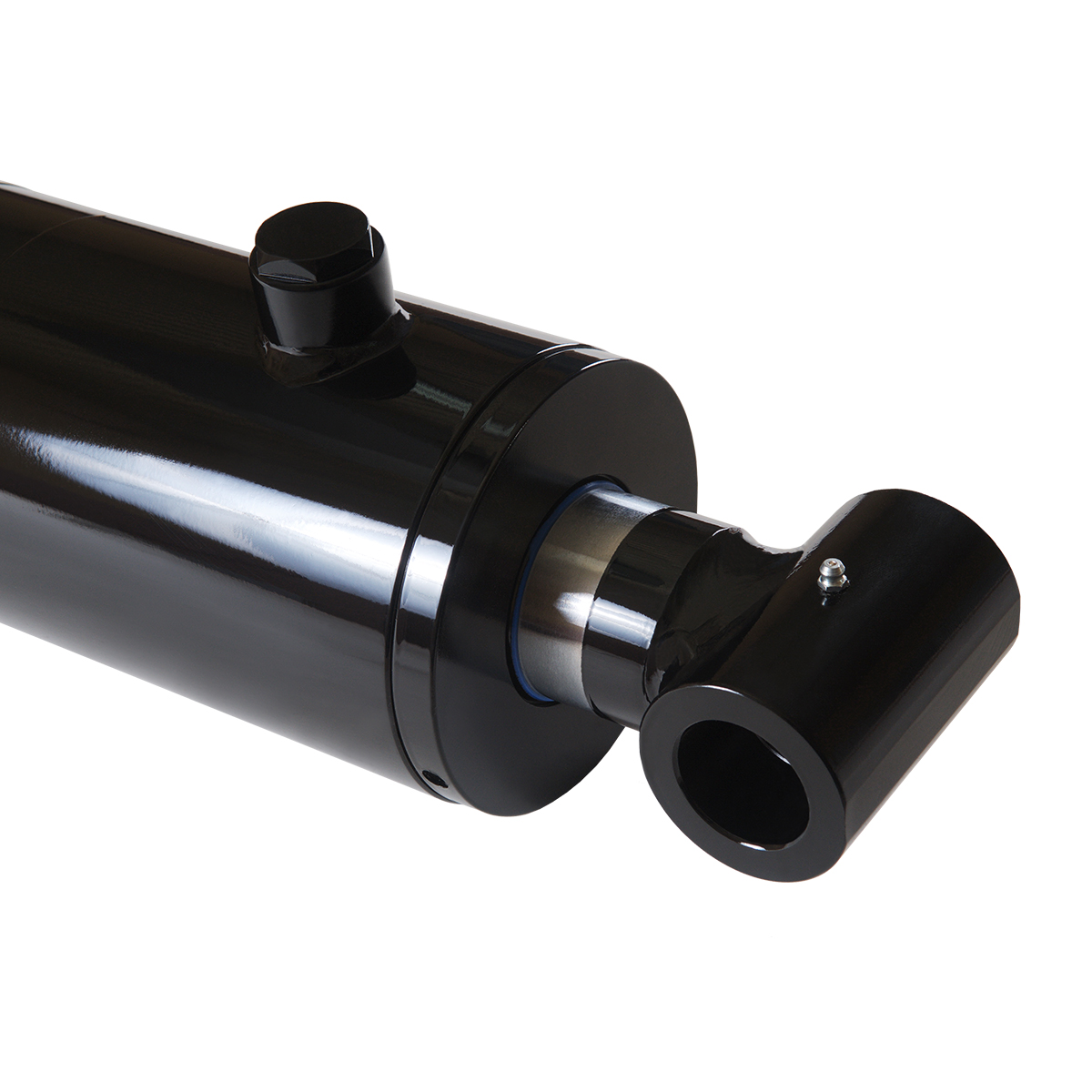

5" bore x 36" stroke cross tube hydraulic cylinder

$810.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 5x36
Bore :5” Bore Hydraulic Cylinders
OD :5.5"
Stroke :36” Stroke Hydraulic Cylinders
Rod :2.5"
Port Size :SAE 12
Pin :1.5"

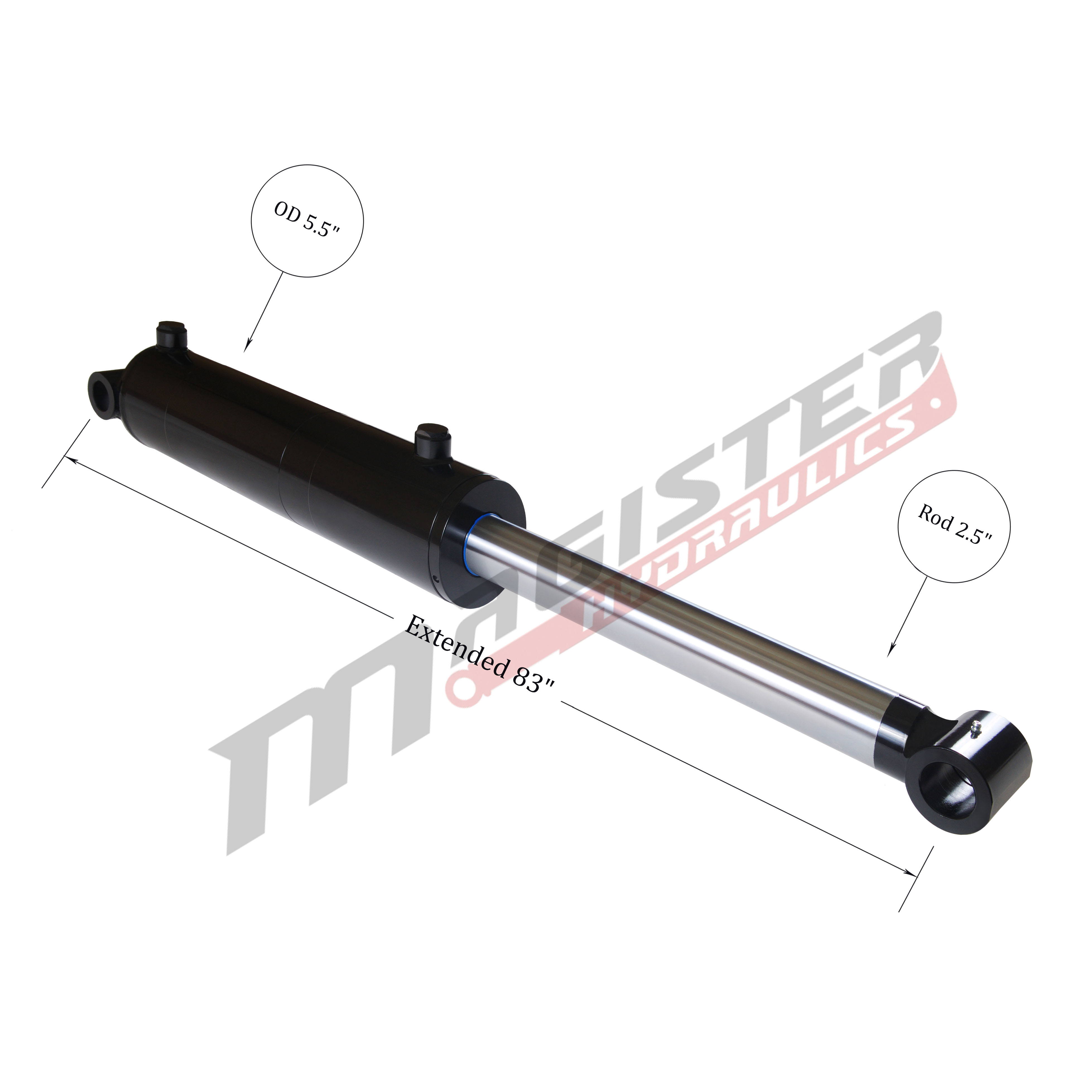

Extended :83"

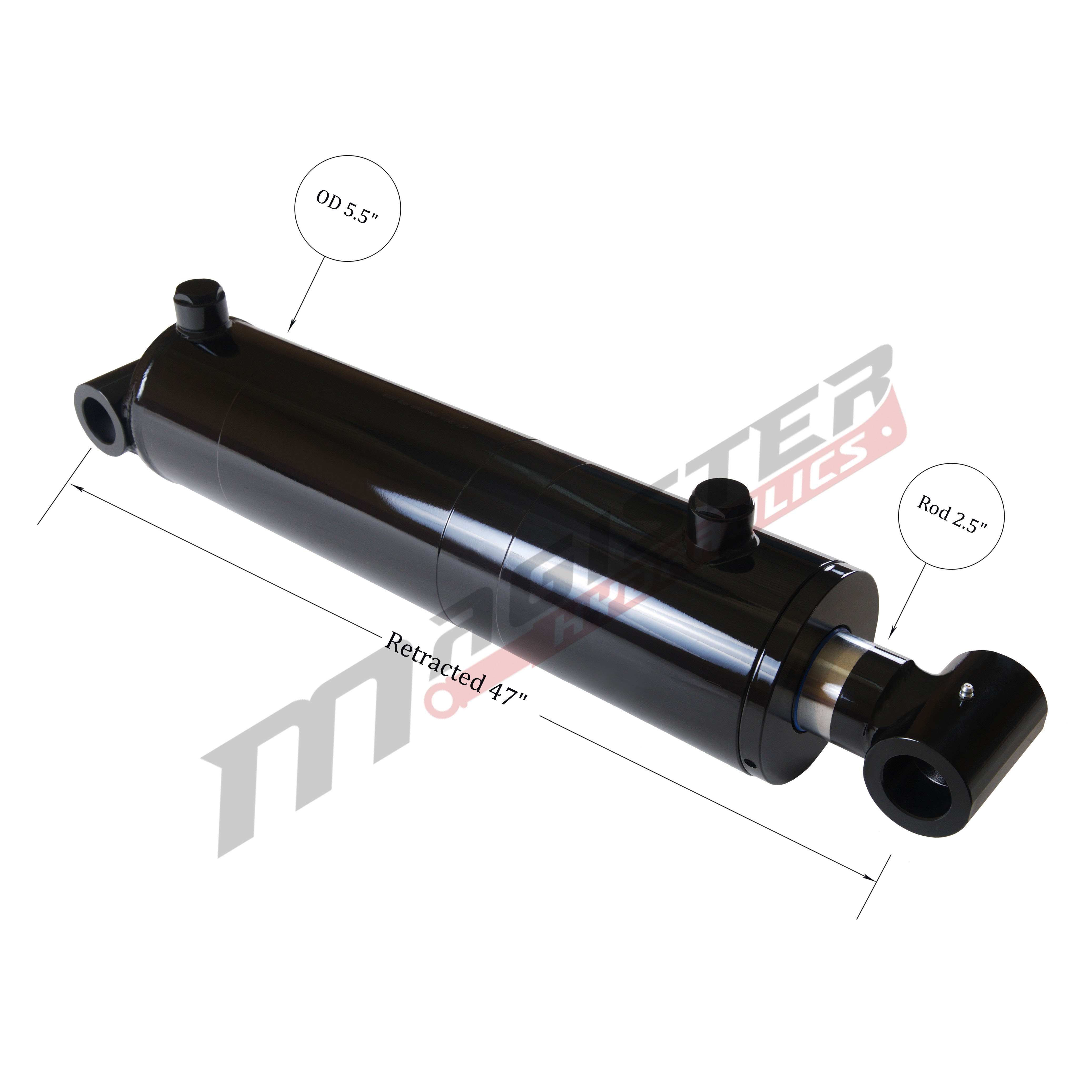

Retracted :47"
Overall length :48.5"
Pressure :3500 PSI
Column Load (LBs) :58,900
Oil Volume (quarts) :12.23
Brand :Magister Hydraulics
GTIN :857743006918
1+ PRICE EA
$810.00
4+ PRICE EA -5%
$769.50
10+ PRICE EA -10%
$729.00
In stock

7 in stock

DESCRIPTION

  • 5″ bore x 36″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
