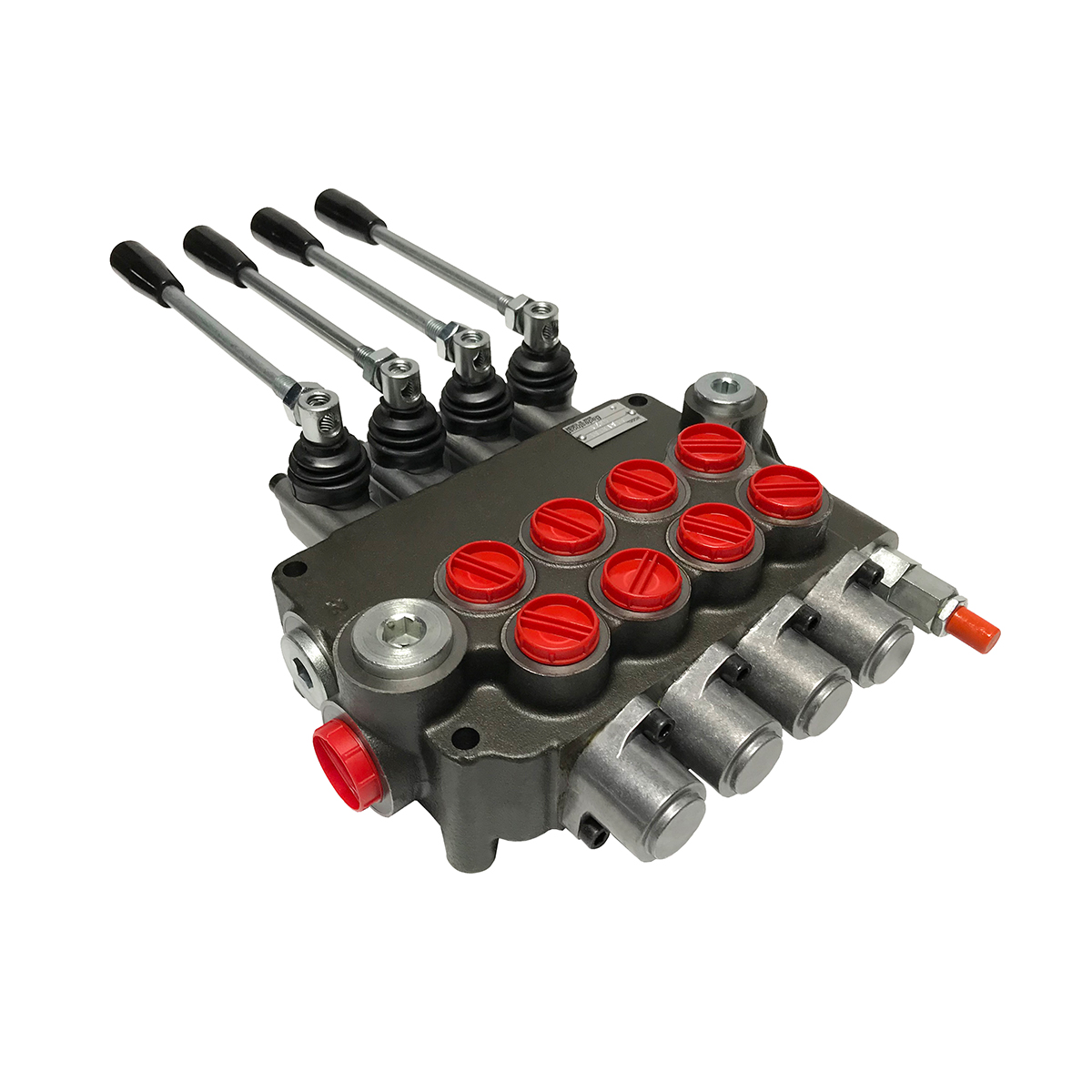

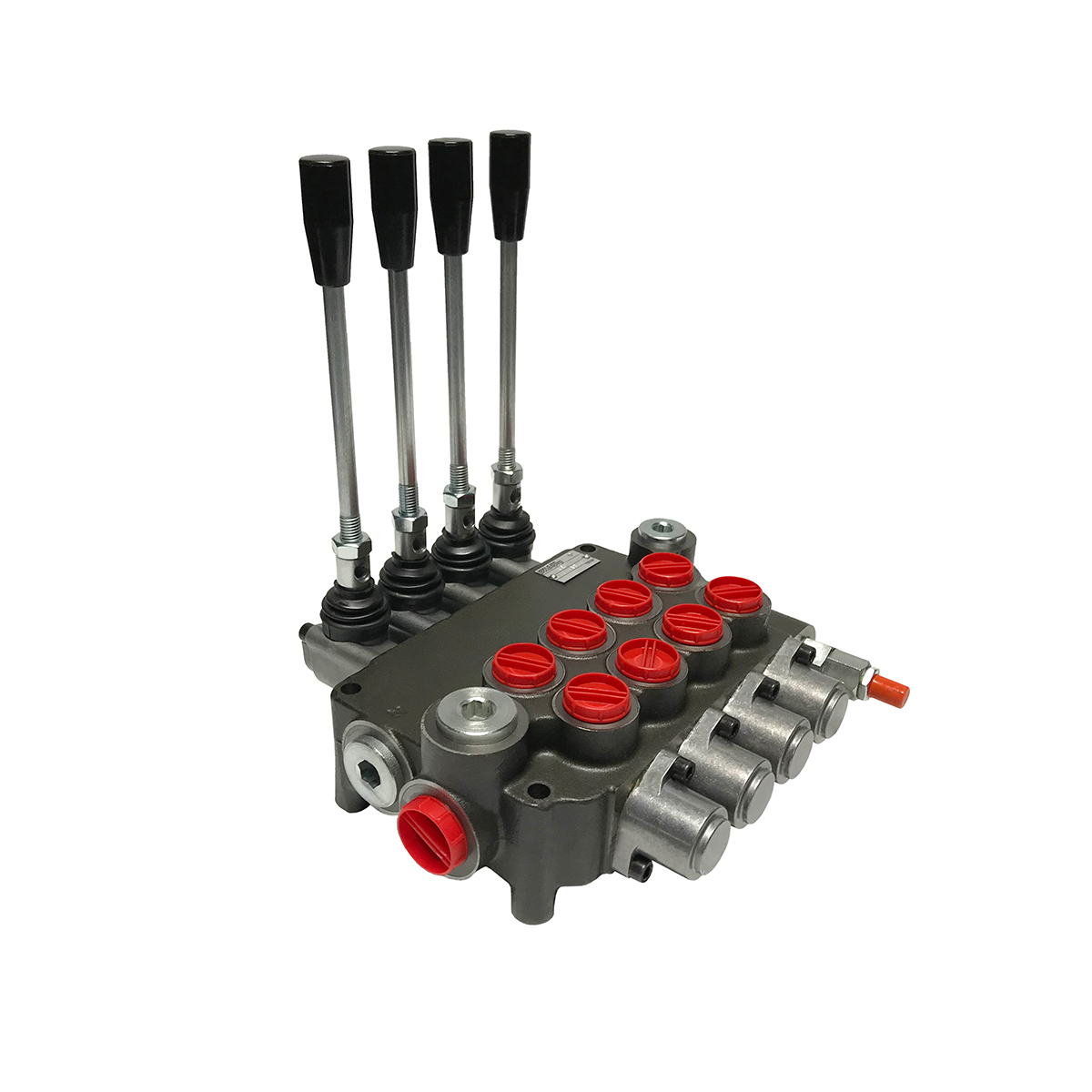

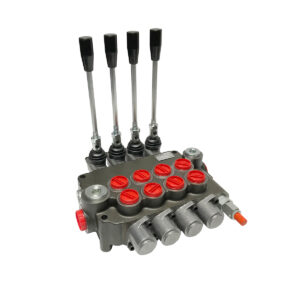

4 spool x 21 GPM hydraulic control valve

$310.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: HCV 4x21
Number of Spools :
4
Flow :
21 GPM
Pressure :
3600 PSI
Inlet Port :
SAE 10
Spool Type :
4-way 3 pos Open Center
Outlet Port :
SAE 12
Spool Action :
3-pos Spring center
Working Ports :
SAE 10
Brand :
Badestnost
GTIN :
854763008410
1+ PRICE EA
$310.00
4+ PRICE EA -5%
$294.50
10+ PRICE EA -10%
$279.00
In stock

32 in stock

DESCRIPTION

4 spool x 21 GPM hydraulic control valve with max pressure of 3600 PSI. Heavy-duty hydraulic valve, durable cast iron monoblock body, free ground shipping & 1-year warranty. This control valve is designed to manage and direct hydraulic oil flow between hydraulic pumps, hydraulic cylinders, motors, tanks, etc. Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F. Tariff free control valve. Excellent replacement for small tractors, tractor loaders, log splitters, forklifts and tow trucks.
Mounting with 2 bolts M8 size. Handles can be installed vertically or horizontally, included with control valve.

Power beyond option is available and plug must be installed into “N” Port.

POWER BEYOND PLUG

  • FREE SHIPPING

We provide volume discounts for all our standard Hydraulic control valves. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE Hydraulic control valves.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313

10 thoughts on “4 spool x 21 GPM hydraulic control valve

  1. I bought this valve to angle a snowplow I made for the 3 point hitch of my tractor. It made it through the winter with no issues. Will buy again if the need arises

  2. It is working great after about 2 hrs to take take the old one off and install this. It allows my 3 point hitch to works as well. I used the old levers as they were bent towards the user and the new ones were straight

  3. Product shipped fast. Had some issues with setting up. Called the customer and they walked me through connecting the valve. Excellent product
