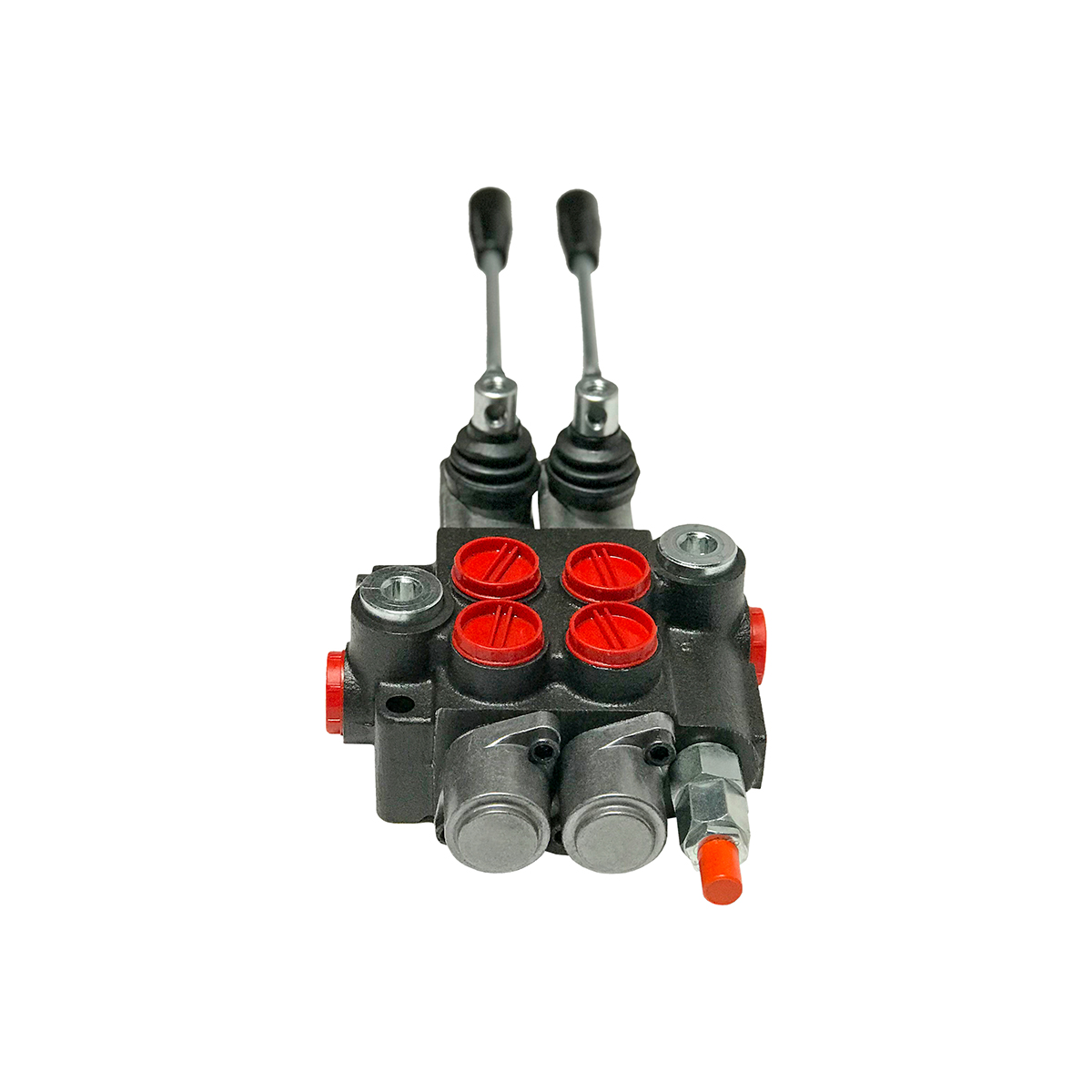

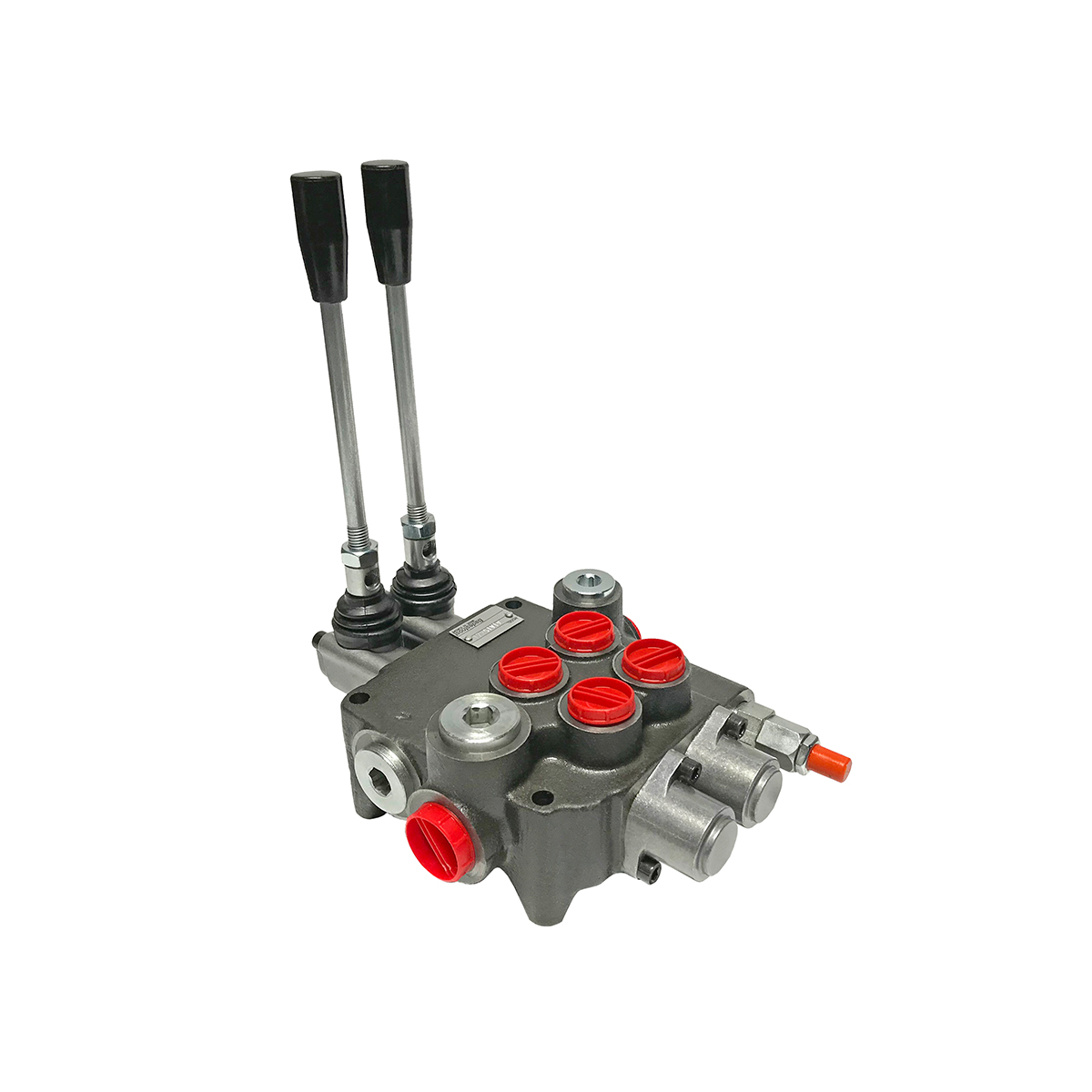

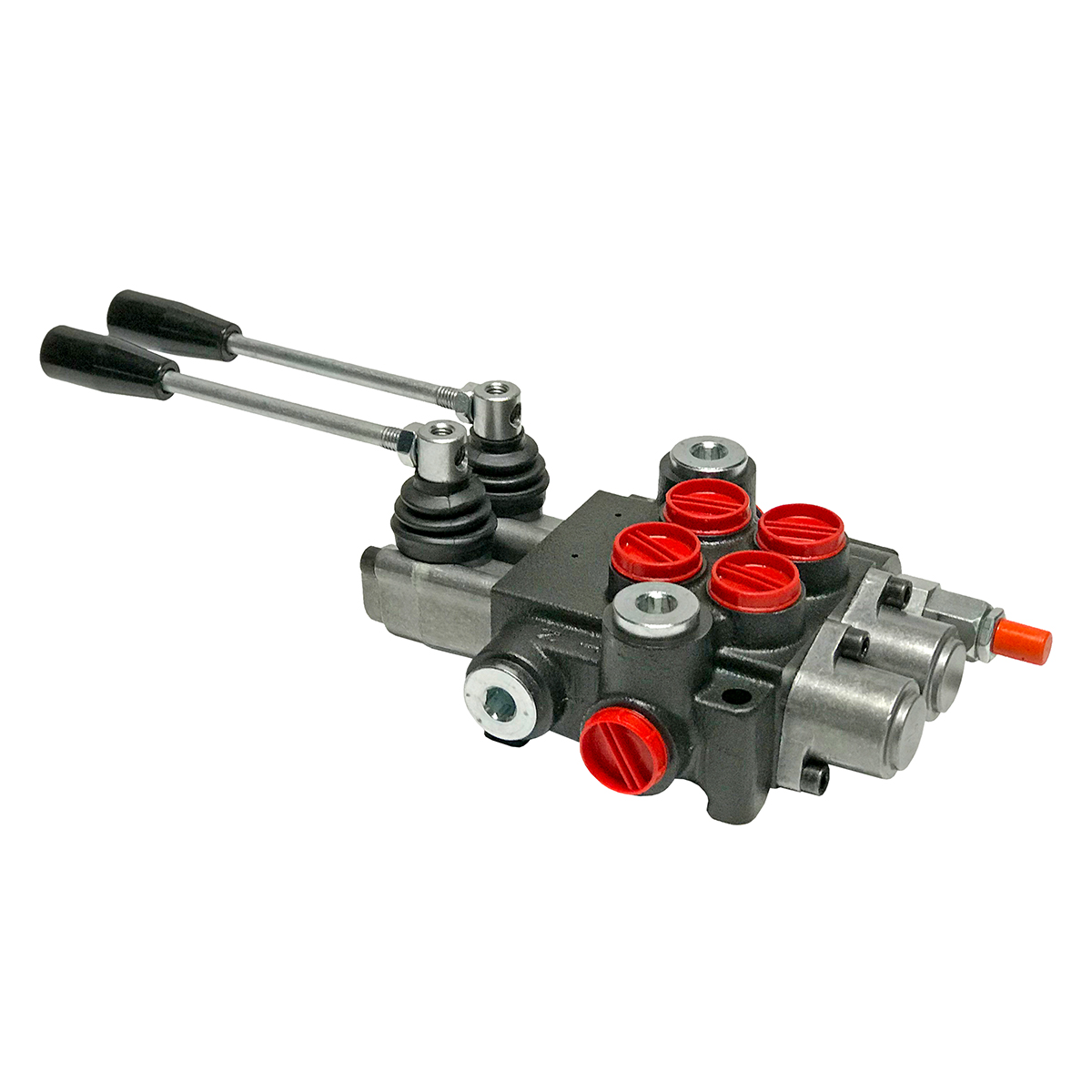

2 spool x 13 GPM hydraulic control valve

$109.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
HCV 2x13
Number of Spools :
2
Flow :
13 GPM
Pressure :
3600 PSI
Inlet Port :
SAE 10
Spool Type :
4-way 3 pos Open Center
Outlet Port :
SAE 10
Spool Action :
3-pos Spring center
Working Ports :
SAE 8
Brand :
Badestnost
GTIN :
854763008359
1+ PRICE EA
$109.00
4+ PRICE EA -5%
$103.55
10+ PRICE EA -10%
$98.10
In stock

145 in stock

DESCRIPTION

2 spool x 13 GPM hydraulic control valve with max pressure of 3600 PSI. Heavy-duty hydraulic valve, durable cast iron monoblock body, free ground shipping & 1-year warranty. This control valve is designed to manage and direct hydraulic oil flow between hydraulic pumps, hydraulic cylinders, motors, tanks, etc. Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F. Tariff free control valve. Excellent replacement for small tractors, tractor loaders, log splitters, forklifts and tow trucks.
Mounting with 2 bolts M8 size. Handles can be installed vertically or horizontally, included with control valve.

Power beyond option is available and plug must be installed into “N” Port.

POWER BEYOND PLUG

  • FREE SHIPPING

We provide volume discounts for all our standard Hydraulic control valves. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE Hydraulic control valves.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313

2 thoughts on “2 spool x 13 GPM hydraulic control valve

  1. I purchased a hydro pack controller my old on om n my tractor front end loader has a fitting on the side with 2 holes its a 8 that goes deep with 2 oil rings on it dont know whats its called buy I need one in a 10
