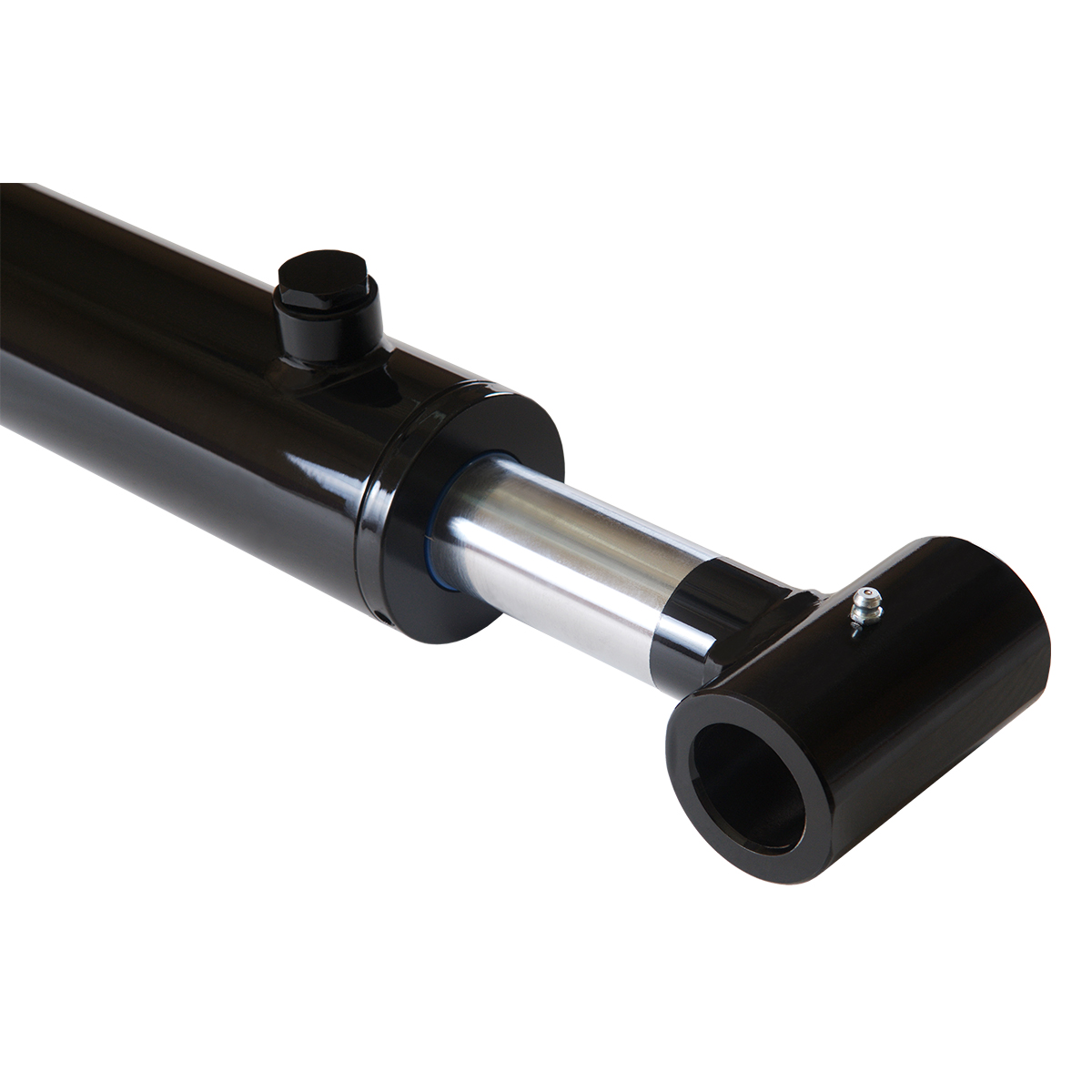

2.5" bore x 23.5" stroke loader hydraulic cylinder


* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WLD 2.5x23.5

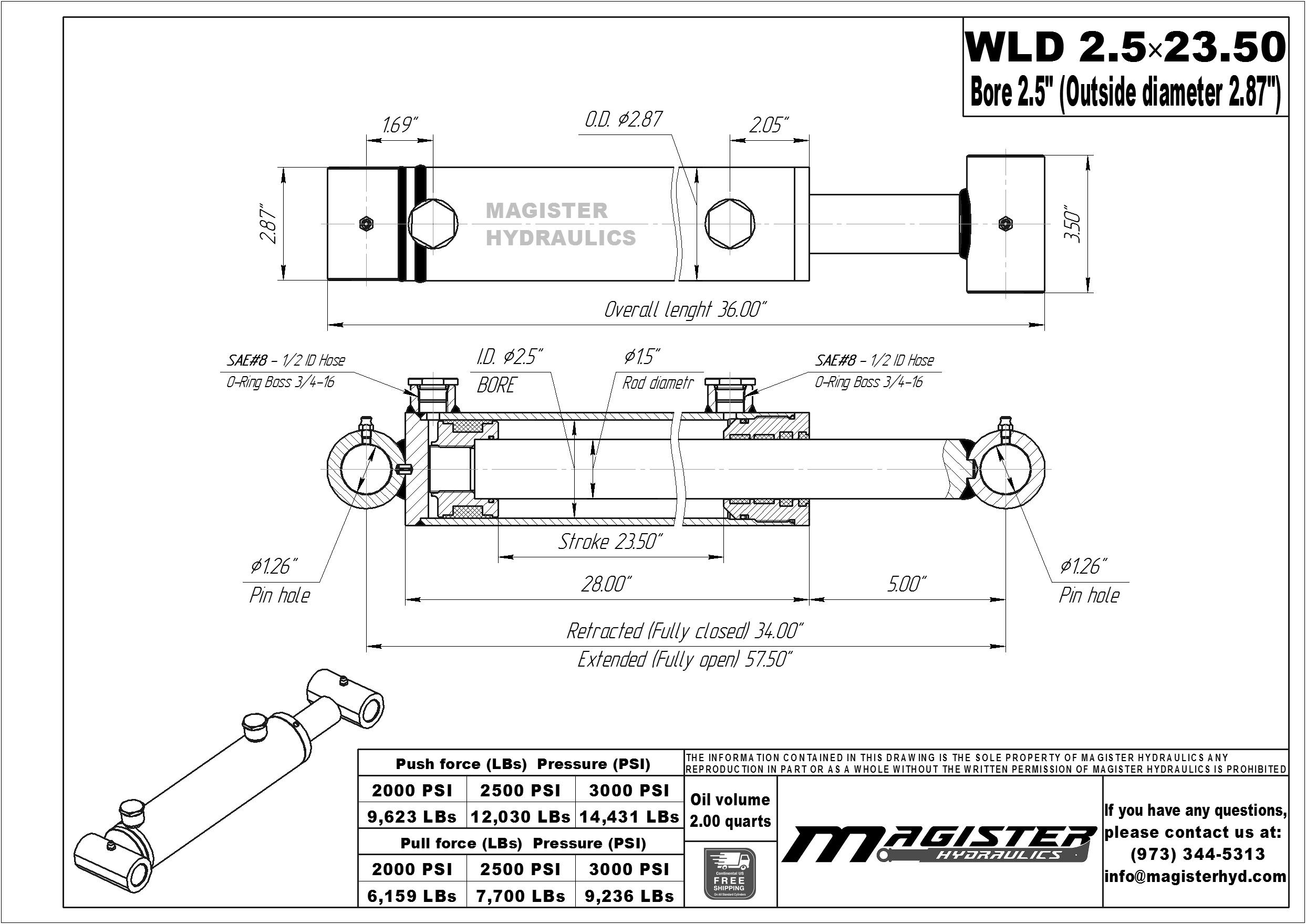

Bore :2.5” Bore Hydraulic Cylinders
OD :2.875"
Stroke :23.5 inch
Rod :1.5"
Port Size :SAE 8
Pin :1.25"

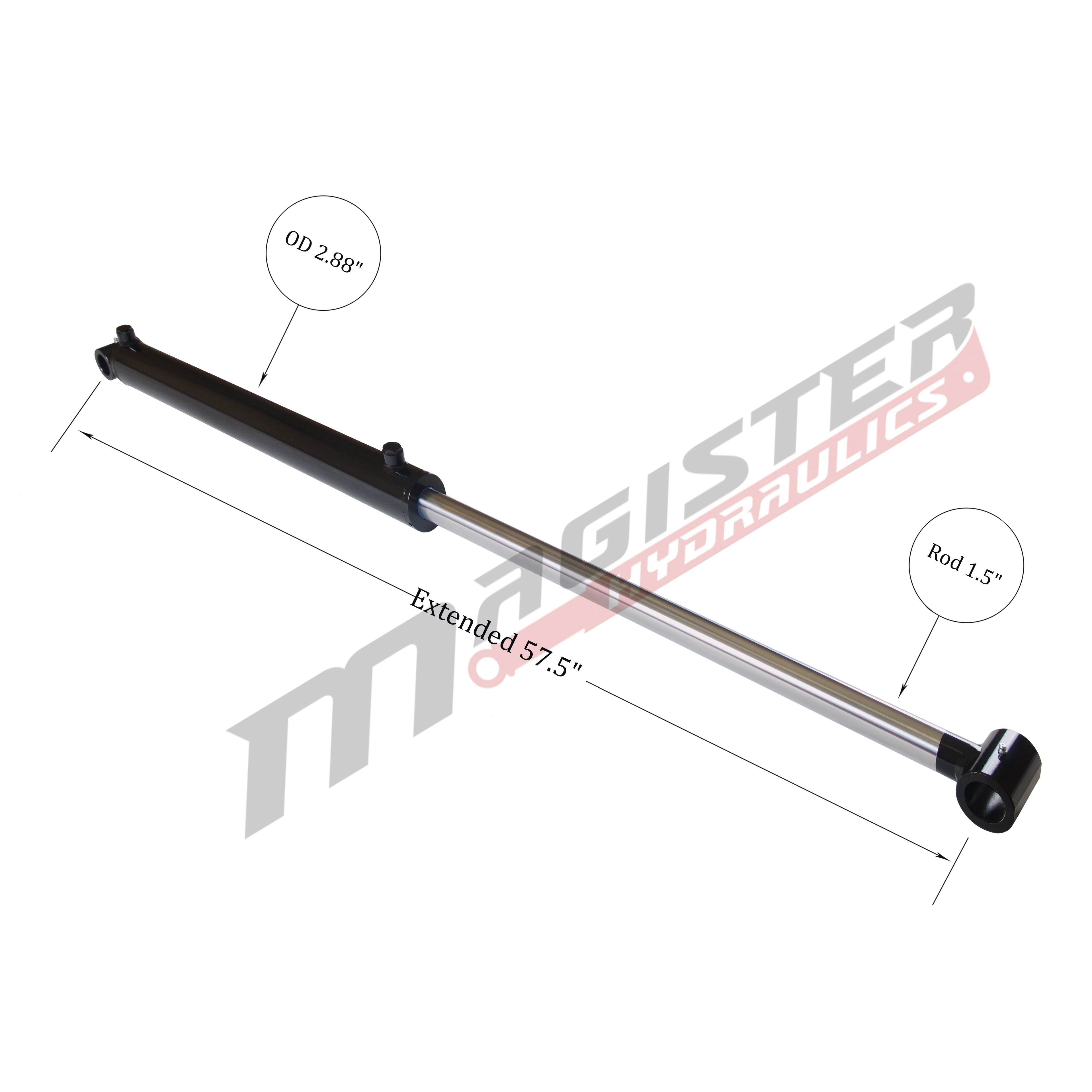

Extended :57.5"

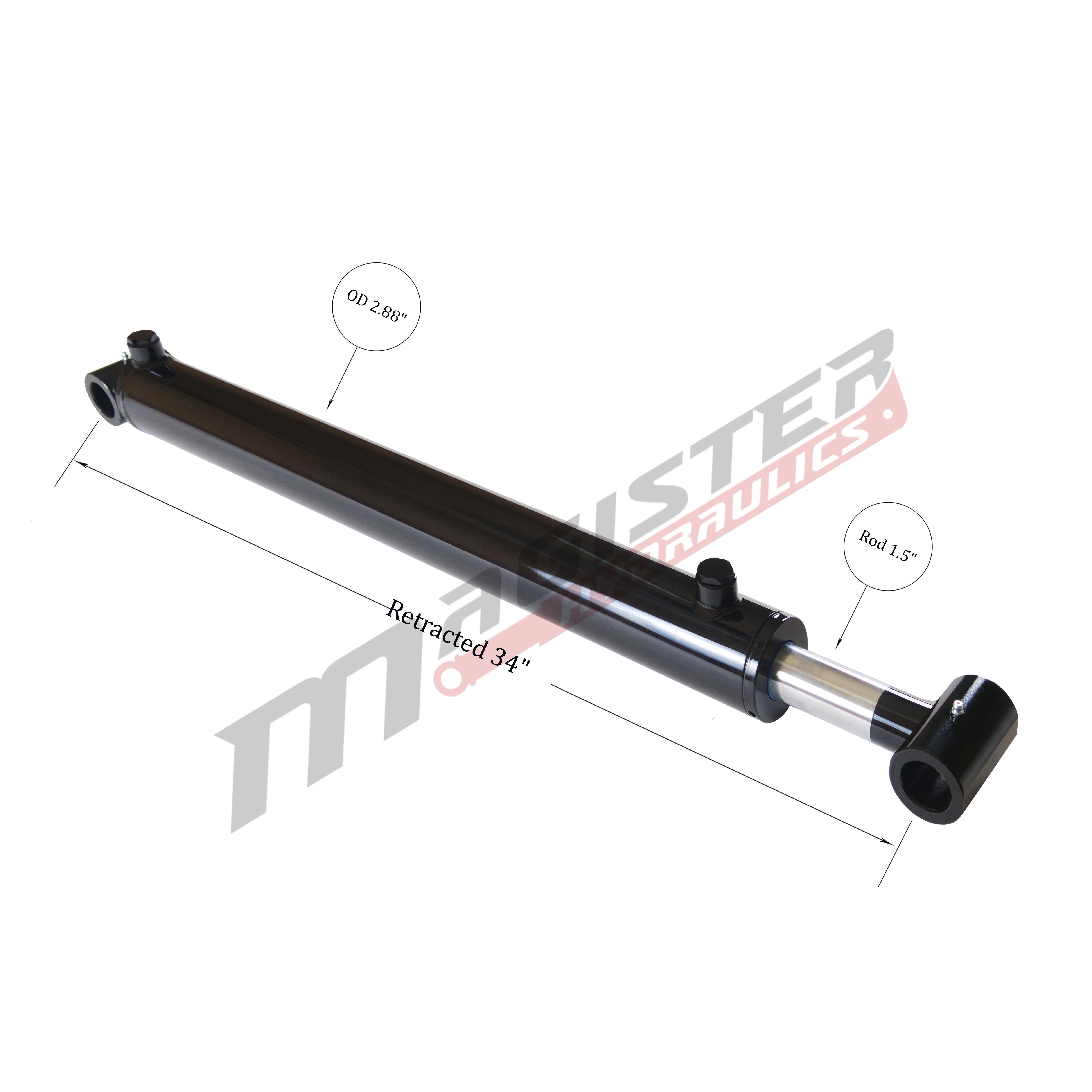

Retracted :34"
Overall length :36"
Pressure :3500 PSI
Column Load (LBs) :14,700
Oil Volume (quarts) :2
Brand :Magister Hydraulics
GTIN :857743006994
SKU: WLD 2.5x23.5 Categories: ,
4+ PRICE EA -5%
10+ PRICE EA -10%
In stock

57 in stock


  • 2.5″ bore x 23.5″ stroke loader hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for excellent performance. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
