2 bore x 19.75 stroke hydraulic cylinder, welded loader double acting cylinder | Magister Hydraulics.

2" bore x 19.75" stroke loader hydraulic cylinder

$221.00

Pay in 4 interest-free payments of $55.25
* Wholesale Discount is available for this product if you purchase 4 or more products.

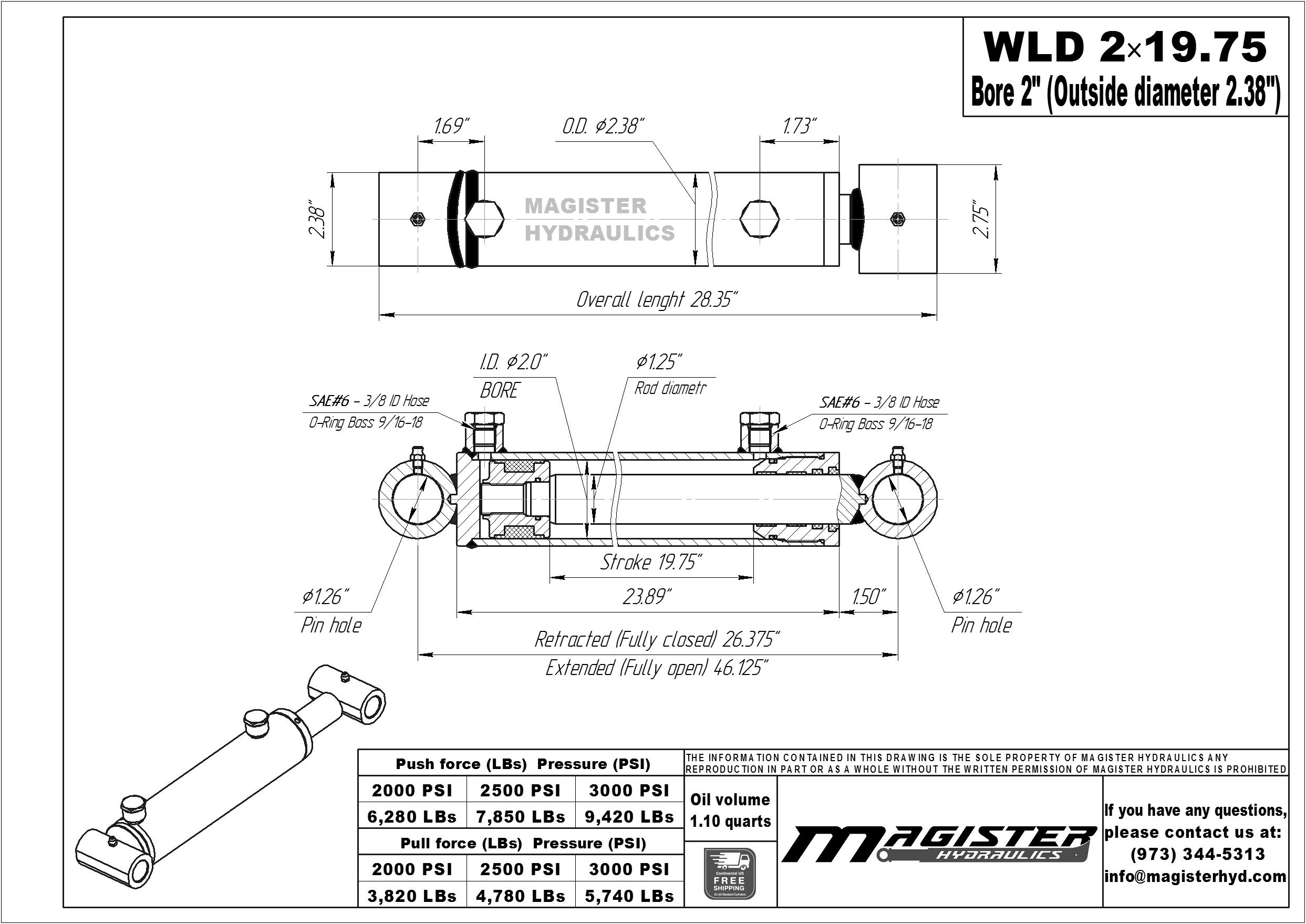

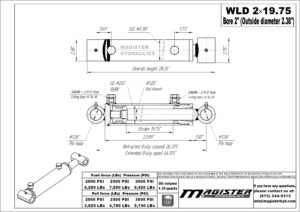

SKU: WLD 2x19.75
Bore : 2 in
Outer Dia. (⌀) : 2.37 in
Stroke : 19.75 in
Rod Dia. (⌀) : 1.25 in
Port Size : SAE 6
Pin Dia. (⌀) : 1.25 in

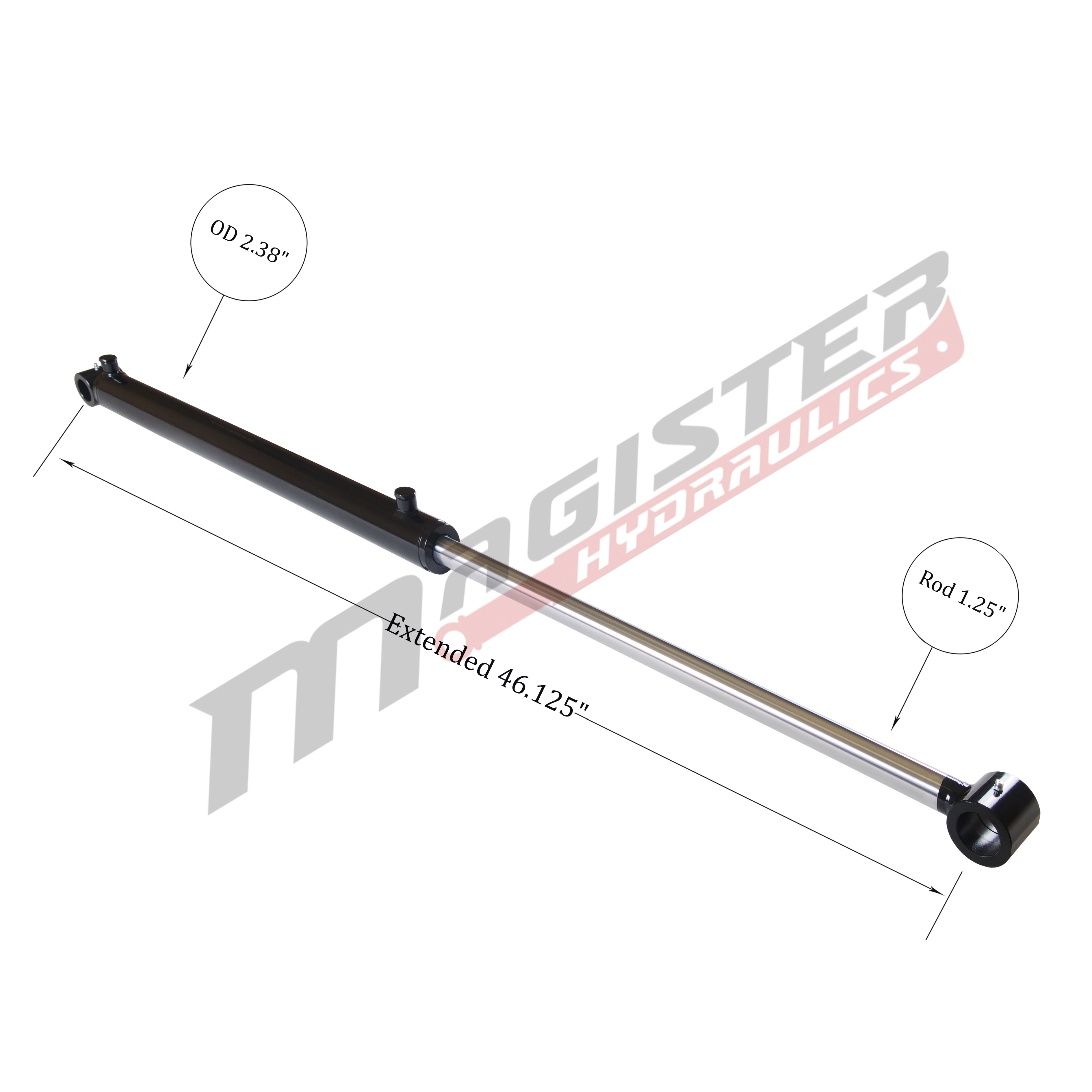

Extended : 46.125 in
Retracted : 26.375 in
Overall length : 28.375 in
Pressure : 3500 PSI
Column Load : 9,400 LBs
Oil Volume : 1.07 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated

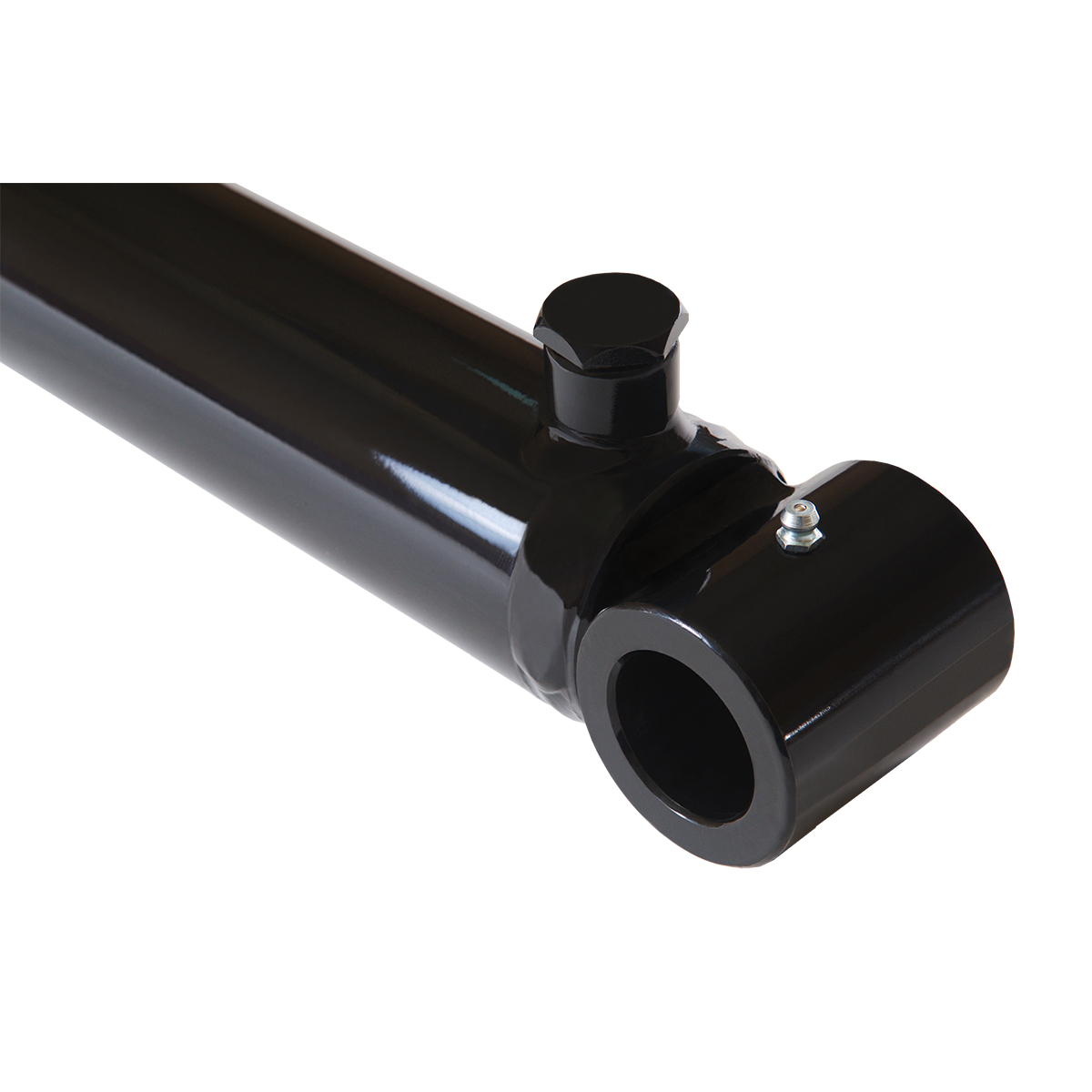

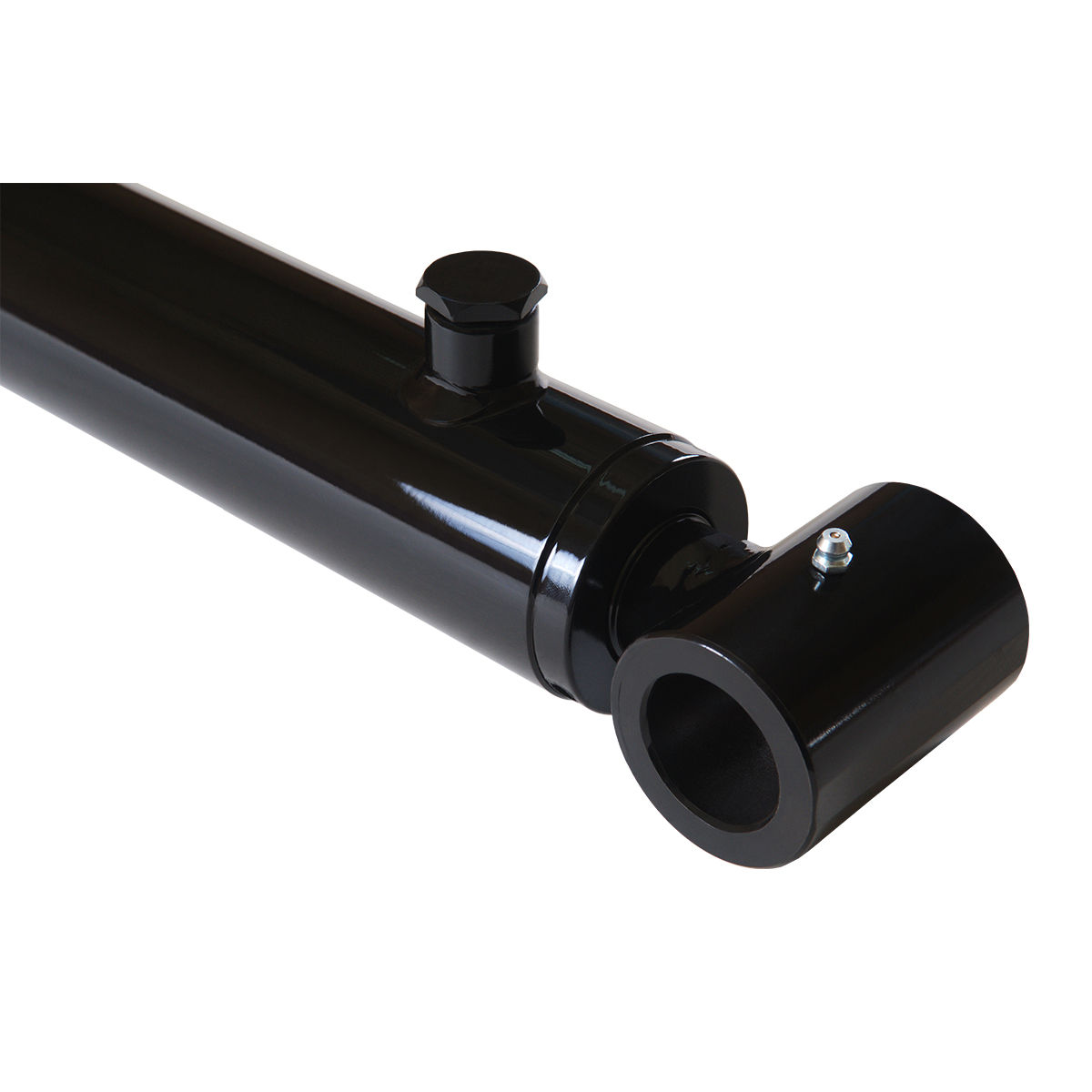

Rod End : Cross Tube
Action : Double Acting
Weight : 23 LBs
GTIN : 857743006963
SKU: WLD 2x19.75 Category:

Volume discounts

1+ PRICE EA
$221.00
4+ PRICE EA -5%
$209.95
8+ PRICE EA -10%
$198.90
In stock

46 in stock

Description


  • 2″ bore x 19.75″ stroke loader hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for excellent performance. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
