On sale!

2 bore x 19.25 stroke hydraulic cylinder, welded loader double acting cylinder | Magister Hydraulics

2" bore x 19.25" stroke loader hydraulic cylinder

Name: 2" bore x 19.25" stroke loader hydraulic cylinder
SKU: WLD 2x19.25
Availability: InStock
Rating: 4.80 (6 reviews)

$221.00

Pay in 4 interest-free payments of $55.25

SKU: WLD 2x19.25

Product SKU	Chief part number
WLD 2x19.25	288607

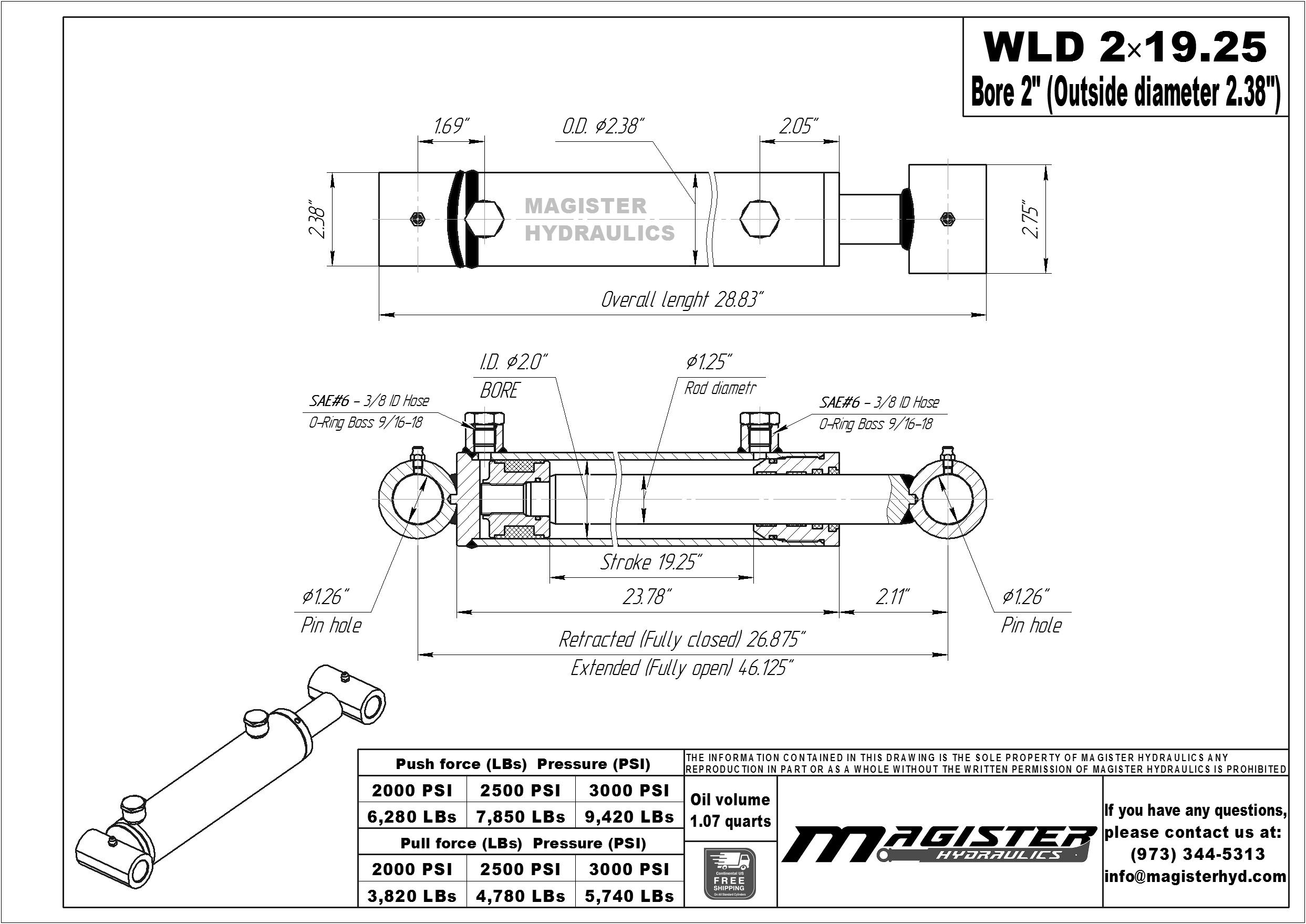

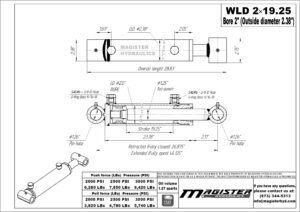

*The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.

Bore :	2 in
Outer Dia. (⌀) :	2.37 in
Stroke :	19.25 in
Rod Dia. (⌀) :	1.25 in
Port Size :	SAE 6
Pin Dia. (⌀) :	1.25 in

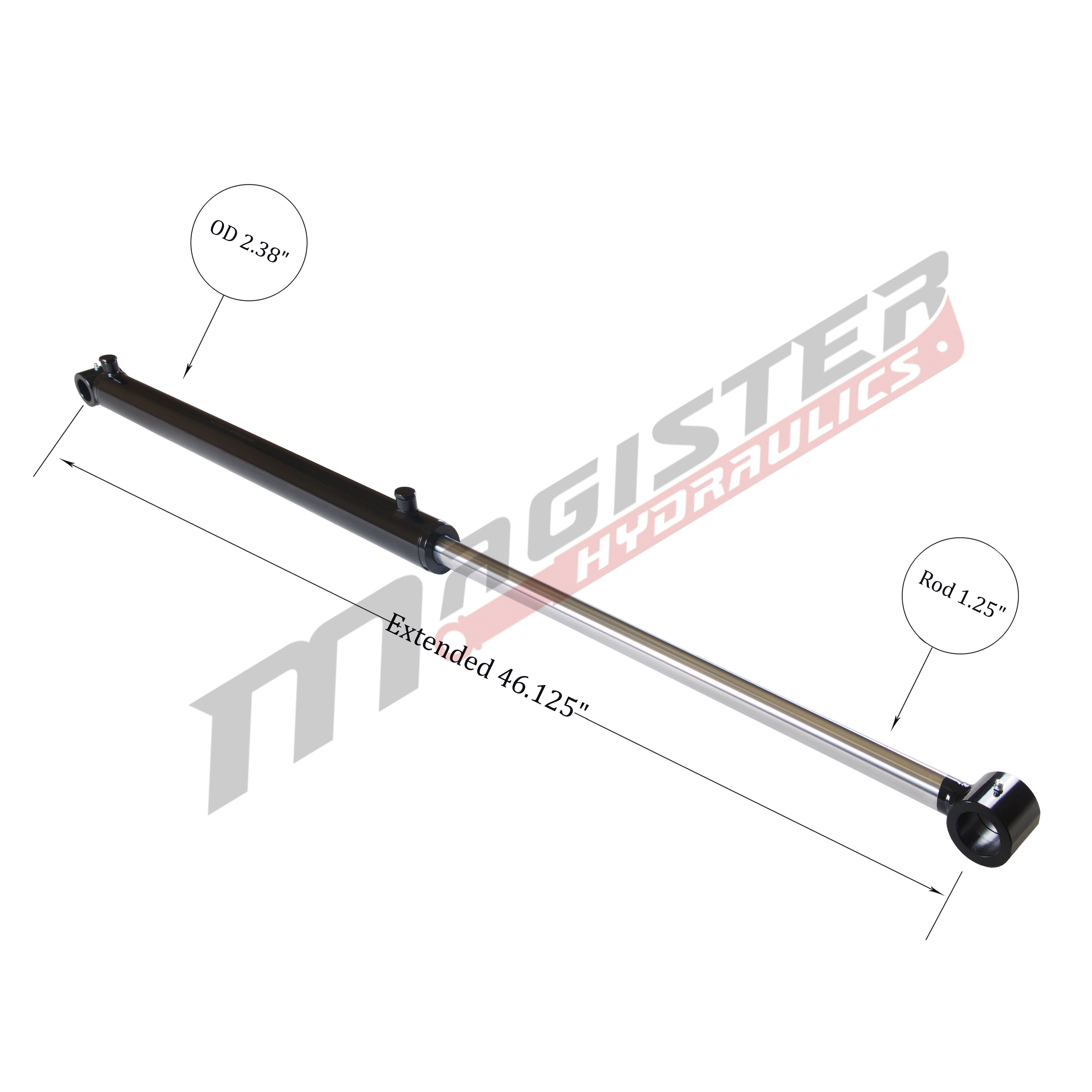

Extended :	46.125 in
Retracted :	26.875 in
Overall length :	28.875 in
Pressure :	3500 PSI
Column Load :	9,400 LBs
Oil Volume :	1.05 QTs
Brand :	Magister Hydraulics
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Cross Tube
Action :	Double Acting
Weight :	23 LBs
GTIN :	857743006956

SKU: WLD 2x19.25 Categories: Hydraulic Cylinders, Loader Hydraulic Cylinders

In stock

33 in stock

Description

2″ bore x 19.25″ stroke loader hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for excellent performance. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE cylinders.

Made in Europe.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
