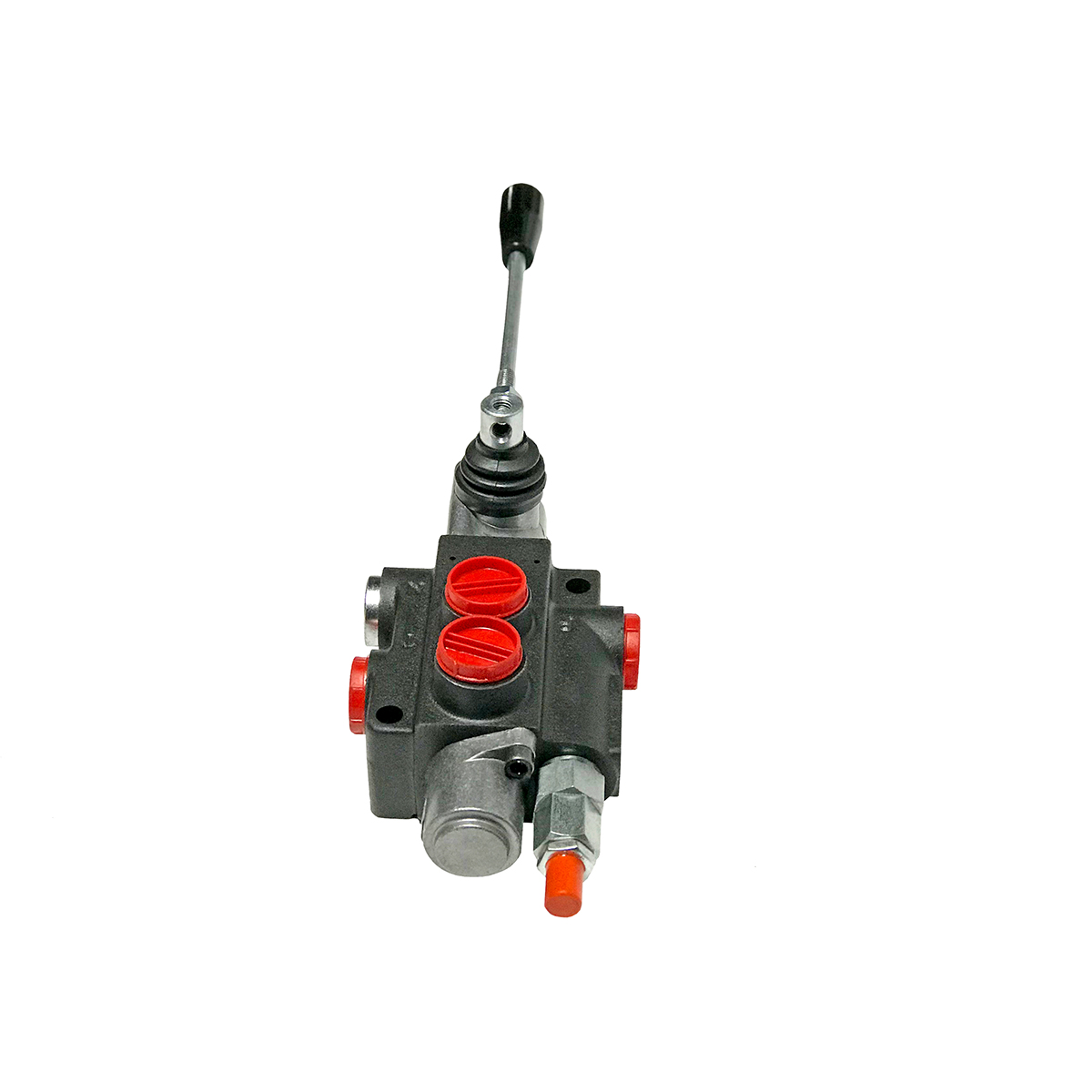

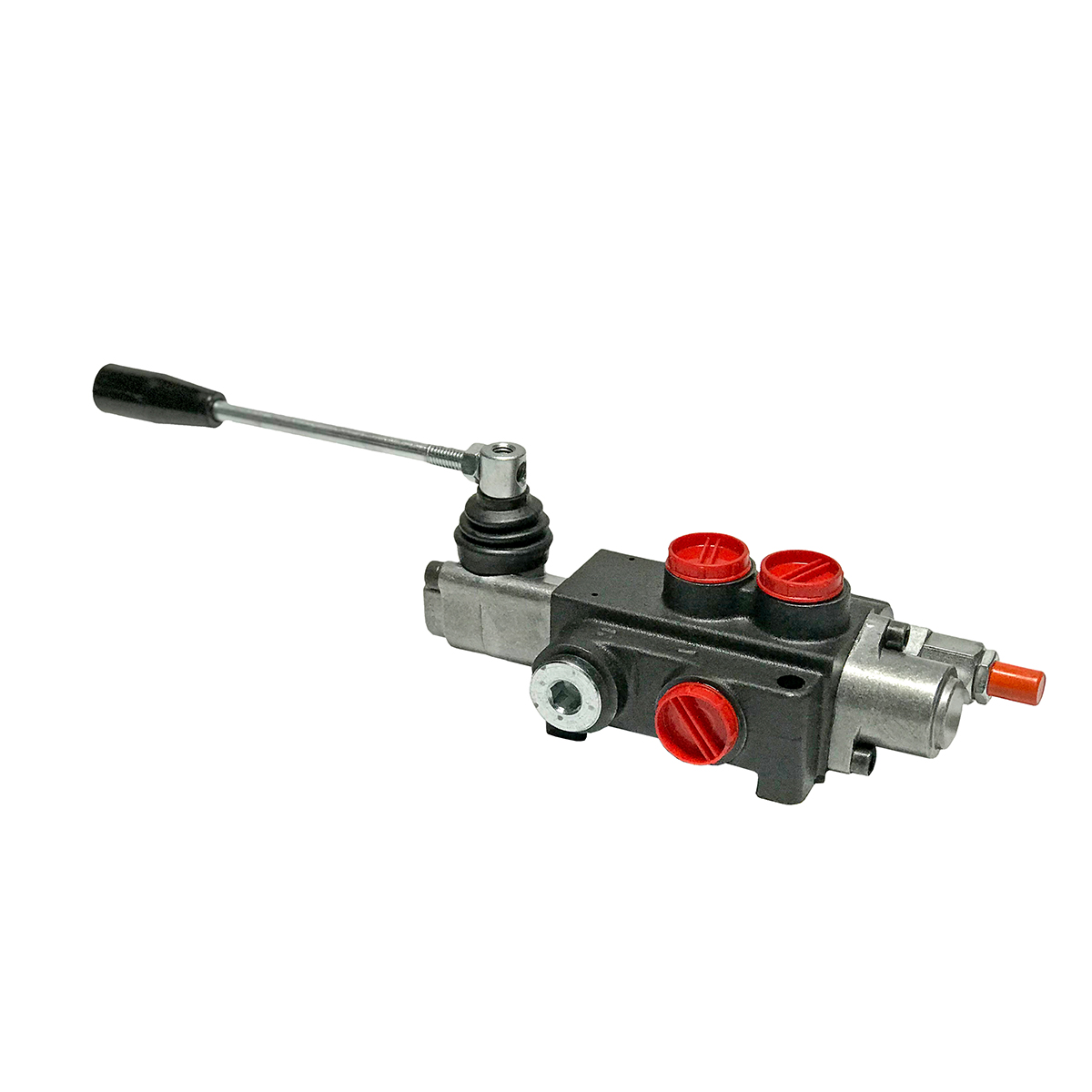

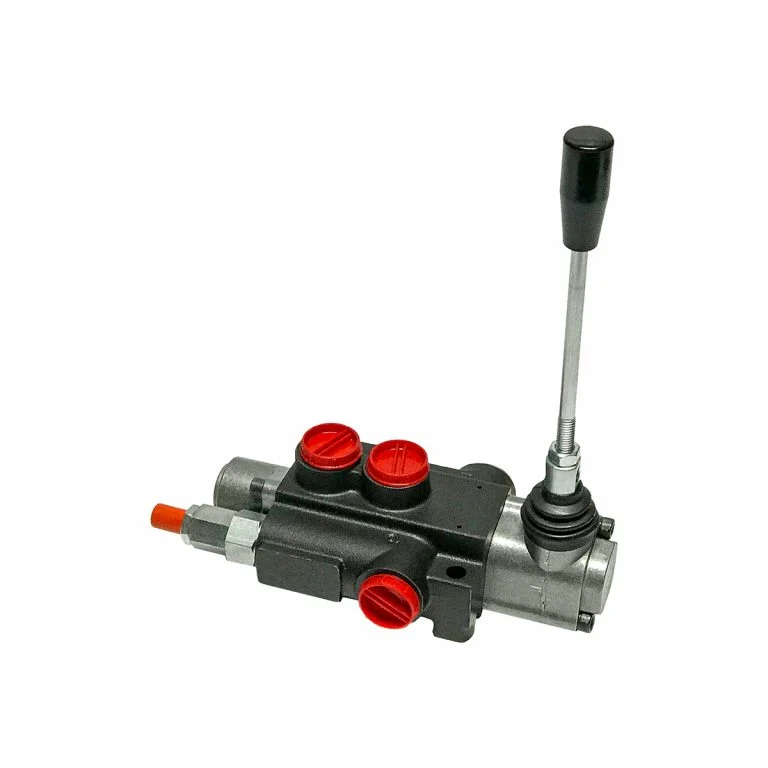

1 spool x 21 GPM hydraulic control valve
$145.00
Pay in 4 interest-free payments of $36.25| Spools : | 1 | Flow : | 21 GPM | Max Pressure : | 4600 PSI | Inlet Port : | SAE 10 | Operating Pressure : | 3600 PSI | Spool Type : | 4-way 3 pos Open Cntr | Outlet Port : | SAE 12 | Spool Action : | 3-pos Spring center | Working Ports : | SAE 10 | Brand : | Badestnost | Operation : | Manual | Weight : | 9 LBs |
|---|---|
| GTIN : | 854763008380 |
Volume discounts
45 in stock
Description
Gain reliable control over your equipment with the 1 Spool, 21 GPM Hydraulic Control Valve. Engineered with a heavy-duty cast iron body, this valve directs hydraulic oil between pumps, cylinders, and motors under pressures up to 3600 PSI (4600 PSI max). Crafted in Europe to stringent American standards, it’s a dependable solution for demanding applications in temperatures from -40°F to 140°F.
Built for Demanding Performance
- Robust Construction: Durable, leak-resistant cast iron monoblock body designed for harsh operating environments.
- High-Pressure Operation: Standard operating pressure 3600 PSI; maximum pressure rating 4600 PSI.
- Extreme Temperature Resilience: Reliable performance from -40°F to 140°F for year-round use.
Designed for Versatility & Ease
- Broad Compatibility: Excellent direct replacement for systems in small tractors, tractor loaders, log splitters, forklifts, and tow trucks.
- Flexible Configuration: Includes handles installable vertically or horizontally to match your setup.
- Secure Mounting: Uses 2 M8 mounting bolts for stable installation.
- Advanced Option (Power Beyond): Power Beyond capability available for daisy-chaining multiple valves (requires plug installation into the “N” Port).
Perfect For
Ideal replacement or upgrade for: Small Tractors, Tractor Loaders, Log Splitters, Forklifts, and Tow Trucks.
Note: Power beyond option is available; plug must be installed into the “N” Port.
POWER BEYOND PLUG
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Made in Europe. 1 Year Warranty.
