21 GPM power beyond adapter sleeve for hydraulic control valves

SKU: PB-HCV-21

$23.00

In Stock

29 in stock

View cart
Made in Europe
US Customer Support

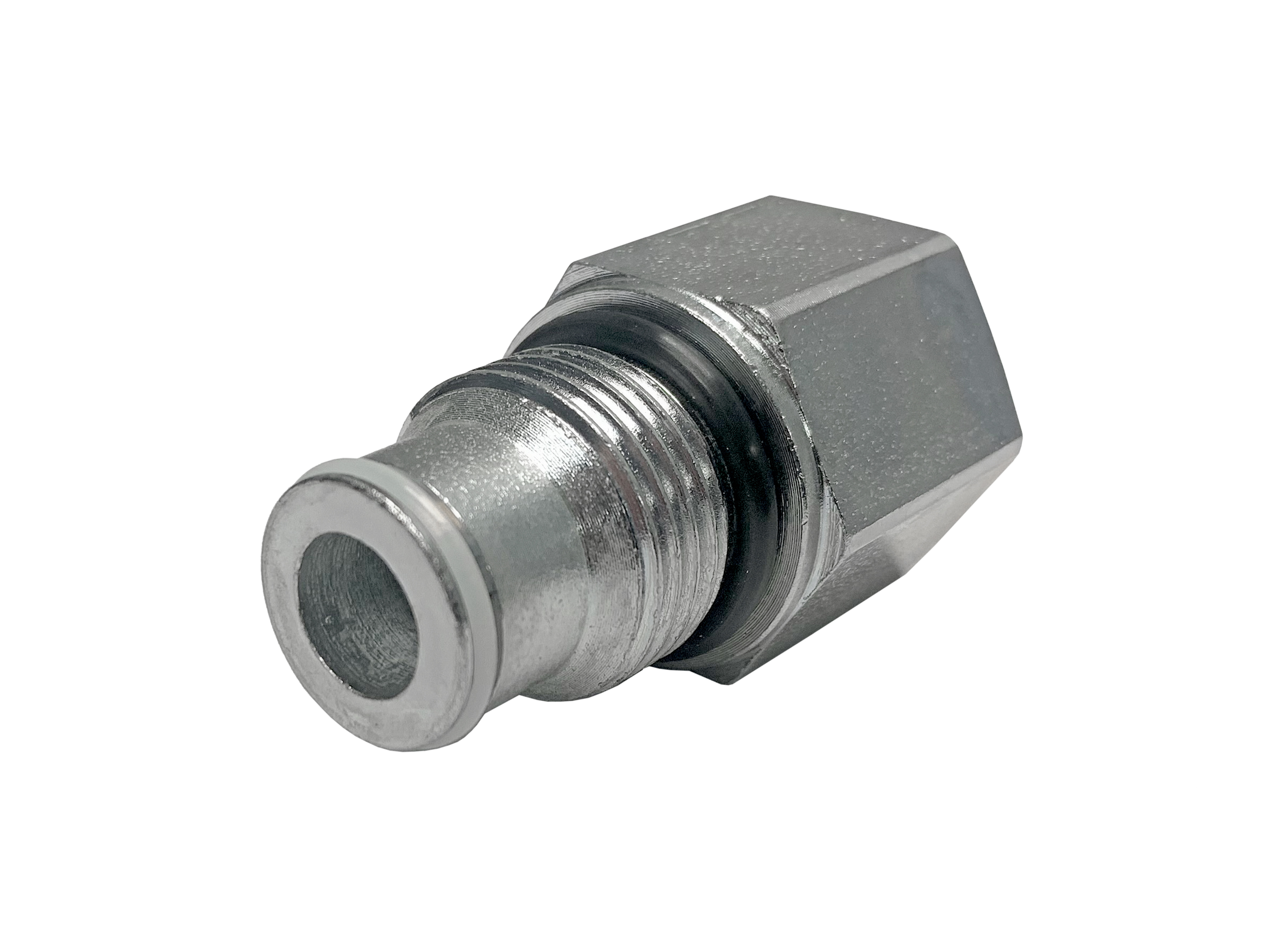

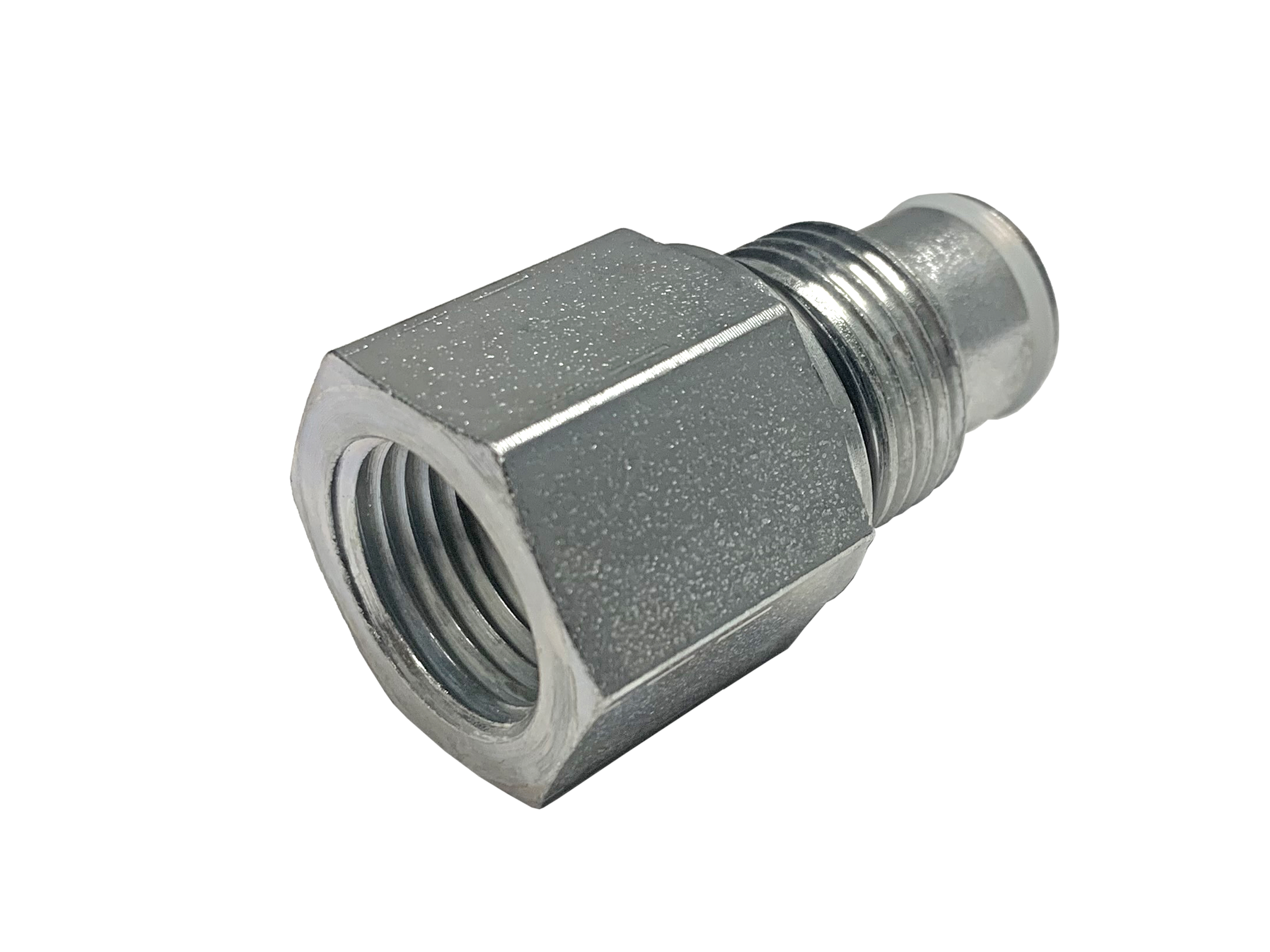

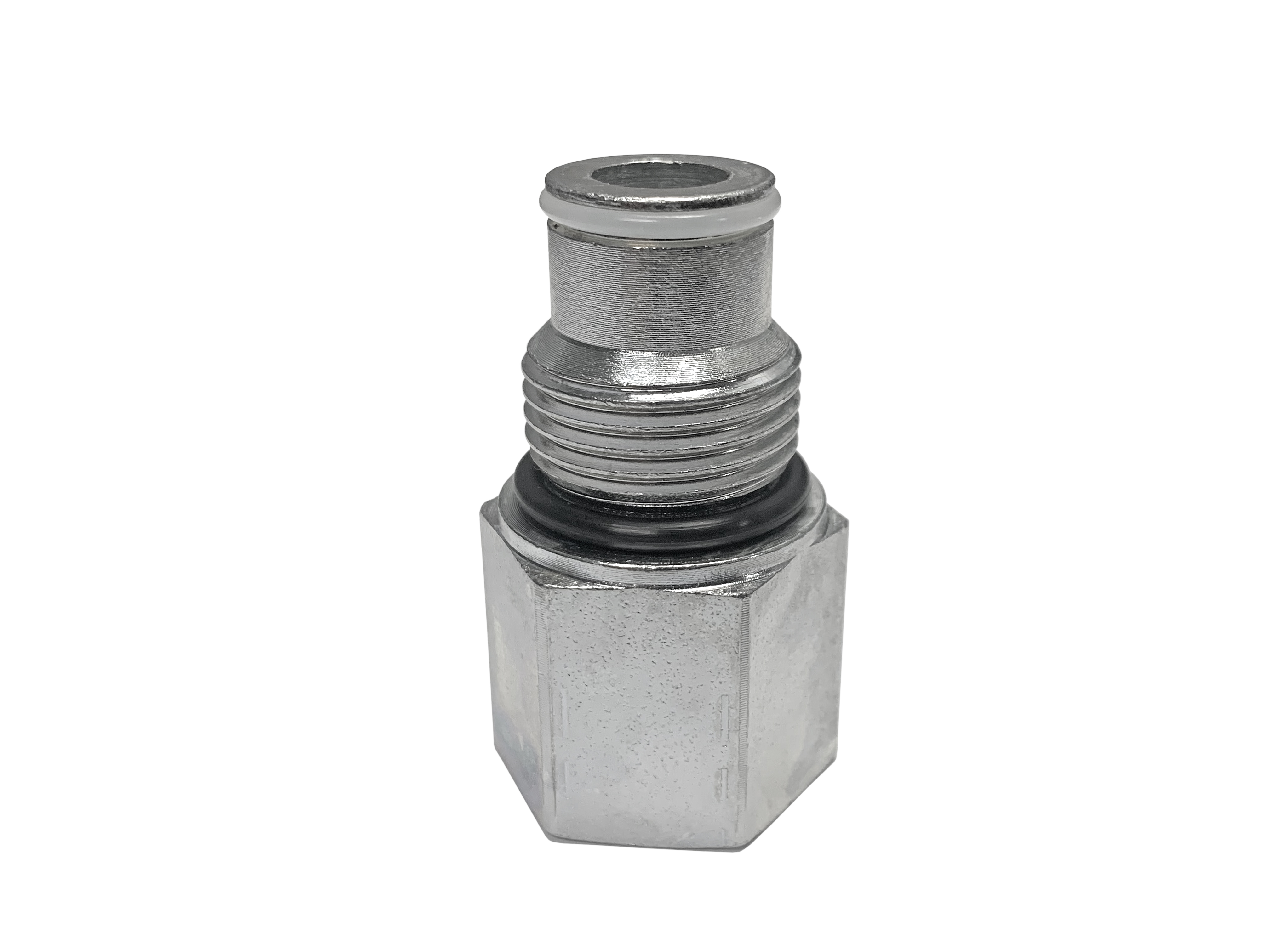

21 GPM high pressure power beyond adapter sleeve for Magister Hydraulics monoblock hydraulic control valves HCV 21 series. Used to connect a valve to an existing valve in a hydraulic circuit. Must be installed into “N” Port on 21 GPM hydraulic control valves series. The outlet on the valve in which the adapter is installed must be connected to the tank. The male end has BSPP 3/4 thread, and the female end has SAE 12 thread. Zinc plated.

Note: The Power Beyond port plug comes with a metal washer seal.

Made in Europe. If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us: 973-344-5313

Compatible with the following hydraulic control valves:
View Full Specifications

Specifications

21 GPM power beyond adapter sleeve for hydraulic control valves
SKU: PB-HCV-21
Male threadBSPP 3/4Overall length2.25 in
Female threadSAE 12MaterialCarbon steel
BrandBadestnostGTIN850016509932
