2 spool x 32 GPM hydraulic control valve, monoblock cast iron valve | Magister Hydraulics

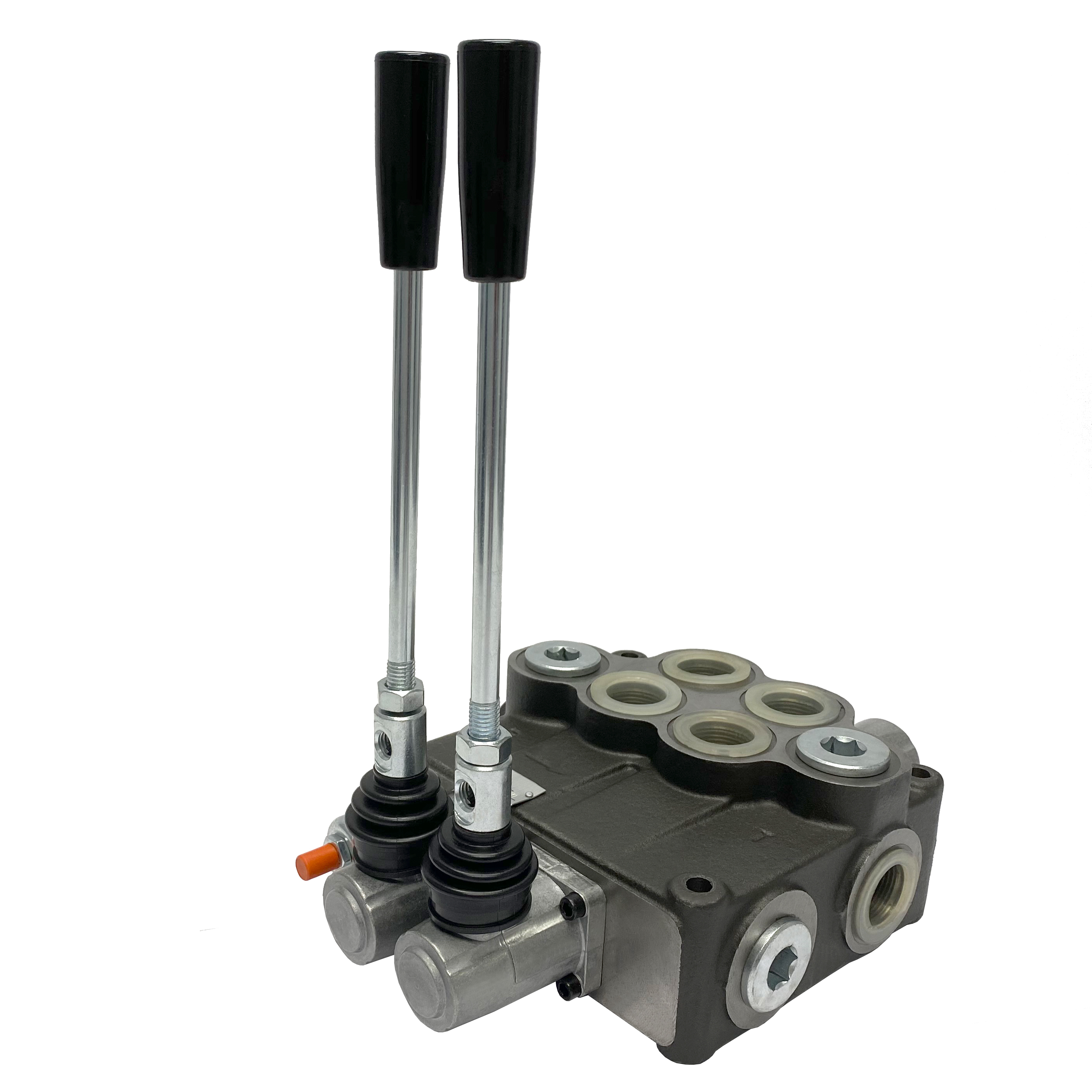

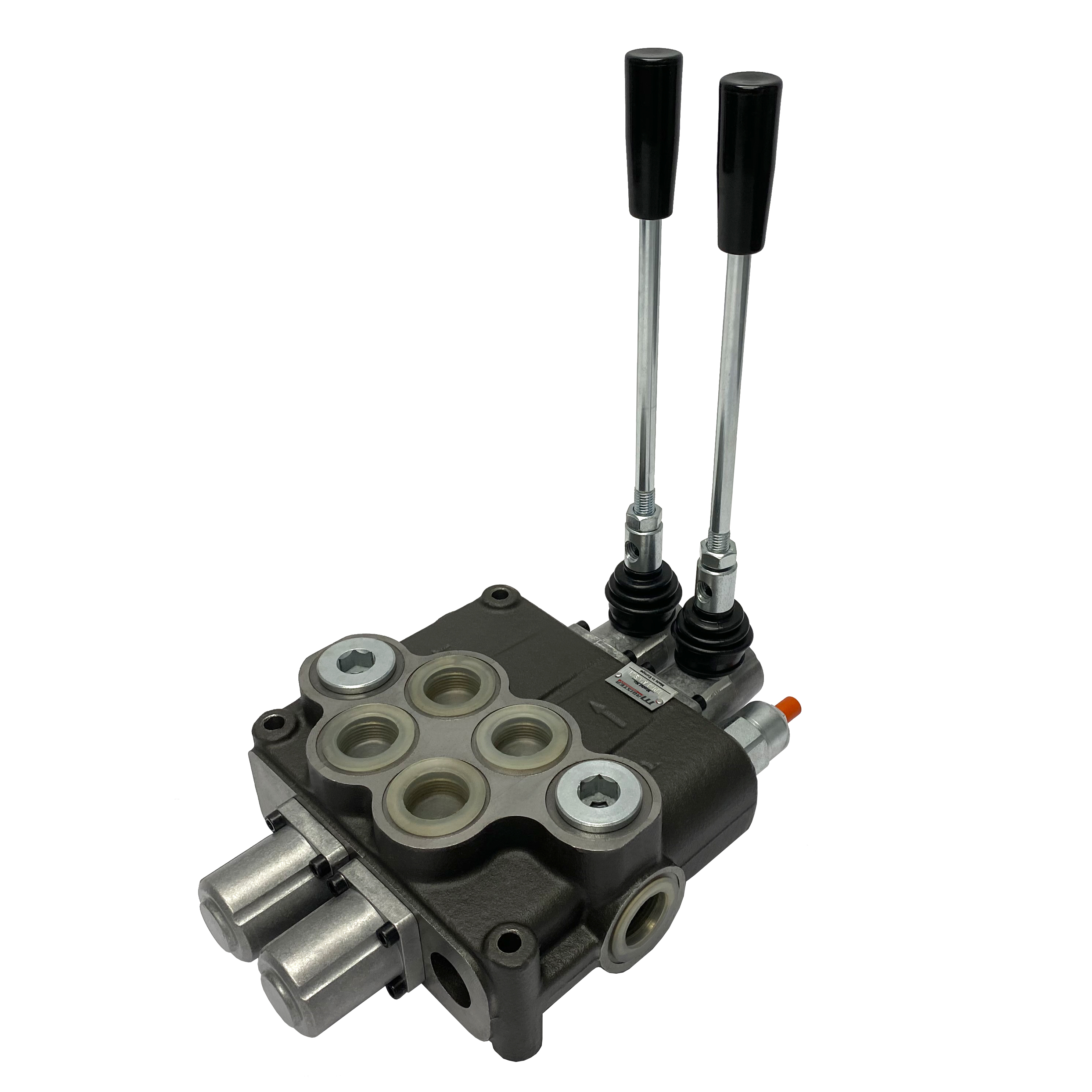

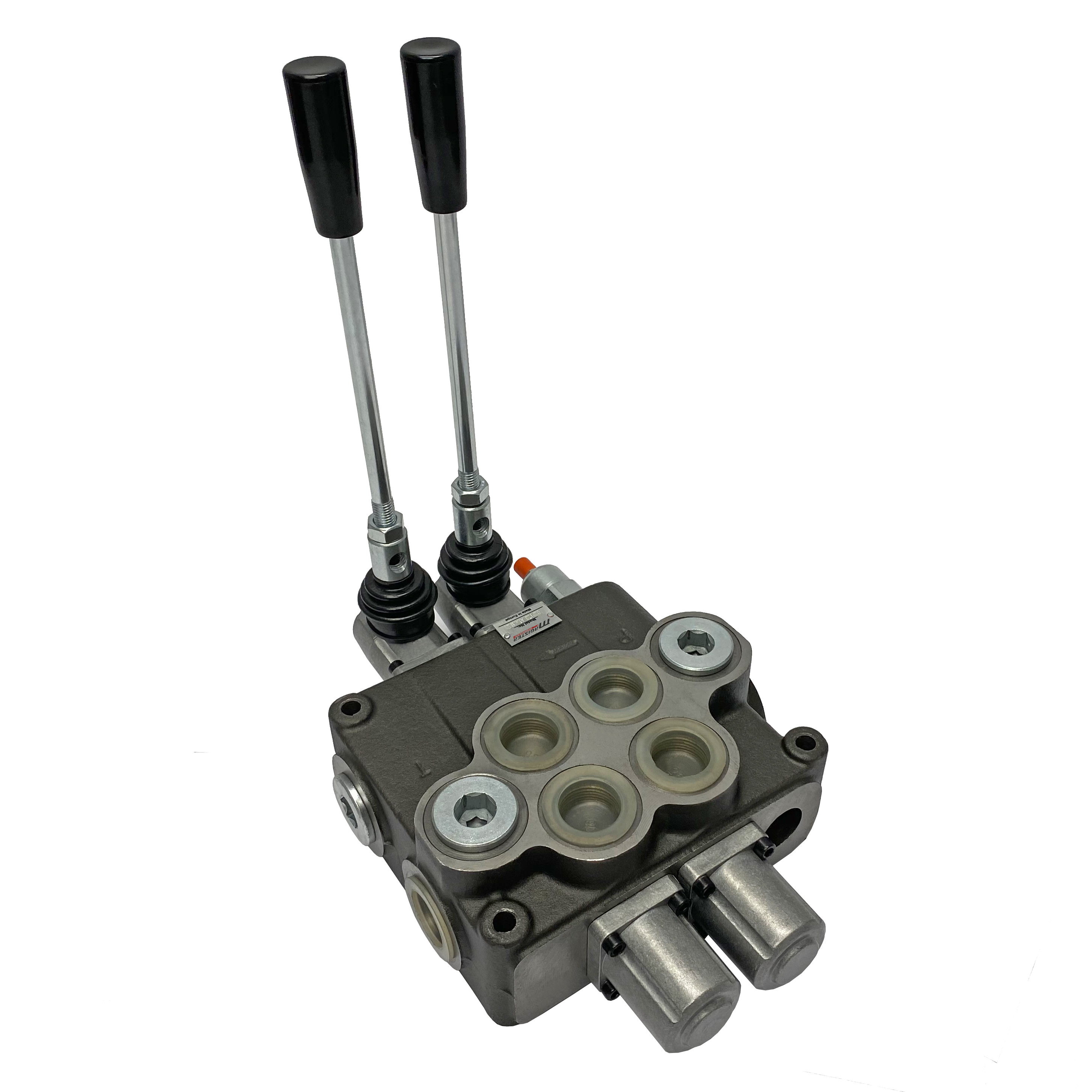

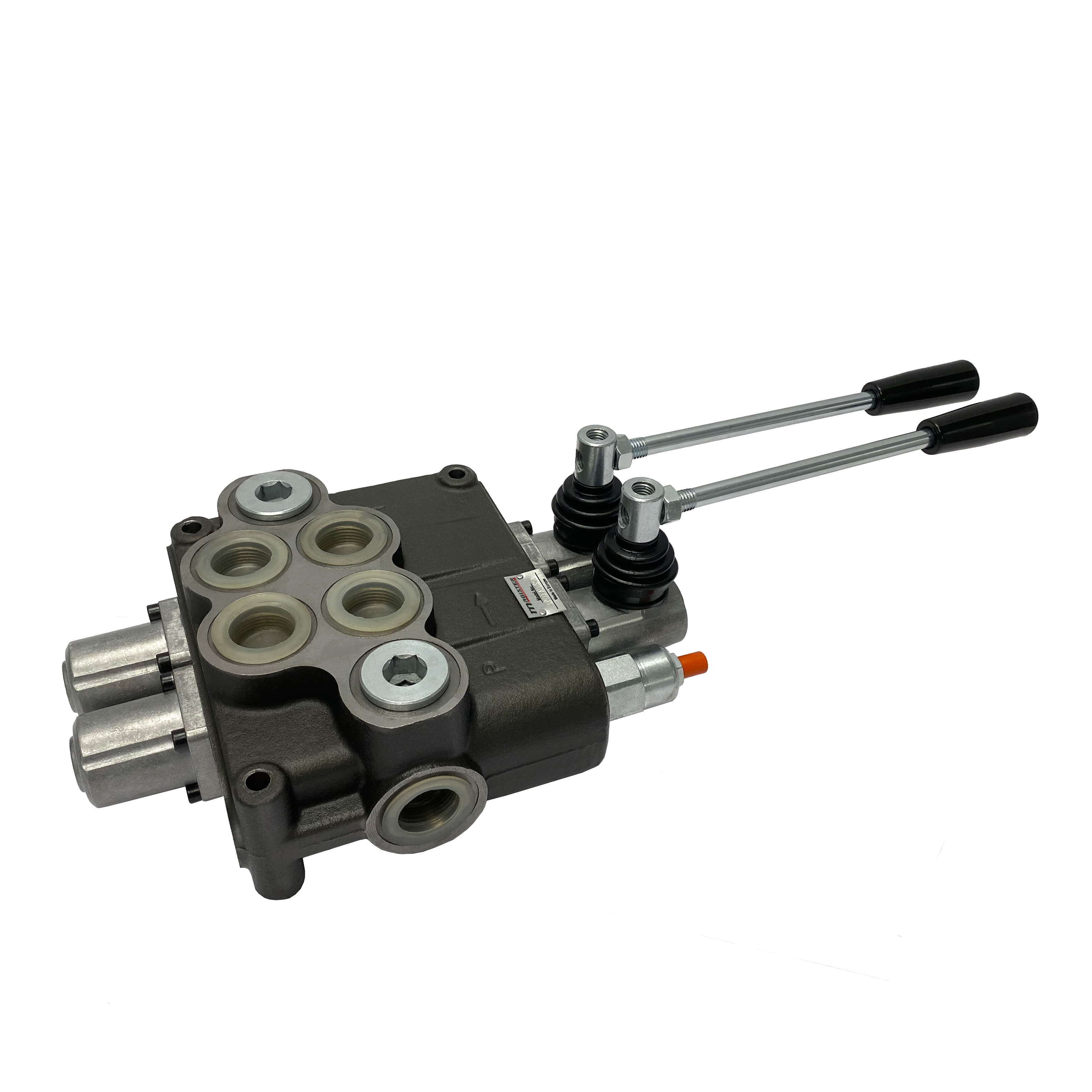

2 spool x 32 GPM hydraulic control valve

Name: 2 spool x 32 GPM hydraulic control valve
SKU: HCV 2x32
Availability: InStock
Rating: 5.00 (1 reviews)

$429.00

Pay in 4 interest-free payments of $107.25

* Wholesale Discount is available for this product if you purchase 5 or more products.

SKU: HCV 2x32

Spools :	2
Flow :	32 GPM
Max Pressure :	4600 PSI
Inlet Port :	SAE 16
Operating Pressure :	3600 PSI
Spool Type :	4-way 3 pos Open Cntr
Outlet Port :	SAE 16
Spool Action :	3-pos Spring center
Working Ports :	SAE 16
Brand :	Badestnost
Operation :	Manual
Weight :	43 LBs
GTIN :	850016509840

SKU: HCV 2x32 Categories: Hydraulic Control Valves, Monoblock Hydraulic Control Valves Brand: Badestnost

Volume discounts

5+ PRICE EA -5%

$407.55

10+ PRICE EA -10%

$386.10

In stock

21 in stock

Description

Gain reliable control over your equipment with the 2 Spool, 32 GPM Hydraulic Control Valve. Engineered with a heavy-duty cast iron body, this valve directs hydraulic oil between pumps, cylinders, and motors under pressures up to 3600 PSI (4600 PSI max). Crafted in Europe to stringent American standards, it’s a dependable solution for demanding applications in temperatures from -40°F to 140°F.

Built for Demanding Performance

Robust Construction: Durable, leak-resistant cast iron monoblock body designed for harsh operating environments.
High-Pressure Operation: Standard operating pressure 3600 PSI; maximum pressure rating 4600 PSI.
Extreme Temperature Resilience: Reliable performance from -40°F to 140°F for year-round use.

Designed for Versatility & Ease

Broad Compatibility: Excellent direct replacement for systems in small tractors, tractor loaders, log splitters, forklifts, and tow trucks.
Flexible Configuration: Includes handles installable vertically or horizontally to match your setup.
Secure Mounting: Uses 3 M10 mounting bolts for stable installation.
